TT range
TT TT505 400v/3ph pump PE/TT505/3
- Established 1975
- Trusted by thousands of customers
Details

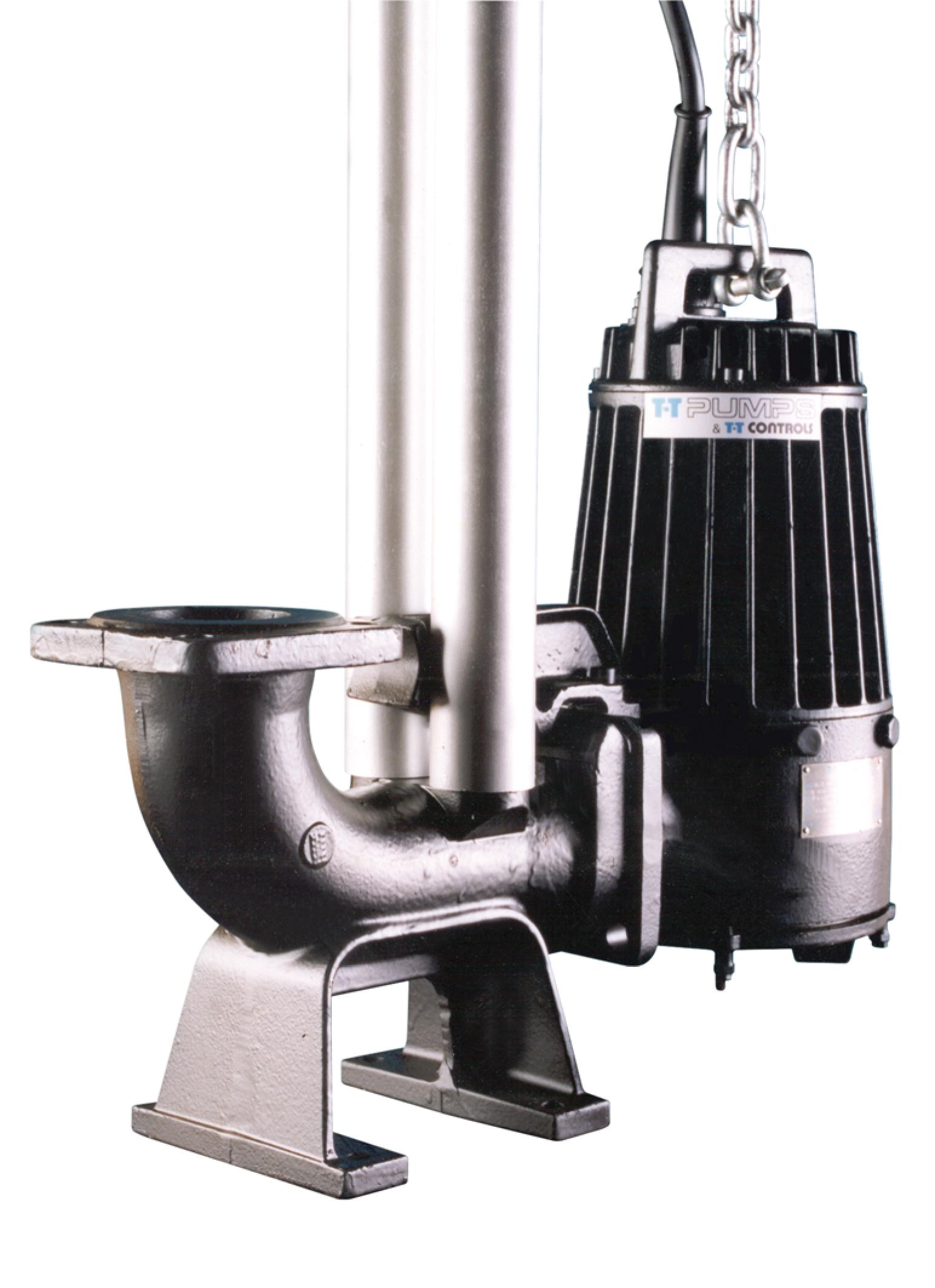

The T-T305, T-T505 and T-T510 submersible pumps are designed for transferring sewage and effluent, and for dirty water drainage.
This range of pumps has a shredding action, produced by the impeller rotating against a special serrated suction cover. This reduces any destructible matter to a manageable size for pumping, minimising the risk of blockage and allowing better efficiency and economy.
Applications
- Sewage pumping stations
- Domestic and industrial use
- Agriculture / farming
- Sewage and treatment works
- Housing
Features
- Cast iron construction
- Submersible
- Double mechanical seal within oil bath
- 15mm solids handling
- 0.85-1.8kW output
- 80mm discharge
- Auto-coupling available
.
More about this product
Specification –
- Code PE/TT505/3
- Weight 55kg
- Cable lenght 10m

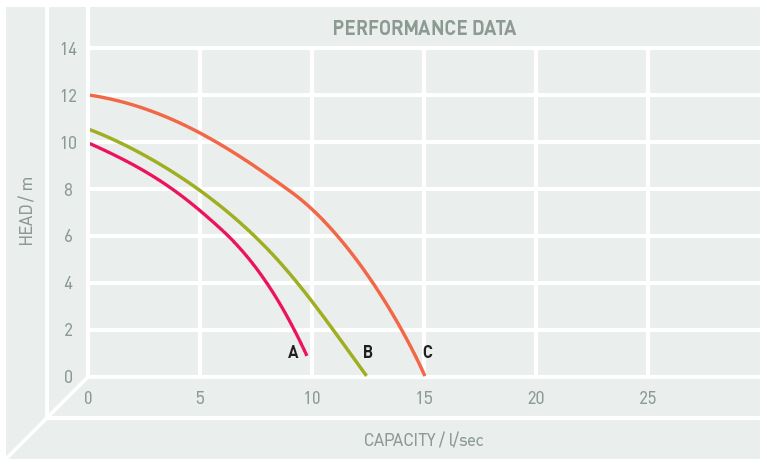

- Curve B
- Free passage 15mm
- kW 1.25
- Outlet 3″/80mm
* Please see our Pump Accessories section to purchase a Duckfoot or Stand for these pumps. These products are category C.
-
data sheet PDFDownload
-
manual PDFDownload
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
You may also need
Details The stands are designed to allow the pump to operate correctly within a sump, when an auto-coupling system cannot be used. Both vertical and…
Details The auto-coupling set consists of a pump pedestal/duckfoot, pump hook and upper guiderail fixing bracket*. The auto-coupling is fixed to the bottom of the…
Related products
Grundfos are known throughout the drainage world for their high quality construction and easy-to-use products. The AP series is one of their most popular, offering…
Submersible electric pumps with Grinder used for the lifitng of waters containing filamentous materials, paper or textile materials. In particular for clearance of waste waters…
The AP series of Grundfos drainage pumps are designed for temporary and portable installations, but can also be installed on a permanent free-standing basis. The…
The DAB Feka submersible pump has been designed for lifting dirty water. Explore the Feka and Fekafos range here at APS for quality pumps at…
The Ebara Best One MA is a submersible electric pump for clean water with maximum solid sizes of 10mm in 304 stainless steel. Applications -…
The Clarke PSV1A water pump is designed particulary for heavy duty applications. This robust, powerful water pump is ideal for rapidly shifting both clean and…
Frequently Asked Questions
Quick answers to common questions about the TT TT505 400v/3ph pump PE/TT505/3. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.
What is a submersible pump?
A submersible pump is designed to operate fully submerged in the liquid it is moving. The motor is sealed inside the pump body and cooled by the surrounding water. Submersibles are used for drainage, sewage, septic tanks, deep wells and boreholes, and for raising water from sumps, cellars and floodwater. Many stocked at Anglian Pumping handle solids in suspension.
Can submersible pumps handle solids and sewage?
Yes – some submersibles are designed for clean water only, others handle solids up to 50 mm or full raw sewage. Anglian Pumping stocks ABS, BBC, Flygt and T-T Submersibles ranges that include vortex, single channel and grinder impellers for different solids handling requirements. Always match the pump to the maximum solid size and the type of effluent it will see.
When should I use a submersible pump instead of a surface pump?
Use a submersible when the water level is more than around 8 metres below the pump installation point – surface pumps cannot self-prime beyond that depth. Submersibles are also better when the liquid contains solids, when noise must be minimised, or when the pump needs to operate in confined spaces such as sumps and chambers where a surface pump would not fit.
