TT range
TT DN80 auto-coupling P25/80-A/COUP
- Established 1975
- Trusted by thousands of customers
Details

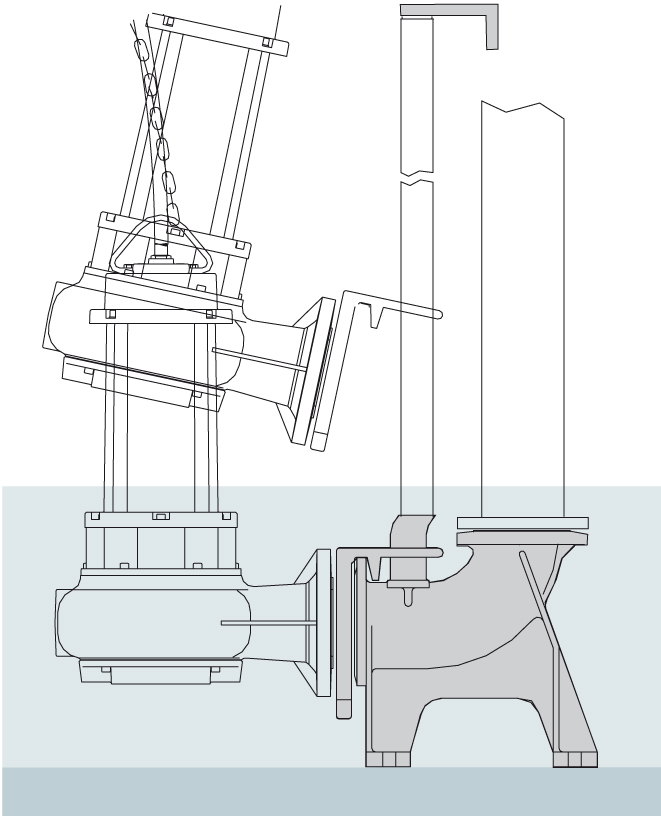

The auto-coupling set consists of a pump pedestal/duckfoot, pump hook and upper guiderail fixing bracket*. The auto-coupling is fixed to the bottom of the pump chamber and allows the pump to be raised and lowered without emptying the chamber, making repairs and maintenance of the pump much easier and more cost-effective. The mobile section, an integral part of the pump, descends on the guide-rails, connected to the fixed part of the device at the top of the chamber, until it self-locates in the correct operating position.
Applications
- All submersible pumping systems in confined space areas
Features
- Easy to lift pump for cleaning/maintenance
- Robust construction
More about this product
Specification –
- Code P25/80-A/COUP
- Weight 28kg
- Outlet 3"/80mm
-
data sheet PDFDownload
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
Related products
The Clarke CSD3 multi-stage 4 impeller pump is for use with cold, clean water i.e. wells or rain water tanks and can pump up to…
The Ebara Best One MA is a submersible electric pump for clean water with maximum solid sizes of 10mm in 304 stainless steel. Applications -…
Zenit DR Blue Pro 50/2/G32V 230v/1ph Auto DR Blue Professional range of submersible drainage pumps designed for domestic and professional use. Used in cellars and…
Submersible electric pumps with Grinder used for the lifitng of waters containing filamentous materials, paper or textile materials. In particular for clearance of waste waters…
The Clarke PSV1A water pump is designed particulary for heavy duty applications. This robust, powerful water pump is ideal for rapidly shifting both clean and…
The Lowara Domo GRI is a compact, high-performance submerisble grinder. The heavy duty cutting device makes it excellent for pumping waste water in residential, commerical…
Frequently Asked Questions
Quick answers to common questions about the TT DN80 auto-coupling P25/80-A/COUP. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.
What is a submersible pump?
A submersible pump is designed to operate fully submerged in the liquid it is moving. The motor is sealed inside the pump body and cooled by the surrounding water. Submersibles are used for drainage, sewage, septic tanks, deep wells and boreholes, and for raising water from sumps, cellars and floodwater. Many stocked at Anglian Pumping handle solids in suspension.
Can submersible pumps handle solids and sewage?
Yes – some submersibles are designed for clean water only, others handle solids up to 50 mm or full raw sewage. Anglian Pumping stocks ABS, BBC, Flygt and T-T Submersibles ranges that include vortex, single channel and grinder impellers for different solids handling requirements. Always match the pump to the maximum solid size and the type of effluent it will see.
When should I use a submersible pump instead of a surface pump?
Use a submersible when the water level is more than around 8 metres below the pump installation point – surface pumps cannot self-prime beyond that depth. Submersibles are also better when the liquid contains solids, when noise must be minimised, or when the pump needs to operate in confined spaces such as sumps and chambers where a surface pump would not fit.
