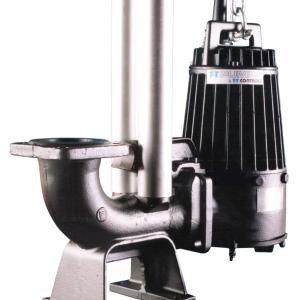

T-T505 sewage transfer pump, 230 V single-phase
Cast iron submersible pump for transferring sewage and dirty water drainage. A shredding action from the impeller rotating against a serrated suction cover reduces destructible matter to a manageable size.
Pumps up to 750 l/min and up to 10.5 m head, 1.25 kW motor on 230 V single-phase, 50 Hz, solids up to 15 mm.
More about this product
Applications
- Transferring sewage and effluent
- Dirty water drainage
Specification
| Model | T-T505 |
|---|---|
| Part number | PE/TT505/1 |
| Supply | 230 V single-phase, 50 Hz |
| Motor power | 1.25 kW |
| Full load current | 9.6 A |
| Maximum flow | 750 l/min (12.5 l/s) |
| Maximum head | 10.5 m (1.03 bar) |
| Discharge | 80 mm (3″) |
| Free passage (solids) | 15 mm |
| Construction | Cast iron construction |
| Impeller | Shredding impeller with serrated suction cover |
| Seals | Double mechanical seal in an oil bath |
| Thermal protection | Thermal cut-out built into the motor |
| Cable length | 10 m |
| Weight | 55 kg |
Key features
Frequently asked questions
* Please see our Pump Accessories section to purchase a Duckfoot or Stand for these pumps. These products are category C.
-
data sheet PDFDownload
-
manual PDFDownload
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
You may also need
T-T stand for Zenit DGO 150/200 80 mm modelsPump stand so the pump sits and runs correctly in a chamber where an auto-coupling cannot be…
T-T DN80 auto-coupling (duckfoot) kitPump pedestal (duckfoot), pump hook and upper guide rail bracket. The pump slides down the guide rails and self-locates on the…
Related products
Submersible sewage pump with a 40mm solids handling capacity. Cast iron construction suitable for pumping light domestic waste effluent septic tanks and large basements/cellars.
Submersible electric pumps with Grinder used for the lifitng of waters containing filamentous materials, paper or textile materials. In particular for clearance of waste waters…
The DAB Nova submersible pumps are designed for domestic use including basement drainage, cesspit water removal, ponds and fountains. Ideal for water up to 10…
Lowara DOC Pumps Submersible pumps for drainage, infiltration water and emptying of pools, ponds, tanks and reservoirs. The DOC pump is mainly made of stainless…
The Clarke PSV1A water pump is designed particulary for heavy duty applications. This robust, powerful water pump is ideal for rapidly shifting both clean and…
Zenit DR Blue Pro 50/2/G32V 230v/1ph Auto DR Blue Professional range of submersible drainage pumps designed for domestic and professional use. Used in cellars and…
Frequently Asked Questions
Quick answers to common questions about the TT TT505 230v/1ph pump PE/TT505/1. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.
What is a submersible pump?
A submersible pump is designed to operate fully submerged in the liquid it is moving. The motor is sealed inside the pump body and cooled by the surrounding water. Submersibles are used for drainage, sewage, septic tanks, deep wells and boreholes, and for raising water from sumps, cellars and floodwater. Many stocked at Anglian Pumping handle solids in suspension.
Can submersible pumps handle solids and sewage?
Yes – some submersibles are designed for clean water only, others handle solids up to 50 mm or full raw sewage. Anglian Pumping stocks ABS, BBC, Flygt and T-T Submersibles ranges that include vortex, single channel and grinder impellers for different solids handling requirements. Always match the pump to the maximum solid size and the type of effluent it will see.
When should I use a submersible pump instead of a surface pump?
Use a submersible when the water level is more than around 8 metres below the pump installation point – surface pumps cannot self-prime beyond that depth. Submersibles are also better when the liquid contains solids, when noise must be minimised, or when the pump needs to operate in confined spaces such as sumps and chambers where a surface pump would not fit.
