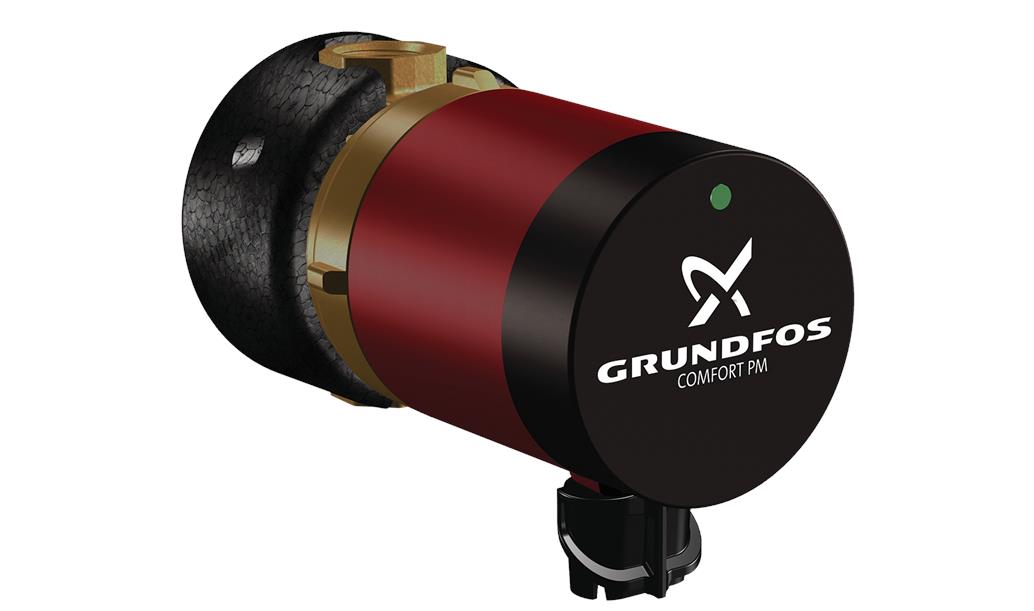

Grundfos Comfort 15-14 B PM GB 99164484
Out of stock
- Established 1975
- Trusted by thousands of customers
Grundfos Comfort 15-14 B PM GB 99164484
The high-efficiency Grundfos Comfort PM range is a product for domestic hotwater re-circulation with lead free drinking water suitable pump housing for single- and two-family houses powered by a high efficiency single-phase, 12-pole, permanent-magnet motor.
Features & benefits:
- Quick and simple electrical installation due to 1,5m cable incl. power plug
- Dry running detection
- Easy-to-clean and lime-insensitive spheric rotor
- Wearless operation due to liquid lubricated bearing
- No leakage risk due to a static seal
- Easy maintenance and cleaning through the easy-to-separate pump head fitting almost all competitor pump housings
- Corrosion resistant lead free brass pump housing
- No additional motor protection necessary due to integrated motor electronics
More about this product
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | 2 .. 95 °C |
| Liquid temperature during operation: | 60 °C |
| Density: | 983.2 kg/m³ |
| Technical: | |
| TF class: | 95 |
| Approvals on nameplate: | CE,VDE,WEEE |
| Materials: | |
| Pump housing: | Brass MS 68 |
| Impeller: | Stainless steel, EPDM, PPO, PTFE, Graphit |
| Installation: | |
| Maximum operating pressure: | 10 bar |
| Type of connection: | Rp |
| Pipe connection: | 1/2 |
| (@): | 80 mm |
| Electrical data: | |
| Max. power input: | 7 W |
| Mains frequency: | 50 Hz |
| Rated voltage: | 1 x 230 V |
| Current in speed 3: | 0.07 A |
| Capacitor size – run: | 0.6 µF |
| Enclosure class (IEC 34-5): | IP44 |
| Insulation class (IEC 85): | F |
| Others: | |
| Net weight: | 1 kg |
| Gross weight: | 1.12 kg |
| Shipping volume: | 0.003 m³ |
-
data sheet PDFDownload
-
brochure PDFDownload
-
quick guide PDFDownload
