Grundfos comfort hot water service circulators
Grundfos Comfort 15-14 BXA PM GB 99164488
In stock
- Established 1975
- Trusted by thousands of customers
Grundfos Comfort 15-14 BXA PM GB 99164488

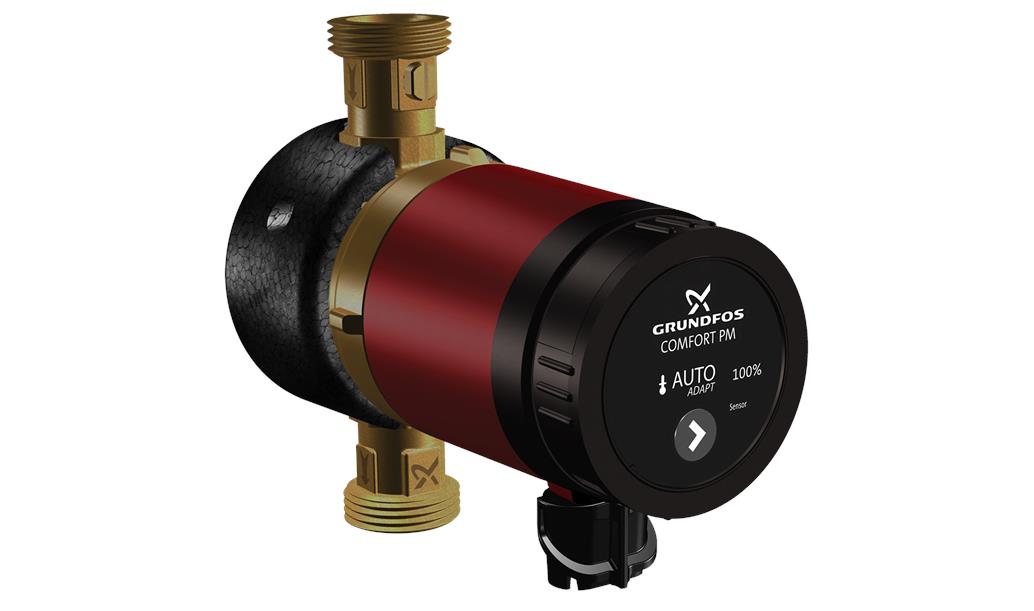

The Grundfos Comfort PM is designed for recirculation of domestic hot water in single- and two-family houses. It has a lead-free pump housing suitable for potable water and is powered by a high-efficiency single-phase, 12-pole permanent-magnet motor.
The AUTOADAPT function has been developed for domestic hot-water systems with hot-water tanks as primary heating source. In domestic hot-water systems with integrated temperature control functionality for raising and lowering the temperature on the recirculation pipe, Grundfos recommends using the COMFORT BX or COMFORT B models. To get the full advantages of the COMFORT AUTO model with the AUTOADAPT feature, Grundfos recommends installing the pump in systems with hot water storage tanks.
More about this product
Specifications
Product name | COMFORT 15-14 BXA PM GB |
Product No | 99164488 |
EAN number | 5712607928506 |
Technical | |
Speed no | 1 |
Head max | 14 dm |
TF class | 95 |
Approvals on nameplate | CE,VDE,WEEE |
Valve | pump with built-in isolating and non-return valves |
Materials | |
Pump housing | Brass MS 68 |
Impeller | Stainless steel, EPDM, PPO, PTFE, Graphit |
Installation | |
Maximum operating pressure | 10 bar |
Type of connection | G |
Pipe connection | 1 |
(@ | 140 mm |
Liquid | |
Pumped liquid | Water |
Liquid temperature range | 2 .. 95 °C |
Liquid temperature during operation | 60 °C |
Density | 983.2 kg/m³ |
Electrical data | |
Max. power input | 7 W |
Mains frequency | 50 Hz |
Rated voltage | 1 x 230 V |
Current in speed 3 | 0.07 A |
Capacitor size – run | 0.6 µF |
Enclosure class (IEC 34-5) | IP44 |
Insulation class (IEC 85) | F |
Motor protec | NONE |
Thermal protec | Impedance protected |
Others | |
Net weight | 1.35 kg |
Gross weight | 1.51 kg |
Shipping volume | 0.003 m³ |
Country code | GB |
Features and benefits:
- Unique AUTOADAPT feature saving up to 48% heat energy and 97% motor energy compared with a standard pump in continuous operation
- Flushing function
- Automatic legionella eliminating operation (if supported from the system)
- Automatic weekend and vacation detection
- Temperature control (can be chosen through the push button)
- Continuous operation (can be chosen through the push button)
- Quick and simple electrical installation due to 1,5m cable incl. power plug
- Dry-running detection
- Easy-to-clean and lime-insensitive spheric rotor
- Wearless operation due to liquid-lubricated bearing
- No leakage risk due to a static seal
- Easy maintenance and cleaning through the easy-to-separate pump head fitting almost all competitor pump housings
- Corrosion-resistant lead-free brass pump housing
- No additional motor protection necessary due to integrated motor electronics
- No additional installation costs due to integrated non-return and isolating valve included in the fittings
-
quick guide PDFDownload
-
brochure PDFDownload
-
data sheet PDFDownload
