Name: WaterBoost WB - Advant 500 Esybox 2103110
Brand: WaterBoost
SKU: WBK500esybox
Price: 1452 GBP
Availability: InStock

WaterBoost WB - Advant 500 Esybox 2103110

WaterBoost WB - Advant 500 Esybox 2103110 - Image 3

WaterBoost WB - Advant 500 Esybox 2103110 - Image 4

WaterBoost WB - Advant 500 Esybox 2103110 - Image 5

WaterBoost WB - Advant 500 Esybox 2103110 - Image 6

In stock

Established 1975
Trusted by thousands of customers

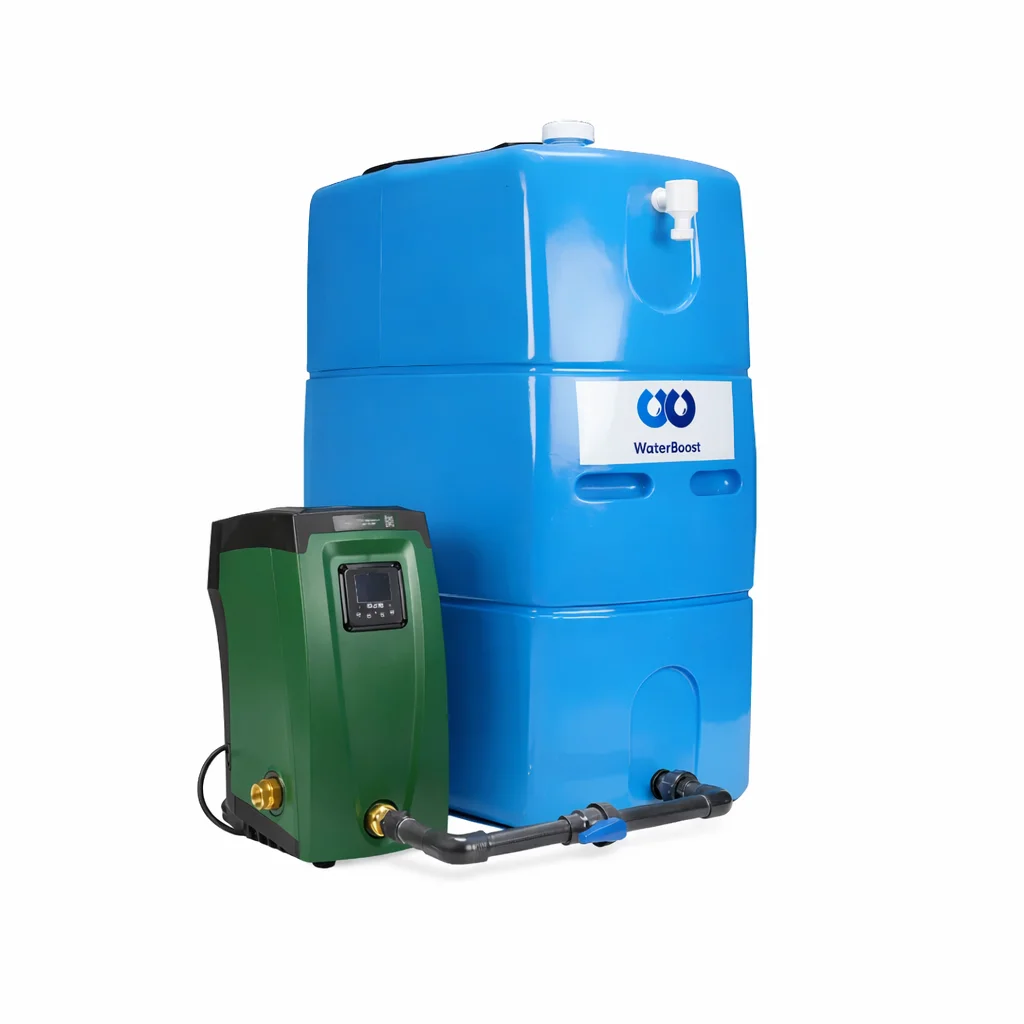

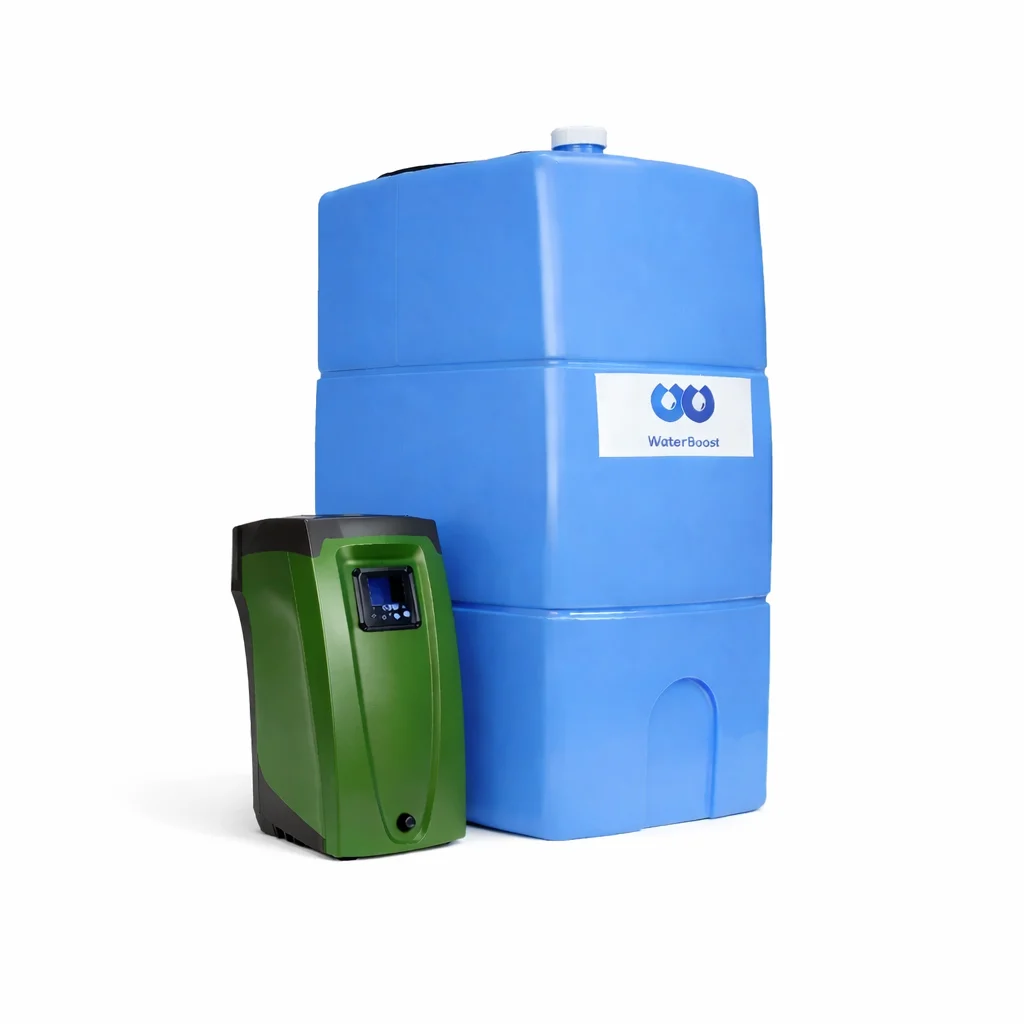

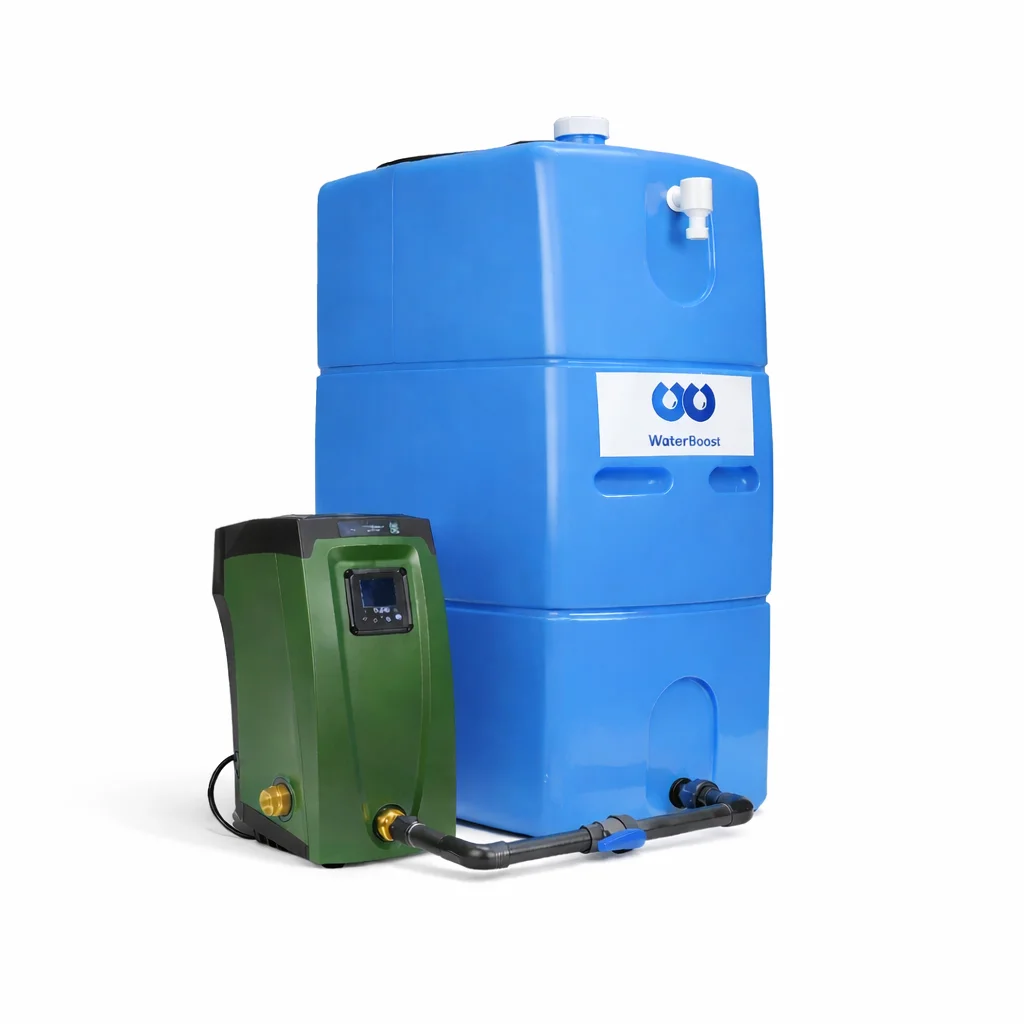

The WaterBoost WB-Advant 500 Esybox is a high-performance boosting system engineered for larger domestic homes and light commercial applications. A 500-litre WRAS-approved Advant tank (650mm W × 870mm L × 1200mm H) pairs with the DAB Esybox external variable speed pump, delivering 80 l/min at 3 bar and up to 6.5 bar maximum — with WiFi, DConnect app, H2D technology, Google Home and Alexa voice control.

The Esybox sits alongside the tank for full pump accessibility at all times, running at an exceptionally quiet 43 dB(A). The tank connects directly to the mains via the pre-fitted ¾” ball float valve. All interconnecting pipework is supplied — no site assembly required. Ideal for garages and plant rooms.

The UK-manufactured tank carries an outstanding 10-year warranty and the DAB Esybox a 3-year warranty. Delivery is typically 1–2 working days.

80l/min

@ 3 bar

500L

Tank storage

43dB(A)

Ultra quiet

10yr

Tank warranty

WiFi · Google · Alexa
WRAS tank & pump
6.5 bar max
10yr tank warranty
1–2 day delivery
UK-manufactured tank

Full Description

More about this product

Full Description

Product overview

The WaterBoost WB-Advant 500 Esybox is the most capable system in the WB-Advant 500 range. A 500-litre WRAS-approved UK-manufactured Advant tank (650mm W × 870mm L × 1200mm H) pairs with the DAB Esybox external variable speed pump, delivering 80 l/min at 3 bar and up to 6.5 bar maximum. Designed for larger domestic homes and light commercial properties with demanding simultaneous water use.

The Esybox sits alongside the tank — always accessible for servicing — running at an exceptionally quiet 43 dB(A). WiFi via the DConnect app and H2D technology provide remote monitoring and intelligent control, with Google Home and Alexa voice commands included. The mains connects directly via the pre-fitted ¾” ball float valve. All interconnecting pipework is supplied — no site assembly required.

The UK-manufactured tank carries an outstanding 10-year warranty and the Esybox a 3-year DAB warranty. Delivery typically 1–2 working days.

80^l/min

Flow @ 3 bar

500^L

Tank storage

6.5^bar

Max pressure

43^dB

Noise (1m)

WRAS tank & pump · 10yr tank warranty · UK-manufactured

What’s included

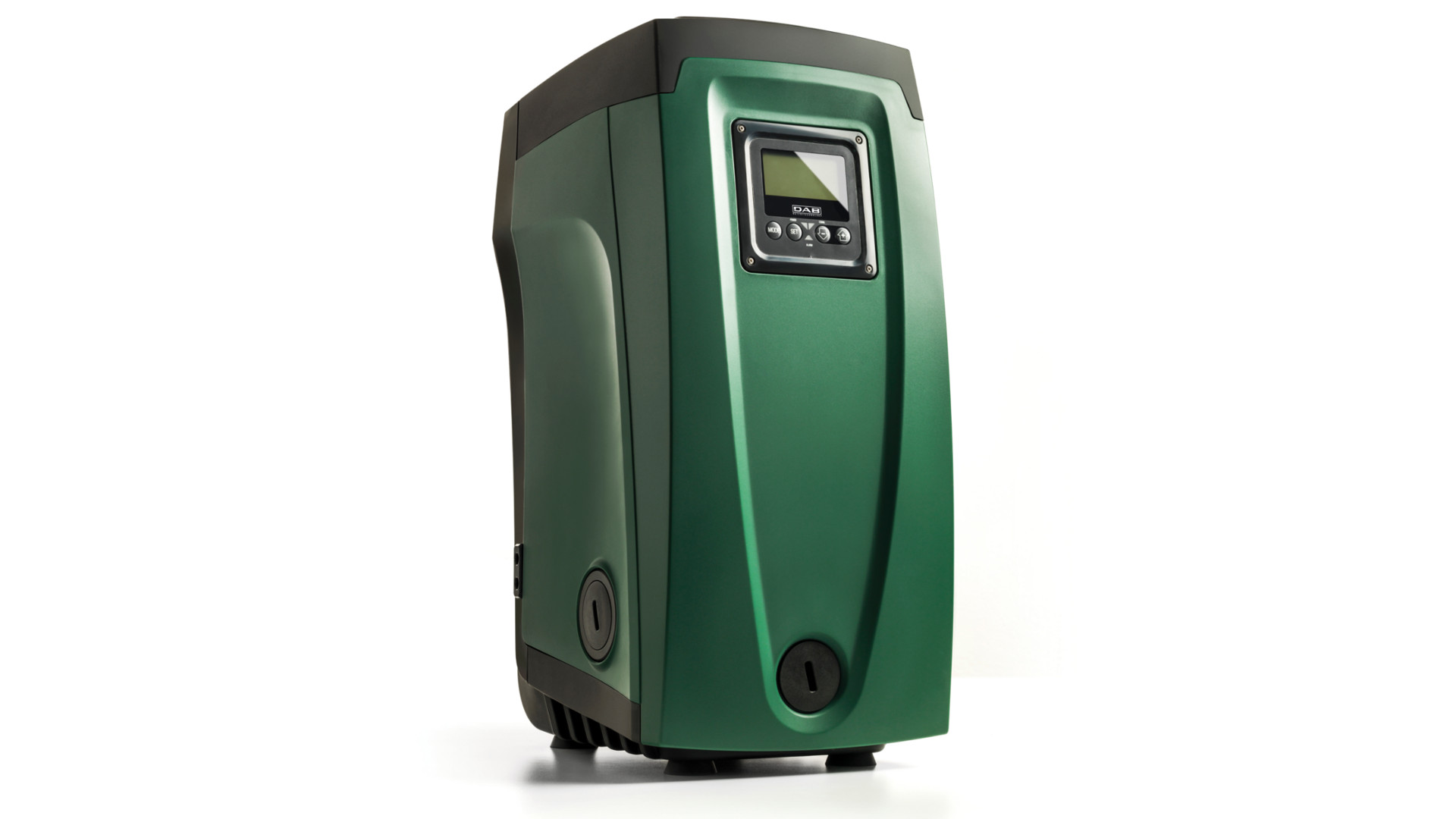

DAB Esybox pump

External variable speed pump — sits alongside the tank. 80 l/min @ 3 bar, 6.5 bar max, 43 dB(A). WiFi via DConnect app and H2D, Google Home, Alexa. Pre-fitted plug. 3-year DAB warranty.

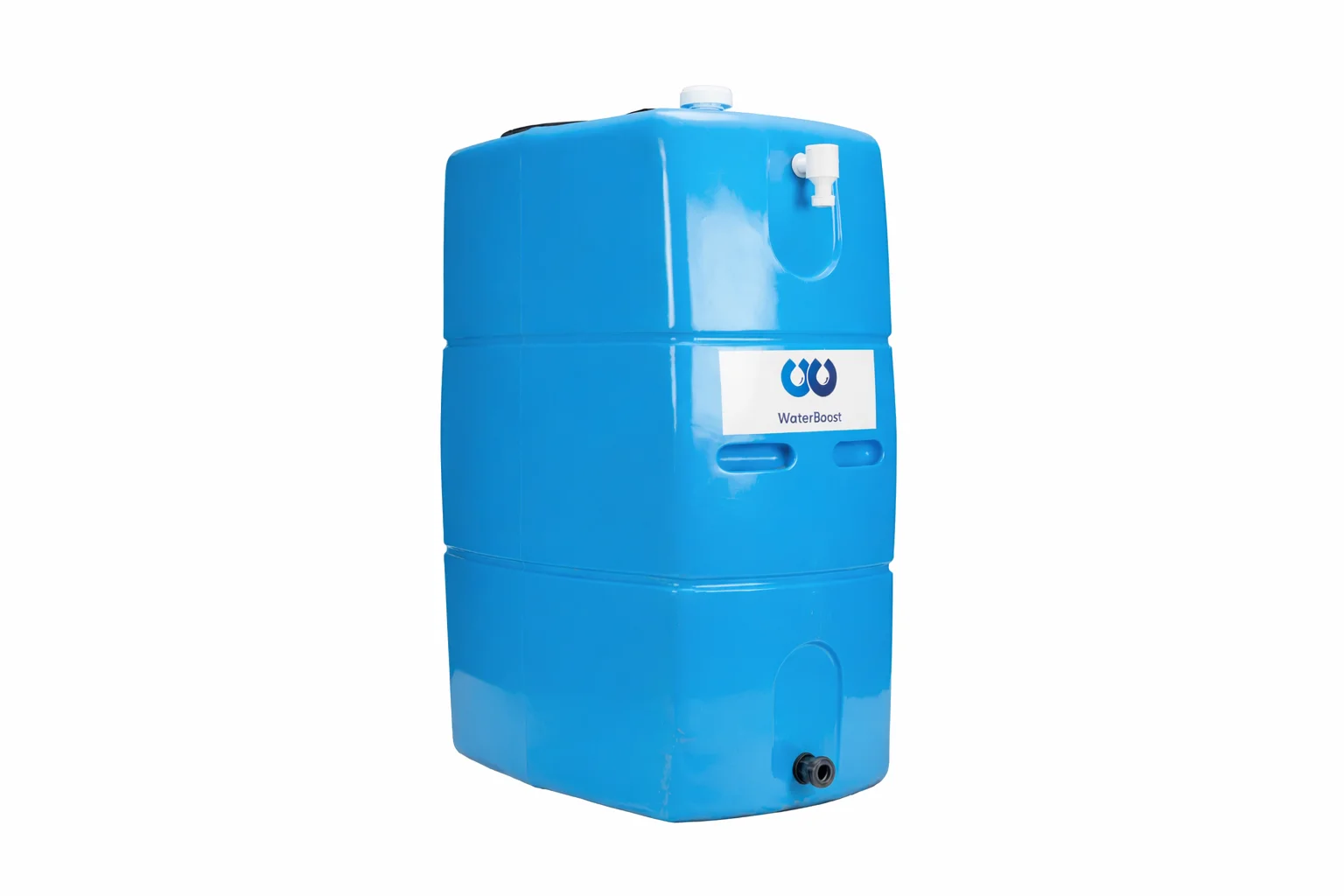

500L Advant tank

WRAS-approved 500-litre UK-manufactured Advant tank — 650mm W × 870mm L × 1200mm H. Pre-fitted ¾” ball float valve, By-law 30 kit, and all interconnecting PVC pipework. 100% rust-proof. 10-year warranty.

Key features

80 l/min @ 3 bar — 6.5 bar max

Full DAB Esybox performance with variable speed for demanding multi-outlet use across larger domestic and light commercial properties.

10-year tank warranty

UK-manufactured WRAS-approved Advant tank — 100% rust-proof with a 10-year warranty. Twice the coverage of standard slimline tanks.

43 dB(A) — exceptionally quiet

Among the quietest 80 l/min pumps available — suitable for garages, plant rooms, and indoor utility spaces where noise matters.

WiFi, H2D, Google and Alexa

DConnect app for remote monitoring. H2D for intelligent multi-pump communication. Voice control via Google Home and Alexa.

External pump — easy servicing

Esybox sits alongside the tank — fully accessible for inspection or replacement without any tank disturbance.

WRAS approved — potable water

Both tank and pump carry WRAS approval — fully compliant for potable drinking water use in the UK.

All pipework included

Supplied complete with By-law 30 kit, ¾” ball float valve, and all interconnecting PVC pipework — ready to install.

1–2 day delivery

Delivery typically 1–2 working days. Contact us via WhatsApp or phone to confirm availability before ordering.

Also in 1000L

The WB-Advant 1000 Esybox (£1,360 + VAT) provides 1000L storage with the same Esybox pump for very high demand or commercial applications.

Typical applications

Larger domestic and light commercial

80 l/min at 6.5 bar max handles simultaneous multi-bathroom demand in larger homes and small commercial premises.

Garages and plant rooms

The wider Advant format (650mm W × 870mm L × 1200mm H) is purpose-designed for garages, outbuildings, and dedicated plant rooms.

Very slow or restricted mains supply

500L fills overnight as a buffer — ready for peak demand even on the most restricted mains supply.

Long-term installation investment

The 10-year tank warranty reflects the Advant tank’s durability — a genuinely long-term installation for properties with an ongoing pressure challenge.

Combi boilers and unvented cylinders

80 l/min @ 3 bar sustains full performance from combination boilers and unvented cylinders at simultaneous peak use.

Smart home integration

WiFi, DConnect app, H2D, Google Home, and Alexa — full remote monitoring and voice control throughout the day and night.

Technical specifications

DAB Esybox pump

Flow rate	80 l/min @ 3 bar
Max pressure	6.5 bar
Pump type	Variable speed — external
Noise	43 dB(A) at 1m
Connectivity	WiFi · DConnect · H2D · Google · Alexa
Supply	240V, 50Hz — pre-fitted plug
WRAS	Yes
Warranty	3 years (DAB)

Advant tank

Capacity	500 litres

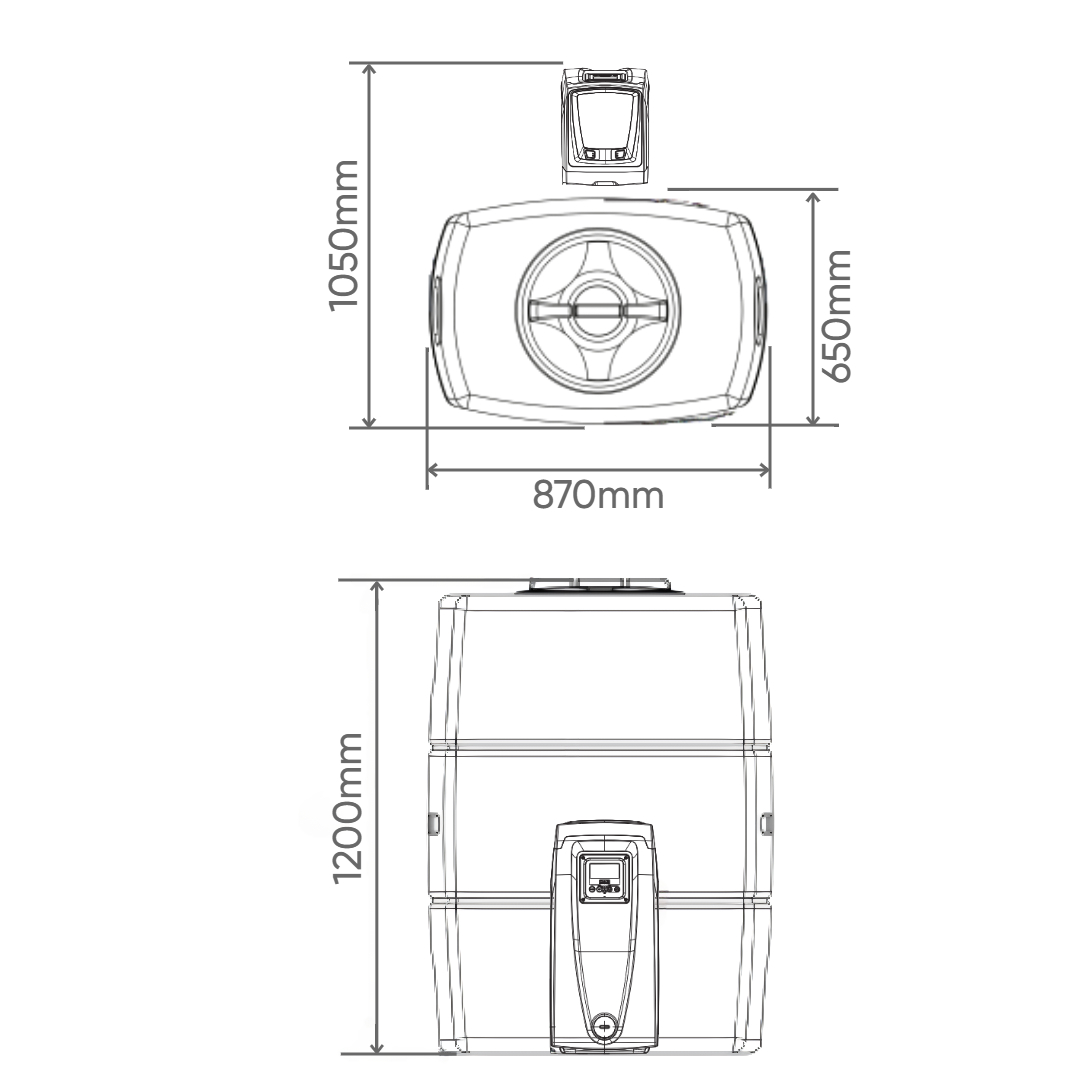

Dimensions (W × L × H)	650mm × 870mm × 1200mm
Mains inlet	Direct — ¾” BSP ball float valve
WRAS	Yes — WRAS-approved material
Origin	UK manufactured
Min inlet pressure	0.5 bar recommended
Warranty	10 years

How it compares

Three 80 l/min boosting systems in the 450–500L range. The WB-Advant 500 Esybox leads on value — cheapest of the three, most storage, WRAS confirmed, 6.5 bar max, WiFi and H2D, and an outstanding 10-year tank warranty. The Powertank offers Fluid Category 4 with an 8L pressure vessel. The DAB Esytank uses the same Esybox pump in the purpose-built DAB integrated system.

Feature	WB-Advant 500 Esybox this product	Powertank SLIMLINE 450 Variable	DAB Esybox with Esytank
Tank storage	500L WRAS Advant	450L WRAS upright	480L useable (Esytank)
Pump	DAB Esybox — external	Internal	DAB Esybox — integrated
Flow @ 3 bar	80 l/min	80 l/min	80 l/min
Max pressure	6.5 bar	5 bar	6.5 bar
WiFi / H2D	Yes — DConnect, H2D, Google, Alexa	No	Yes — DConnect, H2D, Google, Alexa
Noise	43 dB(A)	Not stated	43 dB(A)
Pressure vessel	None (variable speed)	Yes — 8L	Built into Esytank
WRAS	Yes — tank & pump	Yes — Cat 4	Not stated on product page
Fluid Category	Cat 1–3 (potable)	Up to Cat 4	Not stated
Tank warranty	10 years	Contact us	Contact us
Pump warranty	3 years (DAB)	Contact us	3 years (DAB)
Price (ex VAT)	£1,210.00	£1,345.00	£1,380.00

Which should I choose?
WB-Advant 500 Esybox — the best-value choice at £1,210 + VAT. Cheapest of the three, most storage (500L), same DAB Esybox pump as the Esytank, 6.5 bar max, 43 dB(A), WiFi and H2D, WRAS confirmed, and an outstanding 10-year tank warranty. 1–2 day delivery. The right choice for the large majority of potable water boosting applications.
Powertank SLIMLINE 450 Variable — choose for Fluid Category 4 compliance, or specifically if you need the upright slimline format. 450L, 80 l/min, 5 bar max, 8L pressure vessel, no WiFi. £1,345 + VAT.
DAB Esybox with Esytank — the same Esybox pump in the DAB-designed Esytank system (480L useable). Choose if you specifically want the DAB Esytank ecosystem — particularly to add further Esytank storage via the coupling kit. WRAS status not stated on product page. £1,380 + VAT.

Frequently asked questions

How much does it cost and how quickly is it delivered?

£1,210.00 + VAT (£1,452.00 inc VAT). Delivery is typically 1–2 working days. Contact us via WhatsApp or phone to confirm availability before ordering.

What is the Advant tank and how does it differ from a slimline?

The Advant tank is a UK-manufactured, 100% rust-proof WRAS-approved tank in a wider format (650mm W × 870mm L × 1200mm H) rather than the tall narrow cylinder of a slimline. It carries a 10-year warranty — twice the 5 years offered on slimline formats. The Advant format suits garages, plant rooms, and spaces where a wider, lower-profile installation is more practical. Note: the 870mm length means it requires more depth than a slimline cylinder.

What is the difference between this and the WB-Advant 500 Mini3?

Both use the same 500L Advant tank with 10-year warranty. The pump differs. The WB-Advant 500 Mini3 (£896 + VAT) uses the Esybox Mini3 — 50 l/min @ 3 bar, 5.5 bar max, 45 dB(A). This system uses the full Esybox — 80 l/min @ 3 bar, 6.5 bar max, 43 dB(A), H2D technology. Choose the Mini3 if 50 l/min is sufficient; choose this system for higher flow and pressure requirements.

How does the mains connection work?

The mains supply connects directly to the tank via the pre-fitted ¾” ball float valve. The tank fills automatically. The Esybox draws from the tank via the included PVC pipework and boosts pressure throughout the property. A minimum of 0.5 bar incoming pressure is required.

Is there a 1000L version?

Yes — the WB-Advant 1000 Esybox (£1,360 + VAT) provides 1000L storage with the same DAB Esybox pump. For very high-capacity or commercial requirements, the WB-Advant 1000 Esybox Twin (£2,461 + VAT) features two Esybox pumps for maximum redundancy and performance.

What warranties are included?

10 years on the WRAS Advant tank and 3 years DAB warranty on the Esybox pump, when purchased from Anglian Pumping Services.
