Name: WaterBoost WB - Advant 500 Mini3 2103210
Brand: WaterBoost
SKU: WBK500esyboxmini3
Price: 1075.2 GBP
Availability: InStock

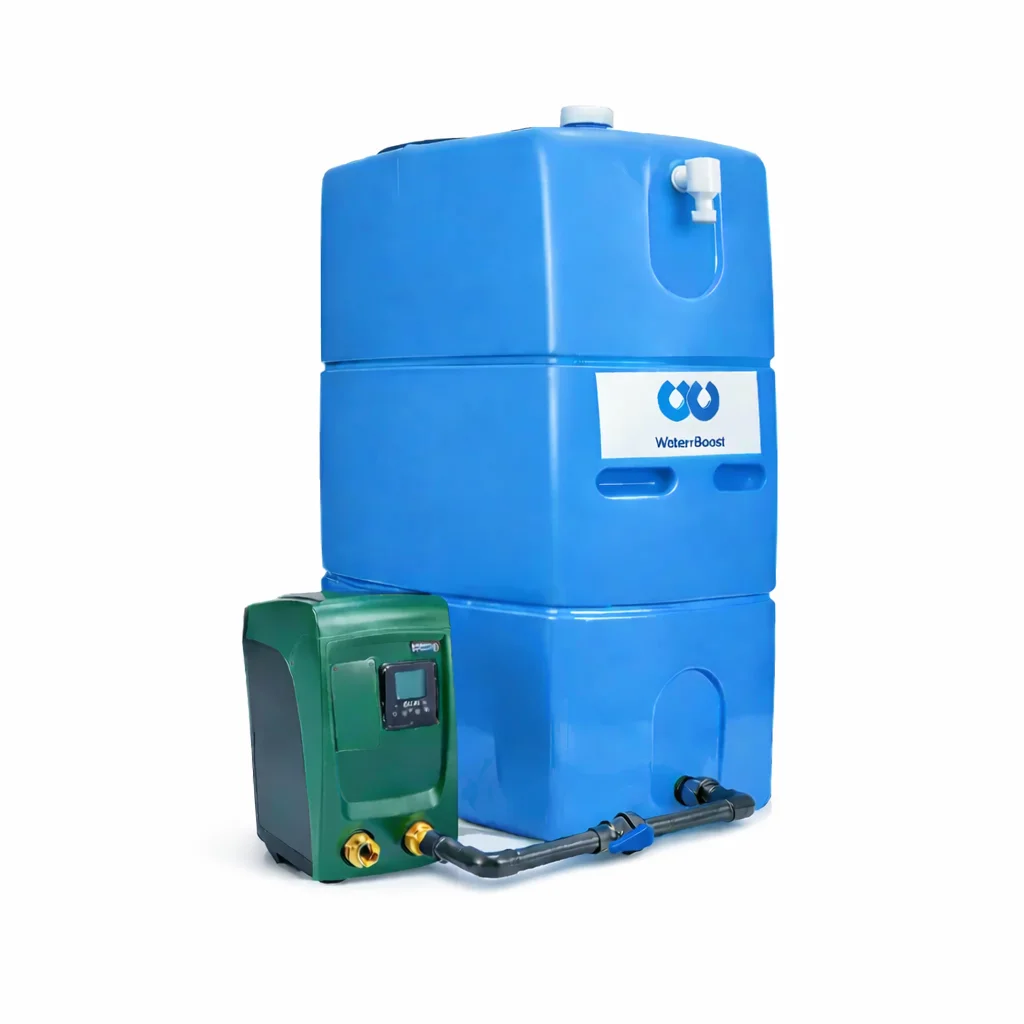

WaterBoost WB - Advant 500 Mini3 2103210

WaterBoost WB - Advant 500 Mini3 2103210 - Image 3

WaterBoost WB - Advant 500 Mini3 2103210 - Image 4

WaterBoost WB - Advant 500 Mini3 2103210 - Image 5

Established 1975
Trusted by thousands of customers

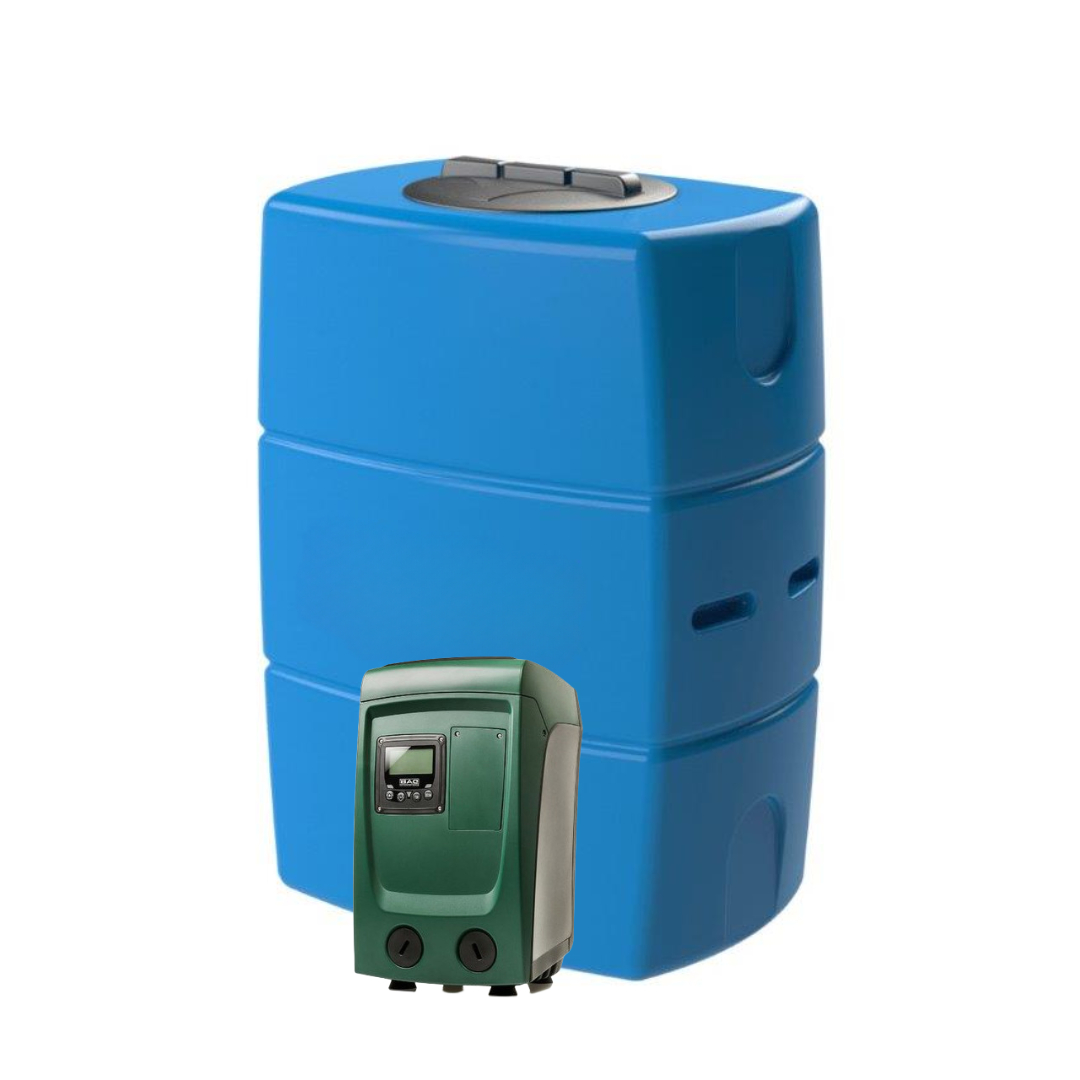

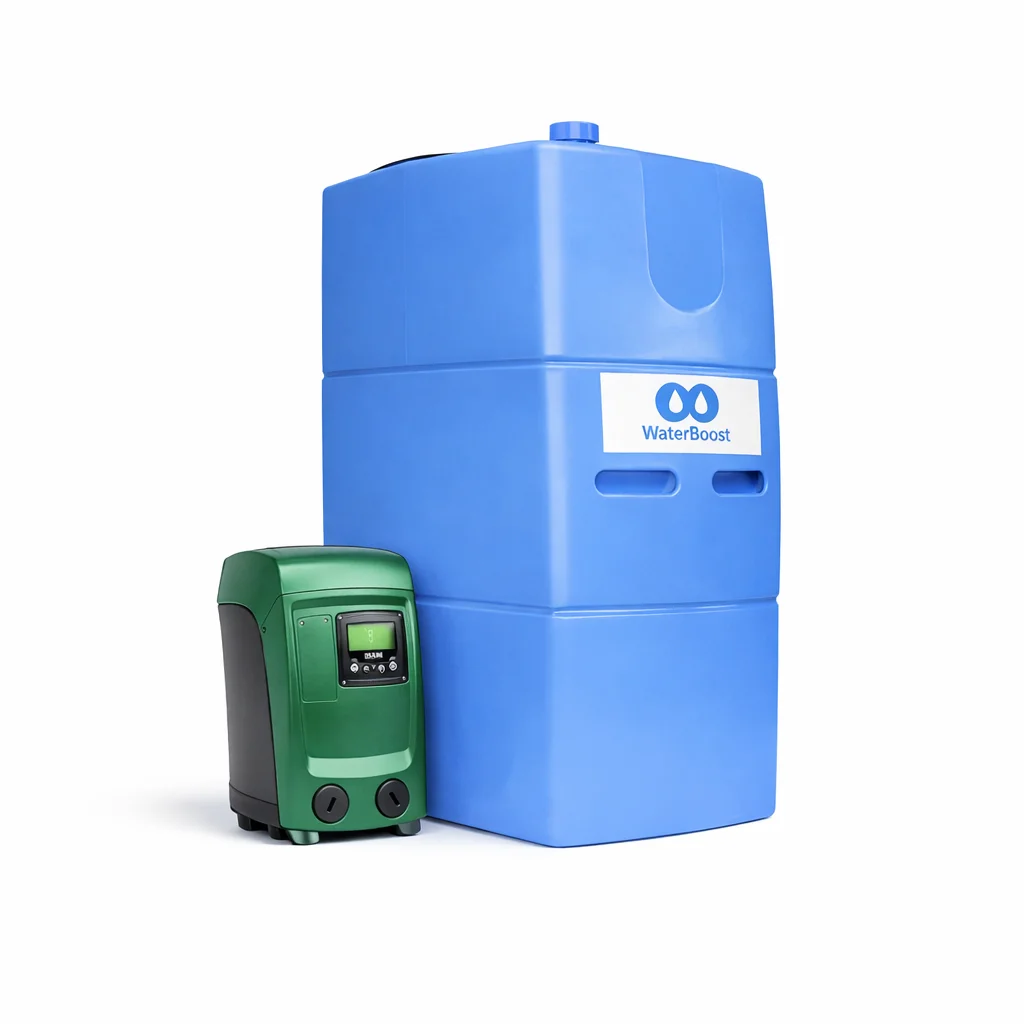

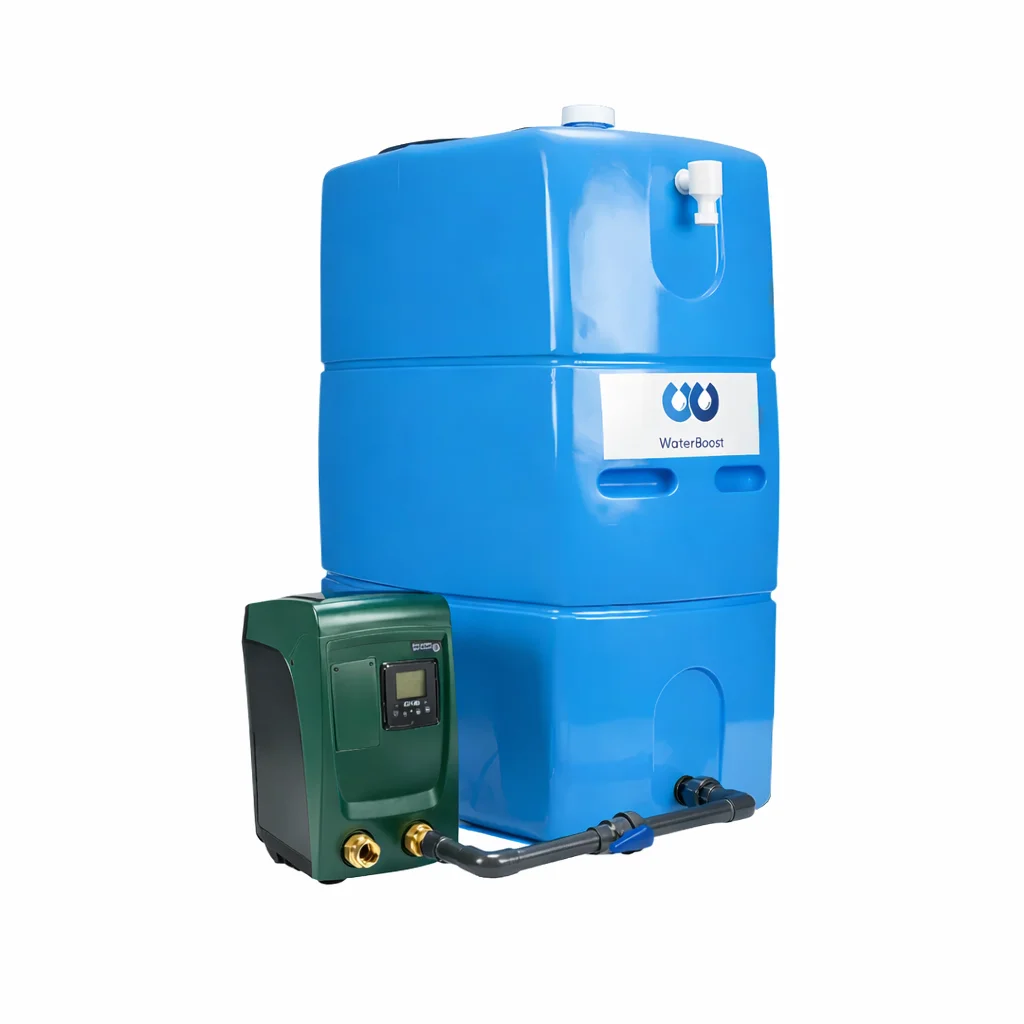

The WaterBoost WB-Advant 500 Mini3 is a complete variable-speed boosting system designed for larger domestic and light commercial properties. A 500-litre WRAS-approved Advant tank (650mm W × 870mm L × 1200mm H) pairs with the DAB Esybox Mini3 external variable speed pump, delivering 50 l/min at 3 bar with WiFi, DConnect app, Google Home and Alexa voice control.

The Esybox Mini3 sits alongside the tank for easy access at all times, running at a quiet 45 dB(A). The tank connects directly to the mains via the pre-fitted ¾” ball float valve. All interconnecting pipework is included — no site assembly required. The Advant tank format is ideal for garages and plant rooms.

The tank carries an outstanding 10-year warranty and the DAB Esybox Mini3 pump a 3-year warranty. Delivery is typically 1–2 working days.

50l/min

@ 3 bar

500L

Tank storage

45dB(A)

Ultra quiet

10yr

Tank warranty

WiFi · Google · Alexa
WRAS tank & pump
10yr tank warranty
Variable speed
1–2 day delivery
Direct mains

Full Description

More about this product

Full Description

Product overview

The WaterBoost WB-Advant 500 Mini3 is designed for larger domestic properties and light commercial applications where a generous storage tank and high-quality variable-speed performance are required. A 500-litre WRAS-approved Advant tank (650mm W × 870mm L × 1200mm H) pairs with the DAB Esybox Mini3 external variable speed pump, delivering 50 l/min at 3 bar and up to 5.5 bar maximum.

The Esybox Mini3 sits alongside the tank — always accessible for inspection and maintenance — running at a quiet 45 dB(A). WiFi via the DConnect app provides remote monitoring and pressure control, with Google Home and Amazon Alexa voice control included. The mains connects directly via the pre-fitted ¾” ball float valve. All interconnecting pipework is supplied — no site assembly required.

The Advant tank format is ideal for garages and plant rooms. The tank carries an outstanding 10-year warranty and the Esybox Mini3 a 3-year DAB warranty. Delivery typically 1–2 working days.

50^l/min

Flow @ 3 bar

500^L

Tank storage

45^dB

Noise (1m)

5.5^bar

Max pressure

WRAS tank & pump · 10yr tank warranty · Direct mains

What’s included

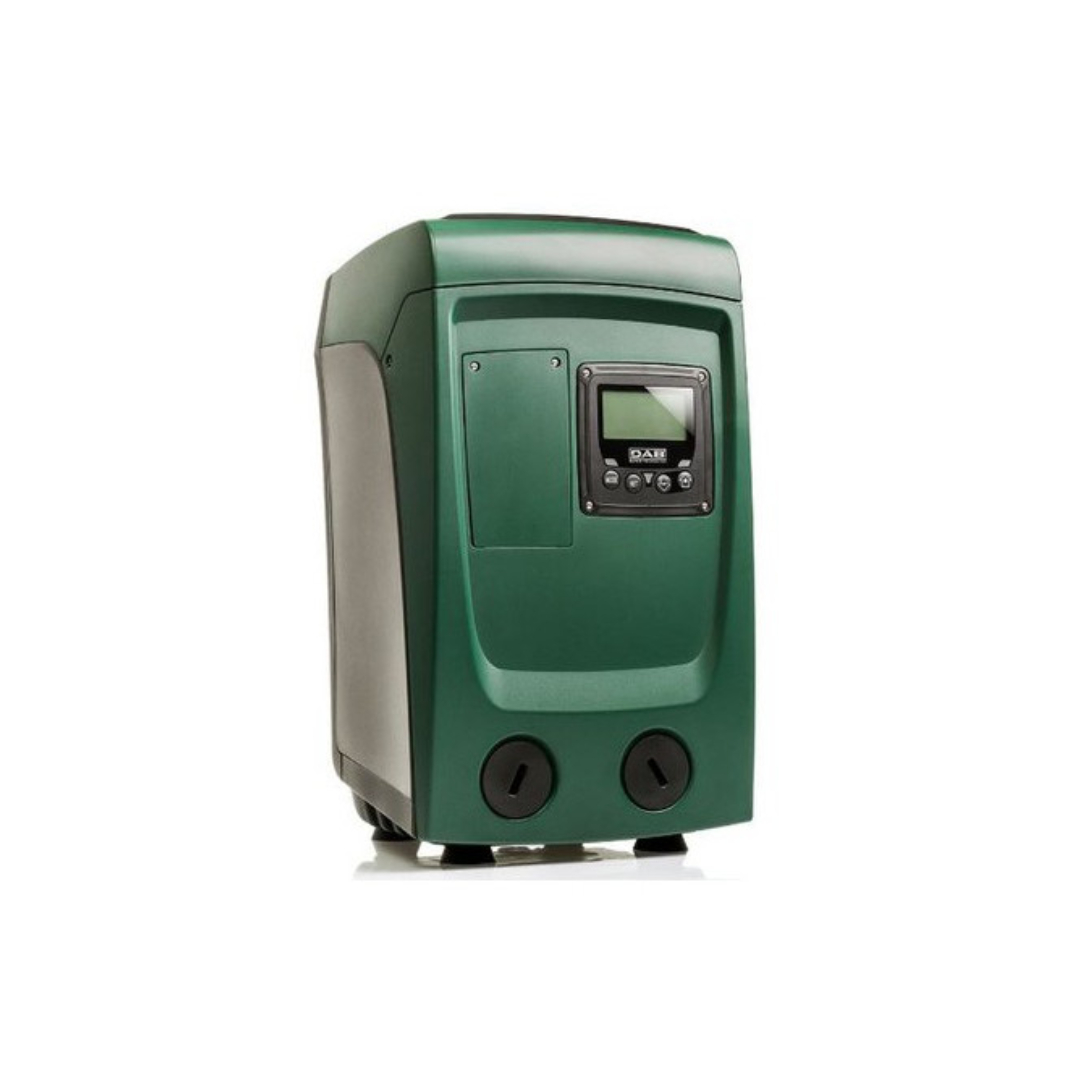

DAB Esybox Mini3 pump

External variable speed pump — sits alongside the tank. 50 l/min @ 3 bar, 5.5 bar max, 45 dB(A), WiFi via DConnect app, Google Home, Alexa. Pre-fitted plug. 3-year DAB warranty.

500L Advant tank

WRAS-approved 500-litre UK-manufactured Advant tank — 650mm W × 870mm L × 1200mm H. Pre-fitted ¾” ball float valve, By-law 30 kit, and all interconnecting pipework in PVC. 10-year tank warranty.

Key features

10-year tank warranty

The UK-manufactured WRAS-approved Advant tank carries an outstanding 10-year warranty — double the 5 years offered on slimline formats.

50 l/min @ 3 bar — variable speed

Esybox Mini3 adjusts continuously to match demand — stable pressure, lower energy use than fixed speed, 45 dB(A), 5.5 bar max.

WiFi and voice control

DConnect app for remote monitoring and control. Google Home and Alexa compatible — “Hey Google, power shower.”

External pump — easy servicing

Mini3 sits alongside rather than inside the tank — pump is fully accessible for inspection or replacement at any time.

WRAS approved — potable water

Both tank and pump carry WRAS approval — fully compliant for potable drinking water use in the UK.

UK-manufactured Advant tank

100% rust-proof, WRAS-approved, UK-made Advant format tank. The wider, lower profile suits garages and plant rooms.

All pipework included

Supplied complete with By-law 30 kit, ¾” ball float valve, and all interconnecting PVC pipework — ready to install.

1–2 day delivery

Delivery typically 1–2 working days. Contact us via WhatsApp or phone to confirm availability before ordering.

Also available with Esybox

The WB-Advant 500 Esybox (£1,210 + VAT) uses the same 500L tank with the full DAB Esybox pump for 80 l/min performance.

Typical applications

Larger domestic and light commercial

Designed for larger domestic properties and light commercial applications where 500L storage and 50 l/min performance are required.

Garages and plant rooms

The wider Advant format (650mm W × 870mm L × 1200mm H) is ideal for garages, outbuildings, and dedicated plant rooms.

Slow or restricted mains supply

500L fills overnight as a buffer — ready for peak morning and evening demand on even the most restricted mains supply.

New and existing properties

Pre-assembled and complete with all pipework — quick to install in both new builds and retrofit applications.

Combi boilers and unvented cylinders

50 l/min at up to 5.5 bar provides the sustained pressure needed for combination boilers and unvented hot water systems.

Smart home integration

WiFi, DConnect app, Google Home, and Alexa — remote monitoring and voice control of water pressure at any time.

Technical specifications

DAB Esybox Mini3 pump

Flow rate	50 l/min @ 3 bar
Max pressure	5.5 bar
Pump type	Variable speed — external
Noise	45 dB(A) at 1m
Connectivity	WiFi — DConnect, Google, Alexa
Supply	240V, 50Hz — pre-fitted plug
WRAS	Yes
Warranty	3 years (DAB)

Advant tank

Capacity	500 litres
Dimensions (W × L × H)	650mm × 870mm × 1200mm
Mains inlet	Direct — ¾” BSP ball float valve
WRAS	Yes — WRAS-approved material
Origin	UK manufactured
Min inlet pressure	0.5 bar recommended
Warranty	10 years

How it compares

Three systems in the 450–500L range. The WB-Advant 500 Mini3 offers the best combination of value, features, and warranty — 500L WRAS-confirmed storage, 50 l/min variable speed, WiFi, and an outstanding 10-year tank warranty at the mid-range price. The Powertank offers Fluid Category 4. The DAB Esytank 500 is the same Esybox Mini3 pump in the DAB-designed integrated system with 480L useable storage.

Feature	WB-Advant 500 Mini3 this product	Powertank SLIMLINE 450 Fixed	DAB Esytank 500 with Mini3
Tank storage	500L WRAS Advant	450L WRAS upright	480L useable (Esytank 500)
Tank format	Advant — 650×870×1200mm	Upright slimline	DAB Esytank — integrated
Pump type	Variable speed (Mini3 — external)	Fixed speed (Presflo Multi — internal)	Variable speed (Mini3 — integrated)
Flow @ 3 bar	50 l/min	40 l/min	50 l/min
Max pressure	5.5 bar	3 bar	5.5 bar
WiFi / app	Yes — DConnect, Google, Alexa	No	Yes — DConnect, Google, Alexa
Noise	45 dB(A)	Not stated	45 dB(A)
WRAS	Yes — tank & pump	Yes — Cat 4	Not stated on product page
Fluid Category	Cat 1–3 (potable)	Up to Cat 4	Not stated
Tank warranty	10 years	Contact us	Contact us
Pump warranty	3 years (DAB)	Contact us	3 years (DAB)
Price (ex VAT)	£896.00	£818.55	£1,051.00

Which should I choose?
WB-Advant 500 Mini3 — the outstanding choice at £896 + VAT. More storage than the Powertank (500L vs 450L), higher flow (50 vs 40 l/min), variable speed, WiFi and voice control, WRAS confirmed, and an unmatched 10-year tank warranty. Significantly cheaper than the DAB Esytank 500 with identical pump performance. The right choice for the large majority of potable water applications.
Powertank SLIMLINE 450 Fixed — choose only for Fluid Category 4 compliance, or if the upright slimline format specifically suits your installation. 450L, 40 l/min. £818.55 + VAT.
DAB Esytank 500 with Esybox Mini3 — same Esybox Mini3 pump with 480L useable storage in the DAB integrated Esytank system. Choose if you specifically want the DAB Esytank ecosystem — for example, to expand capacity using the DAB coupling kit. WRAS not stated on product page. At £1,051 + VAT it is £155 more than the WB-Advant 500 Mini3.

Frequently asked questions

How much does it cost and how quickly is it delivered?

£896.00 + VAT (£1,075.20 inc VAT). Delivery is typically 1–2 working days. Contact us via WhatsApp or phone to confirm availability before ordering.

What is the Advant tank and how does it differ from a slimline tank?

The Advant tank is a UK-manufactured, 100% rust-proof WRAS-approved tank in a wider, lower-profile format (650mm W × 870mm L × 1200mm H) rather than the tall narrow cylinder of a slimline. It carries a 10-year warranty — twice the 5 years on slimline formats. The Advant format is ideal for garages, plant rooms, and spaces where a squat, wide installation is more practical than a tall cylinder. Note: the 870mm length means it is not suitable for spaces where only a narrow cylinder would fit.

What is the difference between this and the WB-Advant 500 Esybox?

Both use the same 500L Advant tank with 10-year warranty. The pump differs. This system uses the Esybox Mini3 — 50 l/min @ 3 bar, 5.5 bar max, 45 dB(A), WiFi. The WB-Advant 500 Esybox (£1,210 + VAT) uses the full Esybox — 80 l/min @ 3 bar, 6.5 bar max, 43 dB(A), WiFi and H2D. Choose the Mini3 for moderate demand; the Esybox for higher flow requirements.

How does the mains connection work?

The mains supply connects directly to the tank via the pre-fitted ¾” ball float valve. The tank fills automatically and provides a storage buffer. The Esybox Mini3 draws from the tank and boosts pressure throughout the property. A minimum of 0.5 bar incoming pressure is required.

What warranties are included?

10 years on the WRAS Advant tank and 3 years DAB warranty on the Esybox Mini3 pump, when purchased from Anglian Pumping Services.
