Aquaboost iBolt Horizontal Single Sets
Stuart Turner Aquaboost iBolt Horizontal Single 0904 1H-CMT/8 – 47388
In stock
- Established 1975
- Trusted by thousands of customers
Aquaboost iBolt Horizontal Single Sets

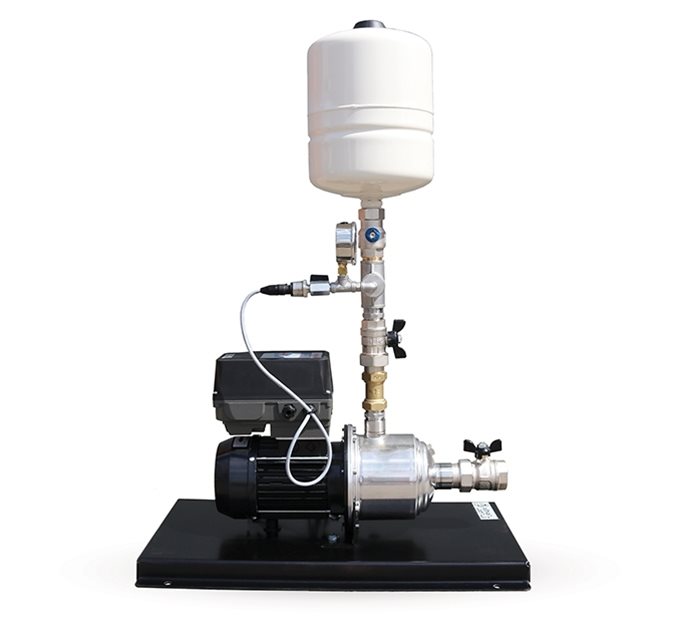

The Aquaboost iBolt range of single pump booster sets features a horizontal multistage pump controlled by an air-cooled variable speed frequency invertor mounted directly on the pump motor.
The single pump 05 range includes 0504, 0506 and 0508 pump variants capable of delivering flow rates up to 8.0 m³/hour and capable of producing head pressures of up to 9.2 bar.
More about this product
Technical Specification
General
- Product code 47388
- Guarantee – 2 years
Features
- Pump type – Centrifugal multistage
- Mechanical seal – EPDM / Carbon / Ceramic
Materials
- Pump body – stainless steel
- Impeller – Stainless steel
Performance
- Nominal head – 3.6 bar
- Maximum head – (closed valve) – 4.8 bar
- Nominal flow rate – 9.0 m3 /h
- Maximum flow rate 15.0 m3 /h
- Minimum static inlet pressure – 0.1 bar
- Maximum static inlet pressure – 1 bar
- Maximum static outlet pressure – 1.3 bar
- Maximum ambient air temperature – 40 oC
Connections
- 1 1/2“ Inlet , 1 1/4" outlet
Motor
- Type – Induction (current overload sensor)
- Duty rating – Continuous
Electrical
- Power supply – 230v/1ph/50Hz
-
Data Sheet PDFDownload
-
Instructions PDFDownload
