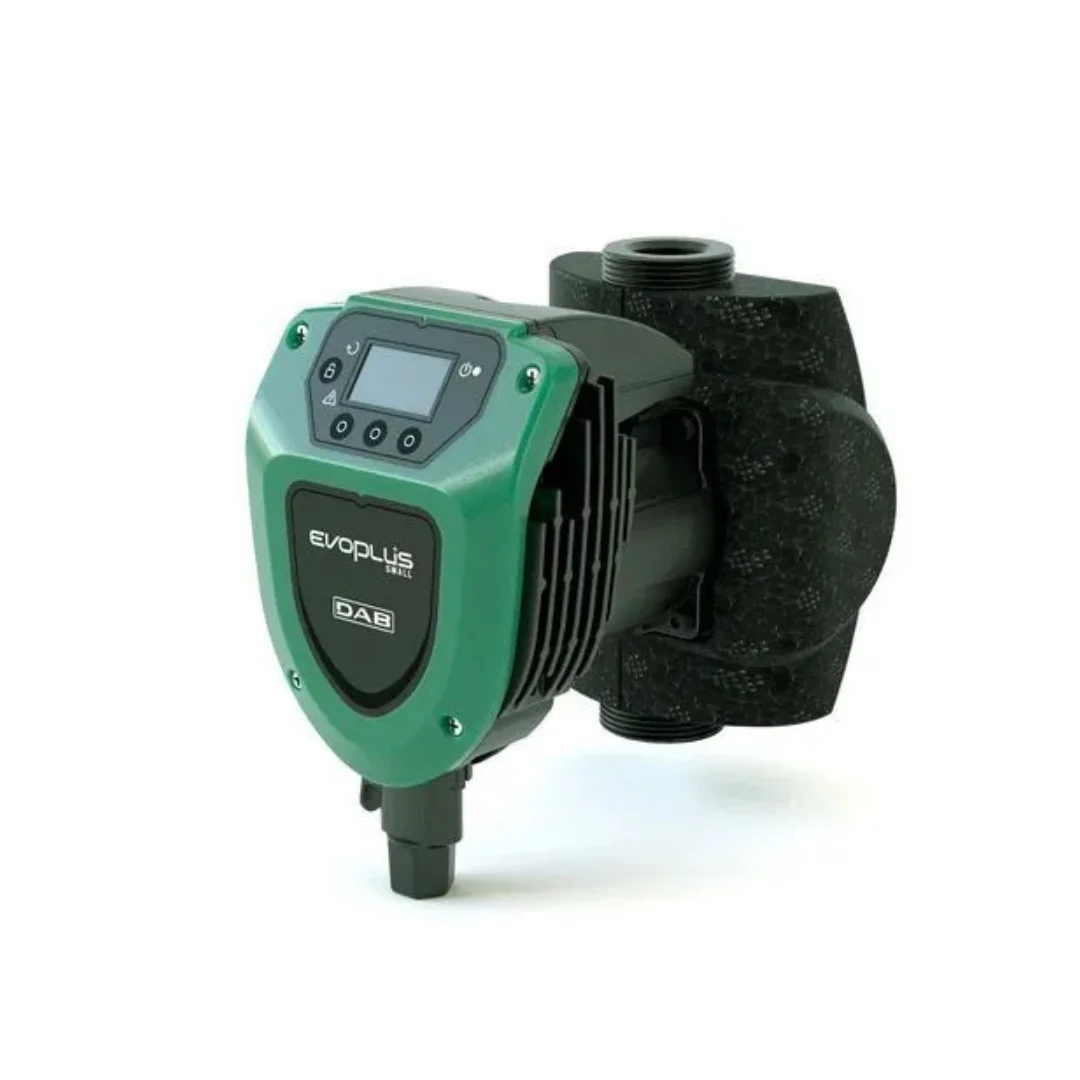

DAB Evoplus 40/180 XM - 60150942 (now 60231355)

In stock

Established 1975
Trusted by thousands of customers

Applications

DAB Evoplus (Small) circulation pumps are suitable for heating, ventilation and cooling systems in residential and commercial buildings, such as:

Larger residential homes
Hospitals
Apartment buildings
Schools
Care homes
Office buildings

Full Description

More about this product

Full Description

TECHNICAL DATA

Operating range: from 2 a 12 m³/h with head of up to 11 metres.
Pumped liquid temperature range: from -10 °C to +110 °C. Pumped liquid: clean, free of solids and mineral oils, non-viscous, chemically neutral, with properties similar to water. (glycol max 30%). Maximum operating pressure: 16 bar (1600 kPa).
Standard flanges: DN 32, DN 40 PN 6 / PN 10 / PN 16 (4 holes).
Maximum ambient temperature: + 40 °C.
Minimum suction pressure: the values are shown in the corresponding tables. Accessories: ½”F, ¾”F, 1”F, 1”¼F, 1”¼M union connectors. DN 32 PN 10 and DN 40 PN 10 threaded counter flanges. Electromagnetic compatibility: EVOPLUS circulator comply with EN 61800-3 standard, category C2, as far as electromagnetic compatibility.
Electromagnetic emissions: Residential environment (containment measures might be required in some cases).
Conducted emissions: Residential environment (containment measures might be required in some cases).
Circulator protection class: IP 44.
Insulation class: F.
Standard voltage: single-phase 220-240 V, 50/60 Hz. Sound pressure values: ≤ 33 dB(A). Product compliant with European Standards EN 61800-3 – EN 60335-1 – EN 60335-2-51
