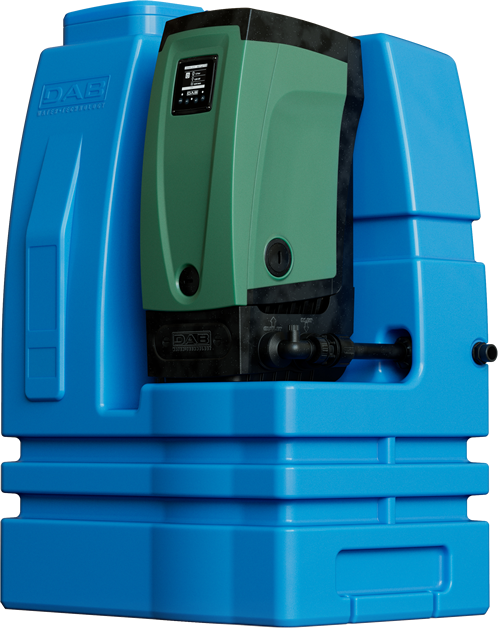

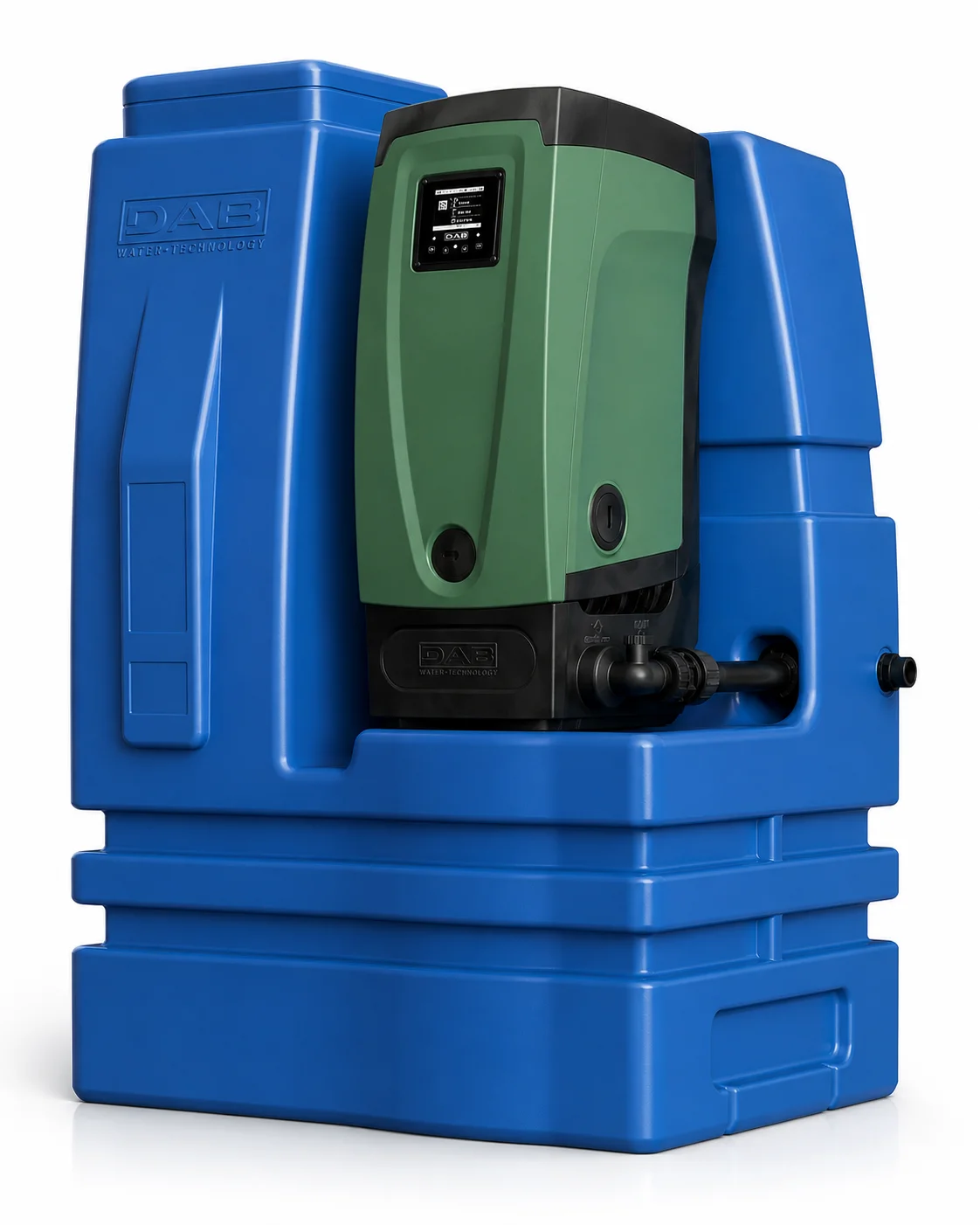

DAB Esytank 300 with Esybox

Name: DAB Esytank 300 with Esybox
Brand: DAB Esybox
SKU: esytank300esybox
Price: 1390.8 GBP
Availability: InStock

In stock

Any questions? Message us on WhatsApp

Established 1975
Trusted by thousands of customers

The DAB Esytank 300 with Esybox is a complete pressure boosting system pairing the WRAS-approved Esybox variable-speed pump with a 275-litre useable HDPE storage tank. The standard Esybox delivers higher flow than the Mini3 — up to 80 l/min at 3 bar — making this the system for larger homes and properties with multiple bathrooms in regular use, in a compact tank format that fits through standard doorways.

275 L

useable capacity

120 l/min

max flow rate

6 bar

max working pressure

43 dB(A)

whisper quiet

✓
Complete system — Esybox pump, Esytank 300 (275 L useable), Esydock, suction pipe, foot valve, delivery pipe, and float valve all included

✓
Up to 120 l/min and 6 bar — variable-speed pump with up to 50% energy saving vs fixed-speed

✓
43 dB(A) operation — water-cooled motor in sound-absorbing housing, suitable for utility rooms and cellars

✓
WiFi and voice control — DAB H2D app, Google Home, and Amazon Alexa compatible

✓
Pump WRAS approved — tank manufactured from food-grade HDPE

✓
Compact 275 L tank — same proven Esybox pump as the 500 system, in a smaller-tank footprint

✓
Expandable and modular — auxiliary tanks connectable on 3 sides; up to 4 pumps can be linked

✓
3-year DAB manufacturer warranty when purchased from Anglian Pumping

Next Day delivery is now standard — order before 12pm for next working day delivery, Monday to Friday

Full Description

More about this product

Full Description

System overview

The DAB Esytank 300 with Esybox is a complete, ready-to-install pressure boosting system pairing DAB’s flagship Esybox variable-speed pump with a 275-litre useable HDPE break tank. The compact-tank version of the standard Esybox system — same higher-output pump as the Esytank 500 + Esybox, in a smaller footprint suited to properties with limited plant-room space but higher flow demand.

Mains water fills the Esytank gradually through a float valve. The Esybox then draws from the tank and delivers constant boosted pressure to every outlet on demand — up to 120 l/min and 6 bar, with the variable-speed inverter continuously adjusting to match real-time demand. DAB rate the energy saving at up to 50% compared with fixed-speed equivalents.

Supplied complete with Esydock, suction pipe with foot valve, delivery pipe, mains fill float valve, and overflow fitting. The Esybox is WRAS approved for potable water; the Esytank is manufactured from food-grade HDPE. Backed by a 3-year DAB manufacturer warranty.

275^L

Useable capacity

120^l/min

Max flow rate

6^bar

Max pressure

43^dB

Noise at 1m

Esybox WRAS approved — potable water

Why the tank? Why not just a pump?

The Esybox cannot connect directly to the mains in installations where regulations require a break (Category 5 fluid category) between the mains supply and any installation that re-pressurises water. A break tank fulfils that requirement.

But the Esytank does more than just satisfy regulations — it acts as a reservoir, filling slowly during low-demand periods and holding 275 litres ready for peak draw. Even if your incoming mains delivers only a trickle, the system can still supply a power shower, running bath, and washing machine simultaneously, because the pump is drawing from the tank, not waiting on the mains.

What’s included

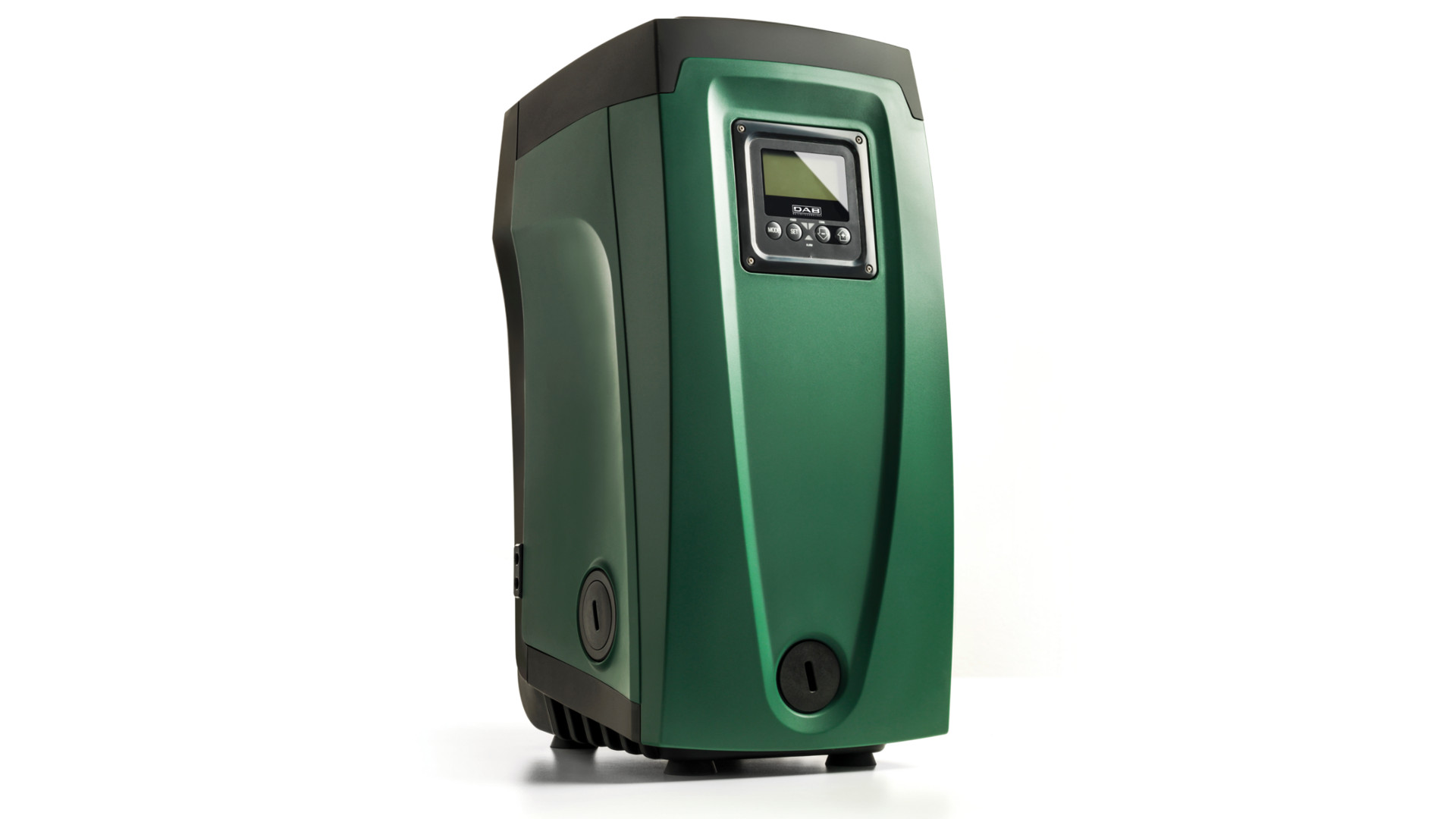

DAB Esybox booster pump

WRAS-approved variable-speed pump with built-in inverter, integrated expansion vessel, WiFi connectivity (DAB H2D app), and 43 dB(A) operation. Up to 120 l/min flow and 6 bar working pressure. Mounted alongside the Esytank via the included Esydock connection.

DAB Esytank 300 storage tank

Food-grade HDPE drinking water tank with 275 litres useable capacity, mains fill float valve, overflow connection, suction pipe with foot valve, delivery pipe, and Esydock docking station. Modular design — expandable on three sides.

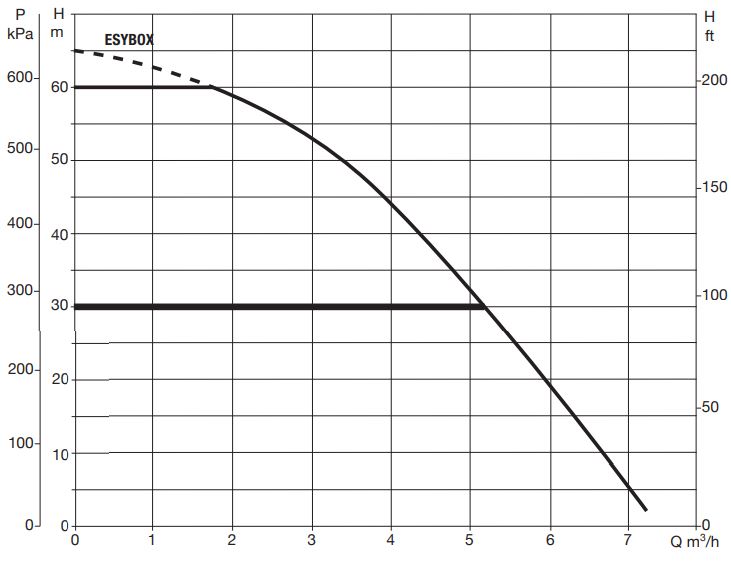

Pump performance curve

The chart shows the relationship between flow rate and head for the Esybox pump. As demand increases, the variable-speed inverter increases output — but as with any pump, available pressure decreases as flow rises. Maximum flow is 120 l/min; maximum head is 60 metres (6 bar).

DAB Esybox pump curve — flow vs head. Maximum head 60 metres (6 bar) at zero flow, falling to zero head at maximum flow of 120 l/min.

Indicative pump curve. Actual performance varies with installation conditions. Refer to the DAB data sheet for full performance data.

Key features

Variable speed inverter

Pump adjusts speed to match demand in real time — constant pressure, up to 50% energy saving versus fixed-speed systems.

275-litre useable storage

Stores water during low-demand periods, ensuring a reliable supply even when mains flow or pressure is restricted.

Esybox WRAS approved

The Esybox pump is certified for use with potable (drinking) water in the UK, fully compliant with water regulations.

43 dB(A) — whisper quiet

Water-cooled motor in sound-absorbing housing. Quiet enough for utility rooms, cellars, and garages.

WiFi and remote monitoring

DAB H2D app for remote pressure monitoring, fault alerts, and settings. Google Home and Alexa voice control compatible.

Compact tank footprint

Smaller tank than the Esytank 500 — fits through standard cellar doorways and into tighter plant rooms or under-stair spaces.

3-year DAB warranty

3-year manufacturer warranty direct from DAB when purchased from Anglian Pumping, an authorised distributor.

Expandable system

Modular tank design — couple auxiliary tanks on three sides to increase storage. Link up to 4 Esybox pumps for higher demand.

Rapid installation

Supplied complete with all accessories — Esydock, suction pipe, foot valve, delivery pipe, and float valve. No extra fittings required.

Typical applications

Higher-demand homes — 4 to 5 bedrooms

The Esybox’s 80 l/min @ 3 bar capacity supports 2–3 bathrooms in regular simultaneous use, where the Mini3 would be undersized.

Tight plant rooms with high demand

Where the Esytank 500 is too tall or wide but Esybox-level performance is needed — under-stair cupboards and small utility rooms.

Low mains flow rate

Tank fills slowly during the day and provides a buffer reservoir for peak demand periods such as morning and evening.

Mains regulations compliance

Where regulations prohibit direct mains connection, the break tank arrangement ensures full compliance.

Light commercial premises

Offices, hospitality, and small commercial sites requiring higher boosted flow than the Mini3 can deliver.

Rural and off-grid properties

Equally suitable as a buffer between a borehole, well, or intermittent mains supply and the property’s distribution.

How it compares

All three systems use the same DAB Esybox pump. The first two are like-for-like 300-litre options in different tank formats — the Esytank 300 is the integrated DAB system, the WB-EXT Slimline 300 uses a UK-manufactured WRAS slimline tank. The WB Advant 500 is the step-up to more storage with a premium tank format and longest warranty.

Feature	Esytank 300 + Esybox	WB-EXT Slimline 300 Esybox	WB Advant 500 Esybox
Pump	DAB Esybox — integrated	DAB Esybox — external	DAB Esybox — external
Storage capacity	275 L useable (HDPE)	300 L (WRAS slimline)	500 L (WRAS Advant)
Max flow	120 l/min	120 l/min	120 l/min
Max working pressure	6 bar	6 bar	6 bar
Tank material	HDPE — food-grade	WRAS — UK-manufactured	WRAS — UK-manufactured
Tank dimensions (W × D × H)	590 × 810 × 1,170 mm	600 mm dia × 1,200 mm h	650 × 870 × 1,200 mm
Modular / expandable	Yes — auxiliary tanks on 3 sides	Yes — couplable	Yes — couplable
Best fit	DAB ecosystem; integrated pump format; modular expansion	Slim cylindrical tank; 5-year tank warranty	More storage; premium tank format; 10-year tank warranty
Tank warranty	Standard	5 years	10 years
Pump warranty	3 years (DAB)	3 years (DAB)	3 years (DAB)

Technical specifications

Esybox pump

Motor power	1.4 kW (1.9 HP)
Maximum flow rate	120 l/min (7.2 m³/hour)
Maximum head	60 metres
Maximum working pressure	6 bar
Noise level	43 dB(A) at 1m
Power supply	230V / 50–60 Hz, single phase
Outlet connection	1″ BSP female
Expansion vessel	2 litre integrated
Connectivity	Built-in WiFi — DAB H2D app, Google Home, Amazon Alexa
WRAS approval	Yes — pump only

Esytank 300 storage tank

Useable capacity	275 litres
Tank material	HDPE (food-grade polyethylene)
Dimensions (W × D × H)	590 × 810 × 1,170 mm
Weight (empty)	30 kg
Mains inlet connection	¾″ (max inlet pressure 6 bar)
Delivery pipe connection	1″
Overflow connection	DN 50
Maximum liquid temperature	40°C
Included accessories	Esydock, suction pipe with foot valve, delivery pipe, float valve, overflow fitting
Expandable	Yes — auxiliary tanks couple on 3 sides

!The Esybox pump cannot connect directly to the mains. The Esytank is supplied from the mains water inlet (max 6 bar) with the pump drawing from the tank.

Frequently asked questions

What’s actually included in the box?

The system ships complete and ready to install. You receive the DAB Esybox booster pump, the Esytank 300 (275 litres useable capacity), an Esydock docking station, suction pipe with foot valve, delivery pipe, mains fill float valve, and overflow fitting. No additional fittings are required to commission the system.

Should I get the Esytank 300 or the Esytank 500?

Both use the same Esybox pump and deliver the same flow rates. The difference is the tank: 275 L useable on the 300 vs 480 L useable on the 500. Choose the 300 if your plant room is tight or your peak demand is moderate; choose the 500 if you have multiple bathrooms running simultaneously or need more buffer storage when the mains is slow to refill. Contact us if you’d like help sizing.

Should I get the Esybox or the Esybox Mini3?

The standard Esybox is the larger flagship at 80 l/min at 3 bar, suited to higher-demand homes — typically 4–5 bedrooms or properties with 2–3 bathrooms running simultaneously. The Esybox Mini3 is a more compact pump rated at 45 l/min at 3 bar, better matched to smaller homes with 1–2 bathrooms in use. If you’re unsure, contact us with details of your property and we’ll size it correctly.

Why is it called the Esytank 300 if the useable capacity is 275 litres?

The “300” is DAB’s product designation. The actual useable capacity is 275 litres once the float valve, overflow level, and inlet/outlet allowances are accounted for. We use 275 L in technical specifications and sizing calculations to give you an accurate working figure.

Why do I need a tank — can’t I just use the pump on its own?

The Esybox cannot connect directly to the mains in most installations — UK water regulations require a break tank to prevent backflow contamination, and the Esytank fulfils that role. It also stores 275 litres of water, so the system can deliver high flow rates during peak demand even if your mains supply is slow. If your mains pressure and flow are already adequate and you only need pressure boosting, contact us for advice on a pump-only alternative.

Where can I install it?

The system is designed for indoor fixed installation — typically a utility room, cellar, garage, or plant room. The compact tank is dimensioned to fit through standard cellar doorways and into tight spaces such as under-stair cupboards. Outdoor installation requires the optional DAB Esycover kit.

Is 275 litres enough for my property?

For most domestic properties up to 4 bedrooms with 2 bathrooms in regular use, 275 litres is sufficient provided the mains can refill the tank between peak demand periods. If you regularly have multiple showers or baths running simultaneously, the Esytank 500 (480 L useable) is the better choice. Alternatively, the WaterBoost Slimline 500 or Advant 500 ranges offer more storage with WRAS-approved tanks. Contact us for help sizing.

Is the Esybox WRAS approved for drinking water?

Yes — the Esybox is WRAS approved, confirming it is safe and legal for potable water in the UK. The Esytank is manufactured from food-grade HDPE and is suitable for drinking water storage, but does not hold its own WRAS approval. Where a fully WRAS-approved tank is required by specification, the WaterBoost Slimline or Advant ranges offer UK-manufactured WRAS alternatives.

What warranty is included?

3 years manufacturer warranty direct from DAB when purchased from Anglian Pumping, an authorised DAB distributor.

Does the Esybox have WiFi and remote monitoring?

Yes — the Esybox has built-in WiFi and connects to the DAB H2D app for remote monitoring, pressure adjustment, and fault alerts. It also works with Google Home and Amazon Alexa — say “Hey Google, power shower” to boost pressure or “Hey Google, sleep mode” to quieten it overnight.

Can I expand the system in future?

Yes. The tank is fully modular — additional Esytank auxiliary cisterns can be coupled on any of three sides. For higher flow demand, up to four Esybox pumps can be linked wirelessly and will share the load automatically. Contact us to discuss expansion options.

Downloads

Data Sheet - Esytank PDF
Download
Data Sheet - Esybox PDF
Download

Delivery Information

Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.

Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).

Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.

Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.

Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.

You may also need

DAB Esybox

DAB Esytank Coupling Kit

The DAB Esytank Coupling Kit allows you to connect Esytank systems.

View Product

DAB Esybox

DAB Esybox Variable Speed Booster Pump 60161181

The DAB Esybox 60161181 is the flagship DAB variable speed booster pump — a fully integrated all-in-one unit combining a self-priming multi-stage pump, inverter, pressure…

View Product

Frequently Asked Questions

Quick answers to common questions about the DAB Esytank 300 with Esybox. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.

What is a mains pressure boosting system?

A mains pressure boosting system increases the pressure and flow of water from the incoming mains supply into a property. It typically combines a pump and a storage or expansion tank, drawing water from the mains and delivering it to taps, showers and appliances at a stronger, more consistent pressure. They are used where the incoming mains is too weak to serve modern outlets reliably.

When do I need a mains booster pump?

You normally need a mains booster if static mains pressure is below 1.5 to 2 bar, if showers run weakly when other taps are open, or if combi boilers struggle to deliver hot water. Anglian Pumping recommends checking static pressure at the stop tap before specifying a system, then choosing a model rated for the number of bathrooms and outlets in the property.

What size mains booster do I need for my home?

Sizing depends on the number of bathrooms, the type of fittings and the static mains pressure. As a guide, a 1 to 2 bathroom property with combi boiler or single shower often needs 1.6 to 3 bar boost. A 2 to 3 bathroom property typically needs 3 to 4.5 bar with an integral break tank. Larger homes need a tank-and-pump system such as the DAB Esybox with Esytank or a Powertank set.

What is a water booster pump?

A water booster pump increases the pressure of an existing water supply to give stronger flow at taps, showers and appliances. It can be a small inline pump fitted to the incoming mains, or a larger pump and tank set that draws from a break tank to feed the whole house. Boosters do not create water – they raise the pressure of the water already coming in.

What is the difference between an inline booster and a tank-and-pump booster?

An inline booster connects straight onto the incoming mains and is limited to 12 litres per minute under UK water regulations – examples include the Salamander HomeBoost and WaterBoost WB-Compact. A tank-and-pump booster, such as the Grundfos Home Booster or DAB Esybox with Esytank, draws from a break tank and can deliver much higher flow rates for larger homes with multiple bathrooms.

What is a variable speed booster pump?

A variable speed booster uses an inverter to adjust pump speed in real time to match demand. It maintains constant pressure as outlets open and close, runs more quietly than a fixed-speed pump and typically saves up to 50 per cent of the energy a fixed-speed equivalent would use. The DAB Esybox, DAB Esybox Mini 3 and Grundfos Scala2 are common variable speed examples.
