DAB Esybox - 60161181

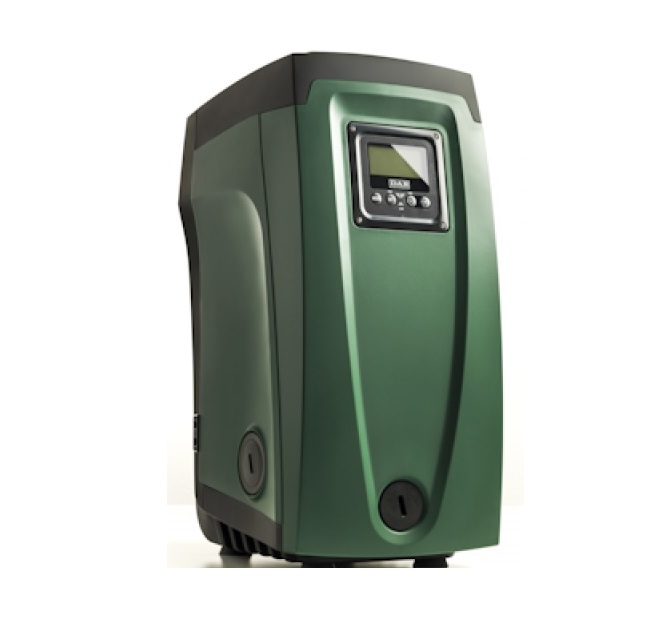

Name: DAB Esybox Variable Speed Booster Pump 60161181
Brand: DAB Esybox
SKU: 9065-ES2
Price: 819.6 GBP
Availability: InStock

DAB Esybox Variable Speed Booster Pump 60161181 - Image 2

DAB Esybox Variable Speed Booster Pump 60161181 - Image 3

DAB Esybox Variable Speed Booster Pump 60161181 - Image 4

DAB Esybox Variable Speed Booster Pump 60161181 - Image 5

In stock

Any questions? Message us on WhatsApp

Established 1975
Trusted by thousands of customers

The DAB Esybox 60161181 is the flagship DAB variable speed booster pump — a fully integrated all-in-one unit combining a self-priming multi-stage pump, inverter, pressure and flow sensors, 2-litre expansion vessel, and an orientable LCD display in a single compact housing. Delivering up to 80 l/min at 3bar, it is suited to larger domestic homes, small commercial premises, wells, boreholes, and rainwater harvesting systems.

The variable speed inverter continuously matches motor speed to demand — maintaining constant pressure at every outlet while significantly reducing energy consumption. Built-in WiFi connects to the DAB H2D app for remote monitoring, with Google Home and Amazon Alexa voice control included. Self-primes to 8m. Installs horizontally, vertically, or wall-mounted. Compatible with Esydock and Esytwin for multi-pump setups of up to four units.

WRAS approved for potable water. Comprehensive built-in protections: dry-run, overtemperature, anti-frost, anti-cycling, and voltage anomaly. 3-year DAB warranty. Note: must be fed from a break tank — direct mains connection is not permitted.

120l/min

Max flow

65m

Max head

43dB(A)

Ultra quiet

3yr

DAB warranty

WiFi · H2D · Google · Alexa
WRAS approved
Self-prime to 8m
6.5 bar max
Esytwin compatible
Break tank required

Full Description

More about this product

Full Description

Product overview

The DAB Esybox is DAB’s flagship all-in-one electronic pressurisation system, designed for domestic and commercial properties with higher water demand. It combines a self-priming multi-stage pump, integrated inverter, pressure and flow sensors, a 2-litre expansion vessel, and an orientable LCD display — all in a single housing.

The variable speed motor continuously adjusts to match demand, delivering constant pressure to every outlet without wasting energy. At just 43 dB(A) — quieter than a library — it is suitable for installation anywhere in the home, including living areas.

Built-in WiFi connects to the DAB H2D app for remote monitoring and control, and integrates with Google Home and Amazon Alexa for voice control. Comes with a 3-year DAB manufacturer warranty when purchased from Anglian Pumping Services.

120^l/min

Max flow rate

65^m

Max head

43^dB

Noise at 1m

6.5^bar

Max working pressure

WRAS approved — potable water

Key features

Variable speed inverter

Continuously adjusts motor speed to match demand. Constant pressure, dramatically lower energy use versus fixed-speed pumps.

WiFi and voice control

DAB H2D app for remote monitoring and control. Works with Google Home and Amazon Alexa — trigger power shower or sleep mode by voice.

Exceptionally quiet — 43 dB(A)

Water-cooled motor in a sound-absorbing ABS housing. At 43 dB(A) it is quiet enough for living areas, bedrooms, and kitchens.

WRAS approved

Certified for potable (drinking) water in the UK. Meets all Water Regulations Advisory Scheme requirements.

Flexible installation

Horizontal, vertical, or wall-mounted. Compatible with the DAB Esydock and Esytwin for multi-pump configurations.

Self-priming to 8m

Draws from below-ground tanks, wells and boreholes up to 8m deep without separate priming equipment.

3-year DAB warranty

3-year manufacturer warranty direct from DAB when purchased from Anglian Pumping Services, an authorised DAB distributor.

Multi-pump capable

Connect up to 4 Esybox units wirelessly via Esytwin or Esydock to handle higher demand properties and commercial sites.

Orientable LCD display

Adjustable high-resolution display shows live pressure, flow, and faults. Rotates to suit any installation orientation.

Typical applications

Larger domestic properties

Consistent pressure for homes with 3 or more bathrooms, multiple floors, and high simultaneous demand.

Small commercial premises

Offices, hospitality, light industrial, and farm buildings requiring reliable, continuous pressure.

Rainwater harvesting

Self-priming capability enables pumping from below-ground rainwater tanks with no extra equipment.

Shallow well and borehole supply

Draws from wells and boreholes up to 8m deep without priming.

Garden irrigation and agriculture

High flow rate and 65m head makes it ideal for large gardens, irrigation systems, and agricultural applications.

Multi-pump pressure units

Up to 4 units can be linked via Esytwin for high-demand commercial or multi-dwelling installations.

Technical specifications

Brand / SKU	DAB Water Technology — 60161181
Motor power	1.4 kW (1.9 HP)
Maximum flow rate	120 l/min (7.2 m³/hour)
Maximum head	65 metres
Maximum suction depth	8 metres
Maximum working pressure	6.5 bar
Noise level	43 dB(A) at 1m
Liquid temperature	0°C to +35°C (domestic) / +40°C (other)
Maximum ambient temperature	+50°C
Motor protection	IPX4
Power supply	230V / 50-60Hz, single phase
Outlet connection	1″ BSP female
Installation	Horizontal, vertical, or wall-mounted
Dimensions	564 × 263 × 362mm
Weight	27 kg
Expansion vessel	2 litre integrated
Connectivity	Built-in WiFi — DAB H2D app, Google Home, Amazon Alexa
WRAS approved	Yes — suitable for potable water
Warranty	3 years (DAB manufacturer warranty)

!This pump cannot connect directly to the mains. It must be fed from a suitable break tank or cold water storage cistern.

The Esybox range

Esybox Mini 3

Compact unit for smaller homes. 80 l/min, 55m head, 45 dB(A). Ideal for 1–2 bathrooms.

This product

Esybox

Full-size unit for larger homes and commercial. 120 l/min, 65m head, 43 dB(A).

Esybox Max

Commercial-grade unit for high-demand applications. Contact us for details.

Frequently asked questions

How much does it cost and what’s included?

£683.00 + VAT (£819.60 inc VAT) with free standard UK delivery. Next-day delivery is £15.00 + VAT on orders placed before 12 noon.

What warranty is included?

3 years manufacturer warranty direct from DAB, when purchased from Anglian Pumping Services, an authorised DAB distributor.

What is the difference between the Esybox and the Esybox Mini 3?

The full-size Esybox has a higher flow rate (120 vs 80 l/min), greater head (65m vs 55m), more power (1.4 vs 0.85 kW), a larger 2-litre expansion vessel (vs 1 litre), and is even quieter at 43 dB(A) vs 45 dB(A). It also adds voice control via Google Home and Amazon Alexa. It is suited to larger homes, commercial use, and multi-pump Esytwin configurations. The Mini 3 is the more compact, lower-cost choice for smaller domestic properties.

Is it WRAS approved for drinking water?

Yes. The Esybox holds full WRAS (Water Regulations Advisory Scheme) approval, confirming it is safe and legal for connection to potable (drinking) water supplies across the UK.

How does the WiFi and voice control work?

Built-in WiFi connects to the DAB H2D app, giving you remote monitoring of pressure, flow, power, and speed, plus the ability to change settings and receive fault alerts. The pump also integrates with Google Home and Amazon Alexa — say “Hey Google, power shower” to boost pressure, or “Hey Google, sleep mode” to quieten the pump overnight.

How quiet is it?

At 43 dB(A) at 1 metre the Esybox is quieter than a library. The water-cooled motor sits inside a sound-absorbing ABS housing, making it genuinely suitable for installation in kitchens, utility rooms, and even living areas.

Can it connect directly to the mains?

No — it must draw from a break tank or cold water storage cistern. Direct mains connection is not permitted under WRAS regulations.

Need direct mains boosting? Contact us and we’ll recommend a suitable alternative.

What is the Esydock and Esytwin?

The Esydock is a docking station with integrated pipework that allows the Esybox to be connected and disconnected from the system without tools — ideal for easy servicing. The Esytwin is a dual docking base that links two Esybox units together, doubling capacity. Up to four Esybox units can be linked in total, creating high-output pressure units for larger commercial or multi-dwelling sites.

Can it draw from a well, borehole, or rainwater tank?

Yes. Self-priming to 8 metres depth — no separate priming pump required. Suitable for shallow wells, boreholes, and below-ground rainwater tanks. Keep incoming water below 35°C (40°C for non-domestic use).

Does it have dry-run and fault protection?

Yes. The Esybox includes comprehensive built-in protections: dry-run shutdown, overtemperature, voltage anomaly, anti-blocking, anti-cycling, and anti-frost. All faults are logged and viewable in the H2D app.
