Name: WaterBoost WB-EXT Slimline 500 Esybox Variable Speed 2503110
Brand: WaterBoost
SKU: GROUP-slimline500-3
Price: 1300.8 GBP
Availability: InStock

WaterBoost WB-EXT Slimline 500 Esybox Variable Speed 2503110

WaterBoost WB-EXT Slimline 500 Esybox Variable Speed 2503110 - Image 2

WaterBoost WB-EXT Slimline 500 Esybox Variable Speed 2503110 - Image 4

In stock

Established 1975
Trusted by thousands of customers

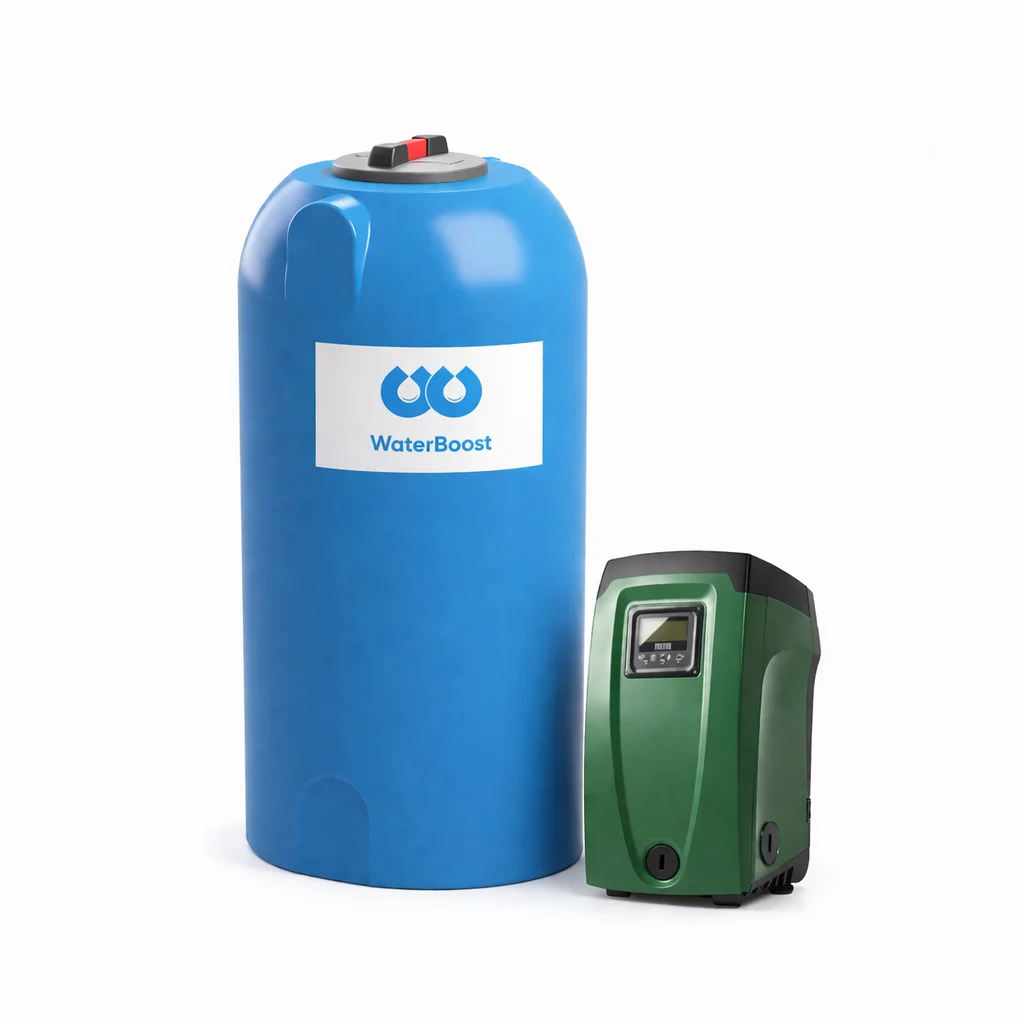

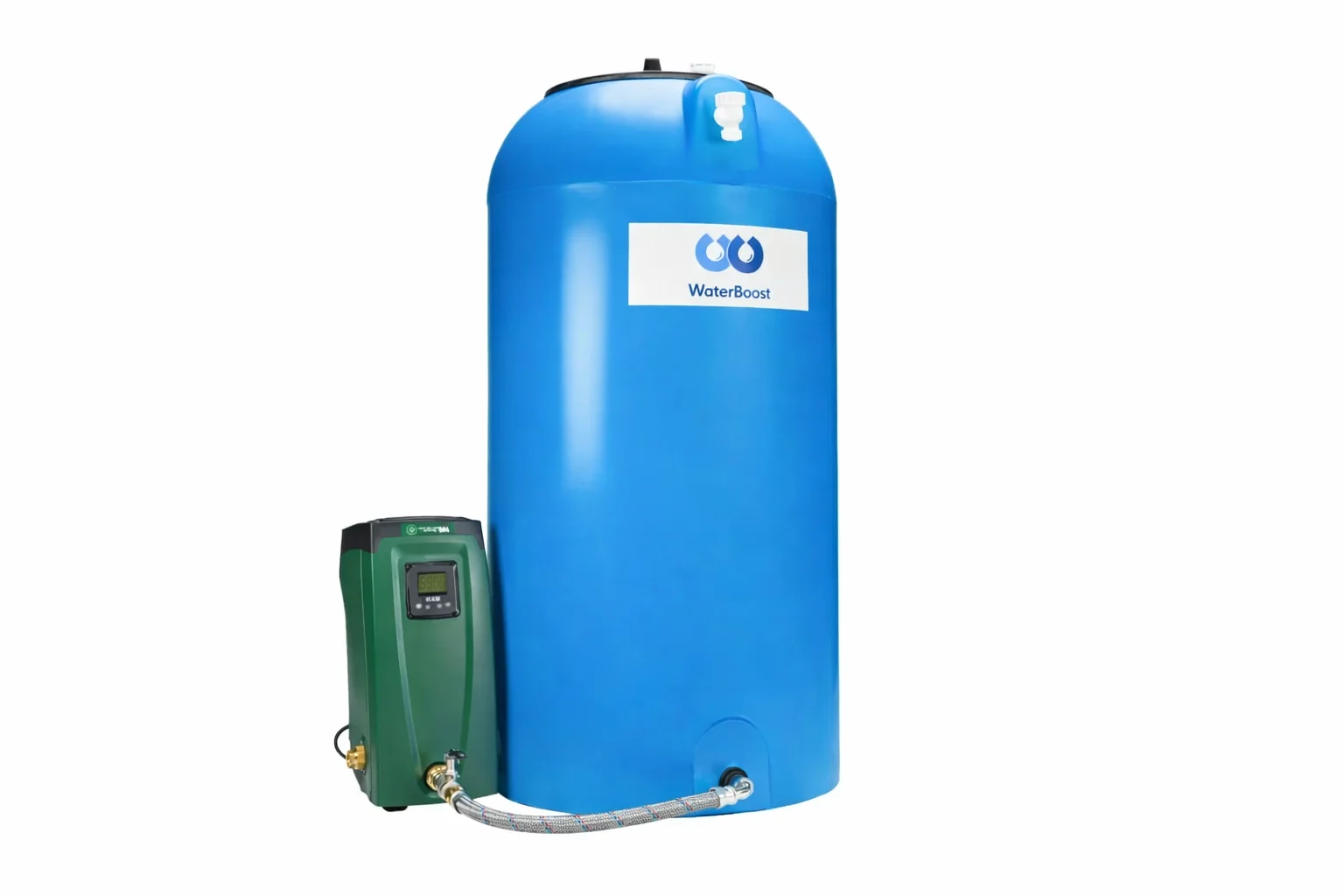

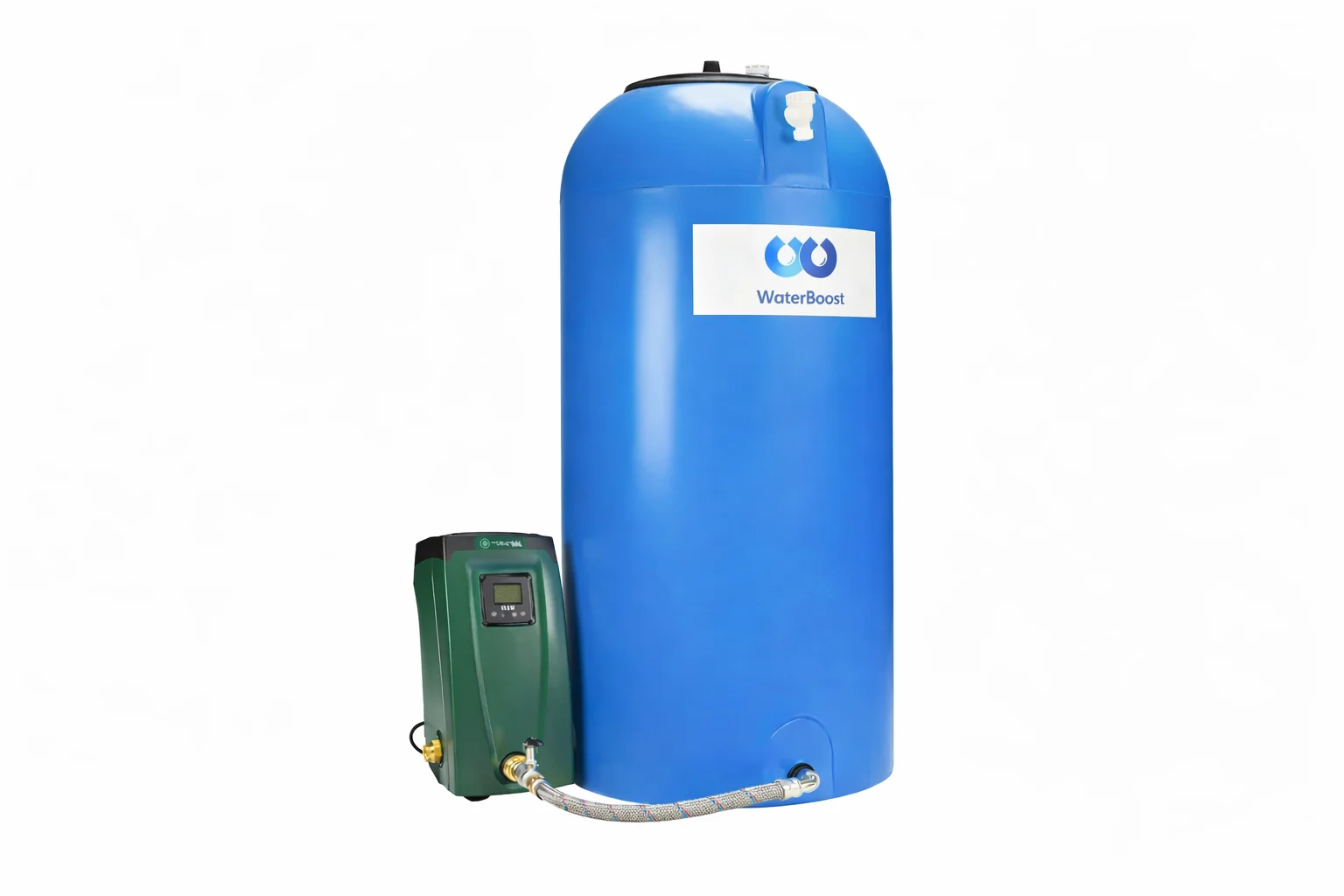

The WaterBoost WB-EXT Slimline 500 Esybox is a high-performance, high-storage variable-speed boosting system for 3–5 bedroom homes. A 500-litre WRAS-approved slimline tank (700mm dia × 1500mm high) pairs with the DAB Esybox external variable speed pump, delivering 80 l/min at 3 bar and up to 6.5 bar maximum — with WiFi, DConnect app, H2D technology, Google Home and Alexa voice control.

The Esybox sits alongside the tank for full pump accessibility at any time, running at an exceptionally quiet 43 dB(A). The tank connects directly to the mains via the pre-fitted ¾” ball float valve. Fully pre-built and ready to install — no site assembly required.

Supplied with union connections, ¾” ball float valve, 600mm hose, and By-law 30 kit. The tank carries a 5-year warranty and the DAB Esybox a 3-year warranty. Delivery is typically 1–2 working days.

80l/min

@ 3 bar

500L

Tank storage

43dB(A)

Ultra quiet

3yr

Pump warranty

WiFi · Google · Alexa
WRAS tank & pump
6.5 bar max
External pump
1–2 day delivery
5yr tank warranty

Full Description

More about this product

Full Description

Product overview

The WaterBoost WB-EXT Slimline 500 Esybox combines maximum buffer storage with full DAB Esybox performance in a practical upright slimline format. A 500-litre WRAS-approved slimline tank (700mm dia × 1500mm high) pairs with the DAB Esybox external variable speed pump, delivering 80 l/min at 3 bar and up to 6.5 bar maximum. Designed for 3–5 bedroom homes with demanding simultaneous demand or a very slow mains supply.

The Esybox sits alongside the tank rather than inside it — fully accessible for servicing at any time — and runs at an exceptionally quiet 43 dB(A). WiFi via the DConnect app and H2D technology provide remote monitoring, intelligent control, and Google Home and Alexa voice commands. The mains connects directly via the pre-fitted ¾” ball float valve. Fully pre-built — no site assembly required.

Supplied with union connections, ¾” ball float valve, 600mm hose, and By-law 30 kit. 5-year tank warranty and 3-year DAB Esybox warranty. Delivery typically 1–2 working days.

80^l/min

Flow @ 3 bar

500^L

Tank storage

6.5^bar

Max pressure

43^dB

Noise (1m)

WRAS tank & pump · Direct mains · Pre-assembled

What’s included

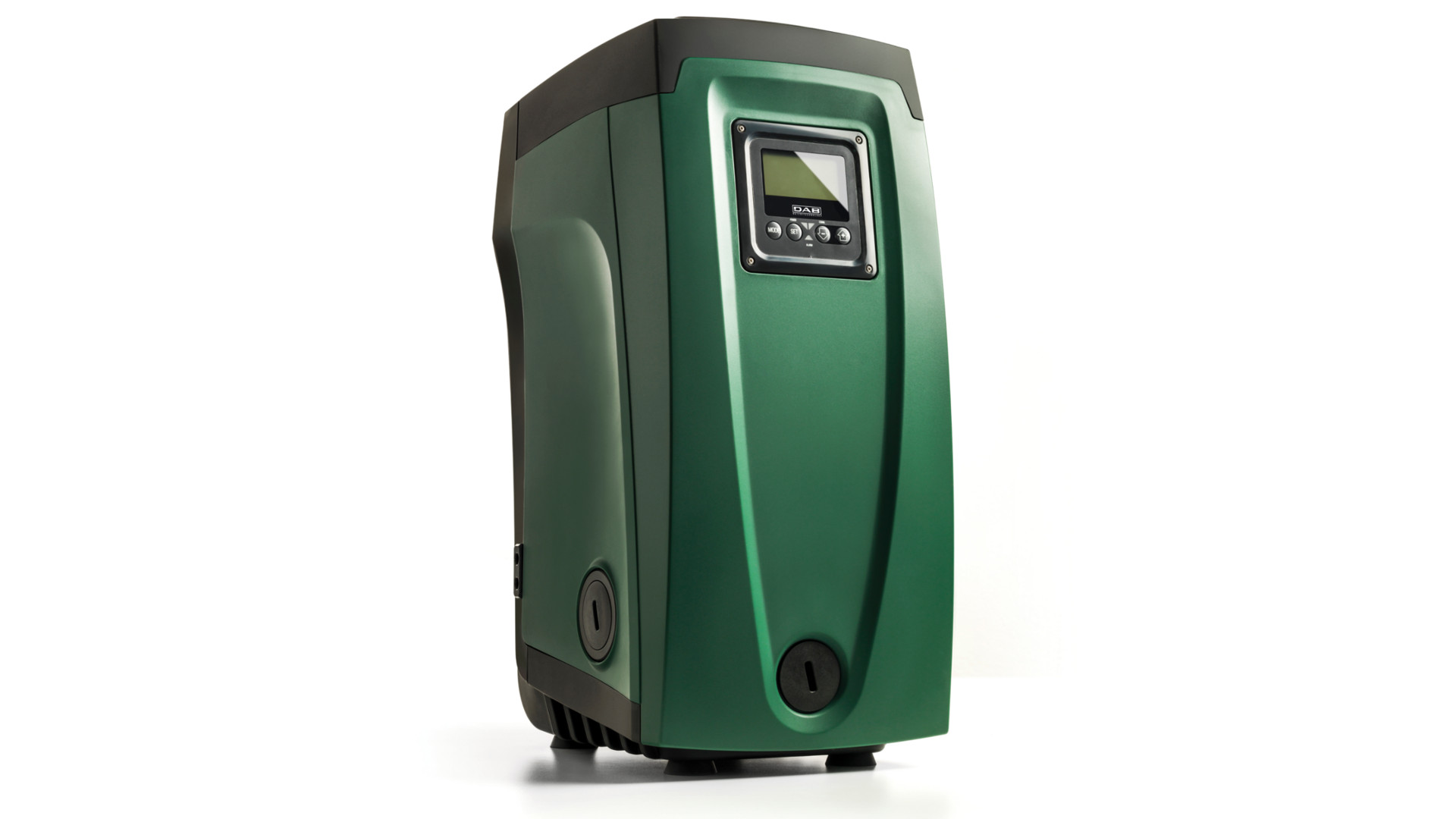

DAB Esybox pump

External variable speed pump — sits alongside the tank. 80 l/min @ 3 bar, 6.5 bar max, 43 dB(A). WiFi via DConnect app and H2D, Google Home, Alexa. Pre-fitted plug. 3-year DAB warranty.

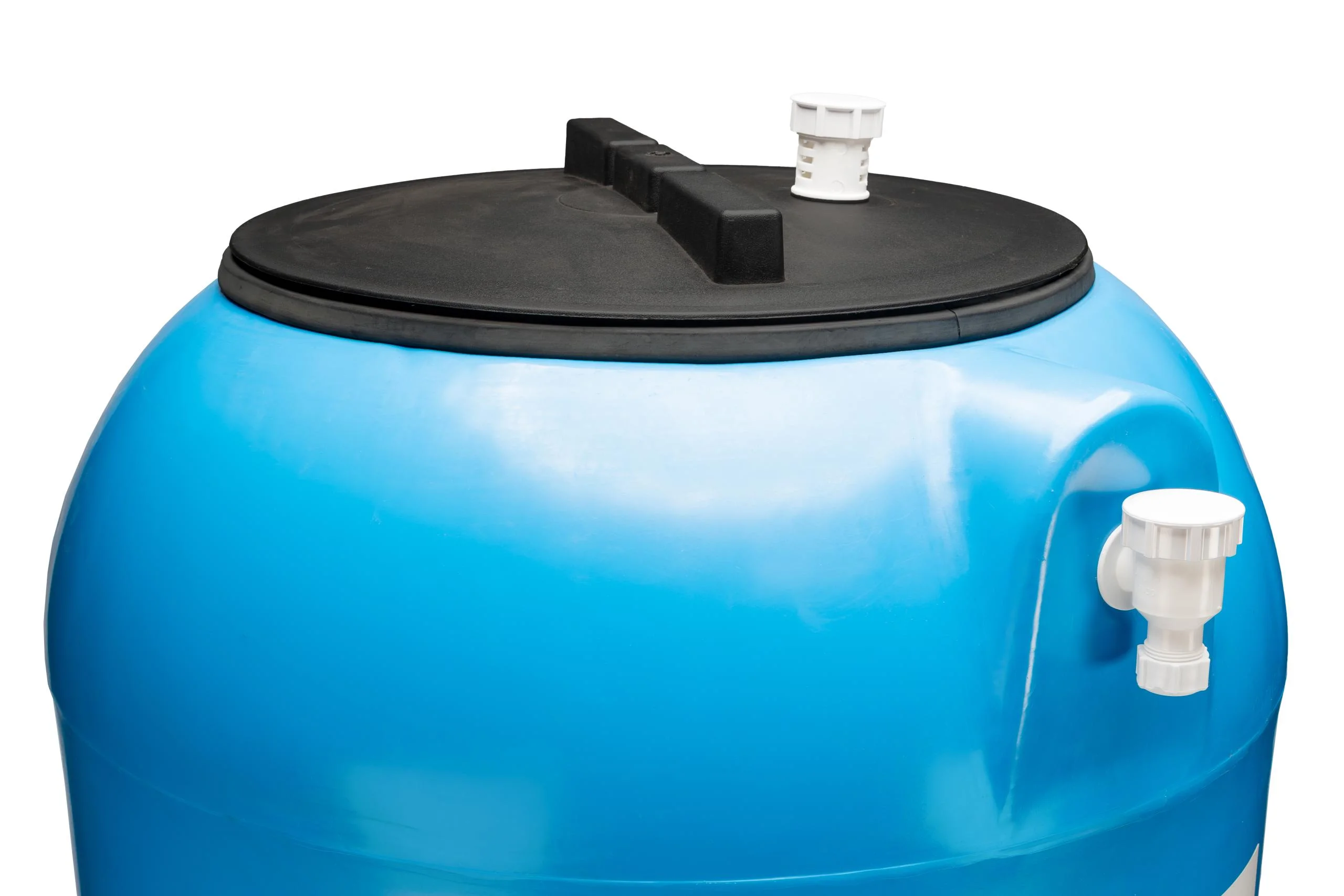

500L slimline tank

WRAS-approved 500-litre upright slimline tank — 700mm dia × 1500mm high. Direct mains via ¾” ball float valve. Includes 600mm hose, 2× union connections, 1″ pre-fitted tank outlet, By-law 30 kit. 5-year warranty.

Key features

80 l/min @ 3 bar — 6.5 bar max

Full DAB Esybox performance — variable speed for simultaneous multi-outlet use across 3–5 bedroom homes at peak demand.

500L maximum buffer storage

Largest storage in the WB-EXT range — fills overnight on even the slowest mains, ready for peak morning and evening demand.

43 dB(A) — exceptionally quiet

One of the quietest 80 l/min pumps available — ideal for under-stair, utility room, and other noise-sensitive indoor locations.

WiFi, H2D, Google and Alexa

DConnect app for remote monitoring. H2D for intelligent multi-pump communication. Voice control via Google Home and Alexa.

External pump — easy servicing

Esybox sits alongside the tank — fully accessible for inspection or replacement without tank disturbance at any time.

WRAS approved — potable water

Both tank and Esybox pump carry WRAS approval — fully compliant for potable water use in the UK.

5yr tank + 3yr pump warranty

5-year warranty on the WRAS slimline tank and 3-year DAB warranty on the Esybox pump.

Fully pre-built — 1–2 day delivery

Arrives ready to install. Delivery is typically 1–2 working days — contact us to confirm availability before ordering.

Direct mains connection

Tank fills automatically via the pre-fitted ¾” ball float valve. Minimum 0.5 bar incoming pressure required.

Typical applications

3–5 bedroom homes with high demand

80 l/min @ 3 bar with 500L buffer — handles peak simultaneous use across multiple bathrooms and appliances.

Very slow mains supply

500L fills overnight on even the most restricted trickle supply — the tank is full and ready for morning peak demand.

Garages, utility rooms, plant rooms

700mm diameter and 43 dB(A) noise make it practical for both dedicated utility spaces and noise-sensitive indoor locations.

Where pump access matters

External pump layout ensures the Esybox is always reachable for inspection or replacement without disturbing the tank.

Combi boilers and unvented cylinders

80 l/min @ 3 bar sustains full output from combination boilers and unvented hot water cylinders even at simultaneous peak use.

Smart home integration

WiFi, DConnect app, H2D, Google Home, and Alexa — remote monitoring and voice commands throughout the day and night.

Technical specifications

DAB Esybox pump

Flow rate	80 l/min @ 3 bar
Max pressure	6.5 bar
Pump type	Variable speed — external
Noise	43 dB(A) at 1m
Connectivity	WiFi · DConnect · H2D · Google · Alexa
Supply	240V, 50Hz — pre-fitted plug
WRAS	Yes
Warranty	3 years (DAB)

Slimline tank

Capacity	500 litres
Dimensions (dia × H)	700mm × 1500mm
Mains inlet	Direct — ¾” BSP ball float valve
WRAS	Yes — WRAS-approved material
Assembly	Fully pre-built
Min inlet pressure	0.5 bar recommended
Warranty	5 years

How it compares

Three 80 l/min upright boosting systems in the 450–500L range. The WB-EXT 500 Esybox is the lowest price with the most storage, WRAS confirmed, 6.5 bar max, WiFi, and named warranties. The Powertank 450 Variable offers Fluid Category 4 with an 8L pressure vessel. The DAB Esytank offers 480L storage in the purpose-built DAB integrated ecosystem.

Feature	WB-EXT 500 Esybox this product	Powertank SLIMLINE 450 Variable	DAB Esybox with Esytank
Tank storage	500L WRAS upright	450L WRAS upright	480L useable (Esytank model)
Pump	DAB Esybox — external	Internal	DAB Esybox — integrated
Flow @ 3 bar	80 l/min	80 l/min	80 l/min
Max pressure	6.5 bar	5 bar	6.5 bar
WiFi / H2D	Yes — DConnect, H2D, Google, Alexa	No	Yes — DConnect, H2D, Google, Alexa
Noise	43 dB(A)	Not stated	43 dB(A)
Pressure vessel	None (variable speed)	Yes — 8L	Built into Esytank
WRAS	Yes — tank & pump	Yes — Cat 4	Not stated on product page
Fluid Category	Cat 1–3 (potable)	Up to Cat 4	Not stated
Tank warranty	5 years	Contact us	Contact us
Pump warranty	3 years (DAB)	Contact us	3 years (DAB)
Price (ex VAT)	£1,084.00	£1,345.00	£1,380.00

Which should I choose?
WB-EXT 500 Esybox — the best-value choice at £1,084 + VAT. Same DAB Esybox pump as the Esytank system, most storage (500L), WRAS confirmed, 6.5 bar max, 43 dB(A), WiFi, H2D and voice control, named 5yr tank and 3yr pump warranties, 1–2 day delivery. The right choice for the large majority of potable water boosting applications.
Powertank SLIMLINE 450 Variable — choose for Fluid Category 4 compliance with 450L storage and an 8L integral pressure vessel. Note: 5 bar max only, no WiFi. £1,345 + VAT.
DAB Esybox with Esytank — the same Esybox pump in DAB’s purpose-built Esytank system (480L useable storage). Choose specifically if you want to use the DAB Esytank ecosystem — particularly if you plan to add further Esytank storage units via the DAB coupling kit for higher capacity. WRAS status not stated on product page. £1,380 + VAT.

Frequently asked questions

How much does it cost and how quickly is it delivered?

£1,084.00 + VAT (£1,300.80 inc VAT). Delivery is typically 1–2 working days. Please contact us via WhatsApp or phone to confirm availability before ordering.

What is the difference between this and the WB-EXT 300 Esybox?

Both use the same DAB Esybox pump with identical performance (80 l/min, 6.5 bar, 43 dB(A), WiFi). The difference is storage and footprint. The WB-EXT 300 Esybox (£1,019 + VAT, 600mm × 1200mm) suits 3–4 bedroom homes with moderate daily demand. The 500L (£1,084 + VAT, 700mm × 1500mm) is better for high-demand 3–5 bedroom homes or very slow-filling mains supplies where maximum overnight buffer storage is important.

Why is the pump external rather than inside the tank?

The “EXT” design mounts the Esybox alongside the tank rather than submerged inside it. This means the pump is completely accessible at all times for inspection, servicing, or replacement — without any need to open or disturb the tank or its plumbing connections. For long-term installations where serviceability matters, this is a significant practical advantage.

How does the mains connection work?

The mains supply connects directly to the tank via the pre-fitted ¾” ball float valve. The tank fills automatically. The Esybox draws from the tank via the 600mm connection hose and boosts pressure throughout the property. A minimum of 0.5 bar incoming pressure is required.

I need more than 500L — what are the options?

For larger storage requirements, the WB-Advant 500 Esybox (£1,210 + VAT) uses a different Advant-format 500L tank. For 1000L, the WB-Advant 1000 Esybox (£1,360 + VAT) provides 1000L storage with the same Esybox pump. Contact us to discuss higher-capacity requirements.

What warranties are included?

5 years on the WRAS slimline tank and 3 years DAB warranty on the Esybox pump, when purchased from Anglian Pumping Services.
