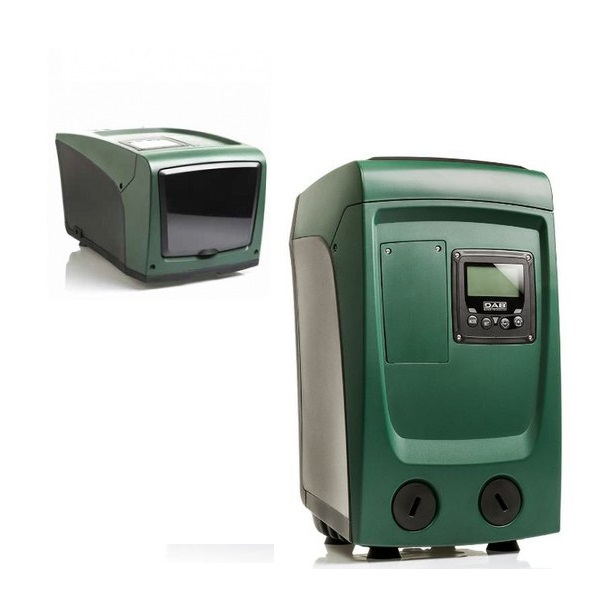

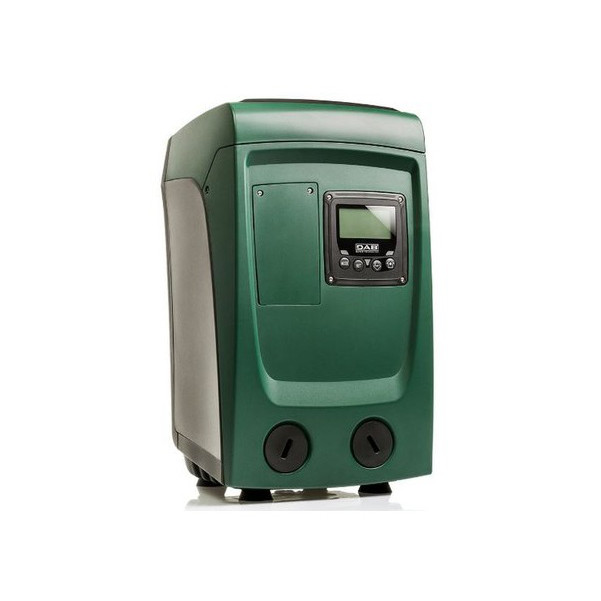

DAB Esybox Mini 3 60183504 variable speed booster pump

DAB Esybox Mini 3 60183504 variable speed booster pump - Image 3

In stock

Established 1975
Trusted by thousands of customers

The DAB Esybox Mini3 60183504 is a WRAS-approved, all-in-one variable speed cold water booster pump for domestic and light commercial applications. Delivering up to 50 l/min at 3bar, it integrates a self-priming multi-stage pump, inverter, pressure and flow sensors, 1-litre expansion vessel, and a high-resolution LCD display in a compact 16kg housing. The variable speed inverter reduces energy consumption by up to 50% versus fixed-speed alternatives.

WiFi via the DConnect app enables remote monitoring and control. Self-primes to 8m — suitable for break tanks, wells, boreholes, and below-ground rainwater harvesting systems. Installs horizontally or vertically. Dry-run, overtemperature, anti-cycling, and anti-blocking protections built in. Compatible with the DAB Esywall wall bracket for wall-mounted installations.

WRAS approved for potable water. 3-year DAB warranty. Note: must be fed from a break tank — direct mains connection is not permitted.

80l/min

Max flow

55m

Max head

45dB(A)

Very quiet

3yr

DAB warranty

WiFi · DConnect
WRAS approved
Self-prime to 8m
5.5 bar max
Variable speed
Break tank required

Full Description

More about this product

Full Description

Product overview

The DAB Esybox Mini 3 is DAB’s most compact all-in-one electronic pressurisation system for domestic dwellings and light commercial premises. It combines a self-priming multi-stage pump, integrated inverter, pressure and flow sensors, a 1-litre expansion vessel, and an LCD display — all in one 16 kg housing.

Unlike fixed-speed pumps, it continuously adjusts motor speed to match demand, never wasting energy over-pumping. At full load it runs at just 45 dB(A) — quieter than a normal conversation — making it suitable for kitchens, utility rooms, and plant rooms.

Comes with a 3-year DAB manufacturer warranty when purchased from Anglian Pumping Services, an authorised DAB distributor.

80^l/min

Max flow rate

55^m

Max head

45^dB

Noise at 1m

50^%

Energy saving vs fixed

WRAS approved — potable water

Key features

Variable speed inverter

Adjusts motor speed to match demand in real time. Up to 50% less energy than fixed-speed pumps.

Built-in WiFi

DAB DConnect app gives remote monitoring, pressure control, and fault alerts from your smartphone.

Whisper quiet — 45 dB(A)

Water-cooled motor and anti-vibration feet. Suitable for kitchens, utility rooms, and airing cupboards.

WRAS approved

Certified for potable (drinking) water in the UK. Meets all Water Regulations Advisory Scheme requirements.

Flexible installation

Horizontal or vertical mounting. Compact 263 × 236mm base fits under sinks, in cupboards, or wall-mounted.

Self-priming to 8m

Draws from below-ground tanks, wells and boreholes up to 8m deep. No separate priming equipment needed.

3-year DAB warranty

3-year manufacturer warranty direct from DAB when purchased from Anglian Pumping Services.

Dry-run protection

Auto shutdown if supply runs dry. Restarts automatically once water is restored.

Orientable LCD display

High-resolution display shows live pressure, flow, and faults. Rotates to suit any installation position.

Typical applications

Domestic pressure boosting

Consistent pressure throughout homes up to 3 floors and 2 bathrooms.

Garden irrigation

Reliable pressure for garden taps, hoses and irrigation up to 55m head.

Rainwater harvesting

Self-priming from below-ground rainwater tanks — no extra equipment.

Shallow well supply

Draws from wells and boreholes up to 8m deep without priming.

Light commercial

Small commercial premises, farm buildings, and agricultural wash-down.

Multi-pump systems

Up to 4 units link wirelessly to share load for larger properties.

Technical specifications

Brand / SKU	DAB Water Technology — 60183504
Motor power	0.85 kW (1.14 HP)
Maximum flow rate	80 l/min (4.8 m³/hour)
Maximum head	55 metres
Maximum suction depth	8 metres
Max settable pressure	5.5 bar
Max working pressure	7.5 bar
Noise level	45 dB(A) at 1m
Liquid temperature	0°C to +35°C (domestic) / +40°C (other)
Motor protection	IPX4
Power supply	230V / 50Hz, single phase
Outlet connection	1″ BSP female (brass unions included)
Installation	Horizontal or vertical fixed position
Dimensions	263 × 236 × 439mm (H)
Weight	16 kg
Expansion vessel	1 litre integrated, no maintenance required
Connectivity	Built-in WiFi — DAB DConnect app
WRAS approved	Yes — suitable for potable water
Warranty	3 years (DAB manufacturer warranty)

!This pump cannot connect directly to the mains. It must be fed from a suitable break tank or cold water storage cistern.

How it compares

See how the Esybox Mini 3 stacks up against other leading variable speed booster pumps on the market.

Feature	DAB Esybox Mini 3 our pick	Grundfos SCALA2	Grundfos SCALA1
Max flow rate	80 l/min	70 l/min	85 l/min
Max head	55m	45m	43m
Variable speed	Yes	Yes	No
Noise level	45 dB(A)	47 dB(A)	~65 dB(A)
Built-in WiFi	Yes — DConnect	No	No
Horizontal install	Yes	Yes	Yes
Warranty	3 years (DAB)	2 years	2 years
Price (ex VAT)	£369.00	Contact us	Contact us

Frequently asked questions

How much does it cost and what’s included?

£369.00 + VAT (£442.80 inc VAT) with free standard UK delivery. Next-day delivery is £15.00 + VAT on orders before 12 noon. Brass union connections and anti-vibration feet included.

What warranty is included?

3 years manufacturer warranty direct from DAB, when purchased from Anglian Pumping Services, an authorised DAB distributor.

Is it WRAS approved for drinking water?

Yes. Full WRAS approval — safe and legal for connection to potable (drinking) water supplies across the UK.

How quiet is it? Can I install it indoors?

At 45 dB(A) at 1 metre — quieter than a normal conversation — it’s the quietest pump in its class. The water-cooled motor and anti-vibration feet make it suitable for kitchens, utility rooms, and airing cupboards.

How does the inverter save energy?

The inverter monitors pressure and flow continuously, adjusting motor speed to match exactly what’s needed. This cuts energy use by up to 50% versus a fixed-speed pump, with far less noise and wear at partial load.

Does it have WiFi and remote monitoring?

Yes — built-in WiFi connects to the DAB DConnect app for remote monitoring, pressure adjustment, and fault alerts from your phone.

Does it have dry-run protection?

Yes. Auto shutdown if supply is interrupted, with automatic restart once water is restored — protecting the pump from damage.

What installation orientations are supported?

Horizontal or vertical in a fixed position. Fits under a kitchen sink, in a cupboard, or wall-mounted via the optional DAB Esywall bracket (£45.00 + VAT, sold separately).

Can it connect directly to the mains?

No — it must draw from a break tank or cold water storage cistern. Direct mains connection is not permitted under WRAS regulations.

Need direct mains boosting? Contact us and we’ll recommend a suitable alternative.

What pipework and fittings do I need?

1″ BSP female connections with brass union fittings included. We recommend flexible braided hoses (600mm, 1″ M&F) to isolate vibration — two per pump, available in the Related Products section.

Can it draw from a well, borehole, or rainwater tank?

Yes. Self-priming to 8 metres depth — no separate priming pump needed. Suitable for shallow wells, boreholes, and below-ground rainwater tanks. Keep incoming water below 35°C (40°C non-domestic).

Is it powerful enough for a 3-storey home with 2 bathrooms?

Yes. 55m head and 80 l/min flow handles simultaneous demand from showers, taps, and garden outlets without pressure drop. For larger properties, up to 4 units link wirelessly to share the load.

Additional Information

Downloads

Delivery Information

Standard delivery:

Standard delivery is free for all orders except for some low cost/low margin items where standard delivery is £6.75. Some difficult to transport goods also have a varying carriage charge applied.

Please contact us for the estimated standard delivery times of the products that we have in stock, by dropping us a message on our Whatsapp or Live chat.

Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).

Next day delivery:

Next working day delivery is available for a £15.00 + vat delivery charge.

Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
