Accumulator Vessels Horizontal

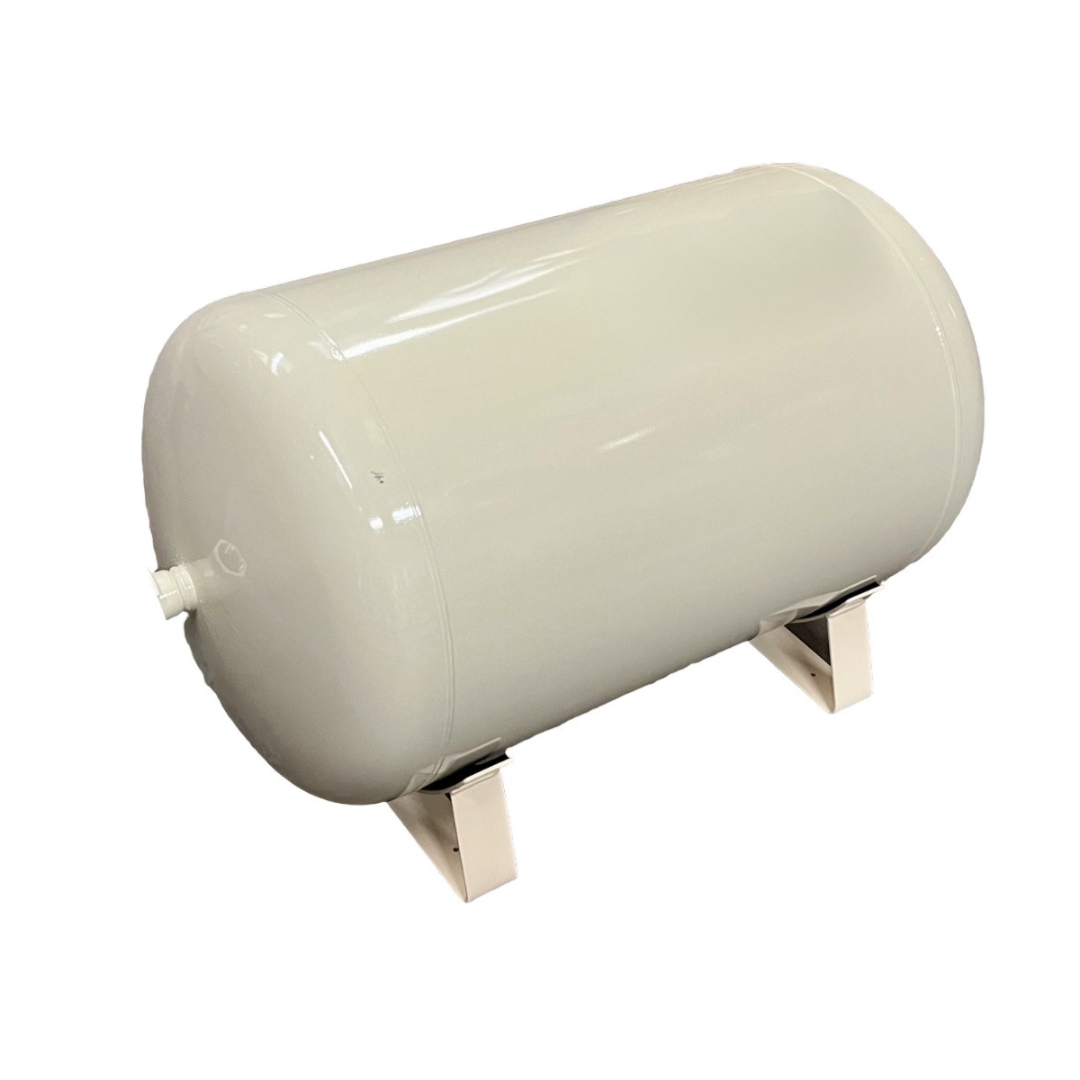

WaterBoost 150 litre accumulator Horizontal
- Established 1975
- Trusted by thousands of customers
Rebranding to WaterBoost
Horizontal Accumulators – Solutions for Low Water Flow Applications
Water pressure and flow can fluctuate, especially during peak usage times such as mornings and evenings, leading to reduced mains pressure. Accumulators address this issue by storing water under static or resting pressure, ensuring a more consistent supply.
Even if mains pressure is sufficient, the design and condition of the plumbing—particularly the pipes connecting your home to the mains—can significantly reduce both pressure and flow by the time the water reaches your taps. Accumulators help mitigate these challenges, delivering reliable water performance.
Designed for optimal performance and durability, these maintenance-free, WRAS-approved vessels provide a reliable solution for water pressure and flow management.
Features & Benefits
- Maintenance-Free Design: Ensures hassle-free operation with minimal upkeep.
- WRAS Approved: Certified for safe use with potable water systems.
- Diaphragm Technology: Efficient and reliable water storage and pressure regulation.
- Patented Stainless Steel Water Connection: Provides superior durability and resistance to corrosion.
- Virgin Polypropylene Liner: Maintains water quality and prevents contamination.
- Condensation-Reducing Design: Minimizes the risk of moisture buildup for extended vessel lifespan.
- Durable Paint Finish: Two-part polyurethane with an epoxy primer for enhanced protection against wear and environmental factors.
More about this product
GWS Series Accumulator Tanks: Unmatched Durability and Performance
The GWS series tanks are designed with advanced materials and construction techniques to ensure superior air and water separation, reliability, and long-lasting performance in a variety of applications.
Key Features
- Chlorine-Resistant 100% Butyl Diaphragm: Offers exceptional durability and longevity in demanding environments.
- Precision-Molded Polypropylene Liner: Provides superior water quality and ensures a seamless fit with the diaphragm.
- CAD-2 Diaphragm Technology:
- Features a positive-lock internal clench ring that securely seals the diaphragm and liner.
- Eliminates water contact with the tank wall, reducing condensation risks.
- Non-Corrosive Water Chamber: Constructed with FDA-compliant high-grade butyl and polypropylene for safe and clean water storage.
- Air Buffer: Maintains separation of water from the tank wall, further minimizing condensation.
- Sealed Air Chamber: Equipped with a fixed o-ring and closed-cell foam for leak-free operation without the need for regular maintenance.
- Durable Exterior: Two-part polyurethane paint finish over epoxy undercoating ensures exceptional UV and salt spray protection.
Quality Assurance
- Rigorous Testing: GWS products are quality-tested throughout the manufacturing process, guaranteeing structural integrity and performance.
Applications
The GWS accumulator tanks are ideal for a wide range of applications:
- Ships and Aircraft: Reliable operation under challenging conditions.
- Farms: Ensures consistent water supply for irrigation and livestock.
- Commercial Pump Sets: Enhances water flow and pressure stability.
- Residential Systems: Solves water pressure issues effectively.
Why Choose GWS Tanks?
GWS accumulator tanks combine innovative design, premium materials, and proven reliability. Whether used for residential, agricultural, or commercial purposes, they deliver dependable performance with minimal maintenance needs.
Invest in GWS tanks for durability, efficiency, and peace of mind.
-
manual PDFDownload
-
data sheet PDFDownload
-
Dimensions PDFDownload
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
You may also need
APS 22mm upstream kit Comprising – 2 – pressure gauges 1 – Lever isolating ball valve 1 – pressure vessel fitting 1 – 6 bar…
WB-Compact 4.5 ACW1 – Digital Accumulator Booster Pump (Wall Mounted) The WB-Compact 4.5 ACW1 is a digitally controlled, wall-mounted accumulator booster pump designed to deliver…
The WaterBoost WB-Compact 4.5 ACF1 is a compact floor-mounted variable speed pump designed to charge external accumulator vessels to up to 4.5 bar. If your…
Related products
A 60-litre Lowara pressure vessel is a tank used in fluid management systems, typically in water supply, HVAC (heating, ventilation, and air conditioning), or industrial…
Lowara horizontal expansion vessel. The pressure vessel is designed to provide a storage facility and pressure reservoir for water at temperatures up to 70oC.
Cold water accumulator vessels. Maintenance free and WRAS approved. Diaphragm design Patened stainless steel water connection Virgin polypropylene liner Condensation reducing design Two-part polyurethane, epoxy…
The Lowara vertical expansion pressure vessel is designed to provide a storage facility and pressure reservoir for water at temperatures up to 70oC. The vessel…
Lowara horizontal expansion vessel. The pressure vessel is designed to provide a storage facility and pressure reservoir for water at temperatures up to 70oC. Common…
Twin Cold water accumulator vessels. Maintenance free and WRAS approved. Diaphragm design Patened stainless steel water connection Virgin polypropylene liner Condensation reducing design Two-part polyurethane,…
Frequently Asked Questions
Quick answers to common questions about the WaterBoost 150 litre accumulator Horizontal. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.
What is an accumulator tank?
An accumulator tank is a pressurised vessel that connects directly to the mains supply and stores water under pressure. When a tap or shower opens, water discharges immediately from the vessel at full mains pressure rather than drawing only from the street main. This delivers stronger, more consistent flow at peak times. Accumulators have no pump and no moving parts so they are maintenance free and silent.
When should I use an accumulator instead of a pump?
An accumulator is the right solution when static mains pressure is adequate – above 2 bar – but flow is poor or drops during peak demand. It boosts available flow without adding a pump, energy use or noise. If static pressure is below 2 bar, a booster pump is needed instead, or an accumulator combined with a charge pump such as the WaterBoost ACF1.
What size accumulator do I need?
Accumulators are typically sized on a 60 per cent usable rule – a 300 litre vessel delivers around 180 litres of boosted water per cycle. As a guide, a 2 to 3 bedroom home suits a 300 litre vessel such as the GWS GCB-300LV. Larger 4 to 5 bedroom homes or properties with multiple bathrooms typically need 450 to 600 litres. Vertical models save floor space, horizontal models suit lofts and roof spaces.
