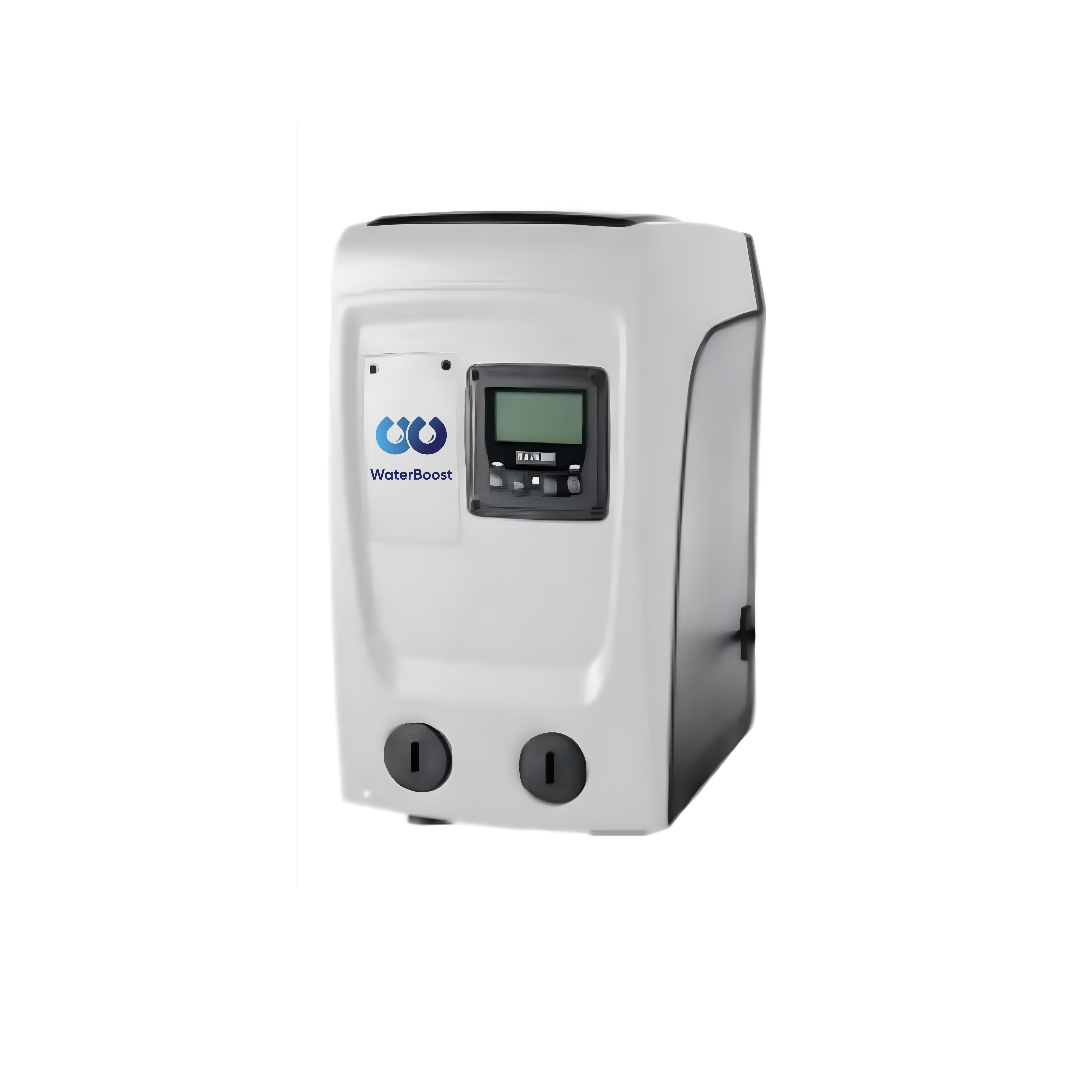

WaterBoost WB-Compact 4.5 ACF1 – Accumulator Booster Pump (Floor Mounted)
- Established 1975
- Trusted by thousands of customers

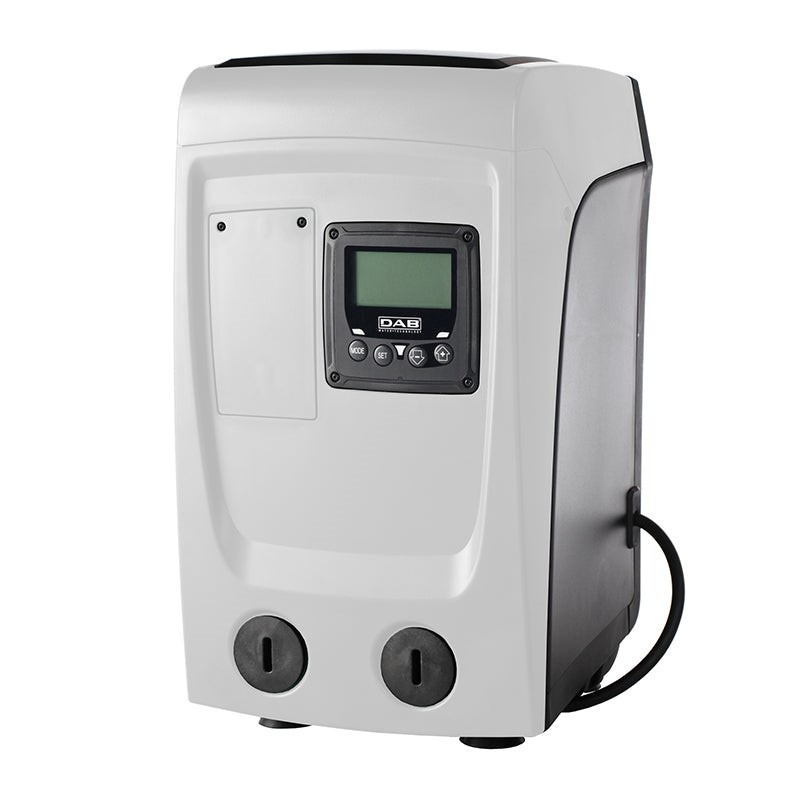

The WaterBoost WB-Compact 4.5 ACF1 is a compact floor-mounted variable speed pump designed to charge external accumulator vessels to up to 4.5 bar. If your static mains pressure is below 2 bar and you are installing an accumulator, the ACF1 charges the vessel to the pressure needed for effective operation — working seamlessly alongside GWS, WaterBoost, Lowara, Grundfos, and Stuart Turner accumulators in both vertical and horizontal configurations.

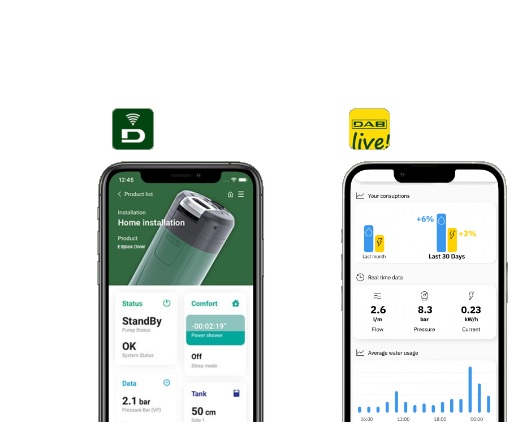

Advanced variable speed inverter control automatically adjusts output to match demand, delivering energy savings of up to 50% compared with fixed-speed alternatives. Operates at a quiet 45 dB(A). Pressure is easily adjusted via the integrated LCD display. WiFi via the DConnect app enables remote monitoring and control, with voice control integration available. Wireless update capability allows future performance enhancements. Compact footprint at 439 × 263 × 236mm, weighing 15kg.
WRAS approved for potable water. 3-year warranty. For a wall-mounted alternative, see the WB-Compact 4.5 ACW1.
WRAS approved
Accumulator charging pump
Variable speed
Floor mounted
Universal vessel compatibility
More about this product
WB-Compact 4.5 ACF1 – Digital Accumulator Booster Pump (Floor Mounted)
The WB-Compact 4.5 ACF1 is a digitally controlled, floor-mounted accumulator booster pump designed to deliver smooth, reliable water pressure when used with external accumulator or pressure vessels. Using advanced variable-speed inverter technology, it automatically adjusts output to boost pressure up to 4.5 bar, maintaining consistent performance across showers, taps, and appliances.
Designed for flexible installation, the ACF1 can be positioned independently of the accumulator and is fully compatible with both vertical and horizontal vessels, including systems from GWS, Lowara, Grundfos, and Stuart Turner. Pressure settings are easily adjusted via the integrated LCD display, allowing precise control to suit the installation.

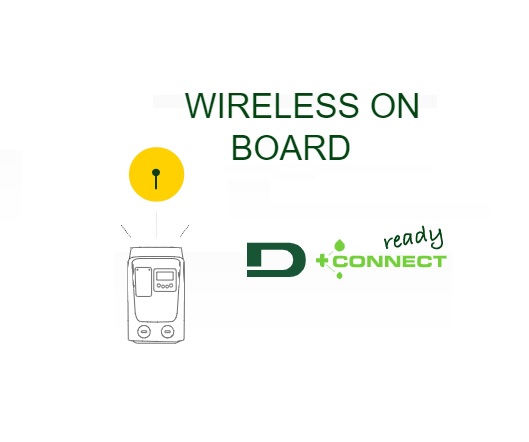

WRAS approved and exceptionally quiet in operation, the WB-Compact 4.5 ACF1 also features built-in Wi-Fi connectivity, enabling remote control through the DConnect app. Additional smart functionality allows wireless updates and optional voice control integration, providing a modern, future-ready solution for accumulator-based pressure boosting.
Key Features
Improved – Features a new three-rotor hydraulic design with wireless update capability, allowing future performance and functionality enhancements.
Constant – Advanced inverter technology automatically regulates pump speed to maintain smooth, consistent water pressure.
Efficient – Variable-speed motor technology delivers energy savings of up to 50% compared with conventional fixed-speed pumps.
Quiet – Housed in a sound-absorbing casing with anti-vibration feet, operating at just 45 dB(A) at 1 metre.
Simple – Designed for straightforward installation, intuitive setup, and easy day-to-day operation.
Compact – Space-saving footprint measuring 439 × 263 × 236 mm (H × W × D) and weighing only 15 kg, ideal for tight installation spaces.
Reliable – WRAS approved for potable water use and backed by a three-year manufacturer’s guarantee.
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
You may also need
WaterBoost Accumulator connection kit 22mm Accumulator connection kit for easy instaltation. includes – 1 x 600mm 1″ braided hose 2 x 22mm x 1″ Male…
WaterBoost Accumulator Booster Pump connection kit Pump to accumulator connection kit for easy instaltation. includes – 2 x 600mm 1″ braided hose 2 x 22mm…
Related products
The WaterBoost AWBH-300LH is a 300-litre WRAS-approved horizontal accumulator vessel for mains-connected water systems. The horizontal orientation makes it ideal where headroom is limited —…
The WaterBoost WB-INT Slimline 300 is a complete, pre-built variable-speed water boosting system designed to solve low water pressure and flow in 3–5 bedroom homes.…
The WaterBoost AWB-300LV is a 300-litre WRAS-approved vertical accumulator vessel for mains-connected water systems. Accumulators store mains water under pressure — so when you open…
Frequently Asked Questions
Quick answers to common questions about the WaterBoost WB-Compact 4.5 ACF1 – Accumulator Booster Pump (Floor Mounted). For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.
What is an accumulator tank?
An accumulator tank is a pressurised vessel that connects directly to the mains supply and stores water under pressure. When a tap or shower opens, water discharges immediately from the vessel at full mains pressure rather than drawing only from the street main. This delivers stronger, more consistent flow at peak times. Accumulators have no pump and no moving parts so they are maintenance free and silent.
When should I use an accumulator instead of a pump?
An accumulator is the right solution when static mains pressure is adequate – above 2 bar – but flow is poor or drops during peak demand. It boosts available flow without adding a pump, energy use or noise. If static pressure is below 2 bar, a booster pump is needed instead, or an accumulator combined with a charge pump such as the WaterBoost ACF1.
What size accumulator do I need?
Accumulators are typically sized on a 60 per cent usable rule – a 300 litre vessel delivers around 180 litres of boosted water per cycle. As a guide, a 2 to 3 bedroom home suits a 300 litre vessel such as the GWS GCB-300LV. Larger 4 to 5 bedroom homes or properties with multiple bathrooms typically need 450 to 600 litres. Vertical models save floor space, horizontal models suit lofts and roof spaces.
