Name: WaterBoost WB-Coffin 200 POP Variable Speed 2205210P
Brand: WaterBoost
SKU: WBKcoffin200mini-1
Price: 697.2 GBP
Availability: InStock

WaterBoost WB-Coffin 200 POP Variable Speed 2205210P

WaterBoost WB-Coffin 200 POP Variable Speed 2205210P - Image 2

WaterBoost WB-Coffin 200 POP Variable Speed 2205210P - Image 4

WaterBoost WB-Coffin 200 POP Variable Speed 2205210P - Image 5

WaterBoost WB-Coffin 200 POP Variable Speed 2205210P - Image 6

In stock

Established 1975
Trusted by thousands of customers

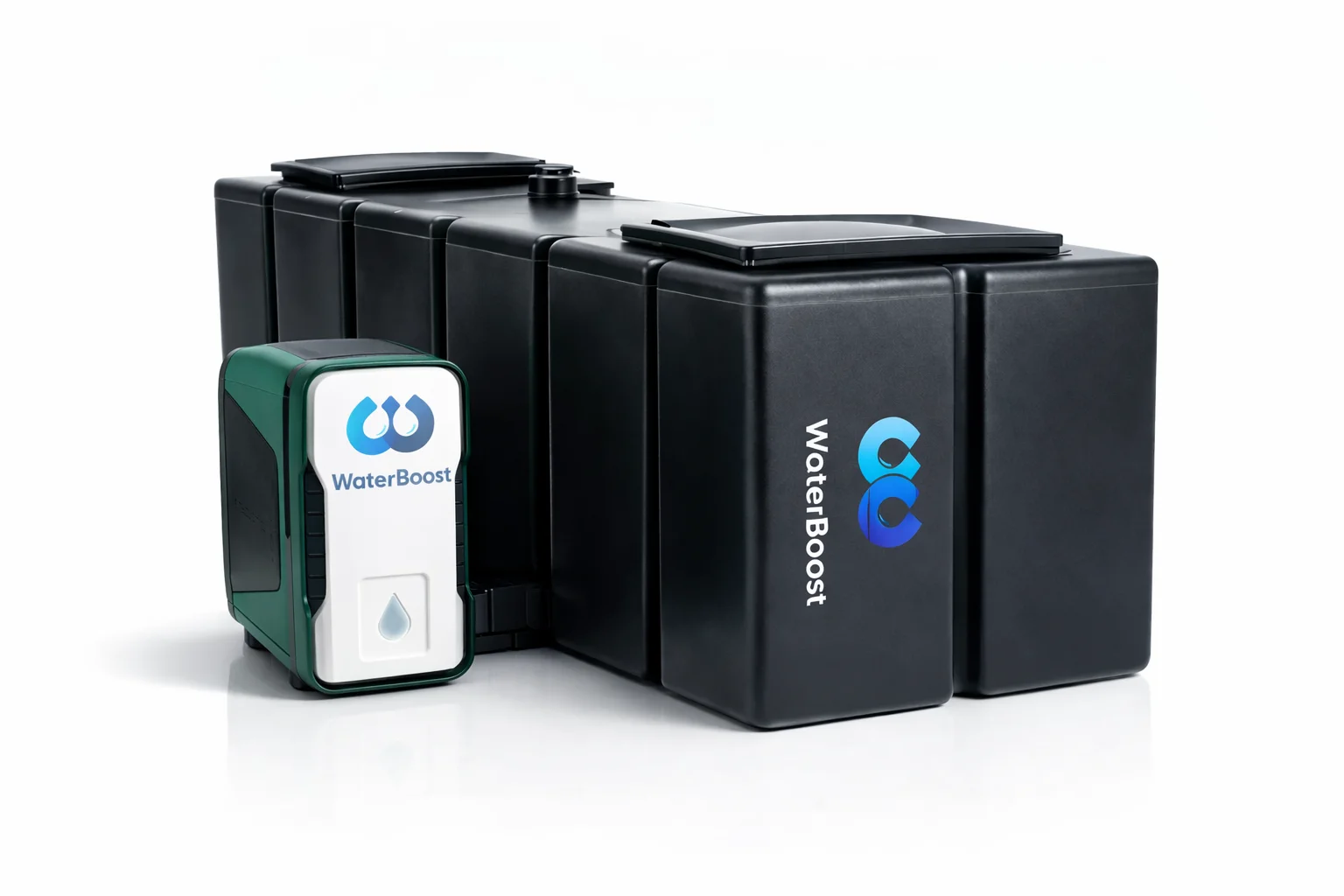

The WaterBoost WB-Coffin 200 POP is a compact, variable-speed water boosting system designed for smaller domestic applications where space is restricted and a modest boost is all that’s needed. It combines a 200-litre WRAS-approved coffin-style tank with the lightweight DAB Esybox POP pump — the most affordable entry point in the WB-Coffin range.

Delivering up to 24 litres per minute at 2.5 bar, the WB-Coffin 200 POP is ideal for improving pressure to a single shower, bathroom, or small flat where flow demand is light. The tank connects directly to the mains via the pre-fitted ½” ball float valve, and all interconnecting pipework is included as standard.

With a compact footprint of 1185mm (L) × 510mm (W) × 490mm (H), it is perfectly suited to installations where height restrictions or limited access are key considerations, including cupboards, garages, and plant rooms.

24l/min

@ 2.5 bar

200L

Tank storage

3.2bar

Max pressure

3yr

DAB warranty

WRAS tank & pump
490mm height
Direct mains
Pipework included
Entry-level price

Full Description

More about this product

Full Description

Product overview

The WaterBoost WB-Coffin 200 POP is the entry-level model in the WB-Coffin range — combining a 200-litre WRAS-approved coffin tank with the compact DAB Esybox POP variable speed pump. It is designed for smaller domestic applications where space is restricted and flow demand is light: a single shower, a flat, or a 1-bathroom property that simply needs a modest, reliable pressure boost.

Delivering 24 l/min at 2.5 bar with a max pressure of 3.2 bar, the Esybox POP is DAB’s lightest and most compact all-in-one variable speed pump. It automatically adjusts speed to match demand, maintaining consistent pressure with low energy use. The tank connects directly to the mains via the pre-fitted ½” ball float valve.

The coffin tank sits horizontally at just 490mm tall — fitting under stairs, in cupboards, and in low-ceiling garages. All interconnecting PVC pipework is included. 3-year DAB pump warranty. Please contact us for delivery timescales.

24^l/min

Flow @ 2.5 bar

200^L

Tank storage

3.2^bar

Max pressure

490^mm

Tank height

Tank & pump WRAS approved · Direct mains connection

What’s included

DAB Esybox POP pump

DAB’s most compact all-in-one variable speed booster. Delivers 24 l/min at 2.5 bar, max 3.2 bar. Lightweight, integrated inverter, automatic speed control. 3-year DAB warranty.

200L coffin-style tank

WRAS-approved 200-litre horizontal coffin tank — 1185 × 510 × 490mm. Connects directly to mains via pre-fitted ½” ball float valve and By-law 30 kit. All tank-to-pump PVC pipework included.

Key features

Entry-level price

The most affordable system in the WB-Coffin range — a WRAS-approved coffin tank and DAB variable speed pump at the lowest entry point.

Low-profile coffin design

Only 490mm tall — same compact footprint as the WB-Coffin 200 Mini3. Fits under stairs, in cupboards, and in low-ceiling spaces.

Direct mains connection

Tank connects directly to mains via pre-fitted ½” ball float valve and By-law 30 kit. Minimum 0.5 bar inlet pressure required.

Variable speed — efficient and quiet

The Esybox POP continuously adjusts speed to match demand, delivering consistent pressure while minimising energy use and noise.

Tank and pump both WRAS approved

Both tank and pump carry WRAS approval — fully compliant for potable water use in the UK.

Complete and ready to install

By-law 30 kit, ½” ball float valve, and all interconnecting PVC pipework included. No additional fittings required.

3-year DAB pump warranty

3-year manufacturer warranty on the Esybox POP when purchased from Anglian Pumping Services.

Need more flow? Step up the range

If you need 50 l/min or more, the WB-Coffin 200 Mini3 uses the same tank in the same footprint with a higher-performance pump.

Lightweight compact pump

The Esybox POP is DAB’s newest, lightest all-in-one pump — designed for easy handling and installation in tight spaces.

Typical applications

Single bathroom and small flats

Properties with light simultaneous demand — one shower and a few taps running at a time — where 24 l/min is sufficient.

Height-restricted spaces

At just 490mm tall, the coffin tank fits under stairs, in cupboards, and in low-ceiling spaces where upright tanks will not.

Budget-conscious installations

The most cost-effective entry into the WB-Coffin range — WRAS-approved tank and DAB variable speed pump at a lower price.

Modest pressure improvement needed

Where mains pressure is slightly low but flow demand is not high — improving a shower or combi boiler performance without over-specifying.

Water Regulations compliance

The tank and ball float valve provide the break between mains and pump, ensuring full compliance with Water Regulations.

Low or slow-filling mains supply

200L fills overnight to provide a buffer for peak demand — suitable where mains flow is restricted or intermittent.

Technical specifications

DAB Esybox POP pump

Flow rate	24 l/min @ 2.5 bar
Max flow rate	53 l/min (3900 l/hr)
Max working pressure	3.2 bar
Pump type	Variable speed — integrated inverter
WiFi / app	No
WRAS	Yes
Warranty	3 years (DAB)

Coffin tank

Capacity	200 litres
Dimensions (L × W × H)	1185 × 510 × 490mm
Mains inlet	Direct mains — ½” BSP ball float valve
WRAS	Yes — WRAS-approved material
Included	By-law 30 kit, ½” ball float valve, PVC pipework
Min inlet pressure	0.5 bar recommended

Where it fits in the WB-Coffin range

All WB-Coffin systems use the same low-profile coffin tank format. The POP is the entry-level option — choose a higher model if you need more flow or higher pressure.

Model	WB-Coffin 200 POP this product	WB-Coffin 200 Mini3	WB-Coffin 320/450 Mini3	WB-Coffin 320/450 Esybox
Pump	Esybox POP	Esybox Mini3	Esybox Mini3	Esybox
Flow @ rated pressure	24 l/min @ 2.5 bar	50 l/min @ 3 bar	50 l/min @ 3 bar	80 l/min @ 3 bar
Max pressure	3.2 bar	5.5 bar	5.5 bar	6.5 bar
WiFi	No	Yes	Yes	Yes
Best for	1 bath / flat, light use	1–2 bath, moderate use	2–3 bath + more storage	3–5 bath, high flow
Price (ex VAT)	£581.00	£635.00	£745 – £835	£1,069 – £1,159

Frequently asked questions

How much does it cost and how is it delivered?

£581.00 + VAT (£697.20 inc VAT). Please contact us via WhatsApp or phone for delivery timescales on this product.

What is the Esybox POP and how does it differ from the Mini3?

The Esybox POP is DAB’s newest, lightest, and most compact all-in-one variable speed pump. It delivers 24 l/min @ 2.5 bar with a max of 3.2 bar — suited to light-use single bathroom applications. The Esybox Mini3 delivers 50 l/min @ 3 bar with a max of 5.5 bar, and adds WiFi and voice control. Choose the POP if budget and light demand are the priority; choose the Mini3 if you need more flow or pressure.

How does the mains connection work?

The mains supply connects directly to the tank via the pre-fitted ½” ball float valve. The tank fills automatically and acts as a storage buffer. The Esybox POP then draws from the tank and boosts pressure throughout the property. A minimum of 0.5 bar incoming pressure is required for the standard fill valve.

Is this suitable for a 2-bathroom property?

The POP delivers 24 l/min — sufficient for light use in a single bathroom or flat, but likely to fall short if two showers or multiple outlets run simultaneously. For a 2-bathroom property, we’d recommend the WB-Coffin 200 Mini3 (£635 + VAT, 50 l/min) or the WB-Coffin 320 Mini3 (£745 + VAT) for more storage. Contact us if you’re unsure which is right.

Does it have WiFi?

No — the Esybox POP does not include WiFi connectivity. If WiFi monitoring and voice control are important, the WB-Coffin 200 Mini3 includes DConnect app, Google Home, and Alexa support.

What warranty is included?

3 years DAB manufacturer warranty on the Esybox POP pump when purchased from Anglian Pumping Services.
