Name: WaterBoost WB-Coffin 320 Esybox Variable Speed 2206110
Brand: WaterBoost
SKU: WBKcoffin320esybox
Price: 1282.8 GBP
Availability: InStock

WaterBoost WB-Coffin 320 Esybox Variable Speed 2206110

WaterBoost WB-Coffin 320 Esybox Variable Speed 2206110 - Image 2

WaterBoost WB-Coffin 320 Esybox Variable Speed 2206110 - Image 3

WaterBoost WB-Coffin 320 Esybox Variable Speed 2206110 - Image 4

WaterBoost WB-Coffin 320 Esybox Variable Speed 2206110 - Image 5

Established 1975
Trusted by thousands of customers

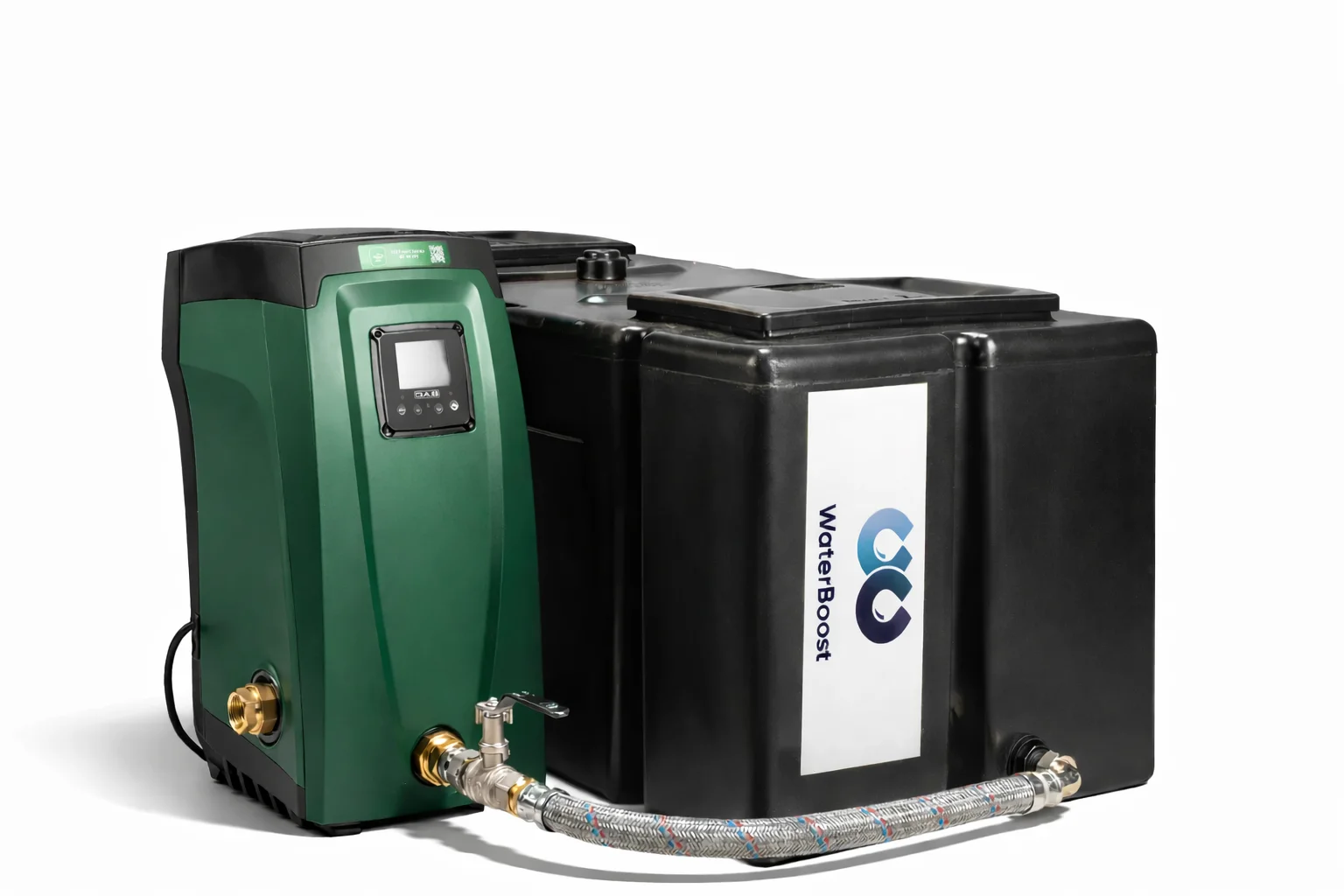

The WaterBoost WB-Coffin 320 Esybox is a compact, variable-speed water boosting system engineered to overcome low water pressure or restricted flow in domestic and light commercial applications. Designed for installations where space is limited, it provides a cost-effective solution while still delivering exceptional reliability, performance, and build quality.

The system combines a durable 320-litre WRAS-approved coffin-style tank with the proven DAB Esybox booster pump, delivering efficient and consistent pressure boosting of up to 80 litres per minute at 3 bar. This makes it ideal for properties requiring enhanced performance across showers, taps, and appliances without the footprint or complexity of larger boosting systems.

With compact dimensions of 1650mm (L) × 610mm (W) × 500mm (H), the WB-Coffin 320 Esybox is perfectly suited to installations where height restrictions or limited access are key considerations, including garages, cupboards, and plant rooms.

For added convenience, the tank is supplied pre-fitted with a By-law 30 kit and ½” ball valve, and all interconnecting pipework is included as standard — ensuring installation is swift, clean, and straightforward. Energy-efficient operation is delivered through the Esybox’s advanced variable-speed control, providing smooth, stable pressure while helping to minimise running costs.

80l/min

@ 3 bar

320L

Tank storage

43dB(A)

Ultra quiet

3yr

DAB warranty

WiFi · Google · Alexa
WRAS tank & pump
500mm height
Direct mains
Pipework included
6.5 bar max

Full Description

More about this product

Full Description

Product overview

The WaterBoost WB-Coffin 320 Esybox brings the full performance of the DAB Esybox pump to a space-saving coffin format. The 320-litre WRAS-approved coffin tank sits horizontally at just 500mm tall — fitting under stairs, in low-ceiling garages, and in plant rooms where upright tanks will not — while the Esybox delivers a powerful 80 l/min at 3 bar.

The mains supply connects directly to the tank via the pre-fitted ½” ball float valve. The DAB Esybox variable speed pump draws from the tank and continuously adjusts its speed to match demand — maintaining consistent pressure across multiple simultaneous outlets with minimal energy use and one of the lowest noise levels in its class at 43 dB(A).

WiFi via the H2D app, Google Home, and Alexa compatible. Supplied complete with By-law 30 kit, ½” ball float valve, and all interconnecting pipework. 3-year DAB pump warranty. Please contact us for delivery timescales.

320^L

Tank storage

80^l/min

Flow @ 3 bar

65^m

Max head

43^dB

Pump noise at 1m

Tank & pump WRAS approved · Direct mains connection

What’s included

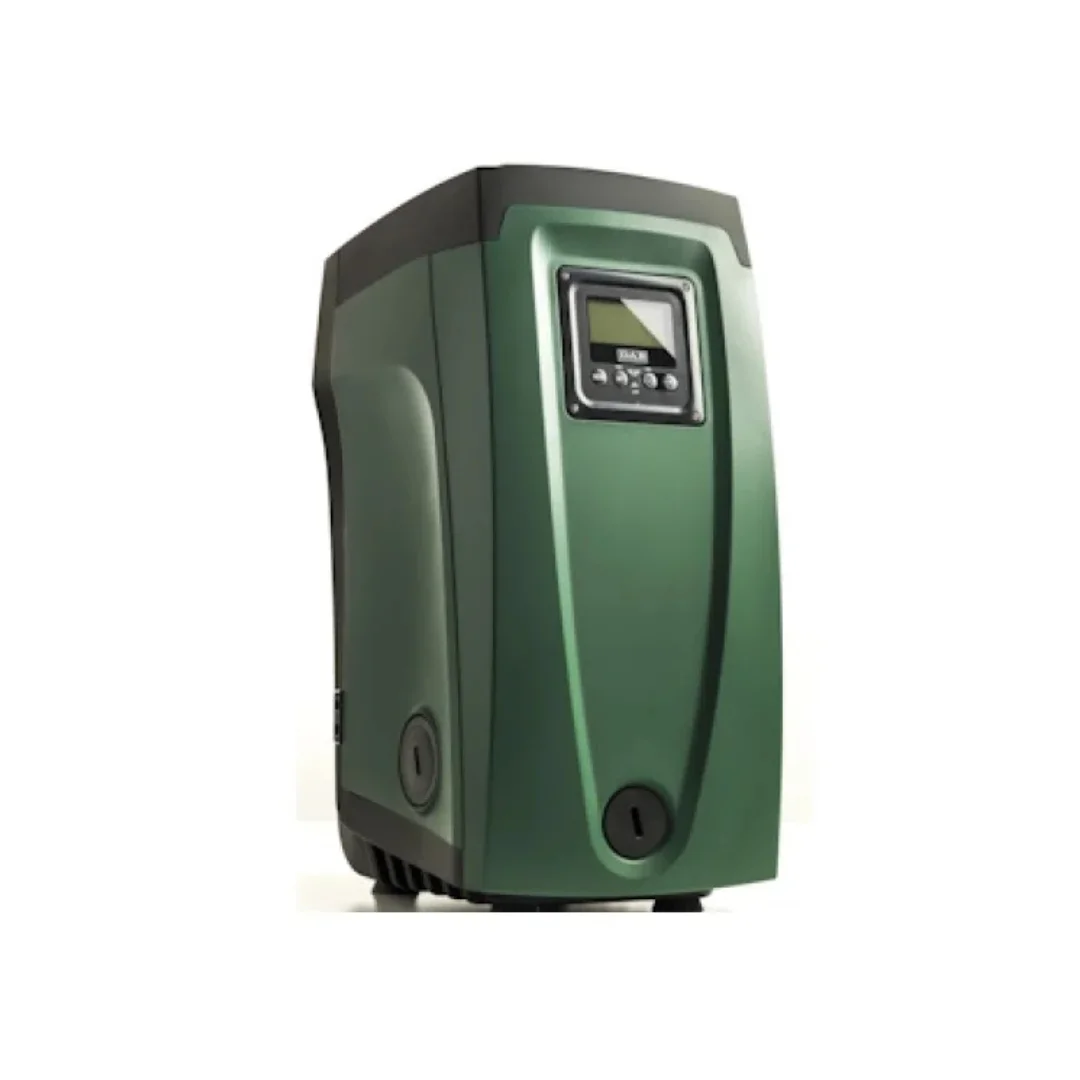

DAB Esybox pump

Variable speed pump delivering 80 l/min at 3 bar, 65m max head, 6.5 bar max working pressure, 1.4 kW motor. Built-in inverter, 2L expansion vessel, WiFi (H2D app), Google Home, Alexa, 43 dB(A). 3-year DAB warranty.

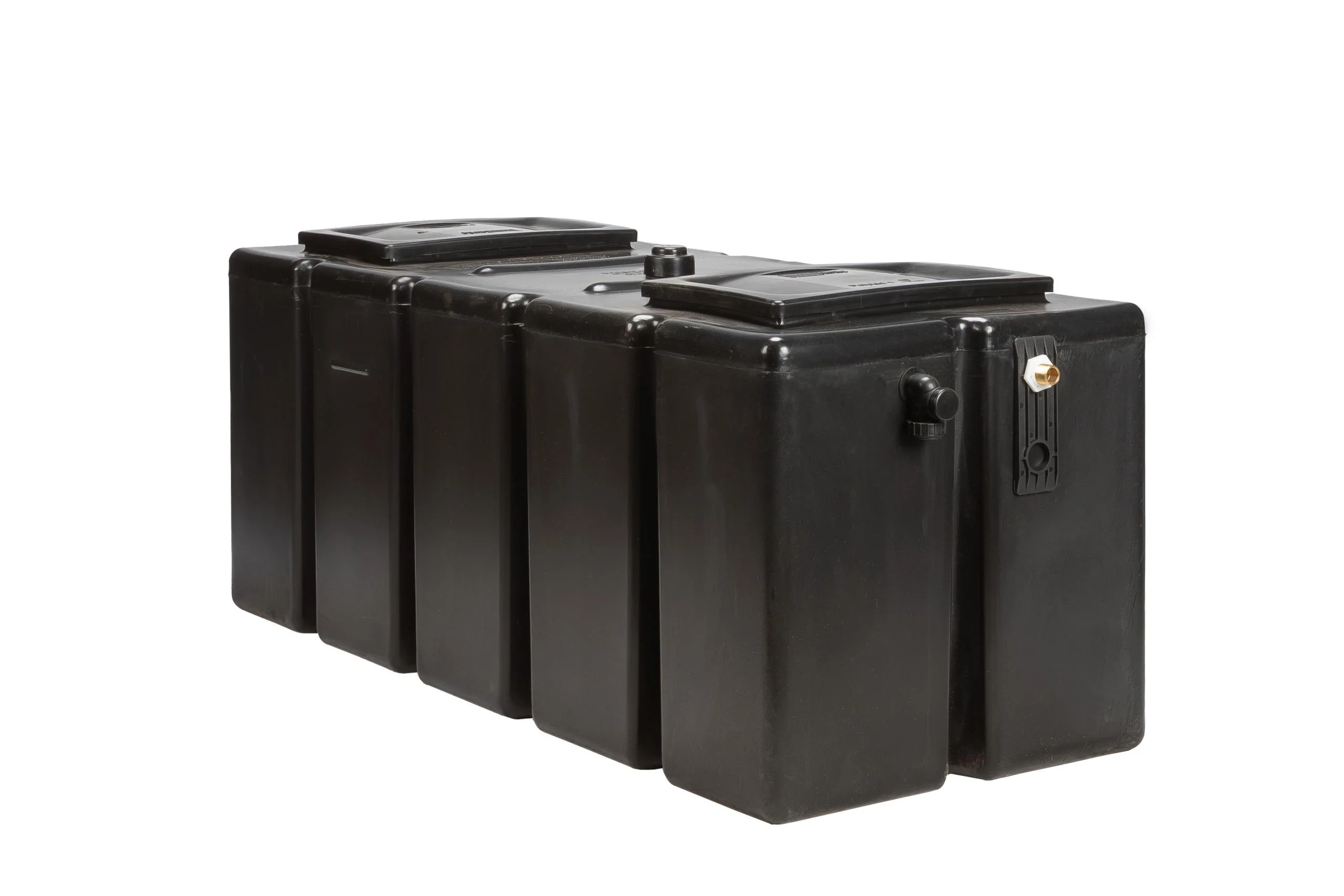

320L coffin-style tank

WRAS-approved 320-litre horizontal coffin tank — 1650 × 610 × 500mm. Connects directly to mains via pre-fitted ½” ball float valve and By-law 30 kit. All tank-to-pump PVC pipework included.

Key features

80 l/min @ 3 bar

Full Esybox performance in a low-profile coffin format — 80 l/min at 3 bar suits larger homes and properties with high simultaneous demand.

Low-profile coffin design

Only 500mm tall — fits under stairs, in low-ceiling garages, and in spaces where upright tanks cannot. 1650mm long × 610mm wide.

Direct mains connection

Tank connects directly to mains via pre-fitted ½” ball float valve and By-law 30 kit. Minimum 0.5 bar inlet pressure required.

WiFi and voice control

H2D app for remote monitoring and pressure adjustment. Google Home and Amazon Alexa compatible — “Hey Google, power shower.”

43 dB(A) — exceptionally quiet

Water-cooled motor in sound-absorbing housing. Among the quietest booster pumps available, well suited for spaces close to living areas.

Tank and pump both WRAS approved

Both tank and pump carry WRAS approval — fully compliant for potable water use in the UK.

6.5 bar max working pressure

Higher max pressure than the Mini3 range (5.5 bar) — suitable for applications requiring more headroom.

Complete and ready to install

By-law 30 kit, ½” ball float valve, and all interconnecting PVC pipework included. No additional fittings required.

3-year DAB pump warranty

3-year manufacturer warranty on the Esybox when purchased from Anglian Pumping Services.

Typical applications

Larger homes needing high flow

3–5 bathroom properties with high simultaneous demand — 80 l/min @ 3 bar handles multiple showers, taps, and appliances running together.

Height-restricted installations

Delivers Esybox performance where an upright tank won’t fit — under stairs, in low garages, and constrained plant rooms.

Combination boilers and unvented cylinders

Ensures the mains pressure required for combi boilers and unvented hot water cylinders to operate at full performance.

Light commercial premises

B&Bs, small hotels, offices, and similar where high flow and reliable boosted pressure are needed across multiple outlets.

Low or slow-filling mains supply

320L storage fills overnight for peak morning and evening demand — ideal where mains flow is restricted or intermittent.

Water Regulations compliance

The tank and ball float valve provide the break between mains and pump, ensuring full compliance with Water Regulations.

Technical specifications

DAB Esybox pump

Flow rate	80 l/min @ 3 bar
Max head	65 metres
Max working pressure	6.5 bar
Motor power	1.4 kW
Noise	43 dB(A) at 1m
Connectivity	WiFi — H2D app, Google Home, Alexa
WRAS	Yes
Warranty	3 years (DAB)

Coffin tank

Capacity	320 litres
Dimensions (L × W × H)	1650 × 610 × 500mm
Mains inlet	Direct mains — ½” BSP ball float valve
WRAS	Yes — WRAS-approved material
Included	By-law 30 kit, ½” ball float valve, PVC pipework
Min inlet pressure	0.5 bar recommended

How it compares

Three coffin-format boosting systems in the 320–340L range — all connect directly to mains, all WRAS-approved tanks. The WB-Coffin 320 Esybox and the Powertank 340 Variable Speed both deliver 80 l/min; the key difference is price, WiFi, and Fluid Category.

Feature	WB-Coffin 320 Esybox this product	Powertank COFFIN 340 Fixed	Powertank COFFIN 340 Variable
Tank capacity	320L WRAS coffin	340L WRAS coffin	340L WRAS coffin
Mains connection	Direct — ½” ball float valve	Direct — ½” ball float valve	Direct — ½” ball float valve
Pump type	Variable speed (DAB Esybox)	Fixed speed (Presflo Multi)	Variable speed (Steadypress)
Flow rate @ 3 bar	80 l/min	40 l/min	80 l/min
Pressure vessel	Yes — 2L in pump	Yes — 3L in controller	Yes — 8L external vessel
WiFi / app	Yes — H2D, Google, Alexa	No	No
Fluid Category	Cat 1–3 (potable)	Up to Cat 4	Up to Cat 4
Pump warranty	3 years (DAB)	Contact us	Contact us
Price (ex VAT)	£1,069.00	£980.00	£1,690.00

Which should I choose?
WB-Coffin 320 Esybox — the best all-round choice for potable water at £1,069 + VAT. Delivers the same 80 l/min as the Powertank Variable Speed but costs £621 less, adds WiFi and voice control, and carries a 3-year warranty. Ideal for larger domestic homes and light commercial properties needing high flow with height restrictions.
Powertank COFFIN 340 Fixed — the lowest-cost option at £980 + VAT but flow is only 40 l/min. Choose if Fluid Category 4 compliance is needed and flow demand is modest.
Powertank COFFIN 340 Variable — same 80 l/min as the WB-Coffin Esybox with Fluid Category 4 compliance, but at £1,690 + VAT — £621 more than the WB-Coffin Esybox, with no WiFi. Choose only if Fluid Category 4 is a requirement.

Frequently asked questions

How much does it cost and how is it delivered?

£1,069.00 + VAT (£1,282.80 inc VAT). Please contact us via WhatsApp or phone for delivery timescales on this product.

What is the difference between the Esybox and the Esybox Mini3?

The Esybox is the larger, higher-performance pump — delivering 80 l/min @ 3 bar, 65m head, 6.5 bar max, and 43 dB(A). The Esybox Mini3 delivers 50 l/min @ 3 bar, 55m head, 5.5 bar max, and 45 dB(A). Both include WiFi and voice control. Choose the Esybox for larger homes with higher simultaneous demand, or the Mini3 for 1–3 bathroom properties where 50 l/min is sufficient.

How does the mains connection work?

The mains supply connects directly to the tank via the pre-fitted ½” ball float valve. The tank fills automatically and acts as a storage buffer. The Esybox draws from the tank and boosts pressure throughout the property. A minimum of 0.5 bar incoming pressure is required for the standard fill valve.

Why is this so much cheaper than the Powertank Variable Speed?

Both deliver 80 l/min at 3 bar from a similar coffin tank. The WB-Coffin 320 Esybox (£1,069 + VAT) uses the DAB Esybox pump with WiFi, voice control, and a 3-year warranty. The Powertank COFFIN 340 Variable Speed (£1,690 + VAT) uses a Steadypress controller with an 8L pressure vessel and is rated to Fluid Category 4 — meaning it can be used for non-potable water applications. If you only need potable water boosting, the WB-Coffin Esybox delivers the same performance at a significantly lower price.

How does the WiFi and voice control work?

The DAB Esybox connects to the H2D app via built-in WiFi for remote pressure monitoring, adjustment, and fault alerts. It also integrates with Google Home and Amazon Alexa — say “Hey Google, power shower” to boost pressure, or “Hey Google, sleep mode” to quieten it at night.

Is there an Esybox coffin system available in other sizes?

If you need a smaller tank with the same Esybox performance, the WB-Coffin 320 Mini3 (£745 + VAT) uses the Mini3 pump delivering 50 l/min in the same coffin format. If 80 l/min is needed from a non-coffin format, the WB-Advant 1000 Esybox provides 1000L storage with the same Esybox pump.

What warranty is included?

3 years DAB manufacturer warranty on the Esybox pump when purchased from Anglian Pumping Services.
