PH range

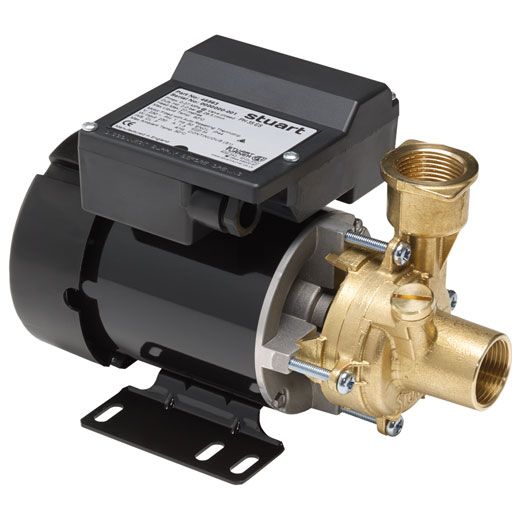

Stuart Turner PH 35 ES 46563
In stock
- Established 1975
- Trusted by thousands of customers
Stuart Turner PH peripheral pumps
The PH ES end suction peripheral pumps feature horizontal suction and vertical delivery connections. The range is designed to pump clean, fresh water and other clean liquids.
The range includes Automatic flow switch and Boostamatic pressure switch versions, with long and extended life seal options.
Two motor sizes are available providing flow rates of up to 40 litres per minute and heads up to 42 metres.
More about this product
Technical Specification
General
- Product code 46563
- Guarantee – 2 years
Features
- Pump type – Peripheral
- Mechanical seal – EPDM / PTFE / Al. Oxide
Materials
- Pump body – Brass
- Impeller – Brass
Performance
- Max head (closed valve) – 30 metres
- Performance @ 9 l/min – 20 metres
- Performance @ 18 l/min – 12 metres
- Max flow – 32 l/min
- Min static inlet pressure – 0.5 metres
- Max static inlet pressure – 14 metres
- Water temp – 4 min / 80 max
Connections
- G 1" female on pump
Motor
- Type – Induction, auto-reset thermal trip
- Duty rating – Continuous (S1) @ 5 l/min and above
Electrical
- Power supply – 230v/1ph/50Hz
- Current – 1.95 amps
- Power – 450 watts
- Fuse rating – 5 amps
- Power cable – 1.5 metres
Physical
- Enclosure protection – IP44
- Length – 241mm
- Width – 132mm
- Height – 169mm
- Weight – 4.6 kg
-
performance PDFDownload
-
manual PDFDownload
-
dimensions PDFDownload
-
data sheet PDFDownload
