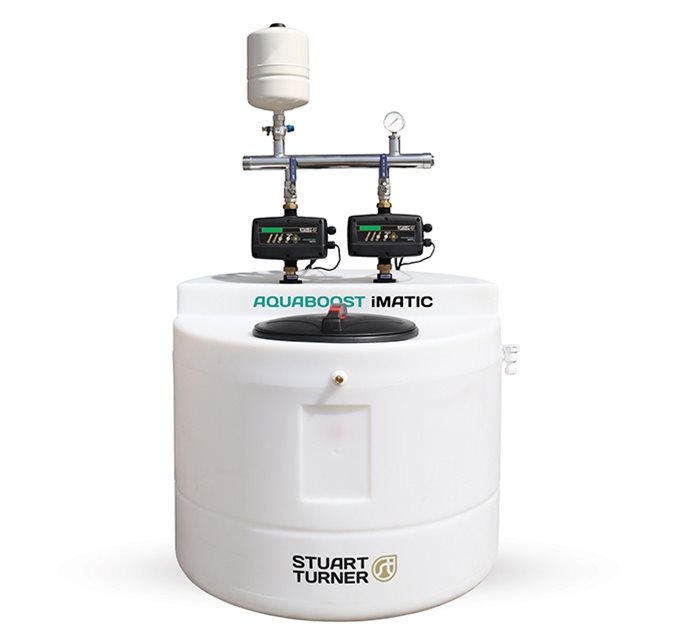

Stuart Turner iMatic Booster System
ABI IM 0504 2S CMT-24 1200 – 47361
The Aquaboost iMatic range of booster sets features one or two submersible multistage pumps controlled by a dedicated variable speed frequency invertor.
The twin pump 1200 litre tank is fitted with two 0504 stainless steel pumps, capable of delivering flow rates up to 10.0 m³/hour per pump and capable of producing head pressures of up to 6.6 bar.
More about this product
Features
- Flow rates up to 20.0 m3/h
- Head pressure up to 6.6 bar
- Twin 504 stainless steel pump
- 1200 litre plastic molded tank, constructed from WRAS approved material
- Dry run protection
- Stainless steel / brass discharge fittings
- Nickel plated WRAS approved ball valves
- Union fittings on controller
- WRAS approved 8 litre pressure vessel
- BMS volt free contacts
Application
Cold water pressure and flow boosting in a range of domestic, commercial and industrial applications
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
You may also need
The WaterBoost WB-Advant 1000 Esybox provides large-scale boosting for high-demand domestic and light commercial properties. A 1000-litre WRAS-approved UK-manufactured Advant tank (760mm W × 1225mm…
The WaterBoost WB-Advant 1000 Esybox Twin is the flagship WaterBoost system — a dual-pump, high-redundancy boosting system for demanding domestic and light commercial properties. A…
The WaterBoost WB-Advant 1000 Variable Speed is a compact, self-contained high-performance boosting system for larger domestic and light commercial properties. A 1000-litre WRAS-approved UK-manufactured Advant…
Related products
The WaterBoost WB-INT Slimline 500 is a complete, pre-built variable-speed water boosting system for high-demand 3–5 bedroom homes. A 500-litre WRAS-approved upright slimline tank pairs…
The WaterBoost WB-EXT Slimline 500 Mini3 is a high-storage variable-speed water boosting system for 3–5 bedroom homes. A 500-litre WRAS-approved slimline tank (700mm dia ×…
The WaterBoost WB-EXT Slimline 500 Esybox is a high-performance, high-storage variable-speed boosting system for 3–5 bedroom homes. A 500-litre WRAS-approved slimline tank (700mm dia ×…
Frequently Asked Questions
Quick answers to common questions about the Stuart Turner iMatic ABI IM 0504 2S CMT-24 1200 – 47361. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.
What is a mains pressure boosting system?
A mains pressure boosting system increases the pressure and flow of water from the incoming mains supply into a property. It typically combines a pump and a storage or expansion tank, drawing water from the mains and delivering it to taps, showers and appliances at a stronger, more consistent pressure. They are used where the incoming mains is too weak to serve modern outlets reliably.
When do I need a mains booster pump?
You normally need a mains booster if static mains pressure is below 1.5 to 2 bar, if showers run weakly when other taps are open, or if combi boilers struggle to deliver hot water. Anglian Pumping recommends checking static pressure at the stop tap before specifying a system, then choosing a model rated for the number of bathrooms and outlets in the property.
What size mains booster do I need for my home?
Sizing depends on the number of bathrooms, the type of fittings and the static mains pressure. As a guide, a 1 to 2 bathroom property with combi boiler or single shower often needs 1.6 to 3 bar boost. A 2 to 3 bathroom property typically needs 3 to 4.5 bar with an integral break tank. Larger homes need a tank-and-pump system such as the DAB Esybox with Esytank or a Powertank set.
What is a water booster pump?
A water booster pump increases the pressure of an existing water supply to give stronger flow at taps, showers and appliances. It can be a small inline pump fitted to the incoming mains, or a larger pump and tank set that draws from a break tank to feed the whole house. Boosters do not create water – they raise the pressure of the water already coming in.
What is the difference between an inline booster and a tank-and-pump booster?
An inline booster connects straight onto the incoming mains and is limited to 12 litres per minute under UK water regulations – examples include the Salamander HomeBoost and WaterBoost WB-Compact. A tank-and-pump booster, such as the Grundfos Home Booster or DAB Esybox with Esytank, draws from a break tank and can deliver much higher flow rates for larger homes with multiple bathrooms.
What is a variable speed booster pump?
A variable speed booster uses an inverter to adjust pump speed in real time to match demand. It maintains constant pressure as outlets open and close, runs more quietly than a fixed-speed pump and typically saves up to 50 per cent of the energy a fixed-speed equivalent would use. The DAB Esybox, DAB Esybox Mini 3 and Grundfos Scala2 are common variable speed examples.
