Aquaboost iBolt Single Pump’s
Stuart Turner Aquaboost iBolt ABB IB 0904 1H-CMT – 47349
In stock
- Established 1975
- Trusted by thousands of customers
Stuart Turner Aquaboost iBolt Single Pump's

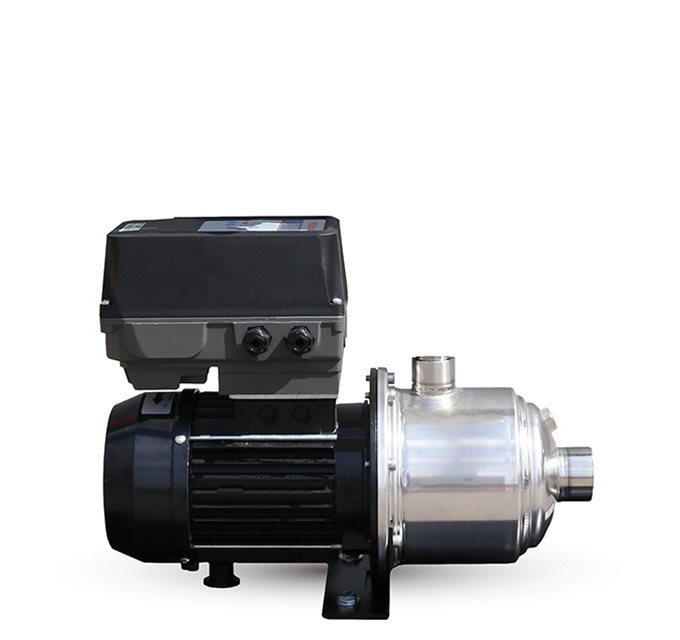

The Aquaboost iBolt pump range features a horizontal multistage pump controlled by an air-cooled variable speed frequency inverter mounted directly on the pump motor.
The iBolt pump 09 range includes 0903, 0904 and 0906 pump variants capable of delivering flow rates up to 15.0 m³/hour and capable of producing head pressures of up to 7.1 bar.
More about this product
Technical Specification
General
- Product code 47349
- Guarantee – 2 years
Features
- Pump type – Centrifugal
- Mechanical seal – EPDM / Carbon / Ceramic
Materials
- Pump body – stainless steel
- Impeller – Stainless steel
Performance
- Nominal head – 3.6 bar
- Maximum head – closed valve – 4.8 bar
- Nominal flow rate – 9.0 m3/h
- Maximum flow rate 15.0 m3/h
- Minimum static inlet pressure – 0.1 bar
- Maximum static inlet pressure – 1 bar
- Maximum static outlet pressure – 1.3 bar
- Maximum ambient air temperature – 40 oC
Connections
- 1 1/2" Inlet , 1 1/4" outlet
Motor
- Type – Induction (current overload sensor)
- Duty rating – Continuous
Electrical
- Power supply – 230v/1ph/50Hz
-
Instructions PDFDownload
-
Data Sheet PDFDownload
