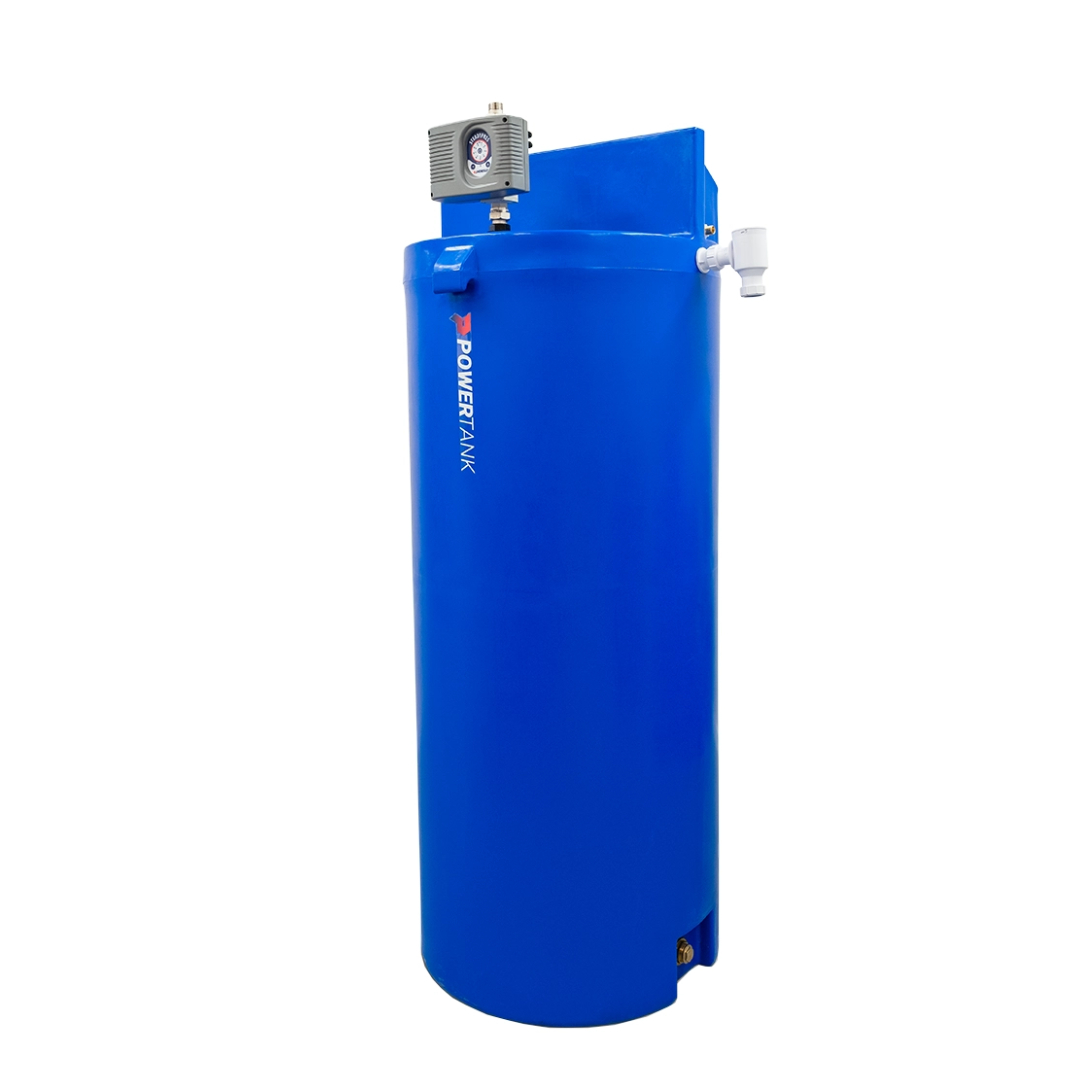

Powertank UTILITY 750 variable speed – 2600180

PowerTank UTILITY – Variable Speed Whole House Water Pressure Booster

The Powertank Utility pumping range is designed for domestic and  light commercial use where there is low mains water pressure and where pressure fluctuates.  It is electronically controlled through a flow switch unit which starts and stops the pump automatically when a tap is opened and closed.  The Utility range is designed for areas where the floor space is not restricted.  This range caters for a wider variation of tank options to suit a wider range of applications.

Key Features:

– Non-corrosive holding tank (WRAS approved material)
– Designed for potable water
– Pre-fitted WRAS approved fill valve
– Protective lid enclosure (Optional)
– Minimal installation requirement
– Adjustable digital display flow controller (Variable Speed Option)
– Dry run protection with auto restart (time delay)
– AF Air gap
– Suitable for up to Fluid Category 4

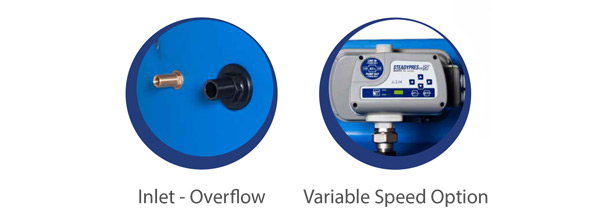

System Connections:

Inlet: 1/2″ BSP
Outlet: 1″ BSP
Overflow: 1 1/4″ BSP
Drain Off: 1″ BSP

If there are any special Inlet or Overflow requirements please let us know prior to placing an order.

Technical Info:

Power Supply: 240V, 50Hz
Controller: Steadypres M/T 07 c/w 8ltr pressure vessel
Mains Power Cable: 2m x 1mm ² 3 core fitted with 13 amp fuse mains plug
Current Input: 6.3 amp

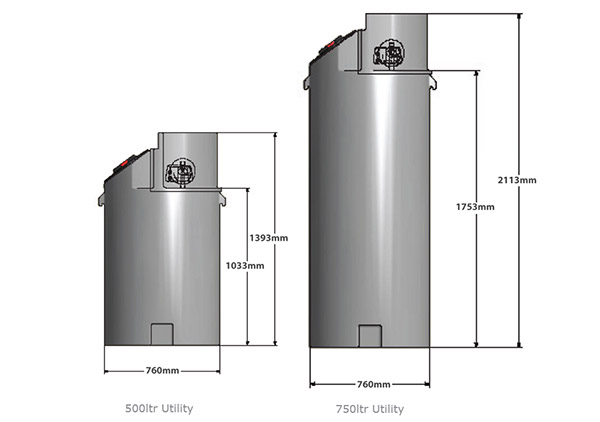

Useable Water Volume: 500ltr or 750ltr
Tank Weight Empty: 500ltr =40kg | 750ltr = 55kg
Tank Weight Full 1ltr = 1 kg plus weight of empty tank
Access Cover Diameter: 285mm

The Powetank will produce

80 litres per min @ 3 Bar

NOTE: A minimum of 0.5 bar incoming pressure is required for our Standard Fill Valve

You want:

* Water on demand
* More pressure and flow from your shower
* Good flow of pressure to multiple water outlets
* Fully Automatic Operation
* Low Maintenance
* Easy Fit and Commission
* Very Quiet compared to other Systems

BENEFITS of the Powertank Range of Water Pressure boosters:

Water on Demand
Good Pressure & Flow to all Outlets*
Low Maintenance
Very Quiet Operation
Energy Saving Options
Installer Friendly Design
Fully Automatic Operation
In Built Pump Protection

* Subject to being correctly plumbed. Shared pipework may affect pressures.
