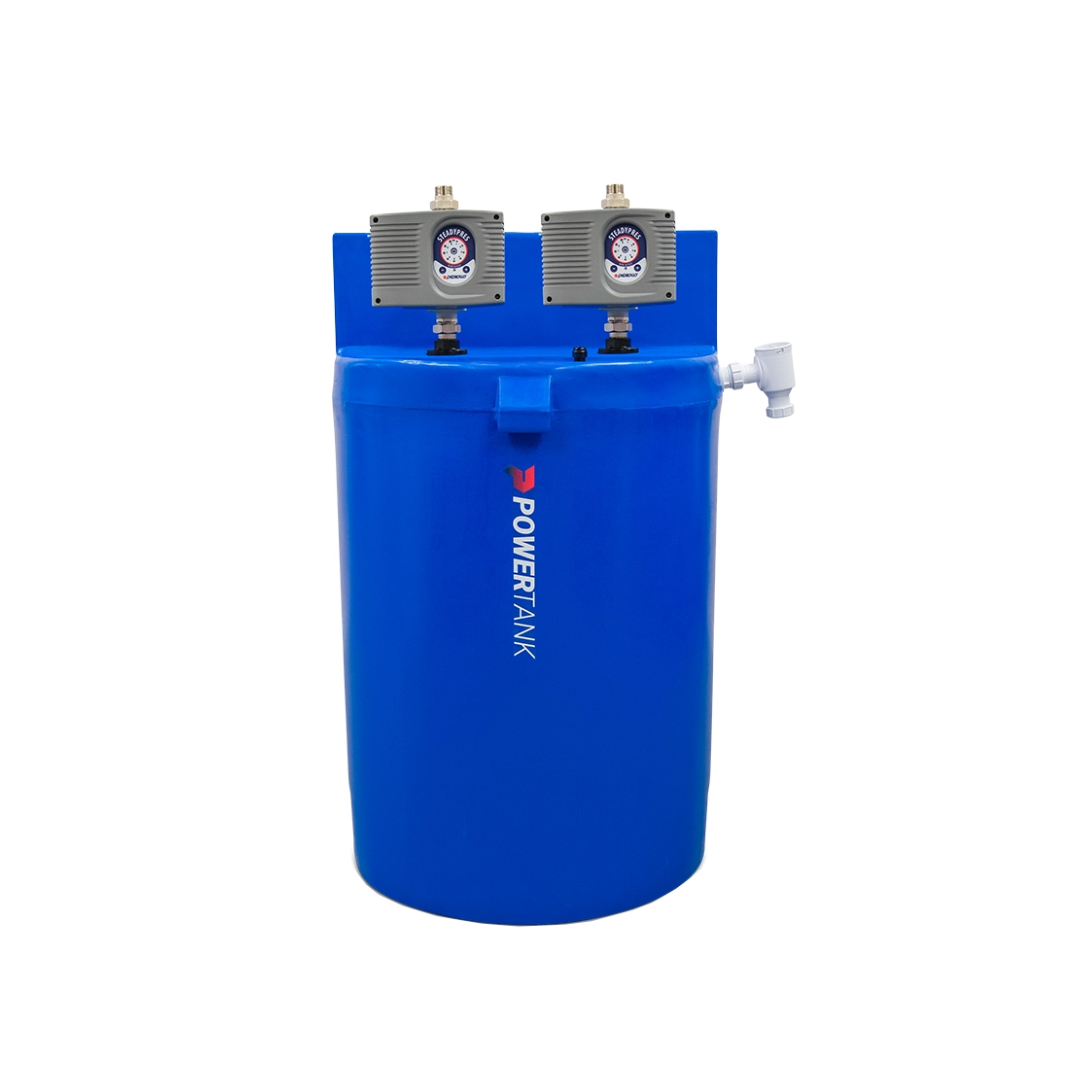

Powertank UTILITY 500 Twin variable speed – 2600160

Powertank UTILITY – Twin Pump Variable Speed Whole House Water Pressure Booster

The Powertank Utility pumping range is designed for domestic and  light commercial use where there is low mains water pressure and where pressure fluctuates.  It is electronically controlled through a flow switch unit which starts and stops the pump automatically when a tap is opened and closed.  The Utility range is designed for areas where the floor space is not restricted.  This range caters for a wider variation of tank options to suit a wider range of applications.

Variable TWIN – Twin Pump Option

The twin pump option is available with out 500ltr and 750ltr variable Powertank and basically does exactly that, adds an extra pump into the tank. This gives you twice the amount of flow at the same pressure, as well as an option to have the pumps running on duty standby basis, or as 2 individual duty pumps (e.g. if you wanted to run 2 separate circuits)

Key Features:

– Non-corrosive holding tank (WRAS approved material)
– Designed for potable water
– Pre-fitted WRAS approved fill valve
– Minimal installation requirement
– Adjustable digital display flow controller (Variable Speed Option)
– Dry run protection with auto restart (time delay)
– AF Air gap
– Suitable for up to Fluid Category 4

System Connections:

Inlet: 1/2″ BSP
Outlet: 1″ BSP
Overflow: 1 1/4″ BSP
Drain Off: 1″ BSP

If there are any special Inlet or Overflow requirements please let us know prior to placing an order.

Technical Info:

Power Supply: 240V, 50Hz
Controller: Steadypres M/T 07 c/w 8ltr pressure vessel
Mains Power Cable: 2m x 1mm ² 3 core fitted with 13 amp fuse mains plug
Current Input: 6.3 amp
Useable Water Volume: 500ltr or 750ltr
Tank Weight Empty: 500ltr =65kg 750ltr = 80kg
Tank Weight Full 1ltr = 1 kg plus weight of empty tank
Access Cover Diameter: 285mm

The Powertank will produce

160 litres per min @ 3 Bar

NOTE: A minimum of 0.5 bar incoming pressure is required for our Standard Fill Valve

You want:

* Water on demand
* More pressure and flow from your shower
* Good flow of pressure to multiple water outlets
* Fully Automatic Operation
* Low Maintenance
* Easy Fit and Commission
* Very Quiet compared to other Systems

BENEFITS of the Powertank Range of Water Pressure boosters:

Water on Demand
Good Pressure & Flow to all Outlets*
Low Maintenance
Very Quiet Operation
Energy Saving Options
Installer Friendly Design
Fully Automatic Operation
In Built Pump Protection

* Subject to being correctly plumbed. Shared pipework may affect pressures.
