Powertank CAT 5
Powertank CAT5 10L Fixed Speed Booster – 2600440
- Established 1975
- Trusted by thousands of customers

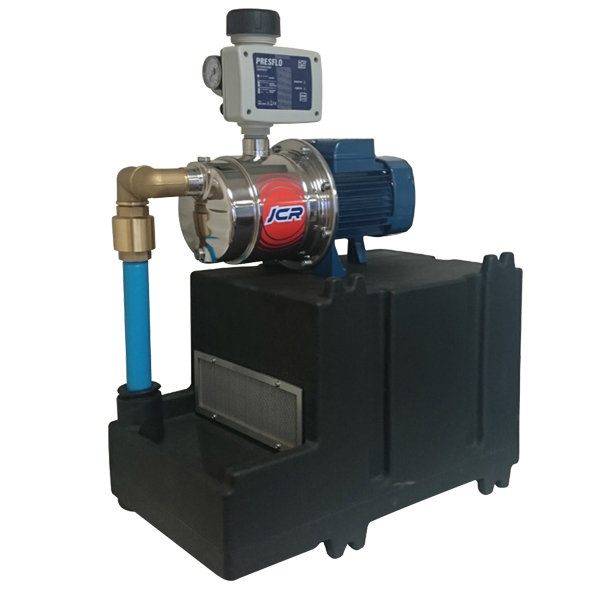

Compact 10L Powertank CAT5 backflow protection booster with Type AB air gap as standard. 0.37 kW fixed speed pump delivers up to 60 L/min at 3 bar. Engineered for Fluid Category 5 applications such as bin stores, irrigation and bib taps.
More about this product
The Powertank CAT5 10L Fixed Speed booster is a purpose-built Fluid Category 5 backflow protection unit. The Type AB air gap is integral to the design, not an upgrade — this is the unit you fit where Category 5 compliance is non-negotiable.
About the Powertank CAT5 Range
The Powertank CAT5 range provides backflow protection for Fluid Category 5 applications. The Type AB air gap is integral to the unit, not an upgrade — this is the configuration the product is engineered around. Compact footprint, robust construction, and a fixed speed pump deliver reliable boosted pressure for the higher-risk applications that demand Category 5 protection.
About This Build
The CAT5 is a purpose-built backflow protection unit fitted with a Type AB air gap as standard. It provides Fluid Category 5 backflow protection for the applications that demand it — bin stores, bib taps, irrigation, window cleaning, washdown stations and other Cat 5 risks. The 0.37 kW fixed speed pump delivers up to 60 L/min at 3 bar.
Best For
Specifications
| Tank Capacity | 10 litres |
| Pump Power | 0.37 kW / 0.5 HP |
| Maximum Flow | 60 L/min |
| Working Pressure | Up to 3 bar |
| Power Supply | Single-phase 230 V (110 V available on fixed speed builds to order) |

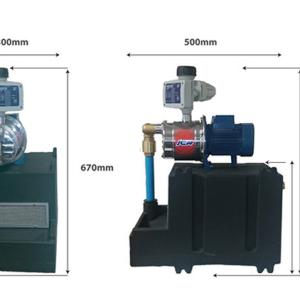

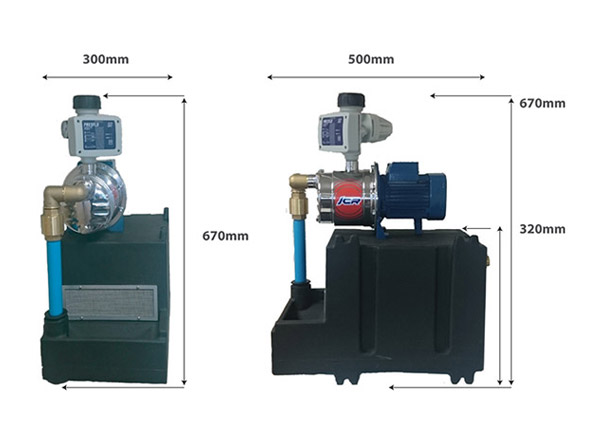

| Dimensions (H × L × W) | 670 × 500 × 300 mm |
| Stock Code | 2600440 |
Backflow Protection & Air Gap
This unit is supplied as standard with a Type AB air gap for Fluid Category 5 backflow protection — the configuration this product is specifically engineered for. Fluid Category 4 covers commercial heating systems, bottle washing, dishwashing, brewery and distillation applications; Fluid Category 5 is required for higher-risk settings such as food preparation, abattoirs, surgeries and laboratories.
Recommended Add-Ons
FAQs
Connections & Size
- Inlet: ¾” BSP
- Outlet: 1” BSP
- Overflow: 40mm Wastepipe
-
Fixed Speed Option
- 240 volt, 50Hz
- JCRm1C-N
- Presflo
- 3.4 amp
- 2mtr x 1mm² 3 core fitted with 5 amp fuse main plug
- 14kg
- 1ltr = 1 kg plus weight of empty tank
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
Related products
DAB twin AD variable speed booster pump sets specifically suitable for domestic applications and small systems for civil, agricultural or industrial uses.
DAB multi-stage self-priming centrifugal water pump with excellent suction capacity even when there are air bubbles. Particularly suitable for water supply in domestic installations smallscale…
Grundfos MQ3 – Replaced by Scala1 3-35 pipe modifications required If ordered we will send a Scala1 3-35
This DAB Aquajet Inox Automatic Self Priming Pressure Pump Unit is ideal for domestic, civil, agricultural and industrial use. With an automatic water lifting unit, stainless…
For a self-priming pump suited to domestic applications, look no further than the DAB JET Pump collection. With impressive suction capacity even when interacting with…
DAB Euroinox MP stainless steel centrifugal water pump particularly suitable for water supply in domestic installations smallscale agriculture gardening or pressure boosting..
Frequently Asked Questions
Quick answers to common questions about the Powertank CAT5 10L Fixed Speed Booster – 2600440. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.
What is a mains pressure boosting system?
A mains pressure boosting system increases the pressure and flow of water from the incoming mains supply into a property. It typically combines a pump and a storage or expansion tank, drawing water from the mains and delivering it to taps, showers and appliances at a stronger, more consistent pressure. They are used where the incoming mains is too weak to serve modern outlets reliably.
When do I need a mains booster pump?
You normally need a mains booster if static mains pressure is below 1.5 to 2 bar, if showers run weakly when other taps are open, or if combi boilers struggle to deliver hot water. Anglian Pumping recommends checking static pressure at the stop tap before specifying a system, then choosing a model rated for the number of bathrooms and outlets in the property.
What size mains booster do I need for my home?
Sizing depends on the number of bathrooms, the type of fittings and the static mains pressure. As a guide, a 1 to 2 bathroom property with combi boiler or single shower often needs 1.6 to 3 bar boost. A 2 to 3 bathroom property typically needs 3 to 4.5 bar with an integral break tank. Larger homes need a tank-and-pump system such as the DAB Esybox with Esytank or a Powertank set.
What is a water booster pump?
A water booster pump increases the pressure of an existing water supply to give stronger flow at taps, showers and appliances. It can be a small inline pump fitted to the incoming mains, or a larger pump and tank set that draws from a break tank to feed the whole house. Boosters do not create water – they raise the pressure of the water already coming in.
What is the difference between an inline booster and a tank-and-pump booster?
An inline booster connects straight onto the incoming mains and is limited to 12 litres per minute under UK water regulations – examples include the Salamander HomeBoost and WaterBoost WB-Compact. A tank-and-pump booster, such as the Grundfos Home Booster or DAB Esybox with Esytank, draws from a break tank and can deliver much higher flow rates for larger homes with multiple bathrooms.
What is a variable speed booster pump?
A variable speed booster uses an inverter to adjust pump speed in real time to match demand. It maintains constant pressure as outlets open and close, runs more quietly than a fixed-speed pump and typically saves up to 50 per cent of the energy a fixed-speed equivalent would use. The DAB Esybox, DAB Esybox Mini 3 and Grundfos Scala2 are common variable speed examples.
