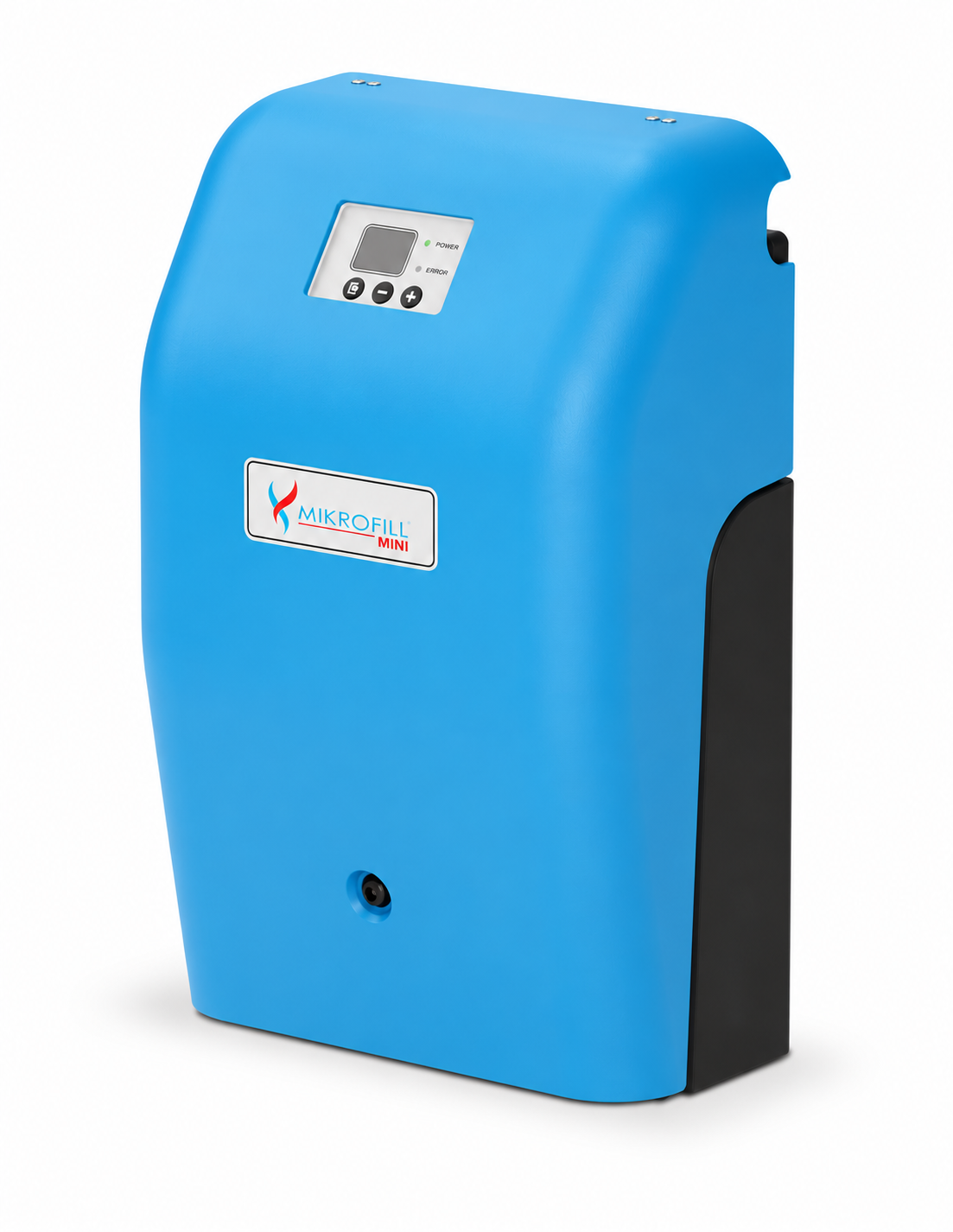

Mikrofill SPU 130 Mini Single Pump Pressurisation Unit 46719
- Established 1975
- Trusted by thousands of customers
The Mikrofill SPU 130 Mini is a single pump digital pressurisation unit for sealed heating and chilled water systems of up to 6,000 litres. It fills the system, maintains a set pressure by topping up automatically, and raises an alarm if pressure falls or the unit runs dry.
Wall-mounted, with a 2 litre break tank, solenoid piston pump and Category 5 backflow protection. Cold fill pressure up to 3 bar. Made in the UK by Stuart Turner, with a two-year warranty.
More about this product
Product overview
The Mikrofill SPU 130 Mini is a single pump pressurisation unit for sealed LTHW heating, chilled water, refrigeration and industrial cooling systems. Connected to the mains cold water supply and the system, it fills the system to the set cold fill pressure, tops it up automatically as the system loses water through venting or small leaks, and signals a fault if pressure drops below the low limit or the break tank runs dry.
The Mini is the entry point to the Mikrofill range: a wall-mounted unit for sealed systems of up to 6,000 litres, with a 3.0 bar cold fill pressure. It fills the system, keeps it topped up and gives a low-pressure alarm, all from a compact box with the break tank, pump and controls built in.
Key features
Typical applications
Technical specifications
| Brand | Mikrofill (Stuart Turner Group) |
| Model | Mikrofill SPU 130 Mini |
| Part number | 46719 |
| Range | Mini |
| Pumps | 1 — duty |
| Pump type | Solenoid piston pump |
| Maximum cold fill pressure | 3 bar |
| Maximum flow | 1 l/min |
| Sealed system capacity | Up to 6,000 litres |
| Maximum working pressure | 6 bar |
| Break tank | 2 litres, polyethylene |
| Backflow protection | Fluid category 5, type AB air gap with weir overflow and warning pipe |
| Mounting | Wall-mounted |
| Power supply | 230 V / 1 ph / 50 Hz |
| Power consumption | 100 W |
| Full load current | 0.5 A |
| Enclosure | IPX4, acrylic-capped ABS front cover |
| BMS | Single alarm output |
| Dimensions (W × D × H) | 293 × 145 × 403 mm |
| Weight | 3.6 kg |
| Warranty | 2 years |
| Certification | UKCA / CE |
Frequently asked questions
What does a pressurisation unit do?
It replaces the filling loop and manual top-up on a sealed heating or chilled water system. The unit fills the system to the set pressure, tops it up automatically when pressure falls, and alarms if it cannot maintain pressure, which usually means a leak.
Single or twin pump?
A single pump unit is fine for most systems. Twin pump units run duty/standby, so if one pump fails the other takes over. Specify twin where the system must not go down, such as hospitals and data centres.
Does it need a separate expansion vessel?
Yes. The unit maintains pressure; the expansion vessel absorbs the expansion of the heated water. Size the vessel to the system volume and cold fill pressure. Ask us if you need help sizing it.
Is it WRAS compliant?
Yes. It has Category 5 backflow protection with a type AB air gap, weir overflow and warning pipe, so it can be connected directly to the mains.
-
