Flamco Flexfiller Direct G4 pumpless pressurisation unit
- Established 1975
- Trusted by thousands of customers
Flamco Flexfiller Direct G4 pumpless pressurisation unit

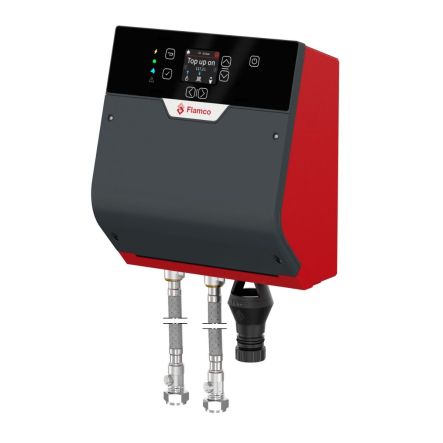

The FlexFiller Direct G4 is a compact, wall-mounted, pumpless pressurisation unit designed by Flamco for maintaining pressure in sealed heating and cooling systems.
More about this product
Overview
The FlexFiller Direct G4 is a compact, wall-mounted, pumpless pressurisation unit designed by Flamco for maintaining pressure in sealed heating and cooling systems. It connects directly to a building’s mains water supply and automatically fills and maintains system pressure without the need for a pump.
This unit is suitable for systems with volumes up to 50,000 litres and allows pressure settings in 0.1 bar increments, providing precise control over system pressurization.
Key features
- Silent Operation: As a pumpless unit, it operates quietly, making it suitable for residential and light commercial applications.
- Flow Rate: It offers a top-up flow rate of up to 14 liters per minute, depending on the mains water pressure.

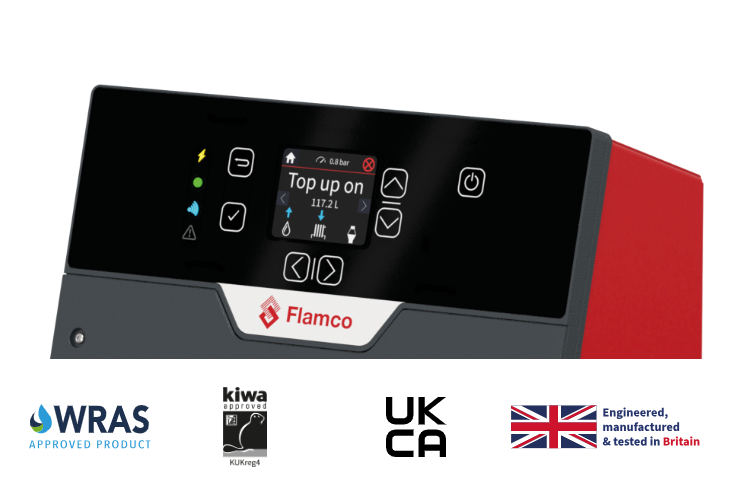

- Advanced Control System: Equipped with a user-friendly controller that displays operating and error conditions, it features microprocessor control, self-learning algorithms, and extensive data storage for analysis.
- Communication Protocols: Supports MODBUS RTU and BACnet communication protocols via RS485, facilitating integration with building management systems.
- Safety Features: Includes system safety valve monitoring, expansion vessel health monitoring, leak detection, and flood protection mechanisms.
- Installation: Comes with flexible hoses for easy connection to the mains and sealed system, and a universal connection to the drain, fitting various pipe types.
Specification
| Product | Flamco Flexfiller Direct G4 pumpless pressurisation unit |
|---|
Product specifications
- Quiet pumpless pressurisation unit
- Digitally controlled ‘first fill’ of systems
- Service reminder (12 months)
- Password protected
- Pressure setting in 0.1 bar increments
- Runtime limiter and seperate excessive activation alarm for flood protection
- Fully programmable volt free contact: Common alarm (N/C or N/O)
- Intelligent data acquisition
- Microprocessor control, self-learning with graphical display
- Connects directly to the mains or a suitable boosted cold water mains supply
- No RPZ valve is required
-
Manual PDFDownload
-
Installation PDFDownload
