Lowara CEA(M) Series
Lowara CEAM 210/2/-V/A 230v 107330050XAA
- Established 1975
- Trusted by thousands of customers

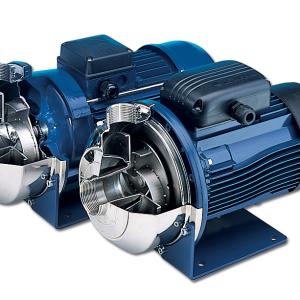

The Lowara CEAM 210/2/-V/A 230v (107330050XAA) is a close-coupled, single-impeller centrifugal pump in AISI 304 stainless steel with a 0.75 kW 230V single phase motor. It delivers up to 300 l/min (18 m³/h) with up to 17.7 m of head.
CEA pumps handle clean, non-aggressive water from –10 to +110°C for water supply, irrigation and hot, cold or chilled water circulation. Threaded Rp 1½″ suction and Rp 1¼″ delivery ports, back pull-out design for servicing, and FKM (Viton) elastomers.
More about this product
The Lowara CEAM 210/2/-V/A 230v (107330050XAA) is a close-coupled, single-impeller centrifugal pump in AISI 304 stainless steel with a 0.75 kW 230V single phase motor. It delivers up to 300 l/min (18 m³/h) with up to 17.7 m of head.
The pump is coupled directly to the motor on a shared shaft extension supported by ball bearings, and the rotating assembly is back pull-out, so it can be serviced without disconnecting the pump body from the pipework. This version has FKM (Viton) elastomers in place of the standard EPDM.
Key specifications
| Model | Lowara CEAM 210/2/-V/A 230v |
| Lowara part no. | 107330050XAA |
| Type | Close-coupled single-impeller centrifugal pump |
| Motor power | 0.75 kW |
| Supply | 230V single phase, 50 Hz |
| Max. flow | 300 l/min (18 m³/h) at 10.4 m head |
| Max. head (zero flow) | 17.7 m |
| Max. absorbed power | 1.13 kW |
| Max. current | 5.10 A (220–240V) |
| Capacitor | 20 µF |
| Suction / delivery | Rp 1½″ / Rp 1¼″ threaded |
| Impeller | Enclosed, AISI 304 stainless steel |
| Mechanical seal | Ceramic / graphite, AISI 304 metal parts |
| Elastomers | FKM (Viton) |
| Liquid temperature | –10 to +110°C |
| Max. operating pressure | 8 bar (PN 8) |
| Max. ambient temperature | 45°C |
| Motor protection | IP55, class F with built-in overload |
| Weight | 13 kg |
Features
Built for
FAQs
Delivery up to 30m3/hr, head up to 62m, continous duty.
-
Data Sheet PDFDownload
-
Data PDFDownload
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
Related products
Grundfos JP5 230v male Grundfos JP5 Pumps suits a number of domestic or commercial water supply jobs. Close-coupled centrifugal pumps with built-in ejector system designed…
Designed to address the increasing challenge of low mains water pressure, the newly extended STORMBOOST lineup is fully WRAS Approved and now includes six innovative models: STORMBOOST 60, 80,…
This DAB Aquajet Inox Automatic Self Priming Pressure Pump Unit is ideal for domestic, civil, agricultural and industrial use. With an automatic water lifting unit, stainless…
For a self-priming pump suited to domestic applications, look no further than the DAB JET Pump collection. With impressive suction capacity even when interacting with…
DAB Euroinox MP stainless steel centrifugal water pump particularly suitable for water supply in domestic installations smallscale agriculture gardening or pressure boosting..
Lowara CEAM 70/5-V/A 110v 107330010DAA Lowara CEA-CA series. A wide range of pumps for domestic and industrial applications. Single impeller CEA and dual impeller CA.…
Frequently Asked Questions
Quick answers to common questions about the Lowara CEAM 210/2/-V/A 230v 107330050XAA. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.
What is a water booster pump?
A water booster pump increases the pressure of an existing water supply to give stronger flow at taps, showers and appliances. It can be a small inline pump fitted to the incoming mains, or a larger pump and tank set that draws from a break tank to feed the whole house. Boosters do not create water – they raise the pressure of the water already coming in.
What is the difference between an inline booster and a tank-and-pump booster?
An inline booster connects straight onto the incoming mains and is limited to 12 litres per minute under UK water regulations – examples include the Salamander HomeBoost and WaterBoost WB-Compact. A tank-and-pump booster, such as the Grundfos Home Booster or DAB Esybox with Esytank, draws from a break tank and can deliver much higher flow rates for larger homes with multiple bathrooms.
What is a variable speed booster pump?
A variable speed booster uses an inverter to adjust pump speed in real time to match demand. It maintains constant pressure as outlets open and close, runs more quietly than a fixed-speed pump and typically saves up to 50 per cent of the energy a fixed-speed equivalent would use. The DAB Esybox, DAB Esybox Mini 3 and Grundfos Scala2 are common variable speed examples.
