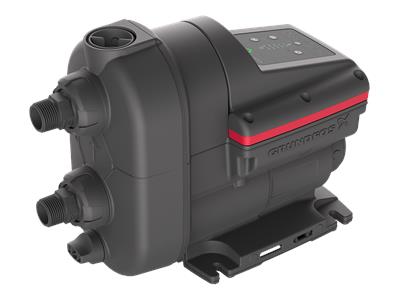

Name: Grundfos Scala2 3-45 Model2 93013254 variable speed water booster
Brand: Grundfos
SKU: 9016-scala2mod2
Price: 506.98 GBP
Availability: InStock

Grundfos Scala2 3-45 Model2 93013254 variable speed water booster - Image 2

Grundfos Scala2 3-45 Model2 93013254 variable speed water booster - Image 3

Grundfos Scala2 3-45 Model2 93013254 variable speed water booster - Image 4

Grundfos Scala2 3-45 Model2 93013254 variable speed water booster - Image 5

Grundfos Scala2 3-45 Model2 93013254 variable speed water booster - Image 6

In stock

Optional Items

1" Flexible hose - 600mm Length - Male & Female Connection Scala 97894516

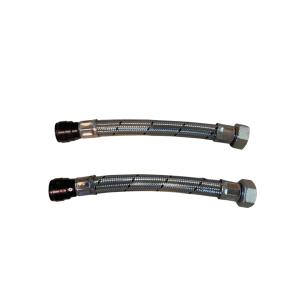

Grundfos Scala2 connection hoses 300mm to 22mm connection

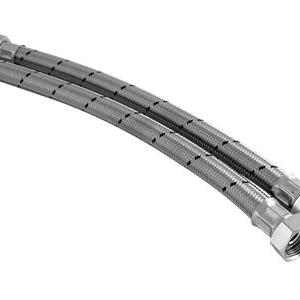

1" Flexible hose - 600mm Length - F & F Connection Scala 99891639

Our Price £506.98 Inc VAT £422.48 Ex VAT

Established 1975
Trusted by thousands of customers

The Grundfos Scala2 3-45 Model2 is a fully integrated variable speed booster pump delivering constant pressure to every outlet in your home. All components — pump, motor, drive, sensors, tank, and non-return valve — are built into a single compact unit. Cannot connect directly to mains — requires a break tank or cistern. Backed by a 2-year Grundfos warranty.

Variable speed — constant pressure — automatically adjusts to match demand; 70 l/min max flow, 45m head
Requires break tank — cannot connect directly to mains; self-priming to 8m from below-pump sources
47 dB(A) typical — Model2 is 3 dB(A) quieter than its predecessor; indoor and outdoor use
Horizontal or vertical installation — flexible placement in any orientation
Dry-run and auto-reset protection — stops automatically on fault; retries every 5 minutes
Fully integrated all-in-one — pump, motor, drive, sensors, tank, and non-return valves; 3-step installation
Free standard delivery — next working day when ordered before 12 noon

Full Description

More about this product

Full Description

Product overview

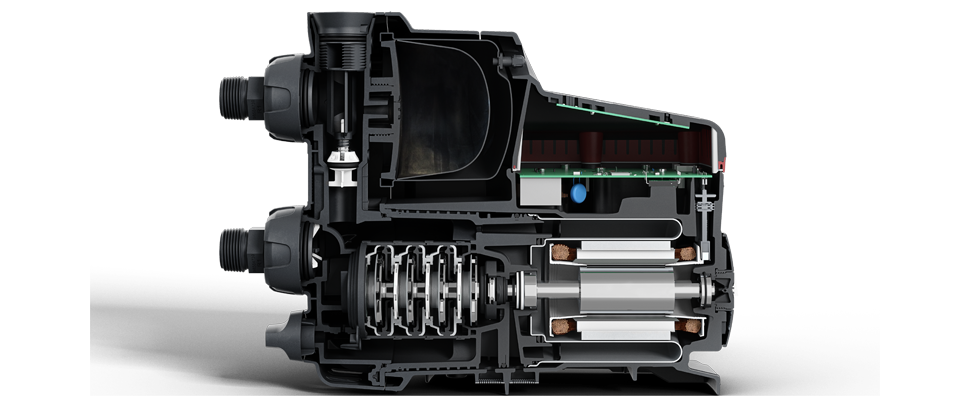

The Grundfos Scala2 3-45 Model2 is a fully integrated variable speed booster pump. All components — pump, motor, inverter drive, pressure and flow sensors, integrated tank, and non-return valves — are built into a single compact unit. Installation is a three-step process: connect the pipes, prime, and plug in.

The intelligent speed controller continuously adjusts pump speed to match household demand, maintaining constant pressure at every outlet even when multiple taps and showers run simultaneously. The water-cooled permanent magnet motor delivers 47 dB(A) typical noise — one of the quietest domestic booster pumps available. The Model2 is 3 dB(A) quieter than the original Scala2.

The Scala2 cannot connect directly to the mains — it must draw from a break tank, cold water storage cistern, or other below-pump water source. It is self-priming to 8 metres. Suitable for horizontal or vertical installation, indoors or outdoors. Backed by a 2-year Grundfos warranty.

70^l/min

Max flow rate

45^m

Max head

47^dB

Typical noise

2^yr

Warranty

Requires break tank — cannot connect to mains directly

Key features

Intelligent variable speed

Continuously adjusts speed to match demand — constant pressure at every tap and shower, even with multiple outlets open simultaneously.

47 dB(A) — ultra quiet

Water-cooled permanent magnet motor. Model2 is 3 dB(A) quieter than the original Scala2. 53 dB(A) max at full load.

Fully integrated all-in-one

Pump, motor, inverter, sensors, integrated tank, and non-return valves all in one unit. No additional components required.

Flexible installation

Horizontal or vertical, indoors or outdoors. Compact footprint suits utility rooms, garages, cupboards, and outdoor enclosures.

Self-priming to 8m

Self-primes from a water source up to 8 metres below the pump in under 5 minutes. Suitable for break tanks, wells, and boreholes.

Dry-run and auto-reset protection

Stops automatically on dry running, overtemperature, or overload. Auto-restarts every 5 minutes up to 8 times, then every 24 hours.

3-step installation

Connect the pipes, prime the pump, plug in. The pump configures itself on first run — no specialist setup required.

Integrated pressure tank

Built-in pressure tank reduces pump starts on small draw-offs, reducing wear and extending service life.

2-year Grundfos warranty

2-year manufacturer warranty when purchased from Anglian Pumping Services.

Typical applications

Break tank systems

Draws from a cold water storage cistern or break tank — the ideal configuration for the Scala2.

Boreholes and wells

Self-priming to 8m — draws from a borehole, well, or underground tank without separate priming equipment.

Whole-house pressure boosting

Consistent pressure throughout the property — taps, showers, and appliances running simultaneously.

Electric and mixer showers

Consistent pressure to showers and thermostatic valves even during simultaneous use.

Combination boilers

Ensures adequate incoming pressure for combi boiler hot water and heating performance.

Outdoor installations

One of the few domestic booster pumps rated for outdoor use — suitable for outbuildings, plant rooms, and sheltered external locations.

Technical specifications

Model / SKU	Grundfos Scala2 3-45 Model2 / 93013254
Pump type	Variable speed — permanent magnet motor, water-cooled
Max flow rate	70 litres per minute
Max head	45 metres
Noise level (typical)	47 dB(A) typical — 53 dB(A) max at full load
Mains connection	Cannot connect directly to mains — requires break tank or cistern
Self-priming depth	Up to 8 metres
Installation orientation	Horizontal or vertical
Installation location	Indoor or outdoor
Power supply	230V single phase
WiFi / app	No
WRAS approved	Yes
Warranty	2 years (Grundfos manufacturer warranty)
Price	£422.48 + VAT (£506.98 inc VAT)

!The Scala2 cannot connect directly to the mains supply. It must draw from a cold water storage cistern, break tank, or other below-pump water source.

Scala2 vs DAB Esybox Mini 3

Two of the most popular compact variable speed booster pumps at similar price points — compared side by side. Neither can connect directly to the mains.

Grundfos

Scala2 3-45 Model2

£422.48 + VAT

£506.98 inc VAT

70 l/min max flow

45m max head

47 dB(A) typical

Horizontal or vertical

Indoor or outdoor

Cannot connect to mains directly

No WiFi or app

2-year warranty

DAB Esybox

Esybox Mini 3

£369 + VAT

£442.80 inc VAT

80 l/min max flow

55m max head

45 dB(A) noise

Horizontal or vertical

Indoor only

Cannot connect to mains directly

WiFi — DConnect app, Google Home, Alexa

3-year warranty

Feature	Scala2 Model2 this product	DAB Esybox Mini 3
Mains connection	Break tank required	Break tank required
Max flow rate	70 l/min	80 l/min
Max head	45m	55m
Max working pressure	~4.5 bar	5.5 bar
Noise (typical)	47 dB(A)	45 dB(A)
Installation orientation	Horizontal or vertical	Horizontal or vertical
Outdoor installation	Yes	No — indoor only
WiFi / app	No	Yes — DConnect, Google, Alexa
Self-priming depth	8m	8m
WRAS approved	Yes	Yes
Warranty	2 years	3 years
Price (ex VAT)	£422.48	£369.00

Which should I choose?
Scala2 Model2 — the better choice when outdoor installation is needed, or when a break tank / borehole is already in place and installation orientation flexibility matters. No WiFi.
Esybox Mini 3 — higher flow (80 vs 70 l/min), higher head (55 vs 45m), higher max working pressure (5.5 vs ~4.5 bar), WiFi and voice control, longer 3-year warranty — and cheaper at £369 vs £422.48 + VAT. Indoor installation only.

Frequently asked questions

How much does it cost and how is it delivered?

£422.48 + VAT (£506.98 inc VAT). Standard delivery is free, including next working day when ordered before 12 noon on a working day. In stock and ready to dispatch.

Can it connect directly to the mains?

No — the Scala2 cannot connect directly to the mains supply. It must draw from a cold water storage cistern, break tank, or other below-pump water source. If you need a direct mains connection, consider the WaterBoost WB-Compact 3.0 or WB-Compact 4.5 instead.

What is the difference between this and the DAB Esybox Mini 3?

Both require a break tank and cannot connect to the mains directly. The Scala2 wins on installation flexibility — it can be installed horizontally or vertically, and indoors or outdoors. The Esybox Mini 3 wins on performance and value — higher flow (80 vs 70 l/min), higher head (55 vs 45m), higher max pressure (5.5 vs ~4.5 bar), WiFi and voice control (DConnect app, Google Home, Alexa), a longer 3-year warranty, and a lower price (£369 vs £422.48 + VAT).

What is the difference between the 93013254 and the 98562865?

Both are the Grundfos Scala2 3-45 Model2 — same pump, same specs, same price. The SKU difference reflects regional or supply chain product codes. If you’re unsure which to order, contact us and we’ll confirm which is in stock.

Can it be installed outside?

Yes — unlike most domestic booster pumps, the Scala2 is rated for outdoor installation as well as indoor. It can also be mounted horizontally or vertically, making it one of the most flexible booster pumps available for awkward or constrained spaces.

Is it suitable for use with a borehole or well?

Yes — the Scala2 is self-priming to 8 metres and can draw from a borehole, well, underground tank, or break tank. It primes from a source up to 8m below in under 5 minutes (provided it is filled with water first), making it well suited to rural properties with private water supplies.

What happens if the pump runs dry?

The Scala2 stops automatically on dry running, water shortage, excessive temperature, blocked pump, or overload — preventing motor burnout. It then attempts to restart every 5 minutes, up to 8 times, before switching to a 24-hour retry cycle. The auto-reset function can be deactivated.

Does it have WiFi?

No — the Scala2 operates as a standalone unit with no WiFi. If WiFi monitoring, remote control, or voice control are important, consider the DAB Esybox Mini 3.

What warranty is included?

2 years manufacturer warranty from Grundfos when purchased from Anglian Pumping Services.
