Grundfos Scala Home Booster Pumps
GRUNDFOS SCALA1 3-35 FIXED SPEED – 99530409
- Established 1975
- Trusted by thousands of customers

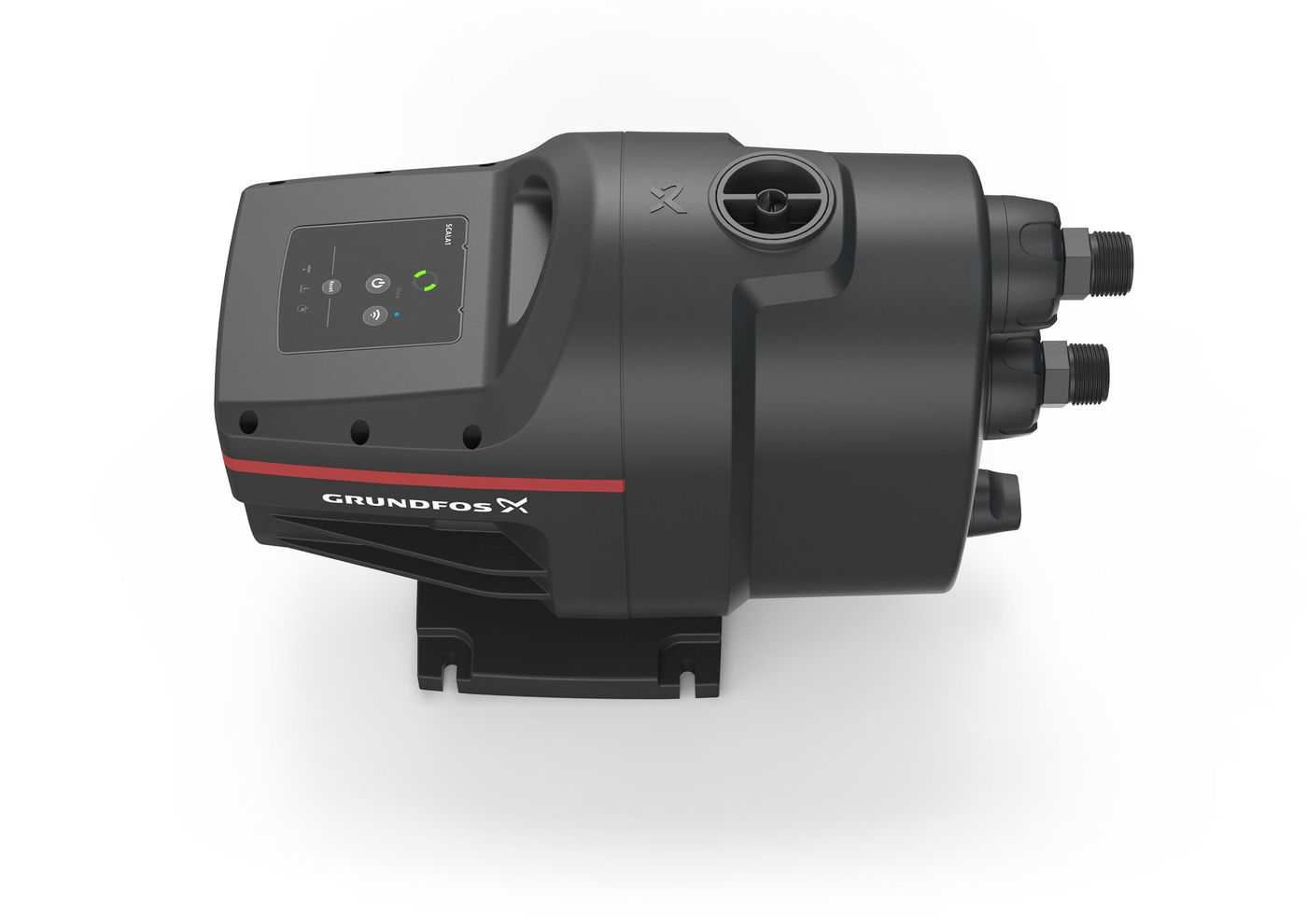

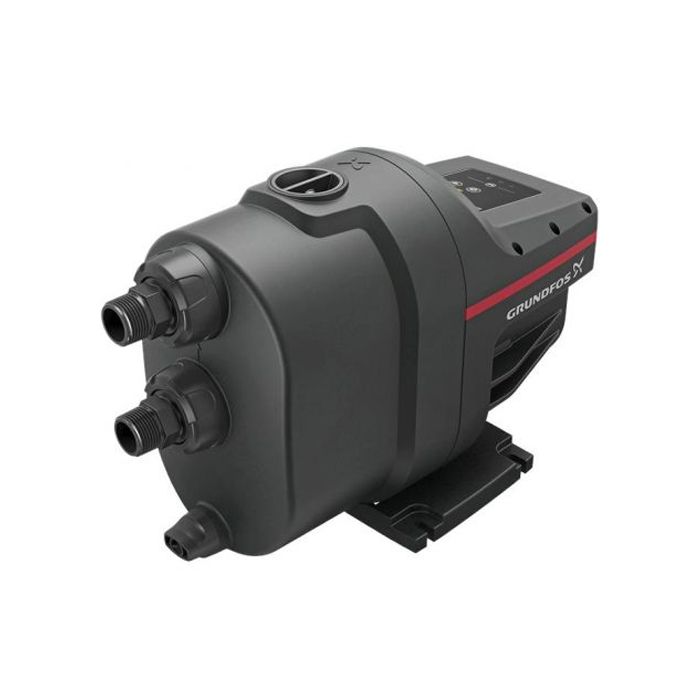

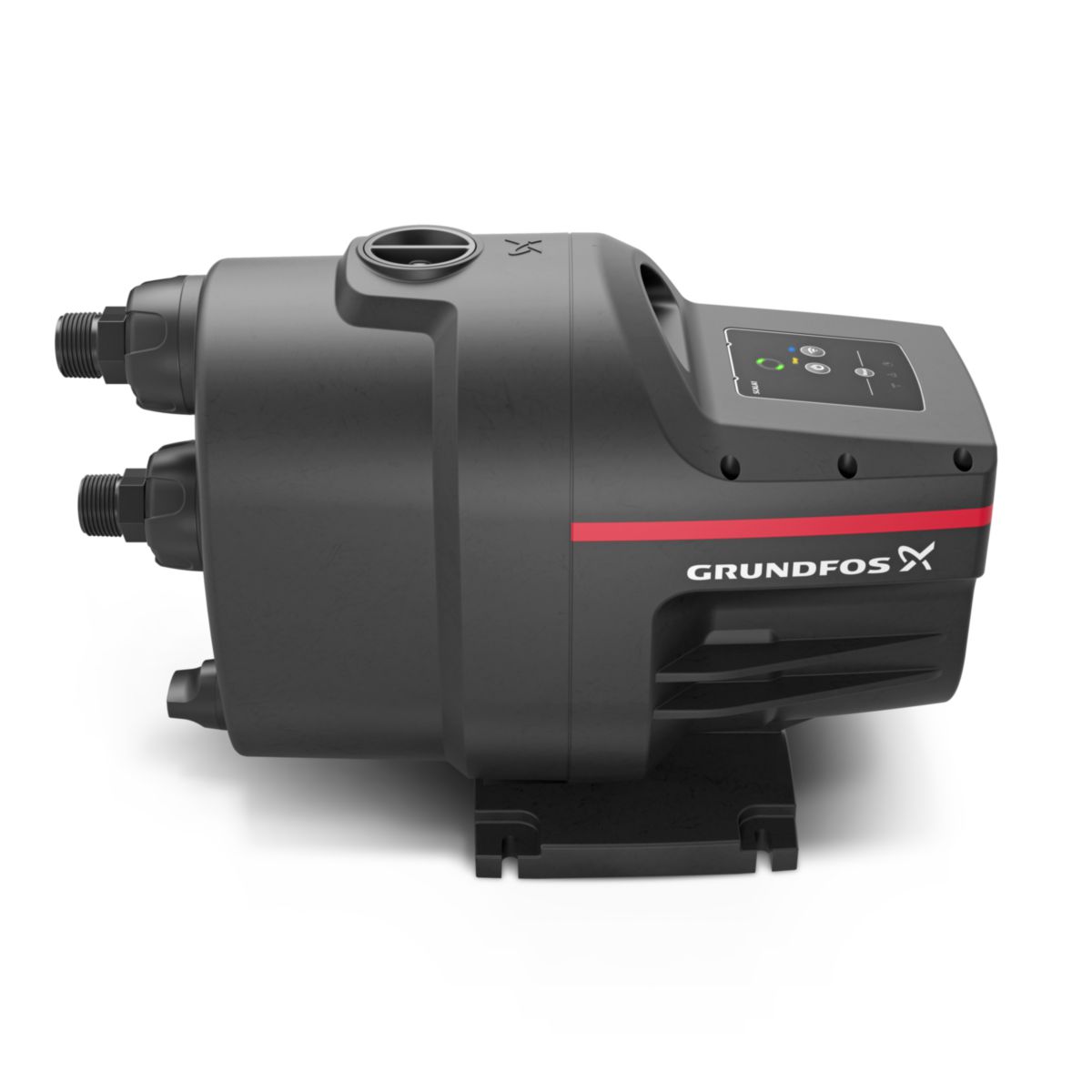

Grundfos SCALA1 – Compact Self-Priming Multistage Booster Pump
The Grundfos SCALA1 is a sophisticated, self-priming multistage pump designed to integrate all the components of a pressure booster into a sleek and compact composite enclosure.
Key Features:
- Self-Priming Capability:
Lifts water from depths of up to 8 meters within 5 minutes, ensuring ease of installation and reliable performance in challenging conditions. - Compact Design:
Combines a pressure booster system into a streamlined, space-efficient unit. - Durable Construction:
The composite enclosure offers excellent durability and resistance to environmental factors. - Reliable Operation:
Ideal for setups at risk of dry running or leakages in suction hoses or pipes, ensuring consistent water supply. - Ease of Use:
Pre-filled water in the pump enables a smooth start-up process and dependable functionality.
This pump is perfect for residential, light commercial, and agricultural applications where efficient water lifting and pressurization are required. Its innovative design and robust performance make it a trusted choice for users seeking reliability and ease of installation.
More about this product
Grundfos SCALA1 – Advanced Protection & Smart Features
The Grundfos SCALA1 is not only efficient and compact but also incorporates advanced safety and operational features to ensure reliable performance and longevity.
Protection Features:
- Dry Running Protection:
Automatically stops the pump in the event of a water shortage to prevent damage. - Cycling Protection:
Prevents frequent pump starts caused by minor leakages in the installation. - Max Runtime Protection:
Stops the pump after a user-defined period of continuous operation, preventing potential flooding from pipe breakages. - Built-In Motor Protection:
Safeguards the pump by stopping operation under these conditions:- Excessive temperature due to high ambient heat.
- Motor seizure or overload.
- Ensures motor burnout prevention.
Smart Capabilities with Grundfos GO:
- Twin Booster System Setup:
Configure SCALA1 pumps to operate in duty/standby or duty/assist mode for enhanced hydraulic performance and reliability.
-
Data Sheet PDFDownload
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
You may also need
Grundfos Scala2 connection hoses 300mm long to 22mm connection
2 required per pump – 97894516 Length: 600mm Connection Type: Male and Female threaded
All orders now ship as the current Scala2 3-45 Model2 — the latest generation, 3 dB(A) quieter than the original. The Grundfos Scala2 3-45 is…
Grundfos Scala2 inlet filter 99725183 The Grundfos Inlet filter is a recommended accessory to protect the pump from sand, gravel or other debris, when pumping rainwater…
Related products
Ebara Hydrostation Variable Speed Booster Pump Hydrostation is the new IE5 efficiency variable speed booster pump for constant pressure water supply to your home, office…
Frequently Asked Questions
Quick answers to common questions about the GRUNDFOS SCALA1 3-35 FIXED SPEED – 99530409. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.
What is a water booster pump?
A water booster pump increases the pressure of an existing water supply to give stronger flow at taps, showers and appliances. It can be a small inline pump fitted to the incoming mains, or a larger pump and tank set that draws from a break tank to feed the whole house. Boosters do not create water – they raise the pressure of the water already coming in.
What is the difference between an inline booster and a tank-and-pump booster?
An inline booster connects straight onto the incoming mains and is limited to 12 litres per minute under UK water regulations – examples include the Salamander HomeBoost and WaterBoost WB-Compact. A tank-and-pump booster, such as the Grundfos Home Booster or DAB Esybox with Esytank, draws from a break tank and can deliver much higher flow rates for larger homes with multiple bathrooms.
What is a variable speed booster pump?
A variable speed booster uses an inverter to adjust pump speed in real time to match demand. It maintains constant pressure as outlets open and close, runs more quietly than a fixed-speed pump and typically saves up to 50 per cent of the energy a fixed-speed equivalent would use. The DAB Esybox, DAB Esybox Mini 3 and Grundfos Scala2 are common variable speed examples.
