Ebara 3 GPE MATRIX 230v
Ebara 3GPE MATRIX 5-8T/2.2 ESPM – 230v – 2001708114
- Established 1975
- Trusted by thousands of customers

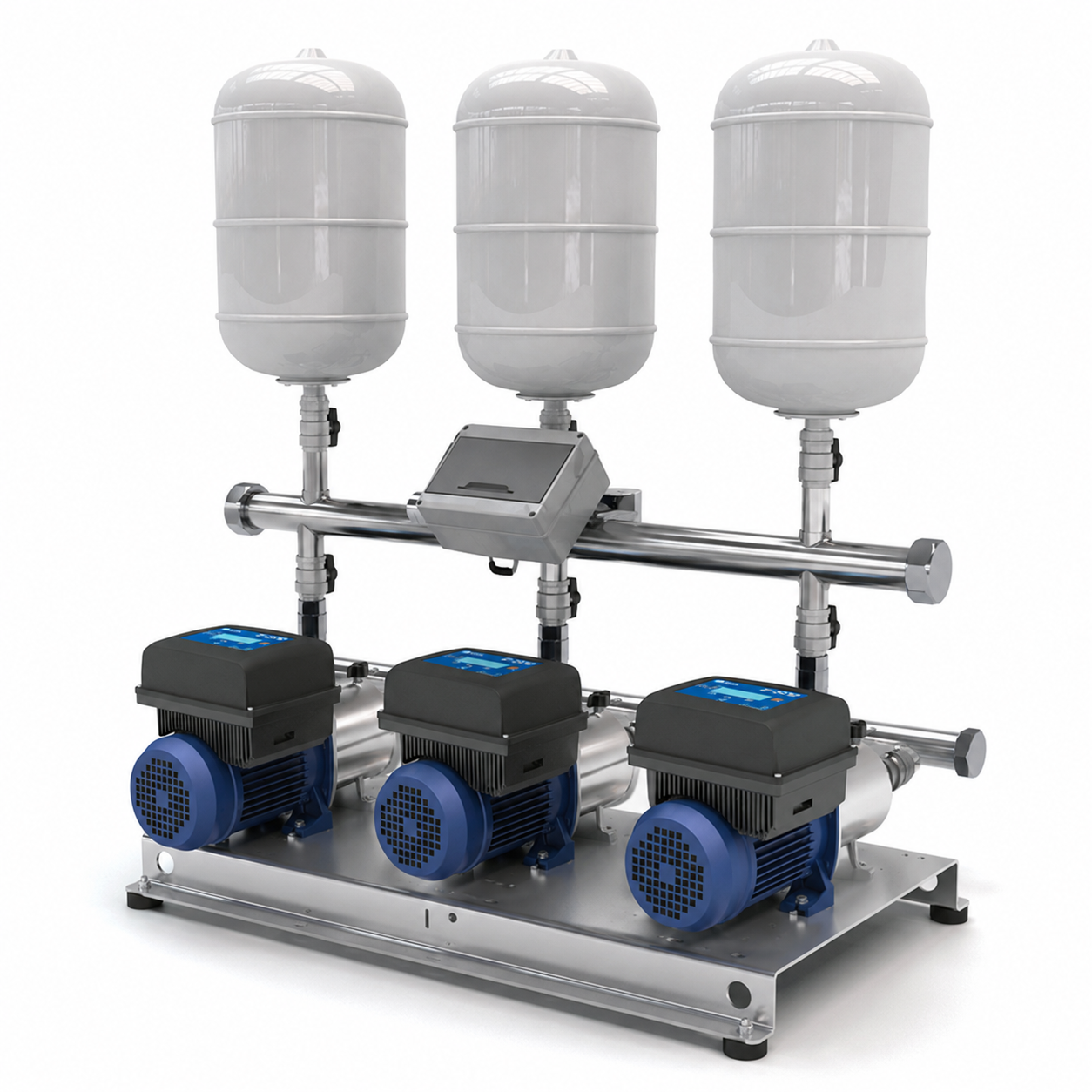

The Ebara 3GPE MATRIX 5-8T/2.2 ESPM is a three-pump variable speed booster set. Three 8-stage Matrix 5 horizontal multistage pumps in AISI 304 stainless steel each have their own 2.2 kW IE3 motor, E-SPD+ inverter and pressure transmitter, mounted on a galvanised steel baseplate with stainless steel suction and discharge manifolds and a protection panel.
The drives hold a constant set pressure as demand changes, from a single pump at low flow up to 23.4 m³/h with all three running. It runs from a 230 V single-phase supply and connects through a G2½ suction manifold and a G2 discharge manifold.
E-SPD+ on every pump
AISI 304 stainless
G2½ / G2 manifolds
IP55
108 kg
More about this product
Ebara 3GPE MATRIX 5-8T/2.2 ESPM Overview
The 3GPE MATRIX 5-8T/2.2 ESPM is the single-phase version of the eight-stage, 2.2 kW model in Ebara’s three-pump Matrix 5 GPE booster range. It carries three 8-stage Matrix 5 horizontal multistage pumps side by side on a galvanised steel baseplate. Each pump has its own 2.2 kW IE3 motor, motor-mounted E-SPD+ inverter and pressure transmitter, and its own isolating ball valves and check valve, so any one pump can be valved off for service while the others keep running.
The E-SPD+ drives change pump speed to hold a constant set pressure, bringing pumps in as demand rises and dropping them out as it falls. That gives steadier pressure, lower energy use and less wear than fixed-speed boosting. With all three pumps running the set delivers up to 23.4 m³/h, with around 92.1 m of head at shut-off. It suits commercial and multi-occupancy buildings, hotels, schools, light industrial sites and irrigation where demand varies through the day and only a single-phase supply is available.
Key Features
What’s on the Frame
| Part | Qty |
|---|---|
| Matrix 5-8T pump | 3 |
| 2.2 kW electric motor | 3 |
| E-SPD+ inverter with adaptor | 3 |
| Pressure transmitter | 3 |
| Suction manifold | 1 |
| Discharge manifold | 1 |
| Manifold end cap | 2 |
| Union ball valve, suction side | 3 |
| Union ball valve, discharge side | 3 |
| Check valve | 3 |
| Ball valve | 2 |
| Pressure gauge | 1 |
| Protection panel and frame | 1 |
| Baseplate | 1 |
| Baseplate feet | 6 |
Technical Specifications
| Specification | Value |
|---|---|
| Ebara part number | 2001708114 |
| Booster set | 3GPE MATRIX 5-8T/2,2 ESPM (UK) |
| Pumps | 3 × Matrix 5-8T horizontal multistage, 8 stages, 2-pole |
| Flow range per pump | 1.8–7.8 m³/h |
| Maximum flow, all three pumps | 23.4 m³/h |
| Head at minimum / maximum flow | 85.9 m / 35.2 m |
| Shut-off head | 901.20 kPa (approx. 92.1 m, 9.0 bar) |
| Maximum working pressure | 1000 kPa (10 bar) |
| Impeller diameter | 97 mm |
| Suction / discharge | G2½ suction / G2 discharge, threaded (UNI ISO 228), PN16 |
| Motors | 3 × 2.2 kW, IE3, TEFC, 2-pole, 2850 rpm |
| Motor current | 8.2 A per motor at 230 V (three-phase output from the E-SPD+) |
| Protection / insulation | IP55 / Class F |
| Supply | 230 V single phase, 50 Hz (E-SPD+ ESPM) |
| Overall size (W × D × H) | 870 × 845 × 535 mm |
| Weight | 108 kg |
Performance
Duty points at 50 Hz (full speed) with all three pumps running, from the Ebara 3GPE MATRIX 5-8T/2,2 curve (ISO 9906:2012 Grade 3B). The 0, 5.4 and 23.4 m³/h figures are Ebara’s stated values; the others are read from the curve. Each pump gives one third of the set flow at the same head, so with two pumps running the set gives two thirds of the flow shown. The drives reduce speed to hold the set pressure at lower demand.
| Set flow (m³/h) | 0 | 5.4 | 9 | 13.5 | 18 | 21 | 23.4 |
|---|---|---|---|---|---|---|---|
| Flow per pump (m³/h) | 0 | 1.8 | 3 | 4.5 | 6 | 7 | 7.8 |
| Head (m) | 92.1 | 85.9 | 80.5 | 71.5 | 58.5 | 47 | 35.2 |
Materials
| Component | Material |
|---|---|
| Impellers, pump casing, external pump casing | AISI 304 |
| Shaft | AISI 304 |
| Mechanical seal | Carbon rotary / ceramic stationary faces, EPDM gasket and bellows, EN 1.4402 (AISI 316) spring, frame and retainer |
| O-rings | EPDM |
| Suction and discharge manifolds | AISI 304 |
| Check valves | Brass / NBR |
| Ball valves | Brass / PTFE |
| Baseplate and panel frame | Galvanised steel |
Installation Notes
Frequently Asked Questions
-
Data Sheet PDFDownload
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
