DAB Evoplus M/L Twin Electric Circulators (Without Unions)

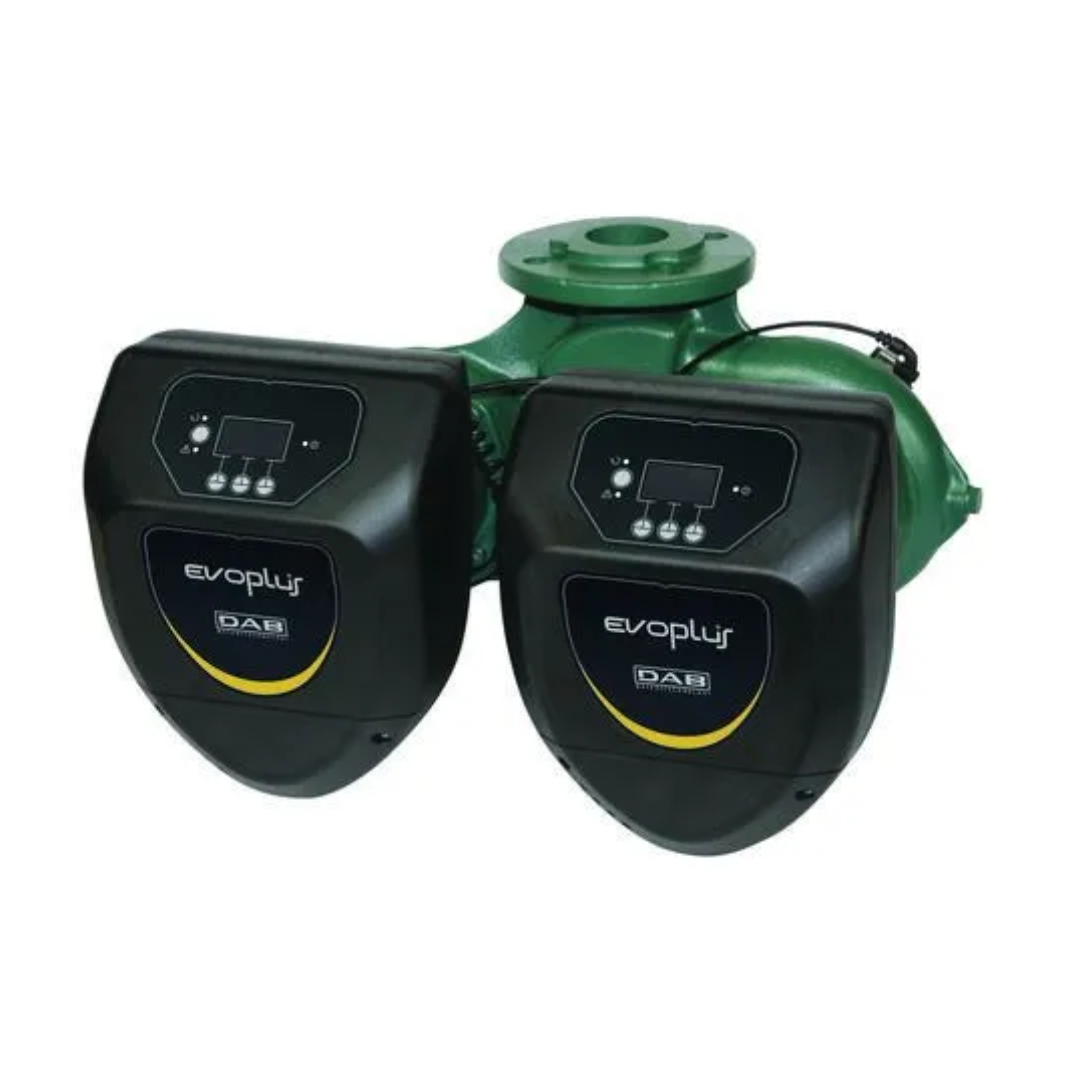

DAB Evoplus Twin D 120/220.32 M – 60151000
- Established 1975
- Trusted by thousands of customers
The DAB Evoplus Twin D 120/220.32 M is an electronic twin-head circulator pump designed for use in heating, ventilation, and air conditioning (HVAC) systems in residential and commercial buildings. Its twin-head design ensures redundancy, enhancing system reliability.
Key Features:
- Construction: The pump features a cast iron hydraulic section with flanged in-line suction and delivery ports. It includes a technopolymer impeller and an aluminum motor casing.
- Motor: Equipped with a synchronous electric motor with a wet rotor and permanent magnet, the pump has a hardened stainless steel motor shaft mounted on ceramic bushings lubricated by the pumped liquid.
- Electronics: The pump incorporates an OLED display and four configuration keys, allowing for various adjustment parameters, including proportional differential pressure, constant differential pressure, and constant curve adjustment. It also offers the possibility of connection to control systems via external signals (0-10V or PWM) and connection to ModBus system management systems.
Technical Specifications:
- Pipe connection: 32mm or 1 1/4″ flanged
- Maximum Head: 12 meters
- Voltage: 240V single-phase
- Maximum Liquid Temperature: 110°C
This pump is suitable for applications where variable heating or cooling demands exist, providing energy efficiency and quieter operation. Its electronic control allows for precise adjustments to meet system requirements, resulting in reduced operating costs.
More about this product
HEATING SYSTEM APPLICATIONS
The heating required for the different applications varies significantly during day and night, due to the external temperature, or the degree of occupancy inside the areas. To the above, one must add the different needs of the various environments, and the opening or closing of the various circuit branches of complex systems. Electronic wet rotor pumps ensure at all times, and virtually in all correctly sized systems, a sufficient level of energy, together with a quieter operation, and more comfort, together with an important reduction of operating costs. AIR
CONDITIONING APPLICATIONS
Unlike conventional electronic pumps, EVOPLUS electronic circulators can be used also in air conditioning systems where the temperature of the pumped liquid is lower than the room temperature. In these conditions, condensation tends to form on the outer surface of the circulator, which however does not affect the operation of the electronic and the mechanical components. The unit is designed and sized in such a way that it allows condensation to drain without damage to the construction components.
TECHNICAL DATA
Circulator protection rate: IP 44.
Insulation class: F.
Standard voltage: single-phase 220/240V, 50/60Hz. In accordance with European standards: EN 61800-3 – EN 60335-1 – EN 60335-2-51.
Operating range: from 2 to 75.6 m3/h with head up to 18 meters.
Liquid Temperature range: from -10 °C to 110 °C.
Pumped liquid: clean, free from solids and mineral oils, not viscous, chemically neutral, close to the properties of water (max. glycol contents 30%).
Maximum working pressure: 16 bar (1600 kPa). Standard flanging: DN 32, DN 40, DN 50, DN 65, PN 6 / PN 10 / PN 16 (4 slots), DN 80 e DN 100, PN 6 (4 slots) usable with flange 4 holes PN10.
Special version on demand: DN 80 , DN 100 PN 10 / PN 16 (8 holes) Installation: with horizontal motor shaft
-
