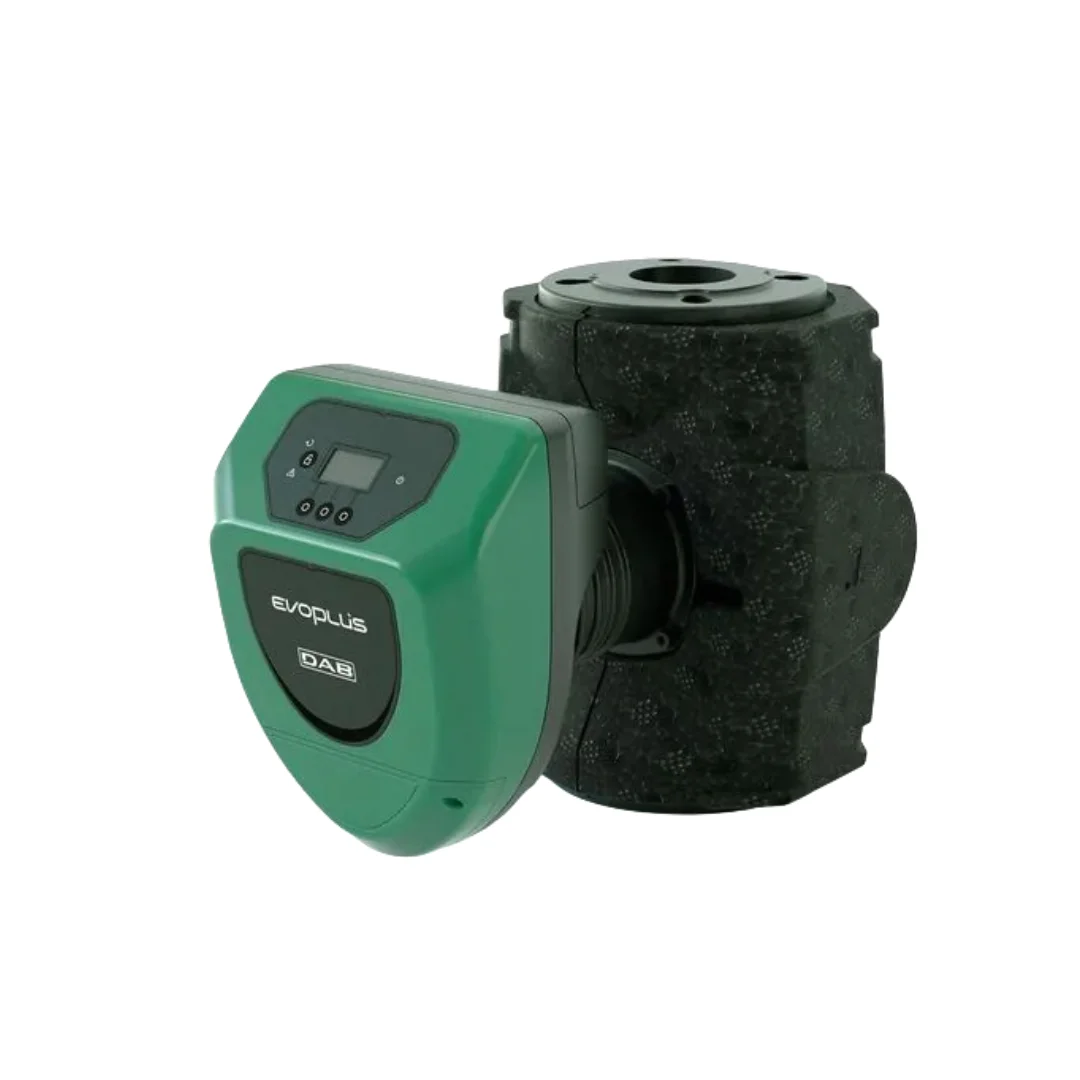

DAB Evoplus B 80/250.40 M

Our Price £541.33 Inc Vat £451.11 Ex Vat

In stock

Established 1975
Trusted by thousands of customers

Applications

DAB Evoplus (Small) circulation pumps are suitable for heating, ventilation and cooling systems in residential and commercial buildings, such as:

Larger residential homes
Hospitals
Apartment buildings
Schools
Care homes
Office buildings

Full Description

More about this product

Full Description

HEATING SYSTEM APPLICATIONS
The heating required for the different applications varies significantly during day and night, due to the external temperature, or the degree of occupancy inside the areas. To the above, one must add the different needs of the various environments, and the opening or closing of the various circuit branches of complex systems. Electronic wet rotor pumps ensure at all times, and virtually in all correctly sized systems, a sufficient level of energy, together with a quieter operation, and more comfort, together with an important reduction of operating costs. AIR

CONDITIONING APPLICATIONS
Unlike conventional electronic pumps, EVOPLUS electronic circulators can be used also in air conditioning systems where the temperature of the pumped liquid is lower than the room temperature. In these conditions, condensation tends to form on the outer surface of the circulator, which however does not affect the operation of the electronic and the mechanical components. The unit is designed and sized in such a way that it allows condensation to drain without damage to the construction components.

SANITARY RECIRCULATION APPLICATIONS
The SAN version, with bronze pump body, was specifically developed for the recirculation of sanitary water. With the constant temperature mode of operation, the temperature inside the recirculation piping is controlled without the need for thermostat valves, therefore optimizing comfort.

Additional Information

TECHNICAL DATA

Operating range: from 2 a 12 m³/h with head of up to 11 metres.
Pumped liquid temperature range: from -10 °C to +110 °C. Pumped liquid: clean, free of solids and mineral oils, non-viscous, chemically neutral, with properties similar to water. (glycol max 30%). Maximum operating pressure: 16 bar (1600 kPa).
Standard flanges: DN 32, DN 40 PN 6 / PN 10 / PN 16 (4 holes).
Maximum ambient temperature: + 40 °C.
Minimum suction pressure: the values are shown in the corresponding tables. Accessories: ½”F, ¾”F, 1”F, 1”¼F, 1”¼M union connectors. DN 32 PN 10 and DN 40 PN 10 threaded counter flanges. Electromagnetic compatibility: EVOPLUS circulator comply with EN 61800-3 standard, category C2, as far as electromagnetic compatibility.
Electromagnetic emissions: Residential environment (containment measures might be required in some cases).
Conducted emissions: Residential environment (containment measures might be required in some cases).
Circulator protection class: IP 44.
Insulation class: F.
Standard voltage: single-phase 220-240 V, 50/60 Hz. Sound pressure values: ≤ 33 dB(A). Product compliant with European Standards EN 61800-3 – EN 60335-1 – EN 60335-2-51

Downloads

Data Sheet PDF
Download

Delivery Information

Standard delivery:

Standard delivery is free for all orders except some low cost or difficult to transport pumps where standard delivery is £6.20.

Standard delivery takes up to three working days for products that are in stock. Deliveries will be made between 7am and 6pm, Monday to Friday (excluding public holidays).

Next day delivery:

Next working day delivery is available for a £15.00 + vat delivery charge.

Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.

DAB Evoplus Small Electric Circulators (Without Unions)

DAB Evoplus B 80/250.40 M – 60150952
