DAB Evoplus Small Electric Circulators (Without Unions)

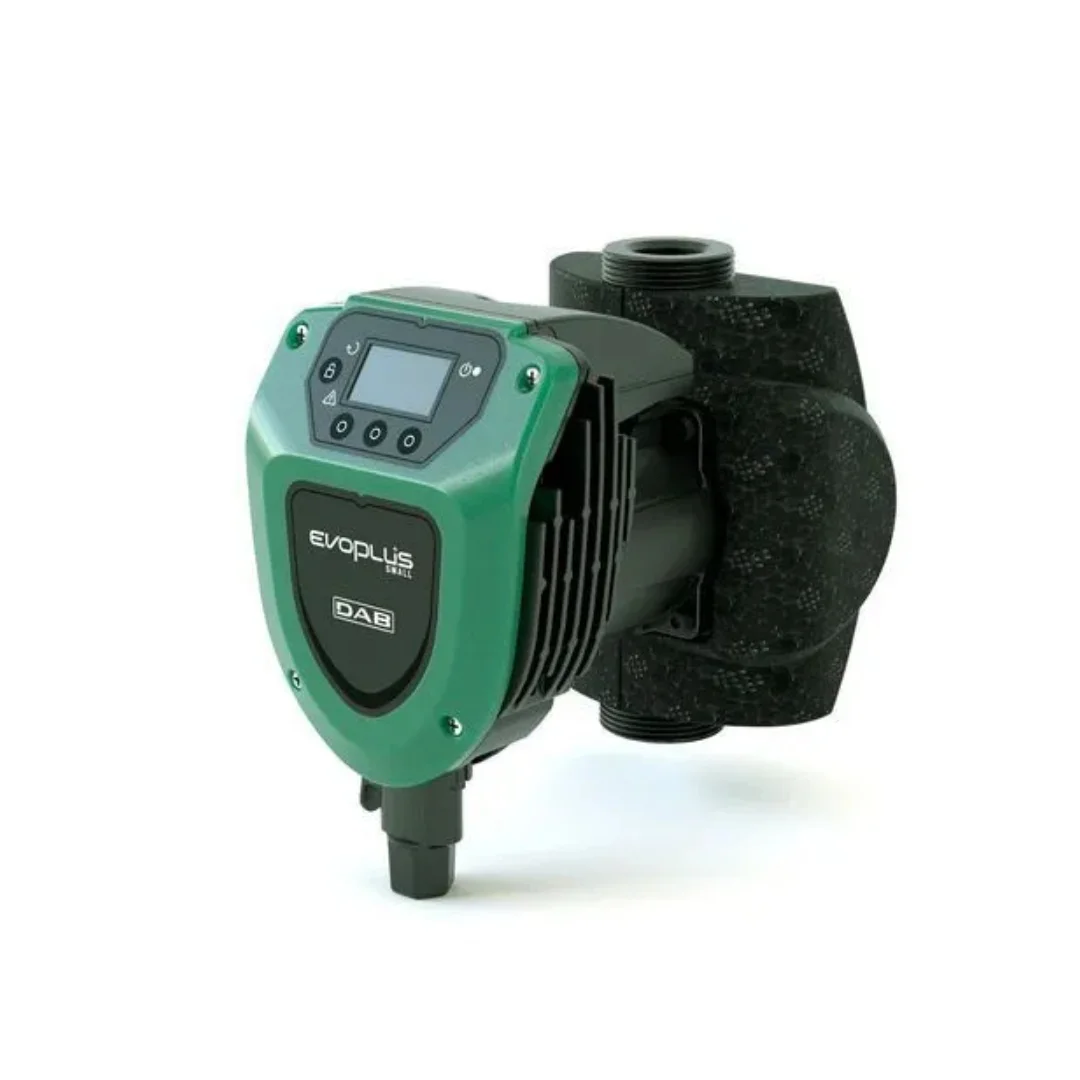

DAB Evoplus 110/180 M – 60150941 (now 60231354)
- Established 1975
- Trusted by thousands of customers

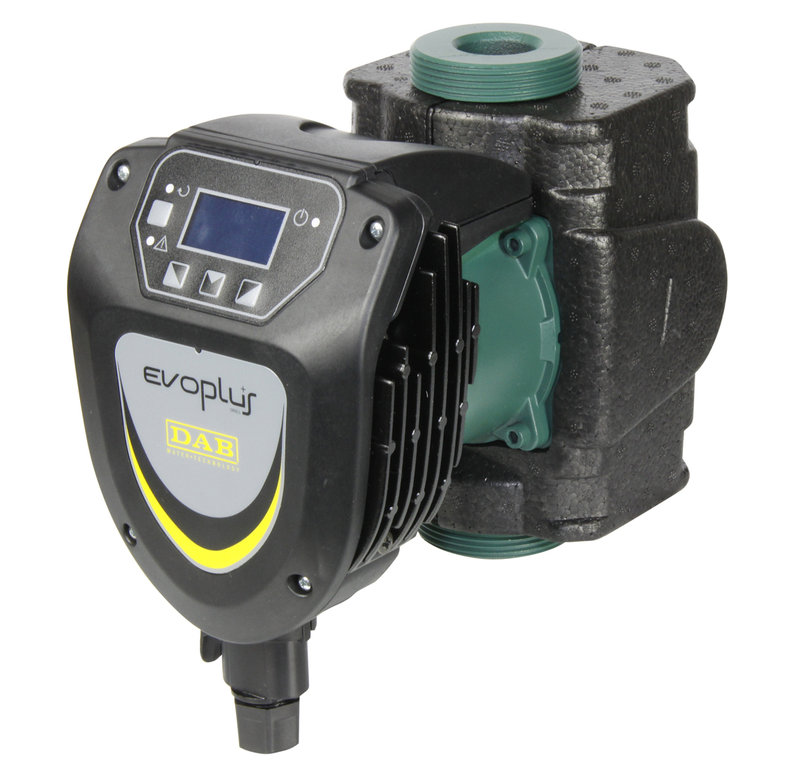

DAB Evoplus 110/180 M electronic circulator, 230 V single-phase
Wet rotor electronic circulator designed for the circulation of water in residential building service and commercial building service.
More about this product
Overview
Wet rotor electronic circulator designed for the circulation of water in residential building service and commercial building service. The integrated variable frequency drive automatically adapts the performance to the actual requirements and protect against water hammer action and offers better energy efficiency than circulators without the VFD. A display enables easy configuration and setting of the operating modes: proportional differential pressure, constant differential pressure, constant curve adjustment, constant and proportional differential pressure in relation to water temperature, economy function. Evoplus Small is available: with flanged suction and delivery ports, for the single and twin version, and only in the single version with threaded suction and delivery inlet. Possibility of local and remote control with H2D service for the single Evoplus Small (with multi-function model) and twin version, and DConnect Box supplied separately.
Specification
| Model | DAB Evoplus 110/180 M |
|---|---|
| Part number | 60150941 |
| Supply | 220-240 V single-phase, 50/60 Hz |
| Max. power input P1 | 170 W |
| Current In | 1.18 A |
| Energy efficiency index | ≤ 0.21 |
| Liquid temperature | From -10 °C to +110 °C |
| Max. operating pressure | 16 bar |
| Min. suction pressure at 90 °C | 20 m water column |
| Min. suction pressure at 100 °C | 25 m water column |
| Port-to-port length | 180 mm |
| Connections | 1“ F |
| Weight | 4.5 kg |
Evoplus Small range
| Motor protection class | IP 44 |
|---|---|
| Flow rate | From 33 to 200 l/min |
| Head | 11 metres |
| Liquid temperature | From -10°C to +110° C |
| Maximum operation pressure | 16 bar (1600 kPa) |
-
