DAB Esybox

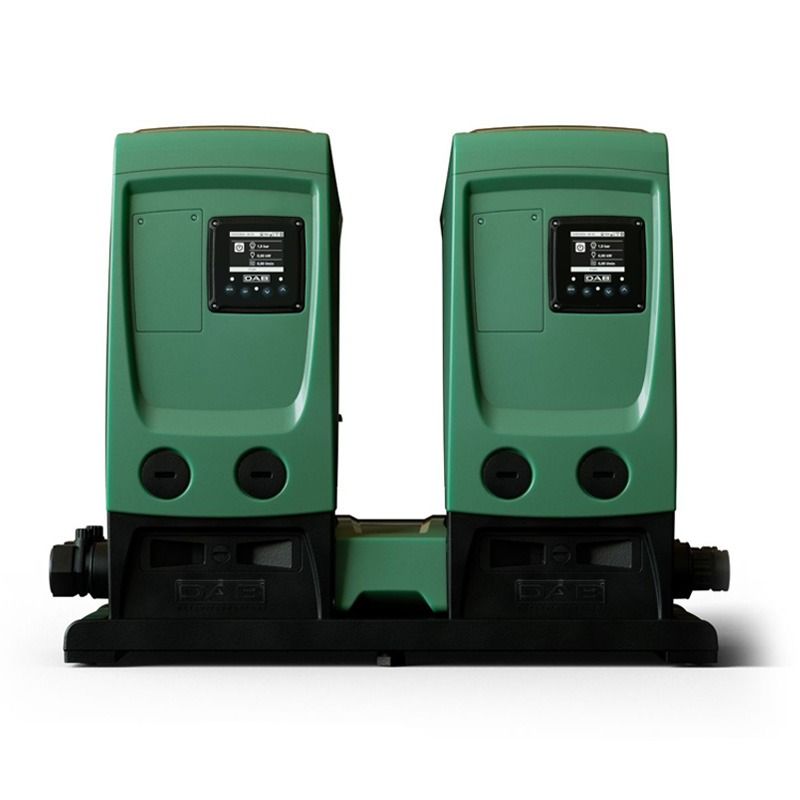

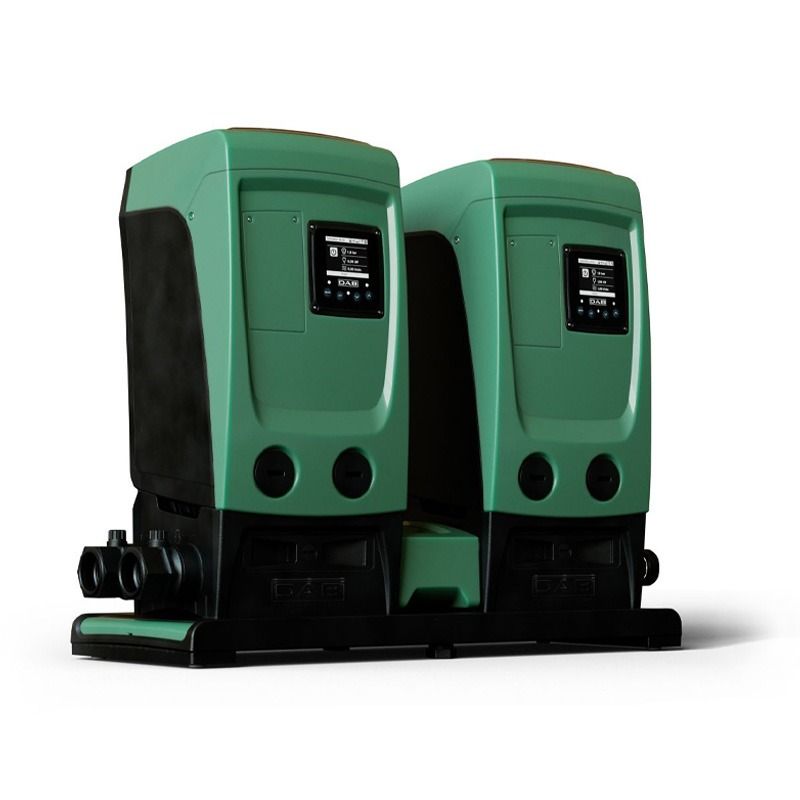

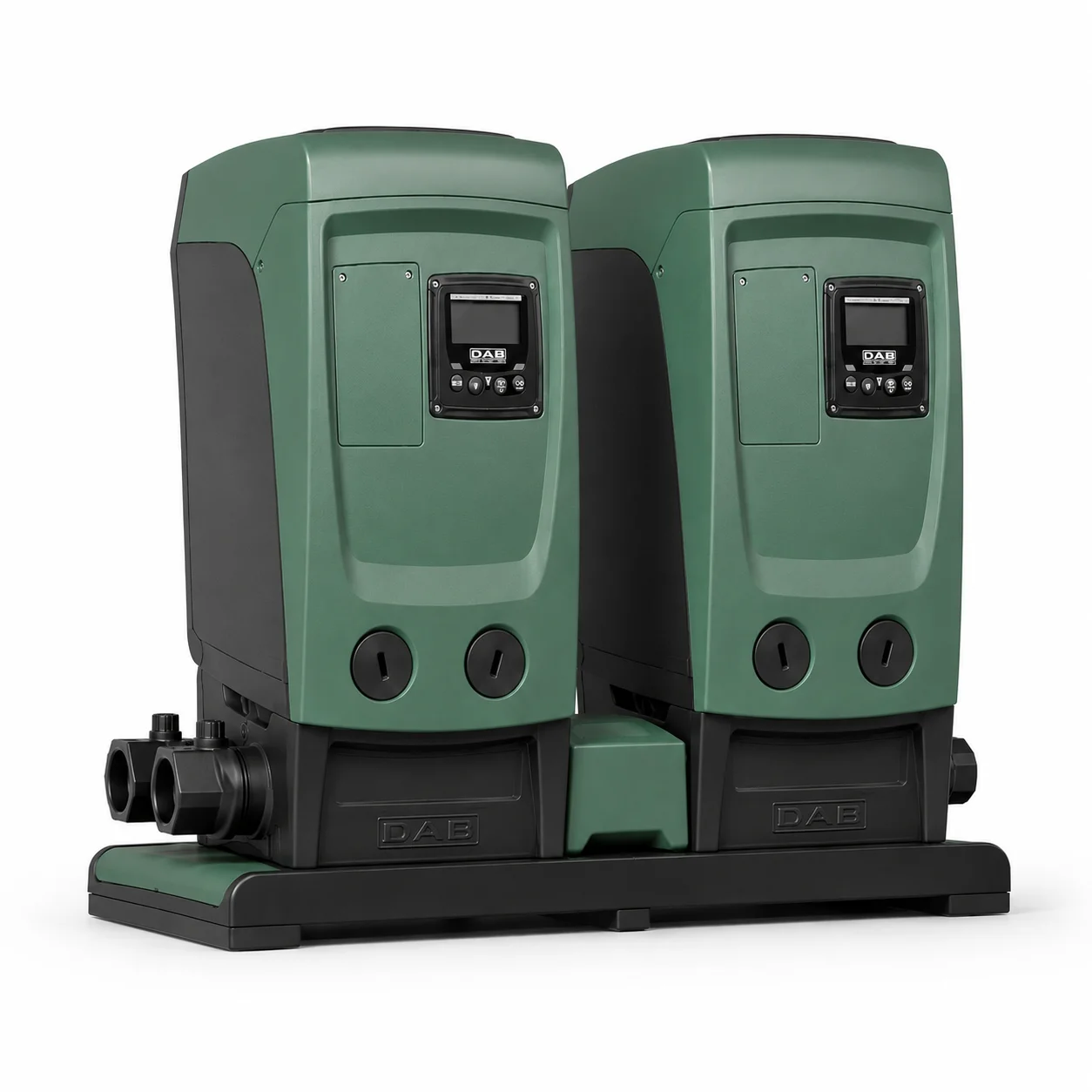

DAB Esybox Mini 3 Twin Pump Booster Set 60218781
- Established 1975
- Trusted by thousands of customers
DAB 2 EsyBox Mini 3 units with EsyTwin Mini booster set, 220-240 V single-phase
Multistage self-priming electronic system for pressure boosting, groundwater extraction from shallow wells, rainwater reuse, and gardening and irrigation for small gardens and vegetable patches. It can be used to produce sets with a maximum of two pumps in wireless mode.
More about this product
Overview
Multistage self-priming electronic system for pressure boosting, groundwater extraction from shallow wells, rainwater reuse, and gardening and irrigation for small gardens and vegetable patches. It can be used to produce sets with a maximum of two pumps in wireless mode.
Specification
| Model | DAB 2 EsyBox Mini 3 units with EsyTwin Mini |
|---|---|
| Part number | 60218781 |
| Supply | 220-240 V single-phase, 50/60 Hz |
| Max. power input P1 | 2 x 0.85 kW (2 x 1.1 HP) |
| Current In | 2 x 4.8 A |
| Type of liquid pumped | Clean, free of solids and abrasive substances, non-viscous, non-aggressive, non-crystallized, and chemically neutral |
| Liquid temperature range | from +5°C to +40°C |
| Maximum ambient temperature | +50°C |
| Maximum suction depth | 8 m |
| Maximum working pressure | 7.5 bar / 750 kPa |
| Motor protection rating | IPX4 |
| Motor insulation class | F |
| Impeller material of construction | Technopolymer |
| Power cord length and plug type | 1.5 m with Schuko plug |
| Possible mounting positions | Horizontal, vertical or wall mounted |
| Certifications | WRAS, ACS, NFS |
Applications
- Water pressure booster
- Ground water
- Rainwater harvesting
- Cosa la rende unica
- Practical and
- connected
-
Data Sheet PDFDownload
-
Manual PDFDownload
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
You may also need
The DAB Esybox EsyTwin 70250049 combines two full-size Esybox variable speed pumps on a single Esytwin docking base, delivering a combined flow of up to…
The DAB Esybox Mini3 60212601 is a WRAS-approved, all-in-one variable speed cold water booster pump for domestic and light commercial applications. Delivering up to 50…
The DAB Esybox 60212667 is the flagship DAB variable speed booster pump — a fully integrated all-in-one unit combining a self-priming multi-stage pump, inverter, pressure…
Related products
The Grundfos CMBE is a compact variable-speed booster set for constant water pressure in homes and light commercial buildings. Each set combines the pump, frequency…
DAB 1 KVC AD Booster Pump6 models in the DAB 1 KVC AD Booster Pump range.DAB
DAB Euroinox MP Pumps 230V5 models in the DAB Euroinox MP Pumps 230V.DAB
DAB Jetinox MP Pumps 230V3 models in the DAB Jetinox MP Pumps 230V.DAB
Lowara CA/CAM Series17 models in the Lowara CA/CAM Series.Lowara
DAB Jetinox Pumps10 models in the DAB Jetinox Pumps.DAB
Frequently Asked Questions
Quick answers to common questions about the DAB Esybox Mini 3 Twin Pump Booster Set 60218781. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.
What is a water booster pump?
A water booster pump increases the pressure of an existing water supply to give stronger flow at taps, showers and appliances. It can be a small inline pump fitted to the incoming mains, or a larger pump and tank set that draws from a break tank to feed the whole house. Boosters do not create water – they raise the pressure of the water already coming in.
What is the difference between an inline booster and a tank-and-pump booster?
An inline booster connects straight onto the incoming mains and is limited to 12 litres per minute under UK water regulations – examples include the Salamander HomeBoost and WaterBoost WB-Compact. A tank-and-pump booster, such as the Grundfos Home Booster or DAB Esybox with Esytank, draws from a break tank and can deliver much higher flow rates for larger homes with multiple bathrooms.
What is a variable speed booster pump?
A variable speed booster uses an inverter to adjust pump speed in real time to match demand. It maintains constant pressure as outlets open and close, runs more quietly than a fixed-speed pump and typically saves up to 50 per cent of the energy a fixed-speed equivalent would use. The DAB Esybox, DAB Esybox Mini 3 and Grundfos Scala2 are common variable speed examples.
What does a water booster pump do?
A water booster pump raises water pressure to help supply taps, showers and other outlets when the existing system cannot meet demand.
Can a booster pump connect directly to the water mains?
Not every booster can. Direct connection depends on the product design and applicable water regulations; some systems require a break tank.
How do I size a water booster pump?
Assess simultaneous flow demand, required outlet pressure, available inlet conditions and the pressure losses in the pipework.
