Name: Esybox EsyTwin Booster Set 60160491 (now code 70250049)
Brand: DAB Esybox
SKU: 9085-twin
Price: 2031.6 GBP
Availability: InStock

Esybox EsyTwin Booster Set 60160491 (now code 70250049)

Esybox EsyTwin Booster Set 60160491 (now code 70250049) - Image 2

Esybox EsyTwin Booster Set 60160491 (now code 70250049) - Image 3

Esybox EsyTwin Booster Set 60160491 (now code 70250049) - Image 4

Esybox EsyTwin Booster Set 60160491 (now code 70250049) - Image 5

In stock

Established 1975
Trusted by thousands of customers

The DAB Esybox EsyTwin combines two Esybox variable speed booster pumps on a single Esytwin docking base, delivering a combined flow of 140 l/min at 3 bar. Designed for large properties, apartment blocks, and commercial applications where a single pump is insufficient — or where built-in redundancy is essential. Backed by a 3-year DAB manufacturer warranty.

140 l/min at 3 bar — two Esybox pumps working in parallel; max head 65m
Built-in redundancy — if one pump faults, the other automatically takes over to maintain supply
Wireless load sharing — pumps communicate and alternate automatically, distributing wear evenly
WiFi and voice control — DAB H2D app monitors both pumps; Google Home and Amazon Alexa compatible
Tool-free servicing — each pump docks and undocks without tools; service one while the other runs
Self-priming to 8m — draws from break tanks, wells, boreholes, and rainwater systems; cannot connect directly to mains
Pump WRAS approved — 43 dB(A) per pump; expandable to 4 pumps using two Esytwin bases

Full Description

More about this product

Full Description

Product overview

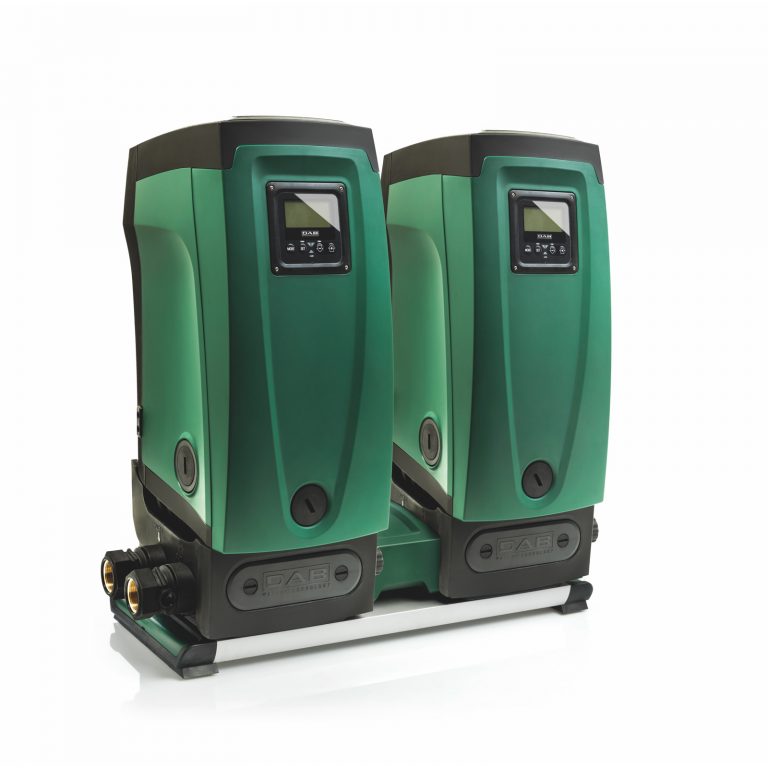

The DAB Esybox EsyTwin is a complete twin-pump booster set combining two DAB Esybox variable speed pumps on a single Esytwin docking base. It is the natural step up from a single Esybox where higher flow rates, greater reliability, or built-in redundancy are required.

The two pumps work together intelligently — sharing load under high demand, alternating to distribute wear evenly, and automatically switching to single-pump operation if one unit develops a fault. This means water supply is never fully interrupted, even during a pump fault.

Combined, the twin system delivers up to 180 l/min at 65m head, making it suited to large properties, apartment blocks, commercial buildings, and high-demand agricultural or irrigation applications. Backed by a 3-year DAB manufacturer warranty.

180^l/min

Combined max flow

65^m

Max head

2^×

Esybox pumps

43^dB

Noise per pump at 1m

WRAS approved — pump only

What’s included

2 × DAB Esybox pumps

Two full-size Esybox variable speed booster pumps. Each with built-in inverter, 2-litre expansion vessel, LCD display, and WiFi (H2D app). 43 dB(A) per pump at 1m.

Esytwin docking base

Links both pumps with integrated 4-configuration pipework connections, anti-vibration feet, and wireless communication. Pumps dock and undock without tools for easy servicing.

Key features

180 l/min combined flow

Two pumps running in parallel deliver up to 180 l/min combined at 65m head — ideal for high-demand properties and commercial sites.

Built-in redundancy

If one pump develops a fault, the other automatically takes over. Water supply is maintained at reduced capacity — not lost entirely.

Intelligent load sharing

Pumps communicate wirelessly and share load automatically. At low demand one runs; at peak demand both ramp up. They alternate to distribute wear evenly.

WiFi and voice control

Both pumps connect to the DAB H2D app for remote monitoring. Google Home and Amazon Alexa compatible.

Space-efficient design

The Esytwin base gives a 50% smaller footprint than two separate pump installations. Four flexible pipework configurations for tight spaces.

Self-priming to 8m

Both pumps are self-priming to 8 metres — suitable for break tanks, wells, boreholes, and rainwater harvesting systems.

3-year DAB warranty

3-year manufacturer warranty direct from DAB when purchased from Anglian Pumping Services, an authorised DAB distributor.

Orientable LCD display

Each pump has a high-resolution adjustable display showing live pressure, flow, fault status, and alarm history.

Tool-free dock and undock

Each Esybox pump docks and undocks without tools, making individual pump servicing or replacement fast and straightforward.

Typical applications

Large domestic properties

Large homes with 4 or more bathrooms where a single pump cannot meet peak simultaneous demand.

Apartment blocks and HMOs

Multiple dwellings sharing a single supply — the twin system handles high simultaneous demand reliably.

Commercial and hospitality

Hotels, restaurants, offices, and light industrial premises requiring consistent high-volume pressure boosting.

Agriculture and irrigation

High-volume irrigation and agricultural wash systems requiring sustained high flow rates.

Applications requiring redundancy

Any site where uninterrupted supply is critical — the second pump provides automatic failover.

Rainwater and borehole supply

Self-priming to 8m — draws from below-ground tanks, wells, and boreholes without separate priming.

Technical specifications

System	2 × DAB Esybox on Esytwin base
SKU	60160491 (updated code: 70250049)
Motor power (per pump)	1.4 kW (1.9 HP)

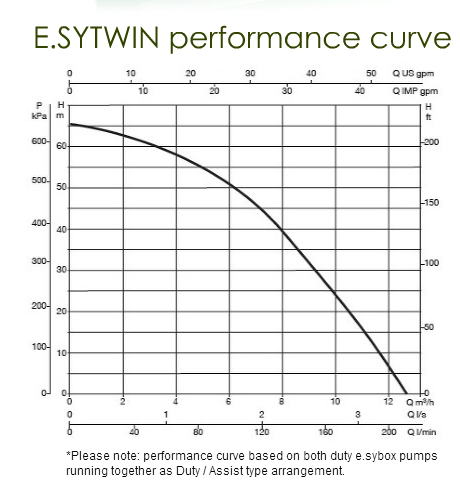

Combined max flow rate	180 l/min (10.8 m³/hour)
Maximum head	65 metres
Maximum working pressure	6.5 bar
Maximum suction depth	8 metres (per pump)
Noise level (per pump)	43 dB(A) at 1m
Power supply	230V / 50-60Hz, single phase (per pump)
Outlet connection	1″ BSP female
Expansion vessel (per pump)	2 litre integrated
Connectivity	Built-in WiFi — DAB H2D app, Google Home, Amazon Alexa
Pump communication	Wireless — no wiring between pumps required
Cannot connect to	Direct mains — requires break tank or storage cistern
WRAS approved	Yes — pump only
Warranty	3 years (DAB manufacturer warranty)

!The Esybox pumps cannot connect directly to the mains. They must draw from a suitable break tank or cold water storage cistern.

Single Esybox vs EsyTwin — which do I need?

Single Esybox

Up to 120 l/min — most homes and small commercial

Suitable for homes up to around 3–4 bathrooms, single-dwelling properties, light commercial, and most agricultural applications. If a single pump meets your peak demand, there is no benefit to the twin.

EsyTwin — this product

Up to 180 l/min — high demand, redundancy, or commercial

Choose the twin when: peak demand exceeds 120 l/min, you need built-in failover redundancy, the system is business-critical, or you are serving multiple dwellings or a commercial site.

Feature	Single Esybox	EsyTwin this product
Max flow rate	120 l/min	180 l/min
Max head	65m	65m
Fault redundancy	None — total loss if pump fails	Automatic failover to second pump
Load sharing	Single pump only	Wireless — runs 1 or 2 pumps as needed
Wear distribution	Single pump carries all hours	Pumps alternate to share running hours
WiFi / H2D app	Yes	Yes — both pumps monitored
Price (ex VAT)	£683.00	£1,693.00

The Esybox range

Esybox Mini 3

Compact unit for smaller homes. 80 l/min, 55m head. Ideal for 1–2 bathrooms.

Esybox

Full-size unit for larger homes and commercial. 120 l/min, 65m head. Single pump.

This product

EsyTwin

Twin-pump system. 180 l/min combined, 65m head. Built-in redundancy and load sharing.

Frequently asked questions

How much does it cost and how is it delivered?

£1,693.00 + VAT (£2,031.60 inc VAT). Please contact us via WhatsApp or phone regarding delivery timescales for this product.

Do I need the EsyTwin or will a single Esybox do?

A single Esybox delivers up to 120 l/min and is sufficient for most domestic properties and smaller commercial sites. Choose the EsyTwin if your peak demand exceeds 120 l/min, if you need built-in redundancy, or if running hours need to be shared between two pumps to extend service life. Contact us if you’re unsure.

How do the two pumps communicate and share load?

The two pumps communicate wirelessly — no wiring between them is required. At low demand, only one pump runs. When demand increases, the second starts and both share the load. The system alternates which pump leads, distributing running hours evenly to reduce wear and extend the life of both units.

What happens if one pump develops a fault?

The healthy pump automatically takes over and continues to supply water at up to 120 l/min. The fault is flagged on the display and in the H2D app so you can arrange a service visit without an emergency call-out.

Can it connect directly to the mains?

No — the Esybox pumps must draw from a break tank or cold water storage cistern. Contact us if you need help specifying a suitable tank.

Is it WRAS approved?

The Esybox pumps are WRAS approved — safe and legal for use with potable (drinking) water supplies in the UK. The Esytwin base is not separately WRAS approved.

How does the WiFi and remote monitoring work?

Both pumps connect independently to the DAB H2D app for remote monitoring of pressure, flow, power, and alarm history. Also integrates with Google Home and Amazon Alexa — “Hey Google, power shower” boosts pressure, “Hey Google, sleep mode” quietens the system overnight.

Can individual pumps be serviced without shutting down the system?

Yes. Each Esybox docks and undocks without tools. One pump can be removed for servicing while the other continues to supply water, making routine maintenance significantly less disruptive than a single-pump installation.

Can I expand beyond two pumps?

Yes. The Esybox system supports up to 4 pumps linked wirelessly. Two Esytwin bases can be connected using the Esytwin Double Connection Kit. Contact us for advice on larger configurations.
