DAB E.Sybox with E.Sytank Booster System

DAB Esybox with Esytank water booster system

DAB Esybox with Esytank water booster system - Image 2

DAB Esybox with Esytank water booster system - Image 3

DAB Esybox with Esytank water booster system - Image 4

DAB Esybox with Esytank water booster system - Image 5

In stock

Established 1975
Trusted by thousands of customers

The DAB Esybox with Esytank is a complete, ready-to-install water pressure boosting system — combining DAB’s flagship variable speed booster pump with a 480-litre storage tank. The ideal solution for properties with low mains pressure, restricted flow, or where direct mains connection is not permitted. Delivery is £50 + VAT, including next working day when ordered before 1pm.

Complete system — Esybox pump, 480-litre Esytank, Esydock, suction pipe, foot valve, delivery pipe, and float valve all included
80 l/min at 3 bar — variable speed pump with up to 50% energy saving vs fixed-speed
43 dB(A) operation — water-cooled motor in sound-absorbing housing, suitable for utility rooms and cellars
WiFi and voice control — DAB H2D app, Google Home, and Amazon Alexa compatible
Pump WRAS approved — tank manufactured from food-grade HDPE
Expandable and modular — auxiliary tanks connectable on 3 sides; up to 4 pumps can be linked for higher demand
3-year DAB manufacturer warranty when purchased from Anglian Pumping Services

Full Description

More about this product

Full Description

System overview

The DAB Esybox with Esytank is a complete, ready-to-install water pressure boosting system combining DAB’s flagship variable speed booster pump with a 480-litre drinking water storage tank. Designed for domestic and light commercial properties where mains pressure is insufficient or where direct mains connection is not permitted.

The Esybox pump intelligently adjusts its speed to match demand, delivering constant pressure to every outlet while using up to 50% less energy than fixed-speed alternatives. The Esytank stores water from the mains during low-demand periods, ensuring a reliable supply even when mains flow is restricted.

Both components are supplied with everything needed for installation, including Esydock, suction pipe with foot valve, and delivery pipe. The Esybox pump is WRAS approved for potable water. Backed by a 3-year DAB manufacturer warranty.

480^L

Tank storage

120^l/min

Max flow rate

65^m

Max head

43^dB

Noise at 1m

Pump WRAS approved — potable water

What’s included

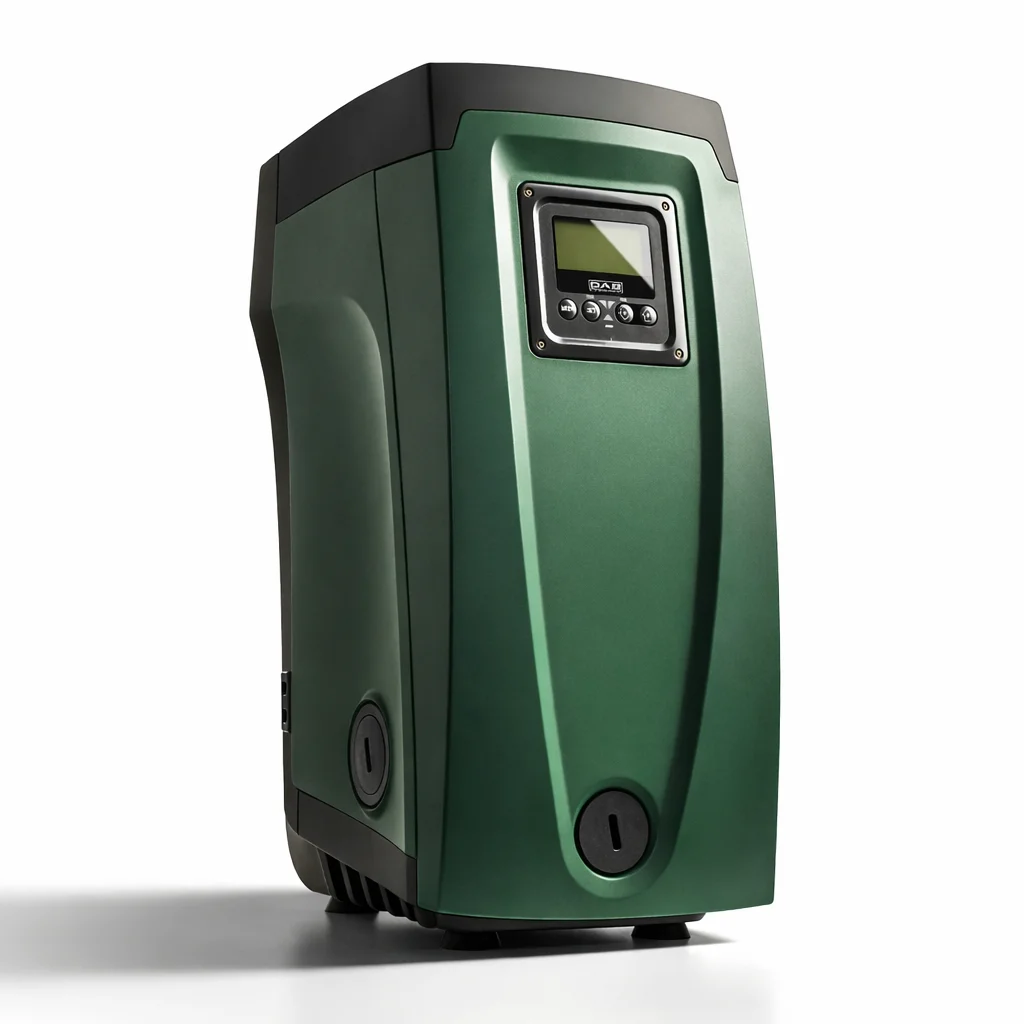

DAB Esybox booster pump

Variable speed pump delivering up to 120 l/min at 65m head. Built-in inverter, 2-litre expansion vessel, WiFi (H2D app), 43 dB(A) operation. WRAS approved. Mounted to the Esytank via the included Esydock.

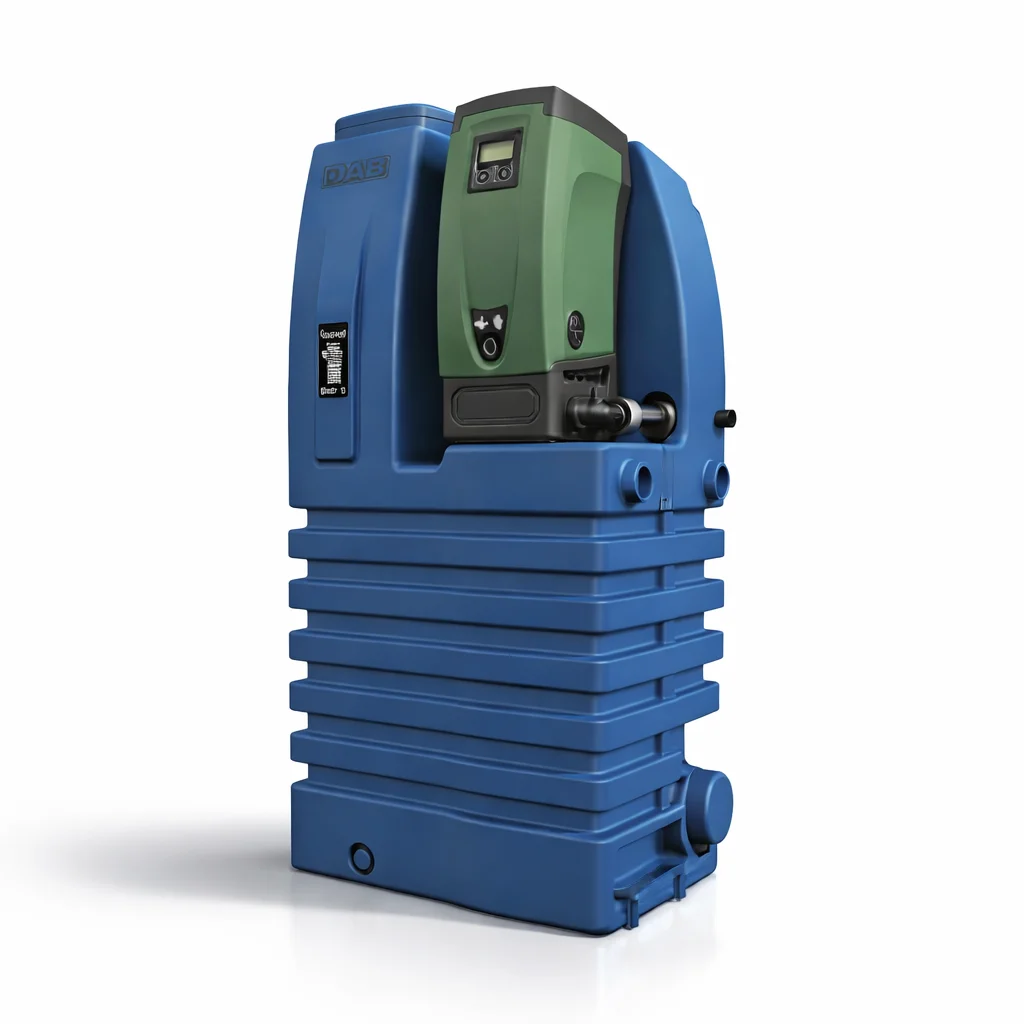

DAB Esytank 480-litre storage tank

HDPE drinking water storage tank with float valve, overflow, suction pipe with foot valve, delivery pipe, and Esydock docking station. Modular design — expandable on three sides.

Key features

Variable speed inverter

Pump adjusts speed to match demand in real time — constant pressure, up to 50% energy saving versus fixed-speed systems.

480-litre storage

Stores water during low-demand periods, ensuring a reliable supply even when mains flow or pressure is restricted.

Pump WRAS approved

The Esybox pump is certified for use with potable (drinking) water in the UK, fully compliant with water regulations.

43 dB(A) — whisper quiet

Water-cooled motor in sound-absorbing housing. Quiet enough for utility rooms, cellars, and garages.

Compact and space-efficient

Designed to fit through standard cellar doorways and into tight spaces. Minimal footprint for a complete 480-litre system.

WiFi and remote monitoring

DAB H2D app for remote pressure monitoring, fault alerts, and settings. Google Home and Alexa voice control compatible.

3-year DAB warranty

3-year manufacturer warranty direct from DAB when purchased from Anglian Pumping Services, an authorised distributor.

Expandable system

Modular tank design — add auxiliary tanks on three sides to increase storage. Link up to 4 Esybox pumps for higher demand.

Rapid installation

Supplied complete with all accessories — Esydock, suction pipe, foot valve, delivery pipe, and float valve. No extra fittings required.

Typical applications

Low mains pressure

Stores mains water and boosts it to a consistent, usable pressure throughout the property.

Low mains flow rate

Tank fills slowly during the day and provides a large reservoir for peak demand periods such as morning and evening.

Mains regulations compliance

Where regulations prohibit direct mains connection, the break tank arrangement ensures full compliance.

Rural and off-grid properties

Stores water from boreholes, wells, or intermittent mains supply and delivers it on demand.

Light commercial

Offices, hospitality, and small commercial premises requiring reliable pressure from restricted mains supply.

Tall buildings

Used as an intermediate tank to divide pressure boosting across multiple zones or floors.

Technical specifications

Esybox pump

Motor power	1.4 kW (1.9 HP)
Maximum flow rate	120 l/min (7.2 m³/hour)
Maximum head	65 metres
Maximum working pressure	6.5 bar
Noise level	43 dB(A) at 1m
Power supply	230V / 50-60Hz, single phase
Outlet connection	1″ BSP female
Expansion vessel	2 litre integrated
Connectivity	Built-in WiFi — DAB H2D app, Google Home, Amazon Alexa
WRAS approved	Yes — pump only

Esytank storage tank

Tank capacity	480 litres
Tank material	HDPE (food-grade polyethylene)
Dimensions (H × W × D)	1,632 × 595 × 870mm
Mains inlet connection	¾″ (max inlet pressure 6 bar)
Delivery pipe connection	1″
Overflow connection	DN 50
Maximum liquid temperature	40°C
Included accessories	Esydock, suction pipe with foot valve, delivery pipe, float valve, overflow
Expandable	Yes — auxiliary tanks connectable on 3 sides

!The Esybox pump cannot connect directly to the mains. The Esytank must be supplied from the mains water inlet (max 6 bar) with the pump drawing from the tank storage.

Frequently asked questions

How much does the system cost and how is it delivered?

£1,380.00 + VAT (£1,656.00 inc VAT). Standard delivery is £50.00 + VAT and includes next working day delivery when ordered before 1pm on a working day. Both the Esybox pump and the complete Esytank with all accessories are included.

What’s actually included in the box?

The system ships complete and ready to install. You receive the DAB Esybox booster pump, the Esytank 480-litre storage tank, an Esydock docking station, suction pipe with foot valve, delivery pipe, mains fill float valve, and overflow fitting. No additional fittings are required to get the system running.

Why do I need a tank — can’t I just use the pump on its own?

The Esybox pump cannot connect directly to the mains — regulations require a break tank in between. But the Esytank does more than just comply: it stores up to 480 litres, meaning the system can deliver high flow rates even if your mains supply is slow or intermittent. It fills gradually from the mains and delivers on demand, so you never run short during peak usage. If your mains pressure and flow are already adequate and you only need boosting, contact us for advice on a pump-only solution.

Where can I install it?

The system is designed for indoor fixed installation — typically a utility room, cellar, garage, or plant room. The tank dimensions are specifically designed to fit through standard cellar doorways. The four base slots allow secure floor fixing. The Esybox pump runs at 43 dB(A) making it suitable even in spaces close to living areas. Outdoor installation requires the optional DAB Esycover kit.

Is 480 litres enough for my property?

For most domestic properties and light commercial use, 480 litres is sufficient provided the mains supply refills the tank between peak demand periods. If you need more capacity, the Esytank has a modular design — auxiliary tanks can be connected on any of three sides to expand storage. Contact us if you need help sizing the system for your specific demand.

Is the pump WRAS approved for drinking water?

The Esybox pump is WRAS approved, confirming it is safe and legal for use with potable (drinking) water supplies in the UK. The Esytank is manufactured from food-grade HDPE and is suitable for drinking water storage, but does not hold its own WRAS approval.

What warranty is included?

3 years manufacturer warranty direct from DAB when purchased from Anglian Pumping Services, an authorised DAB distributor.

Does the Esybox have WiFi and remote monitoring?

Yes — the Esybox has built-in WiFi and connects to the DAB H2D app for remote monitoring, pressure adjustment, and fault alerts. It also works with Google Home and Amazon Alexa — say “Hey Google, power shower” to boost pressure or “Hey Google, sleep mode” to quieten it overnight.

How easy is maintenance?

The Esytank has a top-mounted inspection lid for routine tank inspection and cleaning. The Esybox pump docks and undocks from the Esydock station without tools, making servicing straightforward. Fault history is logged in the H2D app so any issues can be diagnosed remotely.

Can I expand the system in future?

Yes. The system is fully modular. Additional Esytank auxiliary cisterns can be coupled on any of three sides to increase storage. For higher flow demand, up to 4 Esybox pumps can be connected wirelessly and will share the load automatically. Contact us to discuss expansion options.
