TT Zenit AP BLUE PRO 150/2/G40H 230v/1ph Auto

Name: TT Zenit AP BLUE PRO 150/2/G40H 230v/1ph Auto
Brand: T-T Submersibles
SKU: apblue1502230
Price: 868.8 GBP
Availability: InStock

TT Zenit AP BLUE PRO 150/2/G40H 230v/1ph Auto - Image 2

In stock

Any questions? Message us on WhatsApp

Established 1975
Trusted by thousands of customers

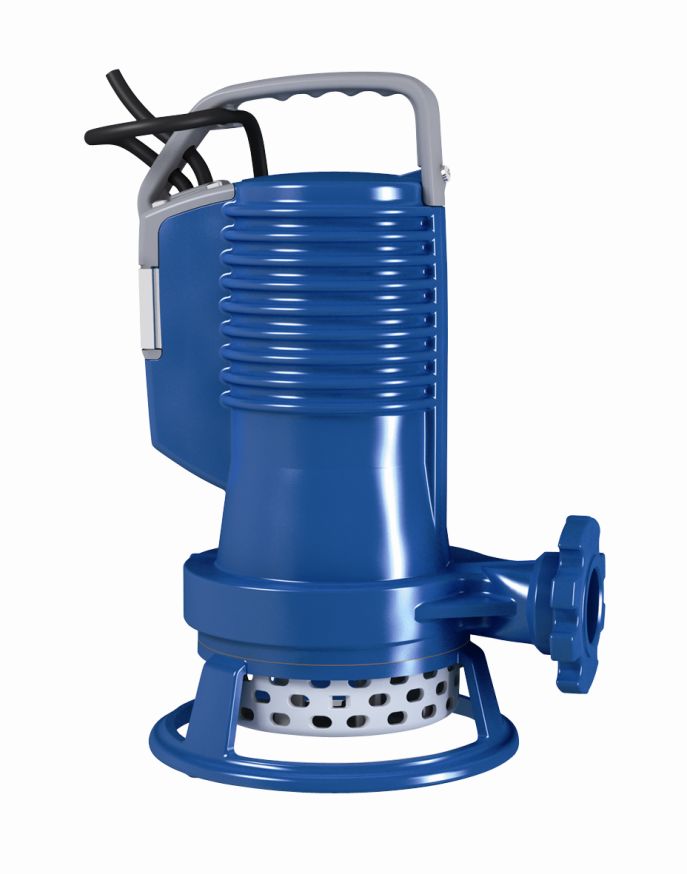

Zenit AP Blue Pro 150/2/G40H high-head submersible pump, 230 V single-phase

High-head cast iron submersible pump from the Zenit AP Blue Professional range, for domestic and professional use. Suited to clean water, rainwater, seepage water and sandy or muddy water with suspended solids no larger than 6 mm.

Pumps up to 408 l/min and up to 20.4 m head, 1.1 kW motor on 230 V single-phase, 50 Hz, solids up to 6 mm. Operation: Automatic, float switch fitted.

408 l/min

Max flow

20.4 m

Max head

1.1 kW

Motor

230V 1ph

Supply

ZenitAutomatic40 mm discharge

Full Description

More about this product

Full Description

Applications

Clean water and rainwater
Slightly sandy seepage water
Fountains and water features
Liquids with small solids or sand

Specification

Model	Zenit AP Blue Pro 150/2/G40H
Supply	230 V single-phase, 50 Hz
Motor power	1.1 kW
Full load current	7.5 A
Maximum flow	408 l/min (6.8 l/s)
Maximum head	20.4 m (2 bar)
Discharge	40 mm (1½”)
Free passage (solids)	6 mm
Operation	Automatic, float switch fitted
Construction	Cast iron construction and impeller
Impeller	High-head impeller, cast iron
Seals	Double mechanical seal in an oil bath
Cable length	10 m
Weight	24 kg

Key features

High head

High-head hydraulics for longer or higher discharge runs than a standard drainage pump.

Cast iron build

Cast iron pump body and impeller.

Double mechanical seal

Twin seals running in an oil bath.

Automatic as standard

Supplied with a float switch; can be converted to manual on request.

Frequently asked questions

What will it pump?

Up to 408 l/min at low head, and up to 20.4 m (2 bar) head at zero flow. Solids up to 6 mm pass through.

Does it switch on and off by itself?

Yes. Automatic, float switch fitted.

What supply does it need?

230 V single-phase, 50 Hz, full load current 7.5 A.

How long is the cable?

10 m as standard.

Downloads

data sheet PDF
Download

Delivery Information

Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.

Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).

Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.

Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.

Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.

Frequently Asked Questions

Quick answers to common questions about the TT Zenit AP BLUE PRO 150/2/G40H 230v/1ph Auto. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.

What is a submersible pump?

A submersible pump is designed to operate fully submerged in the liquid it is moving. The motor is sealed inside the pump body and cooled by the surrounding water. Submersibles are used for drainage, sewage, septic tanks, deep wells and boreholes, and for raising water from sumps, cellars and floodwater. Many stocked at Anglian Pumping handle solids in suspension.

Can submersible pumps handle solids and sewage?

Yes – some submersibles are designed for clean water only, others handle solids up to 50 mm or full raw sewage. Anglian Pumping stocks ABS, BBC, Flygt and T-T Submersibles ranges that include vortex, single channel and grinder impellers for different solids handling requirements. Always match the pump to the maximum solid size and the type of effluent it will see.

When should I use a submersible pump instead of a surface pump?

Use a submersible when the water level is more than around 8 metres below the pump installation point – surface pumps cannot self-prime beyond that depth. Submersibles are also better when the liquid contains solids, when noise must be minimised, or when the pump needs to operate in confined spaces such as sumps and chambers where a surface pump would not fit.
