Pedrollo TRITUS-TX and TRITUS-INOX Grinder Pumps

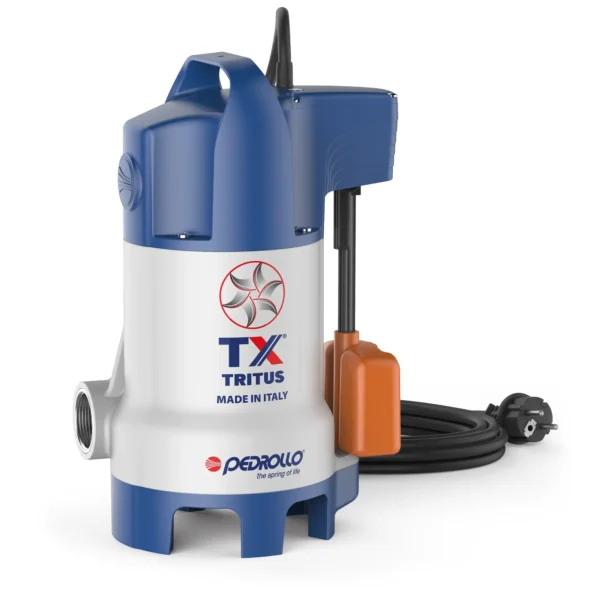

Pedrollo TRITUS-TX Single Phase 2305460
- Established 1975
- Trusted by thousands of customers
The Pedrollo TRITUS-TX is a 0.55 kW (0.75 HP) submersible grinder pump for sewage on a 230 V single-phase supply, delivering up to 90 l/min and 11.5 m head.
Pedrollo’s compact TRITUS-TX, with a hardened stainless steel grinder and an integrated magnetic float switch for tight pits.
More about this product
Product overview
The Pedrollo TRITUS-TX is a 0.55 kW (0.75 HP) submersible grinder pump for domestic sewage on a 230 V single-phase supply, covering 10 to 90 l/min with a working head of 11.5 m down to 1 m. Its compact design needs as little as 220 mm clearance from the pit wall.
The TRITUS-TX has a robust hardened stainless steel blade that cuts through the solids and fibres found in domestic waste water and sewage. It has a technopolymer body with a threaded metal insert delivery port, Noryl™ impeller, AISI 304 motor sleeve and cover, AISI 431 shaft and an oil-chamber shaft seal, with an integrated vertical magnetic float switch and 5 m cable with Schuko plug.
Key features
Typical applications
Technical specifications
| Brand / Series | Pedrollo — TRITUS-TX |
| Model | TRITUS-TX |
| Pedrollo code | 2305460 |
| Supply | 230 V single-phase |
| Motor power (P2) | 0.55 kW / 0.75 HP |
| Motor | 230 V single-phase motor with built-in thermal protection |
| Flow range | 10–90 l/min |
| Head range | 11.5–1 m |
| Pump body | Technopolymer with ISO 228/1 threaded metal insert delivery port |
| Base | Technopolymer |
| Impeller | Noryl™ |
| Grinder | Hardened AISI 440C stainless steel |
| Motor sleeve and cover | AISI 304 stainless steel |
| Motor shaft | AISI 431 stainless steel |
| Shaft seals | Mechanical seal (ceramic / silicon carbide / NBR) and shaft seal, with interposed oil chamber |
| Port | 1¼″, with Ø 40 mm hose connector |
| Float switch | Integrated vertical magnetic float switch |
| Power cable | 5 m as standard, 10 m on request (H07 RN-F, Schuko plug) |
| Bottom drainage level | Down to 35 mm |
| Clearance from pit wall | 220 mm minimum |
| Maximum depth | 5 m below water level |
| Liquid temperature | Up to +40 °C; up to +90 °C for short bursts (3 minutes max) in intermittent service |
| Insulation / protection | Class F / IP X8, continuous duty S1 |
| Liquid | Domestic waste water and sewage |
TRITUS-TX and TRITUS-INOX range
| Model | Code | Supply | Power | Flow | Head |
|---|---|---|---|---|---|
| TRITUS-TX | 2305460 | Single Phase | 0.55 kW / 0.75 HP | 10–90 l/min | 11.5–1 m |
| TIGm 0.55 | 2302250 | Single Phase | 0.55 kW / 0.75 HP | 20–130 l/min | 14.5–2 m |
| TIGm 0.75 | 2302260 | Single Phase | 0.75 kW / 1 HP | 20–140 l/min | 17.5–2 m |
| TIGm 1.1 | 2305470 | Single Phase | 1.1 kW / 1.5 HP | 20–150 l/min | 22.5–2 m |
| TIGm 1.3 | 2305480 | Single Phase | 1.3 kW / 1.75 HP | 20–250 l/min | 20.5–2 m |
Head shown as the working range from minimum to maximum flow. Performance to Pedrollo 50 Hz data.
Frequently asked questions
What is the difference between the TRITUS-TX and TRITUS-INOX?
The TRITUS-TX is a compact 0.55 kW model in technopolymer with an integrated magnetic float and 5 m cable. The TRITUS-INOX (TIGm) has a cast iron body, 10 m cable and four motor sizes from 0.55 to 1.3 kW for higher heads and flows.
Does it have a float switch?
Yes. All models in this range are single-phase and supplied with a float switch.
How deep can it be installed?
Up to 5 m below water level.
-
