Grundfos KP Pumps
KP 250-A-1 230v 012H6800
- Established 1975
- Trusted by thousands of customers

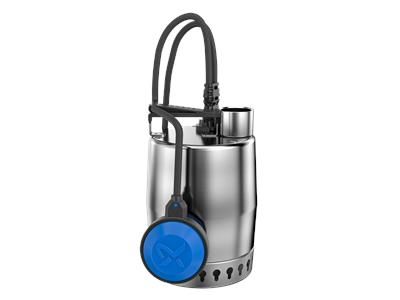

Grundfos UNILIFT KP.250.A.1 submersible drainage pump, 0.25 kW, single-phase
UNILIFT KP is a compact stainless-steel submersible pump designed for pumping non-aggressive water and grey water. It can be used as a portable unit or stationary installation inside and outside buildings. This model has a 0.25 kW single-phase motor.
More about this product
Applications
- Commercial wastewater
- Domestic wastewater
- Industrial wastewater treatment and reuse
Specification
| Model | Grundfos UNILIFT KP.250.A.1 |
|---|---|
| Grundfos part number | 012H6800 |
| Rated head | 5.12 m (0.5 bar) |
| Maximum flow | 187 l/min (11.2 m³/h) |
| Maximum head | 7.5 m (0.74 bar) |
| Rated motor power (P2) | 0.25 kW |
| Supply voltage | 1 x 220-230 V, 50 Hz |
| Rated current | 2.3 A |
| Connections | Rp 1 1/4" |
| Pump housing | Stainless steel |
| Impeller | Stainless steel AISI 304 |
| Liquid temperature | 0 °C to +50 °C |
| Max. ambient temperature | 50 °C |
| Max. particle size | 10 mm |
| Max. installation depth | 7 m |
| Power cable length | 10 m |
| Float switch | Yes, automatic |
| Enclosure | IP68, insulation class F |
| Approvals | UKCA |
| Net weight | 7 kg |
Key features
Frequently asked questions
-
Data Sheet PDFDownload
-
technical PDFDownload
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
You may also need
Clarke Water Pump Components 1 1/4" suction hose
Clarke Water Pump Components 24-36mm hose clips blister (2 pack) 8133710
Multi Stepped Hosetail Allows the connection of 12, 19, 25, 32 and 38mm Flexi Hose
Clarke Delivery Hose – 10m This top quality layflat hose is suitable for use with Clarke 1 1/4" water pumps. Operating pressure 43.5 psi Burst pressure…
Related products
The AP series of Grundfos drainage pumps are designed for temporary and portable installations, but can also be installed on a permanent free-standing basis. The…
Submersible sewage pump with a 40mm solids handling capacity. Cast iron construction suitable for pumping light domestic waste effluent septic tanks and large basements/cellars.
Submersible sewage pump with a 40mm solids handling capacity. Cast iron construction suitable for pumping light domestic waste effluent septic tanks and large basements/cellars.
The KP range of pumps from Grundfos is suitable for both temporary and permanent free-standing installation, as well as installation within a collecting tank. Easy-to-install,…
Submersible pumps specifically designed for uses in narrow pits with dimensions down to 20 cm x 20 cm. Suitable to pump clear water containing particles…
The DAB Nova submersible pumps are designed for domestic use including basement drainage, cesspit water removal, ponds and fountains. Ideal for water up to 10…
Frequently Asked Questions
Quick answers to common questions about the KP 250-A-1 230v 012H6800. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.
What is the Grundfos KP 250-A-1 used for?
The Grundfos UNILIFT KP 250-A-1 is a stainless steel submersible pump for non-aggressive water and grey water, including sump, cellar, tank and pool drainage.
What size particles can the Grundfos KP 250-A-1 handle?
The KP 250-A-1 can handle particles up to 10mm and provides a maximum flow rate of 10.5m³/h and maximum head of 10.5 metres.
Does the Grundfos KP 250-A-1 operate automatically?
Yes. It includes a built-in float switch that automatically starts and stops the pump according to the water level.
What is a submersible pump?
A submersible pump is designed to operate fully submerged in the liquid it is moving. The motor is sealed inside the pump body and cooled by the surrounding water. Submersibles are used for drainage, sewage, septic tanks, deep wells and boreholes, and for raising water from sumps, cellars and floodwater. Many stocked at Anglian Pumping handle solids in suspension.
Can submersible pumps handle solids and sewage?
Yes – some submersibles are designed for clean water only, others handle solids up to 50 mm or full raw sewage. Anglian Pumping stocks ABS, BBC, Flygt and T-T Submersibles ranges that include vortex, single channel and grinder impellers for different solids handling requirements. Always match the pump to the maximum solid size and the type of effluent it will see.
When should I use a submersible pump instead of a surface pump?
Use a submersible when the water level is more than around 8 metres below the pump installation point – surface pumps cannot self-prime beyond that depth. Submersibles are also better when the liquid contains solids, when noise must be minimised, or when the pump needs to operate in confined spaces such as sumps and chambers where a surface pump would not fit.
What types of Grundfos pumps are available?
Grundfos offers circulators, booster pumps, borehole pumps, drainage pumps and other solutions for domestic and commercial systems.
How do I identify the correct Grundfos pump model?
Use the model name and product number on the pump nameplate, then check the electrical, hydraulic and connection specifications.
Can a Grundfos pump improve household water pressure?
A suitably selected Grundfos booster system can improve water pressure or flow, subject to the property’s water supply and installation requirements.
