Ebara Best Pumps
Ebara Best One MA Auto 110v – 1711103203
- Established 1975
- Trusted by thousands of customers

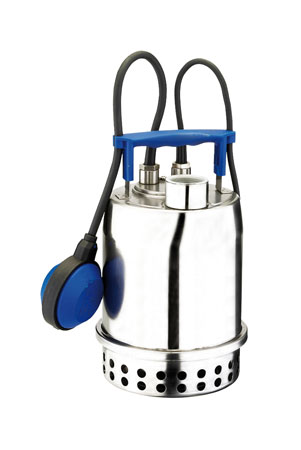

Ebara BEST ONE MA submersible drainage pump, single-phase
The Ebara BEST ONE is a submersible pump in AISI 304 stainless steel with a semi-open impeller, passing solids up to 10 mm. This MA version has a float switch for automatic operation.
More about this product
Applications
- Draining basements, garages and cellars
- Emptying tanks and reservoirs
- Areas subject to flooding
- Garden water features
Specification
| Model | Ebara BEST ONE MA |
|---|---|
| Ebara part number | 1711103203 |
| Supply | 1 x 110 V, 50 Hz (110 V version; Ebara data book covers 230 V and 400 V) |
| Liquid | Clear water, up to +50 °C |
| Maximum solid size | 10 mm |
| Maximum immersion | 2 m with 5 m cable, 5 m with 10 m cable |
| Impeller | Semi-open, AISI 304 |
| Inlet | Strainer |
| Discharge | G 1¼ (UNI ISO 228) |
| Pump casing and casing cover | AISI 304 |
| Shaft | AISI 303 with ceramic-coated AISI 303 sleeve |
| Shaft seals | Oil-lubricated mechanical seal Ceramic/Carbon/NBR (pump side), NBR lip seal (motor side) |
| Motor | Submersible dry type, 2-pole, insulation class F, IP68, AISI 304 casing |
| Level control | Float switch (no maintenance required) |
| Power cable | H05RN-F 3G0.75, 10 m |
Key features
Frequently asked questions
- Discharge: 1¼”
- Best One: Model
- M: 110V ±10%, 50Hz single phase voltage
- A: With floatswitch
Applications
- Draining basements, garages, cellars or places subject to flooding
- Supplying garden fountains
- Easy emptying of tanks and reservoirs
Technical Details
- Standard mechanical seal
- New and revised design and shape
- Technologically and mechanically optimised
- Their versatility means they can be used in fixed or mobile installations
- Equipped with 5 m of H05 RN-F power supply cable for indoor use (10 m for outdoor use), with or without float
Technical Data
- Maximum immersion: 5 m
- Maximum temperature of the liquid: 50°C
- Max. solids size for passage:
– 10 mm
– 20 mm for the VOX version (Vortex) - Asynchronous motor, 2 poles
- Class of insulation F
- IP68 Protection rating
- 110V ±10%, 50Hz single phase voltage, 400 ±10%, 50Hz three phase voltage
- Discharge connection: G1¼
Materials
- External casing, impeller, filter, motor cover, seal housing disc and motor case in AISI 304
- Shaft in AISI 303
- Mechanical seal in Carbon/Ceramic/NBR
-
data sheet PDFDownload
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
You may also need
Clarke Water Pump Components 1″ suction hose
Clarke Water Pump Components 24-36mm hose clips blister (2 pack) 8133710
Clarke Delivery Hose – 10m This top quality layflat hose is suitable for use with Clarke 1 1/4" water pumps. Operating pressure 43.5 psi Burst pressure…
Clarke Delivery Hose – 10m x 1 1/4" This top quality layflat hose is suitable for use with Clarke 1 1/4" water pumps. Operating pressure 43.5…
Frequently Asked Questions
Quick answers to common questions about the Ebara Best One MA Auto 110v – 1711103203. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.
What is a submersible pump?
A submersible pump is designed to operate fully submerged in the liquid it is moving. The motor is sealed inside the pump body and cooled by the surrounding water. Submersibles are used for drainage, sewage, septic tanks, deep wells and boreholes, and for raising water from sumps, cellars and floodwater. Many stocked at Anglian Pumping handle solids in suspension.
Can submersible pumps handle solids and sewage?
Yes – some submersibles are designed for clean water only, others handle solids up to 50 mm or full raw sewage. Anglian Pumping stocks ABS, BBC, Flygt and T-T Submersibles ranges that include vortex, single channel and grinder impellers for different solids handling requirements. Always match the pump to the maximum solid size and the type of effluent it will see.
When should I use a submersible pump instead of a surface pump?
Use a submersible when the water level is more than around 8 metres below the pump installation point – surface pumps cannot self-prime beyond that depth. Submersibles are also better when the liquid contains solids, when noise must be minimised, or when the pump needs to operate in confined spaces such as sumps and chambers where a surface pump would not fit.
