DAB Automatic Station

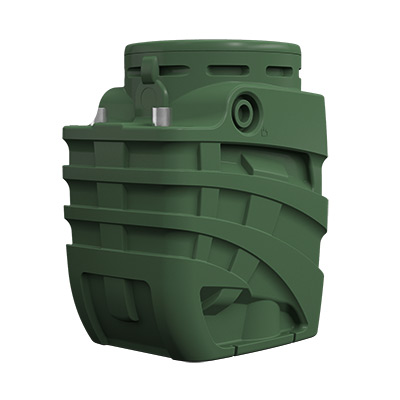

DAB Fekafos 280 draining tank 60162044
- Established 1975
- Trusted by thousands of customers
FEKAFOS range automatic lifting stations are suitable for collecting and lifting clear, rain and waste water from washing machines, sinks and WCs in systems installed at a lower level than the sewer, in locations such as garages or basements. Models are compact and easy to install.
They are ideal for homes and other residential properties. The FEKAFOS is designed for use with one or two (double models) non-automatic singlephase or three-phase pumps without float switch, which must be ordered separately together with the control panel.
Fekafos 280 includes a polypropylene pipe kit instead of galvanized iron to solve any corrosion problems that may arise (the pipe kit is also available separately for the old Fekafos 280 models).
More about this product
APPLICATIONS
Pump station useful for the collection and transport in sewer of domestic waste water (sewage, rainwater and grey water), from basements or garages of one or more housing units, when the drainage system cannot be achieved by gravity.
CONSTRUCTIVE CHARACTERISTICS
CAPACITY: 280 lt
MATERIAL: LLDPE
REGULATIONS: 12050-1
CONNECTIONS:
– Input DN 50/110
– Ventilation DN 50
– Output G2”
COMPONENTS INCLUDED:
– A lifting device DSD2” and anti-rotation bracket for FEKA VS e VX
– 4 Cables gland for single pump and floats
– Connection 2” F x 1 x 1/4 M for FEKA 600
– Floating cable clamp kit FEKA VS e VX
– 2 Floats and floatin alarm support
COMPONENTS EXCLUDED:
– Pump: to be selected according to the configuration possibilities
– Control panel: to be selected according to the configuration possibilities
– Max switching float alarm
