DAB DTRON Pumps

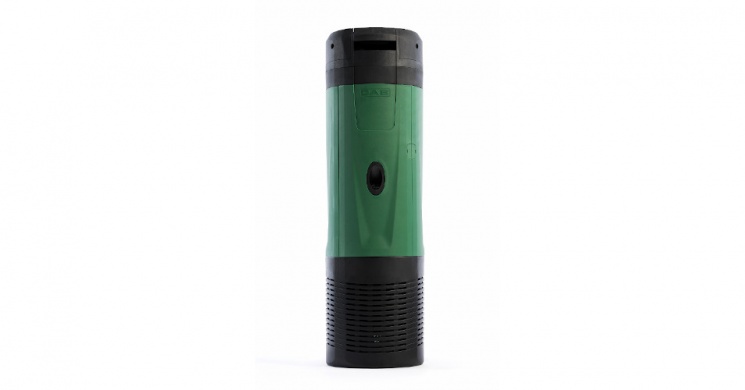

DAB DTRON 2 35/120 WRAS (1~ 230V) – 60197733
- Established 1975
- Trusted by thousands of customers
DTron is DAB’s new line of electronically switched submersible pumps for water pressurization in residential environments.
DAB DTRON Pump Models
- DAB DTRON 2 – Standard model without detailed interface.
- DAB DTRON 3 – Same as DTRON 2 but with added water level gauge and the ability for smart control using a COM BOX screen or a 'DConnect Box 3' connecting to a smartphone app.
DAB DTron pumps are 7-inch submersible electronic multi-impeller pump designed for use in wells, cisterns or tanks. It can be used submerged, partially submerged or installed on the surface with a DOC68 (supplied separately). The DTron is suitable for use in residential building services to increase water pressure, reuse rainwater in gardens or even irrigate small vegetable gardens. It integrates the electronics for automatic switching on and off, a double mechanical seal in an oil chamber, a non-return valve and a handle for transport. The electronic operation also protects against the dry run. The integrated expansion vessel protects from water hammer, an additional expansion vessel is not required. It is possible to connect a float without compromising the watertight of the pump thanks to the NFC (Near Field Communication) pocket.
DTRON Formats and Applications:
- DTRON DRY VERSION – For surface installation installed out of the water using Doc68 adaptor.
- DTRON STANDARD VERSION – For in-tank installations.
- DTRON X VERSION – For well installations, a floating pickup means dust and debris will no longer be a problem.
WRAS, ACS, NSF Approved.
More about this product
7" submersible electronic multi-impeller pump designed for use in water wells, tanks or cisterns. The pump is suitable for use in residential building service for pressurization, rainwater reuse and gardening and irrigation. It integrates the electronics for automatic switching on and off, a double mechanical seal in an oil chamber, a non-return valve and a handle for transport. Electronic operation also protects against the dry run. Built with a innovative modular design: the hydraulic part, the motor, the electrical part and the filter can be disassembled separately, simplifying the maintenance activity. The suction height is adjustable from the bottom up to 8 cm using the special accessory supplied as standard. A float can be connected without compromising the water tightness of the pump thanks to the NFC pocket. The integrated expansion vessel protect from water hammer, an additional expansion vessel is not required. The cable has a quick coupling for easier installation inside the tank/cistern. The pump is also available in X version with 1" intake and kit X which includes 1 meter suction hose and float to prevent the suction of impurities from the bottom. The whole pump is classified as IP 68. With the accessory DOC68 (supplied separately) becomes a surface pump to be used under the water level.
TECHNICAL DATA
- Flow rate maximum: 7,5 m3/h
- Head up to: 45 m
- Maximum immersion depth: 7/12 m
- Type of pumped liquid: Clean, free from solid or abrasive substances,non-viscous, non-aggressive, non-crystallized and chemically neutral
- Free passage: 2 mm
- Minimum suction depth: 110 mm
- Minimum level of water: 35 mm
- Liquid temperature range: from +0°C to +50°C
- Minimum and maximum ambient temperature: <0°C / +50°C
- Maximum immersion depth: 15 m
- Set cut-in: 2,4 bar (±0,2)
- Flanges, thread: Thread 1” 1/4
- Pump maximum diameter: 185 mm
- Impeller/s material: Technopolymer/ AISI 304 stainless steel
- Maximum number of starts: 60/h
- Non-stop service: yes
- Protection class: IP 68
- Motor insulation class: F
- Power cable (m) and plug: 10/15 m with plug
- Single phase power input: 230 V 50 Hz
- Possible type of installation: Fixed, horizontal or vertical. Submergedor semi-submerged. It can be installed on the surface, under the waterlevel, or outside in a vertical position with the DOC68 accessory (supplied separately).
-
Brochure PDFDownload
-
Instructions PDFDownload
-
Data Sheet PDFDownload
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
Related products
Lowara DIWA pumps Submersible pumps for dirty water manufactured in AISI 304 stainless steel. Four basic models with 0.55 (0.75 HP) to 1.5 kW (2HP) rated power.…
Submersible pumps specifically designed for uses in narrow pits with dimensions down to 20 cm x 20 cm. Suitable to pump clear water containing particles…
The Clarke PSD1A stainless steel pump designed to clear water from ponds and pools. Suitable for operating waterfalls, fountains, irrigating gardens and draining cellars. Includes a…
Grundfos are known throughout the drainage world for their high quality construction and easy-to-use products. The AP series is one of their most popular, offering…
This self-priming submersible pump can be used for continous running and provides top quality general duty for clean water pumping. The strong, durable, double insulated…
Submersible sewage pump with a 40mm solids handling capacity. Cast iron construction suitable for pumping light domestic waste effluent septic tanks and large basements/cellars.
Frequently Asked Questions
Quick answers to common questions about the DAB DTRON 2 35/120 WRAS (1~ 230V) – 60197733. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.
What is a submersible pump?
A submersible pump is designed to operate fully submerged in the liquid it is moving. The motor is sealed inside the pump body and cooled by the surrounding water. Submersibles are used for drainage, sewage, septic tanks, deep wells and boreholes, and for raising water from sumps, cellars and floodwater. Many stocked at Anglian Pumping handle solids in suspension.
Can submersible pumps handle solids and sewage?
Yes – some submersibles are designed for clean water only, others handle solids up to 50 mm or full raw sewage. Anglian Pumping stocks ABS, BBC, Flygt and T-T Submersibles ranges that include vortex, single channel and grinder impellers for different solids handling requirements. Always match the pump to the maximum solid size and the type of effluent it will see.
When should I use a submersible pump instead of a surface pump?
Use a submersible when the water level is more than around 8 metres below the pump installation point – surface pumps cannot self-prime beyond that depth. Submersibles are also better when the liquid contains solids, when noise must be minimised, or when the pump needs to operate in confined spaces such as sumps and chambers where a surface pump would not fit.
