Calpeda E-MPS M Submersible Multi-Stage Pump 240V

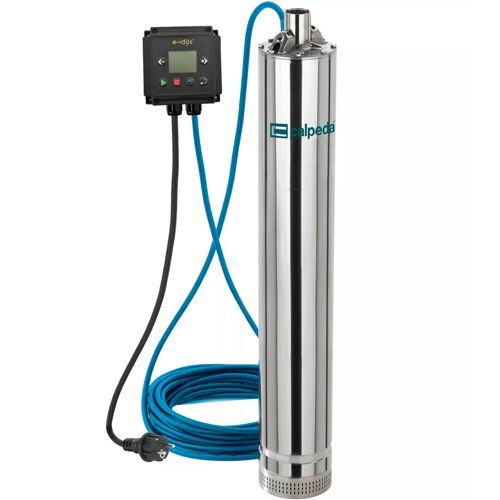

Calpeda E-MPSM 306-PCD 5″ Submersible Multi-Stage Pump 240V T76G03061000
- Established 1975
- Trusted by thousands of customers
The Calpeda E-MPSM range features a series of close-coupled multi-stage submersible pumps. They are an easy-to-install option with a built-in capacitor, accessible through the delivery casing, and a suction strainer for preventing the entrance of solids with a bigger diameter than 2mm. This pump is perfect for applications such as water supplies from wells, tanks, or reservoirs, for domestic, civil, and industrial applications, and as part of garden systems, irrigation, and rain water harvesting systems.
More about this product
- Close-coupled multi-stage submersible pumps
- Easy to install
- Compact
- Plug and play with integrated pressure transducer for automatic control of starting and stopping of the pump when utilisation points are opened/closed with an integrated non-return valve
- External jacket in stainless steel AISI 304 and stages Noryl
- Built-in capacitor, which is accessible through the delivery casing
- Hydraulics located below the motor with the motor cooled by the pumped fluid
- Safe operation possible with the motor only partially submerged
- Double shaft seal with oil chamber
- Suction strainer prevents the entrance of solids with diameter bigger than 2mm
- Water temperature: 35°C
- Minimum internal diameter of well: 140mm
- Minimum immersion depth: 100mm
- Maximum immersion depth: 20m (with suitable cable length)
- Continuous duty possible
- High efficiency asynchronous single-phase motor
- Capacitor less stressed in voltage
- Uniform and lower motor temperature
- Motor power control
- Programmable re-start pressure
- Programmable stop pressure
- No hydraulic losses due to the measuring devices
- Voltage and current control
- Monitoring of maximum starting current
- Dry-run protection
- Overload control and overheating motor control
- Pump blockage
- Power supply control
- Starts per hour control
-
Data Sheet PDFDownload
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
Related products
The Ebara Best One MA is a submersible electric pump for clean water with maximum solid sizes of 10mm in 304 stainless steel. Applications -…
Ebara Igrogo The Ebara Idrogo range is a 5″ submersible electric pump for wells and clean water pressure boosting. Common applications include garden watering, irrigation, general domestc…
This self-priming submersible pump can be used for continous running and provides top quality general duty for clean water pumping. The strong, durable, double insulated…
DOMO series, stainless steel electric pumps, are available with twin-channel or vortex impeller (DOMO VX). Designed to handle suspended solids up to 50mm in diameter…
The Clarke HSE pumps suitable for pump both dirty and clean water.
Submersible sewage pump with a 40mm solids handling capacity. Cast iron construction suitable for pumping light domestic waste effluent septic tanks and large basements/cellars.
Frequently Asked Questions
Quick answers to common questions about the Calpeda E-MPSM 306-PCD 5″ Submersible Multi-Stage Pump 240V T76G03061000. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.
What is a submersible pump?
A submersible pump is designed to operate fully submerged in the liquid it is moving. The motor is sealed inside the pump body and cooled by the surrounding water. Submersibles are used for drainage, sewage, septic tanks, deep wells and boreholes, and for raising water from sumps, cellars and floodwater. Many stocked at Anglian Pumping handle solids in suspension.
Can submersible pumps handle solids and sewage?
Yes – some submersibles are designed for clean water only, others handle solids up to 50 mm or full raw sewage. Anglian Pumping stocks ABS, BBC, Flygt and T-T Submersibles ranges that include vortex, single channel and grinder impellers for different solids handling requirements. Always match the pump to the maximum solid size and the type of effluent it will see.
When should I use a submersible pump instead of a surface pump?
Use a submersible when the water level is more than around 8 metres below the pump installation point – surface pumps cannot self-prime beyond that depth. Submersibles are also better when the liquid contains solids, when noise must be minimised, or when the pump needs to operate in confined spaces such as sumps and chambers where a surface pump would not fit.
