ABS MF154-334 Pumps
ABS MF154 W01*10P 230v Manual
Our Price
£457.21 Inc Vat
£381.01 Ex Vat
In stock
- Established 1975
- Trusted by thousands of customers
ABS MF154 W01*10P 230v Manual

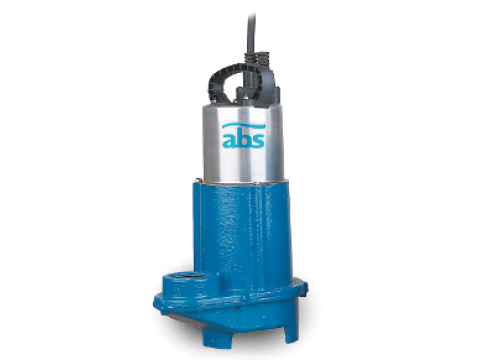

The MF154 W01*10P from ABS comes as a compact submersible pumps with large solids passage for the reliable and effective dewatering of buildings and sites
Applications
- Filling and emptying of containers to the drainage of flooded cellars and removal of rainwater.
- Suitable for use in septic tanks and pumping effluent from locations below the backwash level in accordance with EN 12056.
- The compact shape of the MF, fittings for easy mounting, and small sump requirements ensure a quick and cost-effective installation of the pump.
- Maximum allowable temperature is 40 °C, or short term up to 60 °C (max. 5 minutes).
Features
- Vortex hydraulics for blockage-free pumping in critical applications.
- Mechanical and lip seals on rotor shaft.
- Thermal sensors to protect motor against overheating.
- KS version with float switch for automatic level control.
- EasyFit plug-in cable connection.
- Single-phase fitted with Schuko plug; three-phase with CEE plug.
More about this product
Technical Data
- Discharge connection – G 1½”-1¼”
- Motor power
From Mains – 0.65kW
From Motor Shaft – 0.42 kW - Speed (r/min) – 2900
- Rated Voltage – 230V
- Rated Current – 2.8A
- Cable Type (H07RN-F) – F3G1.0
- Cable Length – 10 Meters
- Weight – 8.5kg
- Solids Size – 20mm
Materials
- Upper Lid – Stainless steel 1.4301 (AISI 304)
- Motor Housing – Cast iron EN-GJL-250
- Rotor Shaft – Stainless steel 1.4021 (AISI 420)
- Volute – Cast iron EN-GJL-250
- Impeller – Polyamide
- Cable – Neoprene
- Fasteners – Stainless steel 1.4401 (AISI 316)
-
data sheet PDFDownload
-
dimensions PDFDownload
