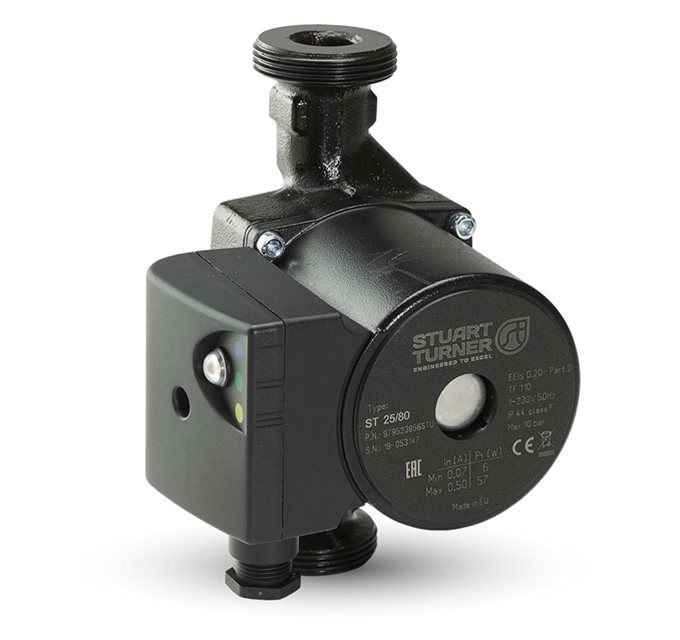

Stuart Turner ST 25/80 (180) Circulator 230V 47075
The Stuart ST 25/80 Circulator features the latest in high efficiency technology offering an EEI rating of just 0.20 and proportional pressure control.
More about this product
Overview
The Stuart ST 25/80 Circulator features the latest in high efficiency technology offering an EEI rating of just 0.20 and proportional pressure control.
For use in new systems or as a replacement unit, this cast iron circulator is suitable for heating systems.
Min. inlet pressure 0.05 bar <75 oC (fluid temperature) 0.28 bar <90 oC (fluid temperature).
Power supply / phase / frequency 230 V a.c. / 1 / 50 Hz.
Key features
- General Guarantee 5 year
- Pump type Centrifugal
- Speed settings 3
- Pump body Cast iron
- Impeller Noryl
- Bearings Ceramic
- Pump connections Rp 1½ ”
- Type Canned rotor
- Duty rating Continuous (S1)
- Power consumption 57 Watts (max.)
- Current (full load) 0.5 Amps
- Fuse rating 5 Amps
- Insulation class F
- Efficiency 36 %
- Enclosure protection IP44
- Length 130 mm
- Width 125 mm
Specification
| Product | Stuart Turner ST 25/80 (180) Circulator 230V 47075 |
|---|---|
| Power | 57 W |
| Supply | 230 V |
| Max. flow | 75 l/min |
| Max. head | 8 m |
| Weight | 2.4 kg |
| Protection | IP44 |
Features
• ECM permanent magnet technology
• Constant speed (3 settings)
• Proportional pressure control
• Automatic venting cycle
• Robust cast iron housing
• Continuously rated
• Ceramic bearings
• 180 mm fitting length
• EuP/ErP compliant
Application
• With a maximum performance of
4.5 m3/h and maximum head of 5.8 metres
the ST 25/80 is a competitive solution to
most domestic heating water return loop systems
-
Data Sheet PDFDownload
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
Frequently Asked Questions
Quick answers to common questions about the Stuart Turner ST 25/80 (180) Circulator 230V 47075. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.
What types of Stuart Turner pumps are available?
Stuart Turner offers products for shower boosting, domestic water pressure improvement and mains water boosting systems.
Are Stuart Turner pumps suitable for low water pressure?
Selected Stuart Turner products are designed to improve pressure or flow, but the correct model depends on the supply arrangement.
How do I select a Stuart Turner replacement pump?
Match the existing model, system type, positive or negative head requirements, voltage and required performance.
