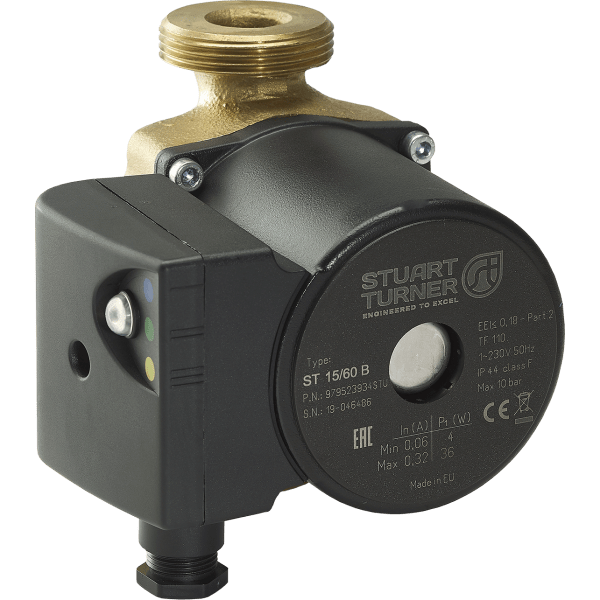

Stuart Turner ST 15/60 B (130) Circulator 230V 47074
The Stuart ST 15/60 B Circulator features the latest in high efficiency technology offering an EEI rating of just 0.18 and proportional pressure control.
More about this product
Overview
The Stuart ST 15/60 B Circulator features the latest in high efficiency technology offering an EEI rating of just 0.18 and proportional pressure control.
For use in new systems or as a replacement unit, this bronze circulator is suitable for domestic hot water recirculation and heating systems.
Min. inlet pressure 0.05 bar <75 oC (fluid temperature) 0.28 bar <90 oC (fluid temperature).
Power supply / phase / frequency 230 V a.c. / 1 / 50 Hz.
Key features
- General Guarantee 3 year
- Pump type Centrifugal
- Speed settings 3
- Pump body Bronze
- Impeller Noryl
- Bearings Ceramic
- Pump connections Rp 1½ ”
- Type Canned rotor
- Duty rating Continuous (S1)
- Power consumption 36 Watts (max.)
- Current (full load) 0.32 Amps
- Fuse rating 5 Amps
- Insulation class F
- Efficiency 38 %
- Enclosure protection IP44
- Length 132 mm
- Width 125 mm
Specification
| Product | Stuart Turner ST 15/60 B (130) Circulator 230V 47074 |
|---|---|
| Power | 36 W |
| Supply | 230 V |
| Max. flow | 55 l/min |
| Max. head | 5.8 m |
| Weight | 2.2 kg |
| Protection | IP44 |
Features
• ECM permanent magnet technology
• Constant speed (3 settings)
• Proportional pressure control
• Automatic venting cycle
• Robust cast iron housing
• Continuously rated
• Ceramic bearings
• 130 mm fitting length
• EuP/ErP compliant
Application
• With a maximum performance of
3.3 m3/h and maximum head of 5.8 metres
the ST 15/60 B is a competitive solution to
most domestic hot water recirculation systems
-
