Grundfos Shower Amazon Negative
Grundfos STN-4.0B 4.0bar Amazon Brass Negative Head Shower Pump 96788176
- Established 1975
- Trusted by thousands of customers

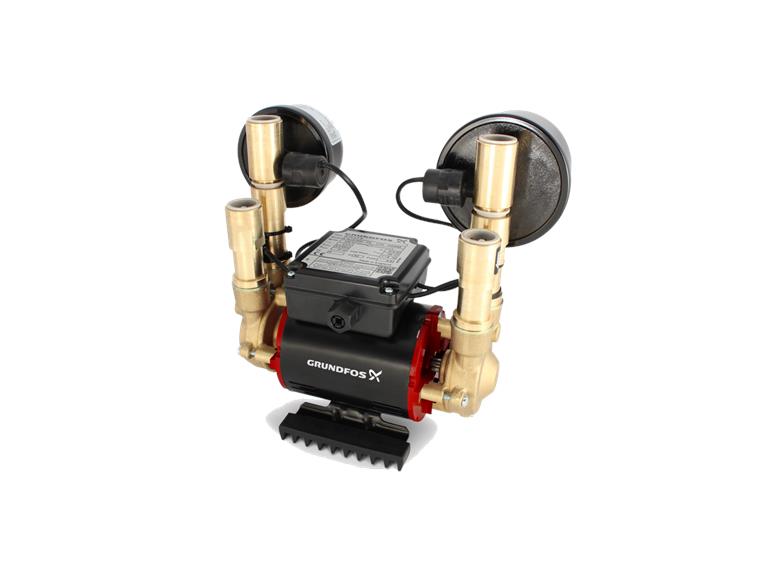

Grundfos STN-4.0 B 4.0 bar twin universal (negative/positive head) shower pump
Twin-impeller pump that boosts both the hot and cold supply to a shower from a gravity-fed system. Universal model: works with negative head (shower head above the cold water tank) as well as positive head.
More about this product
Applications
- Showers on gravity-fed (tank and cylinder) systems
- Mixer showers needing hot and cold boosted
- Bathrooms where the shower head is above the cold tank
Specification
| Model | Grundfos STN-4.0 B |
|---|---|
| Grundfos part number | 96788176 |
| Range | Amazon |
| Configuration | Twin impeller, universal (negative or positive head) |
| Nominal boost | 4.0 bar |
| Maximum head | 40 m (3.92 bar) |
| Rated flow | 10 l/min (0.6 m³/h) at 35.9 m |
| Max. power input | 790 W |
| Supply voltage | 1 x 230 V, 50 Hz |
| Rated current | 3.6 A |
| Connections | 22 mm push fit |
| Pump housing | Brass |
| Max. liquid temperature | 60 °C |
| Max. system pressure | 6 bar |
| Enclosure | IPX2, insulation class F |
| Net weight | 12.2 kg |
Key features
Frequently asked questions
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
Frequently Asked Questions
Quick answers to common questions about the Grundfos STN-4.0B 4.0bar Amazon Brass Negative Head Shower Pump 96788176. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.
What types of Grundfos pumps are available?
Grundfos offers circulators, booster pumps, borehole pumps, drainage pumps and other solutions for domestic and commercial systems.
How do I identify the correct Grundfos pump model?
Use the model name and product number on the pump nameplate, then check the electrical, hydraulic and connection specifications.
Can a Grundfos pump improve household water pressure?
A suitably selected Grundfos booster system can improve water pressure or flow, subject to the property’s water supply and installation requirements.
