Calpeda SPAM Pumps 240V
CALPEDA SPAM 41 1.5HP SELF-DRAINING WHIRLPOOL PUMP 240V
- Established 1975
- Trusted by thousands of customers

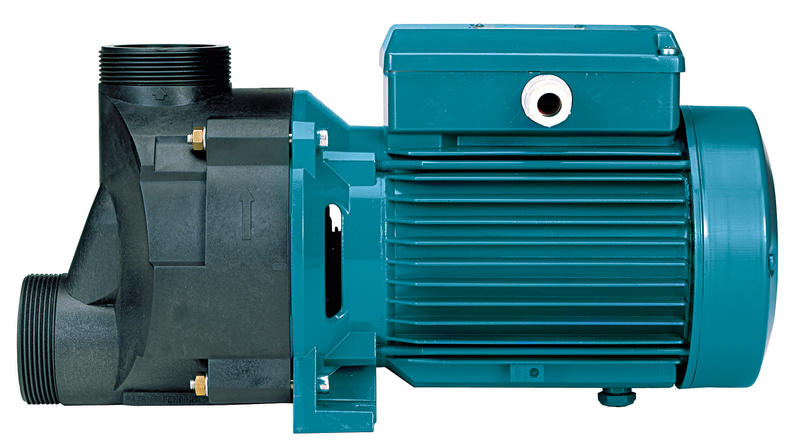

Calpeda SPAM 41 is a Calpeda self-draining whirlpool pump for spas, hydromassage baths and whirlpool tubs. It delivers up to 300 l/min (18 m³/h) and a maximum head of 17.3 m (1.7 bar), driven by a 1.1 kW motor (single-phase 230 V 50 Hz).
It is a compact single-impeller pump made from corrosion-resistant plastics with a stainless steel diffuser, and the motor is insulated from the pumped water. The mechanical seal does not touch the shaft, for extra safety.
More about this product
Calpeda SPAM 41 overview
Calpeda SPAM 41 is a Calpeda self-draining whirlpool pump for spas, hydromassage baths and whirlpool tubs. It delivers up to 300 l/min (18 m³/h) and a maximum head of 17.3 m (1.7 bar), driven by a 1.1 kW motor (single-phase 230 V 50 Hz).
It is a compact single-impeller pump made from corrosion-resistant plastics with a stainless steel diffuser, and the motor is insulated from the pumped water. The mechanical seal does not touch the shaft, for extra safety.
Specifications
| Model | Calpeda SPAM 41 |
|---|---|
| Motor power (P2) | 1.1 kW (1.5 HP) |
| Max. power input (P1) | 1.6 kW |
| Supply | Single-phase 230 V 50 Hz, thermal protector |
| Rated current | 7 A at 230 V |
| Max. flow | 300 l/min (18 m³/h) at 7.7 m |
| Max. head | 17.3 m (1.7 bar) |
| Connections | G 2¼ (ISO 228) union couplings with Ø 50 mm cemented joint |
| Water temperature | up to 60 °C |
| Ambient temperature | up to 40 °C |
| Max. pressure in the pump casing | 2.5 bar |
| Duty | Continuous |
| Motor | 2-pole, 50 Hz, approx. 2800 rpm, insulation class F, IP X5 |
| Weight | 15.5 kg |
Performance
| Flow (l/min) | Flow (m³/h) | Head (m) | Pressure (bar) |
|---|---|---|---|
| 0 (shut-off) | 0 | 17.3 | 1.7 |
| 50 | 3 | 16.5 | 1.6 |
| 100 | 6 | 15.3 | 1.5 |
| 150 | 9 | 14 | 1.4 |
| 200 | 12 | 12.4 | 1.2 |
| 216 | 13 | 11.8 | 1.2 |
| 266 | 16 | 9.5 | 0.9 |
| 283 | 17 | 8.6 | 0.8 |
| 300 | 18 | 7.7 | 0.8 |
Construction and features
- Self-draining single-impeller pump
- Corrosion-resistant plastic construction with stainless steel diffuser (AISI 316)
- Motor insulated from the pumped water
- Mechanical seal without contact with the shaft
- Compact design, 158 mm wide
- PVC connections: cemented joint with external thread for union coupling
Materials
| Component | Material |
|---|---|
| Pump casing | ABS |
| Impeller | PPO-GF30 (Noryl) |
| Diffuser wall with wear ring | Stainless steel AISI 316 |
| Mechanical seal | Ceramic alumina / carbon / FPM |
Applications
- Spas
- Hydromassage bathtubs
- Whirlpool baths
Frequently asked questions
Technical data: Calpeda SPA data sheet (2015 edition). Performance tolerances to UNI EN ISO 9906.
-
Instructions PDFDownload
-
Data Sheet PDFDownload
