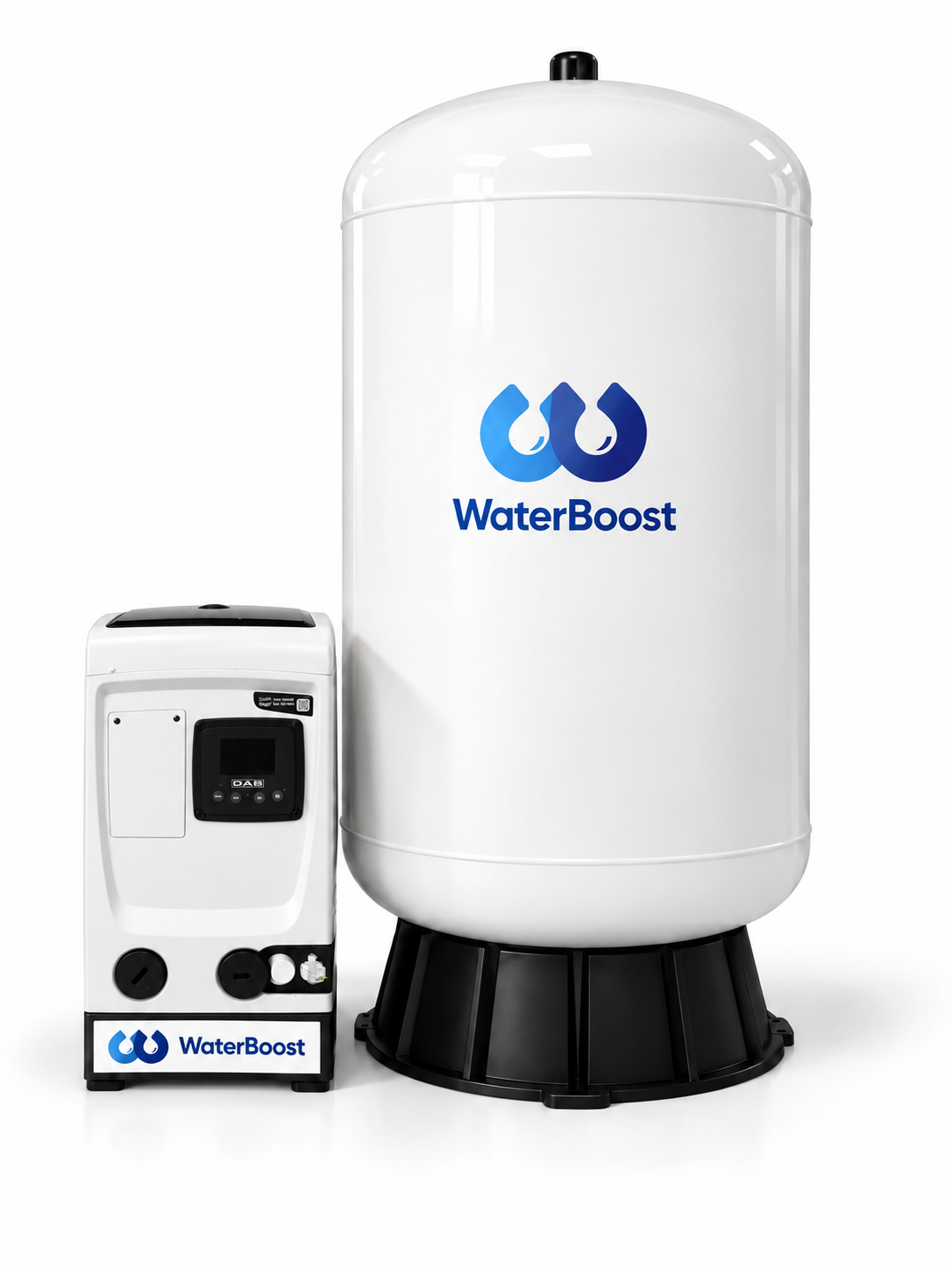

WaterBoost ATX Whole-House Mains Pressure Booster
WaterBoost ATX- 450 4.5 Bar Whole House Pressure Booster
- Established 1975
- Trusted by thousands of customers
The WaterBoost ATX-450 4.5 is the high-pressure version of the ATX-450 integrated accumulator booster — the highest-capacity model in the range. It connects directly to the incoming cold water mains, combining a 450-litre sealed accumulator vessel with the WB-Compact 4.5 variable speed pump in a single unit — charging the vessel up to 4.5 bar and boosting both pressure and flow throughout the property the moment a tap or shower is opened. No break tank, no overflow arrangement, just two water connections required.
The system delivers a peak burst flow of up to 80 l/min and up to 36 l/min at up to 4.5 bar for up to 11 minutes — before settling to a continuous boosted flow of 12 l/min at 3.0 bar until the vessel recharges. The 450-litre vessel provides 270 litres of useable working capacity. Variable speed inverter technology means the pump only generates the pressure your mains can’t already deliver, keeping running costs to a genuine minimum. Operation is measured at a quiet 40 dB(A). WiFi via the DAB H2D app enables remote monitoring and control, with a Power Shower mode for when you want everything the system has. A mains bypass fits in seconds using 2 clips if the unit ever requires attention.
WRAS approved product — continuous flow stays within the water authority limit of 12 l/min. Fully sealed system — zero air contact with stored water, no hygiene management required. Completely maintenance free. Suited to 3-4+ bed homes, high-demand properties, rain heads, body jets, top-floor bathrooms or an unvented cylinder that wants more than 3 bar can give. 5-year tank warranty, 3-year pump warranty. If 3.2 bar is enough, see the standard ATX-450; step down to the ATX-300 4.5 for smaller properties.
3yr pump
WiFi · H2D app
WRAS approved
Zero maintenance
Sealed — no air contact
Variable speed
450L · 270L useable
No overflow
Dry run protection
Bypass fits with 2 clips
More about this product
3yr pump
What is the ATX-450 4.5?
The WaterBoost ATX-450 4.5 is the highest-capacity high-pressure model in the ATX integrated accumulator booster range. It connects directly to your incoming cold water mains supply, combining a 450-litre sealed accumulator vessel with the WB-Compact 4.5 variable speed pump — the most powerful direct mains booster in the WaterBoost range — in a single unit. The pump charges the vessel up to 4.5 bar; open a tap or shower and the system boosts both pressure and flow throughout the property instantly. No break tank, no overflow arrangement, and just two water connections required.
The 450-litre vessel provides 270 litres of useable working capacity, enabling the ATX-450 4.5 to sustain a boosted flow of 36 l/min at up to 4.5 bar for up to 11 minutes — sufficient for three bathrooms in simultaneous use, with rain heads and body jets performing as intended — before the vessel recharges automatically. Peak burst flow at the moment of demand is up to 80 l/min. Once the stored volume is exhausted, the system continues to deliver a boosted 12 l/min at 3.0 bar until demand ceases and the vessel refills.
Why 4.5 bar?
Most homes are happy at 3 bar. Some aren’t: a rain head or body jets that need real pressure to perform, a top-floor bathroom in a three-storey house where every metre of rise costs a tenth of a bar, or an unvented cylinder whose inlet group wants more than the mains can give. The standard ATX tops out at 3.2 bar. The ATX-450 4.5 charges the same vessel up to 4.5.
Energy efficiency — only boosts what your mains can’t deliver
The WB-Compact 4.5’s variable speed inverter continuously measures incoming mains pressure and adjusts its output to produce only the shortfall. If your mains delivers 1.5 bar and your target is 4.5 bar, the pump generates 3 bar. If your mains delivers 2.5 bar, the pump generates 2 bar. No wasted energy, no fixed worst-case output.
This is a fundamental advantage over water storage tank boosters, which run at the same full output regardless of what the mains already provides. Running costs with the ATX-450 4.5 reflect exactly what is needed — nothing more.
Sealed system — zero air contact with your water
The ATX operates as a fully closed pressurised circuit from mains inlet to outlet. The accumulator vessel is sealed and pressurised — there is no open water surface, no air gap, and no point at which atmospheric air contacts the stored water. This is a fundamentally different design to an open storage tank system, with important advantages for water quality and safety.
The WB-Compact 4.5 is WRAS approved for direct mains connection, and the vessel is WRAS approved for potable water. The complete system carries WRAS approval.
✗ Open water surface — air, dust and debris can enter
✗ Requires periodic tank cleaning and inspection
✗ Overflow pipe required — ongoing hygiene risk point
✗ Water sits static — Legionella risk management may apply
✓ Fully sealed vessel — zero air contact with water
✓ No open surface, no dust or debris ingress
✓ No overflow pipe required
✓ WRAS approved product
WRAS approved product. Confirms the system meets UK Water Supply (Water Fittings) Regulations, is safe for use with potable water, and will not cause contamination of the mains supply. Continuous flow is capped at 12 l/min in line with water authority requirements.
Zero maintenance — fit it and forget it
The ATX is a completely maintenance-free system. There are no consumable parts, no filters to replace, no annual service requirements and no engineer visits needed. The sealed design removes the hygiene maintenance obligations of open storage, and the pump’s automatic pressure sensing, dry run protection and anti-seize exercise function mean the system manages its own long-term health automatically.
What happens after installation
| Day 1 — Installation | Two water connections. Unit installed and commissioned. That’s it. |
| Year 1 — Nothing | No service visit. No filter change. No tank clean. System self-monitors via the H2D app. |
| Year 2 — Nothing | Anti-seize function runs automatically during low-demand periods. No action required. |
| Years 3 & 4 — Nothing | Pump warranty active. Dry run protection monitoring. Still no maintenance. |
| Year 5 — Warranty | 5-year tank warranty still in force. System continues to operate without scheduled maintenance. |
⚡
30-second pump swap — unique dock system
If a pump replacement is ever needed, the ATX dock system allows the pump unit to be removed and replaced in under 30 seconds using two clips — no draining, no tools, no plumber required. The built-in full-bore bypass keeps the property on mains supply throughout.
How it works — two-phase operation
The ATX-450 4.5 stores a ready supply of pressurised water in its 450-litre accumulator vessel, charged up to 4.5 bar. When demand occurs, it delivers instant high-flow boosted water immediately, then continues at a sustained flow once the stored volume is used, before recharging automatically.
Phase 1 — Stored volume
Instant high-flow boost
36 l/min
at up to 4.5 bar — for up to 11 minutes
Delivered directly from the accumulator charged up to 4.5 bar. Sufficient for three bathrooms in simultaneous use.
Phase 2 — Continuous mains
Sustained boosted flow
12 l/min
at 3.0 bar — continuous
Once stored volume is exhausted, the WB-Compact 4.5 continues boosting direct from the mains at its real-world output. Vessel recharges up to 4.5 bar automatically when demand stops.
How it compares — WaterBoost ATX-450 4.5 vs Stuart Turner Stormboost 450
Both systems target the same market — high-capacity direct mains boosters for large, multi-bathroom homes.
| Feature | WaterBoost ATX-450 4.5 | Stuart Turner Stormboost 450 |
|---|---|---|
| Max pressure | Up to 4.5 bar ✔ | 3 bar |
| Pump type | Variable speed inverter ✔ | Fixed speed induction motor |
| Energy efficiency | Only boosts the shortfall ✔ | Fixed output regardless of mains |
| Sealed system | Fully sealed — zero air contact | Fully sealed — zero air contact |
| Noise | 40 dB(A) rated ✔ | Quiet — no dB rating stated |
| WiFi / App | DAB H2D app ✔ | No |
| Overflow required | No ✔ | No |
| Maintenance bypass | 2-clip fit — 30 seconds ✔ | Integral bypass |
| Maintenance required | Zero — maintenance free ✔ | Periodic maintenance advised |
| Warranty | 5yr tank · 3yr pump ✔ | 3 years total |
Technical specifications
| Brand / Model | WaterBoost — ATX-450 4.5 |
| System type | Integrated accumulator booster — direct mains, up to 4.5 bar |
| Pump | WaterBoost WB-Compact 4.5 (ACM series), variable speed inverter |
| Water connections | 2 — inlet & outlet, 1″ BSP |
| Accumulator capacity | 450 litres total · 270 litres useable working capacity |
| Max pressure | Up to 4.5 bar |
| Peak burst flow | Up to 80 l/min |
| Sustained boosted flow | 36 l/min at up to 4.5 bar for up to 11 minutes |
| Continuous flow (post-discharge) | 12 l/min at 3.0 bar |
| Noise level | 40 dB(A) |
| Dimensions | 1,822 mm high × 662 mm diameter · 935 mm total width with pump alongside · pump 439 × 263 × 236 mm |
| Weight (empty / filled) | ~84 kg / ~534 kg — confirm floor loading before install |
| WiFi / connectivity | Yes — DAB H2D app |
| Sealed system | Yes — no overflow required |
| Air contact with water | None — fully sealed pressurised vessel |
| WRAS approved | Yes — pump approved for direct mains connection; vessel approved for potable water |
| Dry run protection | Yes — built in |
| Anti-seize exercise function | Yes — automatic |
| Maintenance bypass | Full-bore bypass, fitted in under 30 seconds using 2 clips |
| Maintenance required | None — completely maintenance free |
| Suited to | 3-4+ bed homes · high-demand properties · three bathrooms in simultaneous use · rain heads and body jets · top-floor bathrooms · combi-boiler properties · unvented cylinder systems |
| Warranty | 5-year tank · 3-year pump |
Flow rates are dependent on incoming mains supply. Continuous flow of 12 l/min at 3.0 bar applies after stored volume is exhausted.
Frequently asked questions
Is 4.5 bar too much for my appliances?
For most, no. Combis and unvented cylinders are typically rated to 4.5–6 bar and have their own pressure reducing valve set at 3, so they see what they’re designed for. Anything downstream rated below 4.5 bar needs its own PRV — check the label on older appliances. If you’d rather not, the standard ATX-450 runs at 3.2 bar.
Why does the continuous flow drop to 3.0 bar?
The 4.5 bar is what the vessel is charged up to, and what you get while stored water is discharging — up to 11 minutes of full use. Once the vessel is empty the pump is boosting the mains alone, and its real-world output is 12 l/min at 3.0 bar. That’s still a full boost, and the vessel recharges up to 4.5 as soon as demand stops.
Is the ATX-450 4.5 the right size for my property?
It’s suited to 3-4+ bed homes and high-demand properties with three bathrooms in regular simultaneous use, where pressure — not just flow — is the complaint. It’s the largest model in the range. For two or three showers the ATX-300 4.5 will do, for two bathrooms the ATX-250 4.5, and for a single bathroom the ATX-200 4.5.
Why is the ATX more energy efficient than a storage tank booster?
A storage tank booster always runs at full output regardless of mains conditions. The ATX’s variable speed pump measures incoming pressure and produces only the shortfall — if your mains provides 2.5 bar, the pump adds 2. Over a year this makes a meaningful difference to running costs, particularly where mains pressure varies by time of day or season.
Why is a sealed system better for water hygiene?
An open break tank has an exposed water surface where airborne dust, debris and microorganisms can enter, and requires regular cleaning and inspection. The ATX has no open surface — the accumulator vessel is sealed and pressurised, operating as a closed circuit throughout with no point at which air contacts the stored water.
What maintenance does the ATX need?
None. There are no service intervals, no consumable parts, no filter changes and no annual engineer visits required. The anti-seize exercise function runs the pump automatically during inactivity. Dry run protection safeguards the pump if the mains supply is interrupted. The H2D app allows remote monitoring. The system looks after itself.
What happens if the pump needs replacing?
The unique ATX dock system allows the WB-Compact 4.5 to be removed and replaced in under 30 seconds using two clips — no draining, no tools, no plumber required. The full-bore bypass keeps your property on water throughout.
Is the ATX suitable for a combi-boiler or unvented cylinder property?
Yes. The ATX is designed for direct mains connection and is well suited to both combi-boiler homes and properties with unvented hot water cylinders — the 4.5 bar version particularly where the cylinder is on an upper floor. Installation should comply with Water Regulations and be carried out by a qualified plumber.
Are other sizes available?
Yes. The 4.5 bar range comes in four sizes — the ATX-200 4.5 for a single bathroom, the ATX-250 4.5 for two bathrooms, the ATX-300 4.5 for two or three showers running together, and the ATX-450 4.5. At 3.2 bar, the standard ATX range runs from the ATX-150 to the ATX-450.
-
