Stuart Turner Control Module 41011
- Established 1975
- Trusted by thousands of customers

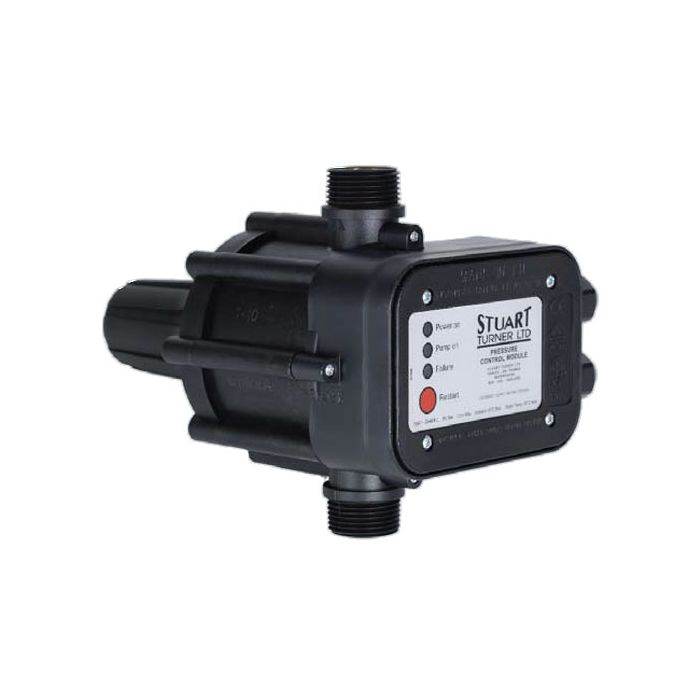

Stuart Turner Control Module 41011
The Stuart Turner 1.5 Bar control module is designed to automatically start and stop the pump on demand, and protect it should the water supply fail.
More about this product
Overview
The Stuart Turner 1.5 Bar control module is designed to automatically start and stop the pump on demand, and protect it should the water supply fail. Complete with built in non return valve the units logic control senses either a pressure drop, or minimum flow of 1 lpm to automatically start the pump when ever the pressure is released. Should the supply become restricted or run-out then the control module will sense this and stop the pump to avoid damage. Each mode of operation is indicated on the control panel.
This control module has a 1.5 bar cut in pressure and comes with a Non-Return Valve.
Key features
- Automatically controls the pump
- Protects pump from running dry
- LED indication of function
- Easy to install
Specification
| Product | Stuart Turner Control Module 41011 |
|---|---|
| Supply | 230 V |
| Max. flow | 1 l/min |
| Max. pressure | 10 bar |
| Protection | IP65 |
-
data sheet PDFDownload
-
Dimensions PDFDownload
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
Frequently Asked Questions
Quick answers to common questions about the Stuart Turner Control Module 41011. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.
What is a pressure vessel used for in a pumping system?
A pressure vessel stores water under pressure, helping maintain supply and reduce unnecessary pump starts.
What is the difference between an accumulator and an expansion vessel?
Accumulators provide pressurised water storage, while expansion vessels accommodate volume changes caused by temperature; product suitability depends on system design.
How do I choose a pressure vessel?
Consider intended use, capacity, maximum working pressure, pre-charge requirements, installation orientation and potable-water suitability.
What types of Stuart Turner pumps are available?
Stuart Turner offers products for shower boosting, domestic water pressure improvement and mains water boosting systems.
Are Stuart Turner pumps suitable for low water pressure?
Selected Stuart Turner products are designed to improve pressure or flow, but the correct model depends on the supply arrangement.
How do I select a Stuart Turner replacement pump?
Match the existing model, system type, positive or negative head requirements, voltage and required performance.
