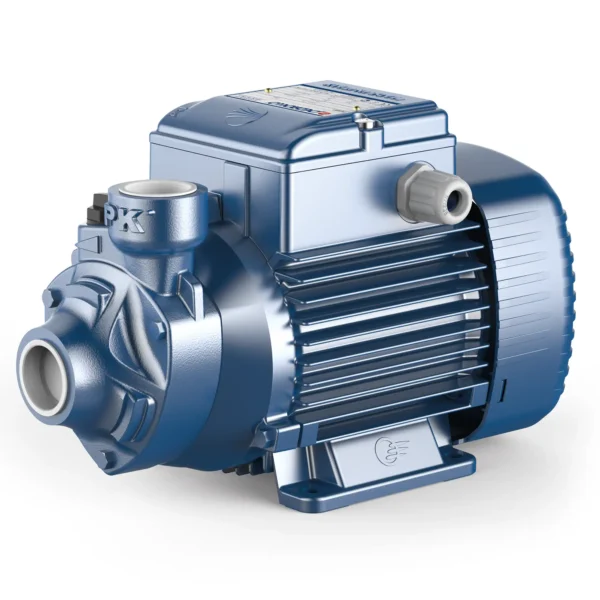

Pedrollo PKm 300 Peripheral Pump Single Phase – 2100090
- Established 1975
- Trusted by thousands of customers
The Pedrollo PKm 300 is a peripheral impeller pump. It has a 2.2 kW (3 HP) motor on a 230 V single-phase supply. It delivers up to 90 l/min and 100 m head.
It suits gardens and orchards, working with small autoclave tanks. The cast iron body has ISO 228/1 threaded ports.
More about this product
Product overview
The Pedrollo PKm 300 is a peripheral impeller pump with a 2.2 kW (3 HP) motor. It runs on a 230 V single-phase supply. It covers 5 to 90 l/min, with a working head of 95 m down to 10 m.
Pedrollo design the PK to transfer clean water free from abrasive particles. It is reliable, easy to use and cost-effective. It suits domestic use in gardens and orchards, with small autoclave tanks.
Key features
Typical applications
Technical specifications
| Brand / Series | Pedrollo — PK |
| Model | PKm 300 |
| Pedrollo code | 2100090 |
| Supply | 230 V single-phase |
| Motor power (P2) | 2.2 kW / 3 HP |
| Motor | 230 V single-phase IE2 motor with thermal protection in the winding |
| Flow range | 5–90 l/min |
| Head range | 95–10 m |
| Current | 12.0 A at 230 V |
| Maximum head | 100 m |
| Pump body | Cast iron with ISO 228/1 threaded ports |
| Motor bracket | Aluminium with brass cover and anti-locking function |
| Impeller | Brass, radial peripheral vane |
| Mechanical seal | FN-14, Ø 14 mm, graphite / ceramic / NBR |
| Motor shaft | AISI 431 stainless steel |
| Ports | 1″ suction, 1″ delivery |
| Suction lift | Manometric suction head up to 8 m |
| Liquid temperature | −10 °C to +60 °C |
| Ambient temperature | Up to +40 °C |
| Maximum working pressure | 10 bar |
| Insulation / protection | Class F / IP X4, continuous duty S1 |
| Liquid | Clean water free from abrasive particles |
| Weight | 18.9 kg |
| Available on request | Mechanical seal options; IP X5 protection; other voltages and 60 Hz |
PK range
| Model | Code | Supply | Power | Flow | Head |
|---|---|---|---|---|---|
| PKm 65 | 2100030 | Single Phase | 0.55 kW / 0.75 HP | 5–50 l/min | 50–8 m |
| PKm 80 | 2100050 | Single Phase | 0.75 kW / 1 HP | 5–50 l/min | 66–22 m |
| PKm 90 | 2100060 | Single Phase | 0.75 kW / 1 HP | 5–40 l/min | 82–5 m |
| PKm 100 | 2100070 | Single Phase | 1.1 kW / 1.5 HP | 5–70 l/min | 80–15 m |
| PKm 200 | 2100080 | Single Phase | 1.5 kW / 2 HP | 5–80 l/min | 86–10 m |
| PKm 300 | 2100090 | Single Phase | 2.2 kW / 3 HP | 5–90 l/min | 95–10 m |
| PK 65 | 2100120 | Three Phase | 0.55 kW / 0.75 HP | 5–50 l/min | 50–8 m |
| PK 80 | 2100140 | Three Phase | 0.75 kW / 1 HP | 5–50 l/min | 66–22 m |
| PK 90 | 2100150 | Three Phase | 0.75 kW / 1 HP | 5–40 l/min | 82–5 m |
| PK 100 | 2100160 | Three Phase | 1.1 kW / 1.5 HP | 5–70 l/min | 80–15 m |
| PK 200 | 2100170 | Three Phase | 1.5 kW / 2 HP | 5–80 l/min | 86–10 m |
| PK 300 | 2100180 | Three Phase | 2.2 kW / 3 HP | 5–90 l/min | 95–10 m |
Head shown as the working range from minimum to maximum flow. Performance to Pedrollo 50 Hz data.
Frequently asked questions
How high can it pump?
Up to 100 m head at zero flow.
Can it lift water from below?
Manometric suction head is up to 8 m.
What is the maximum working pressure?
10 bar.
-
